PRODUCT DESCRIPTION

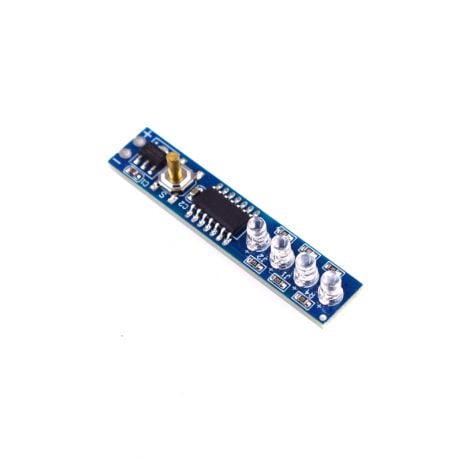

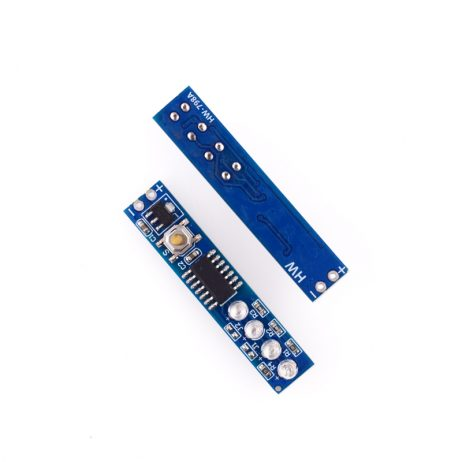

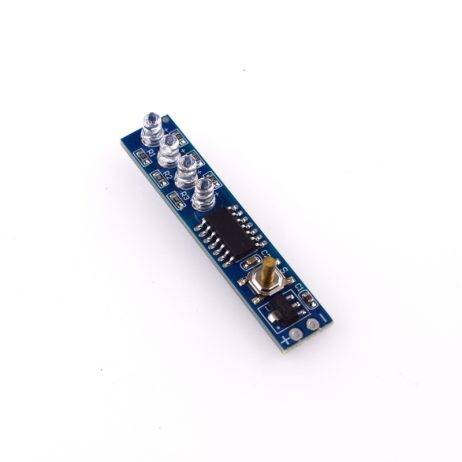

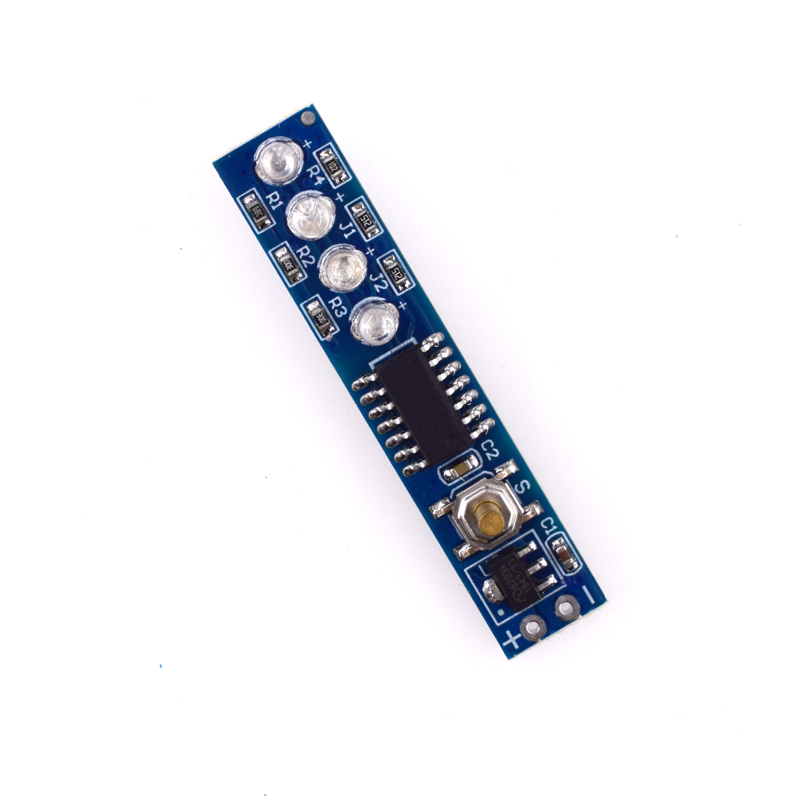

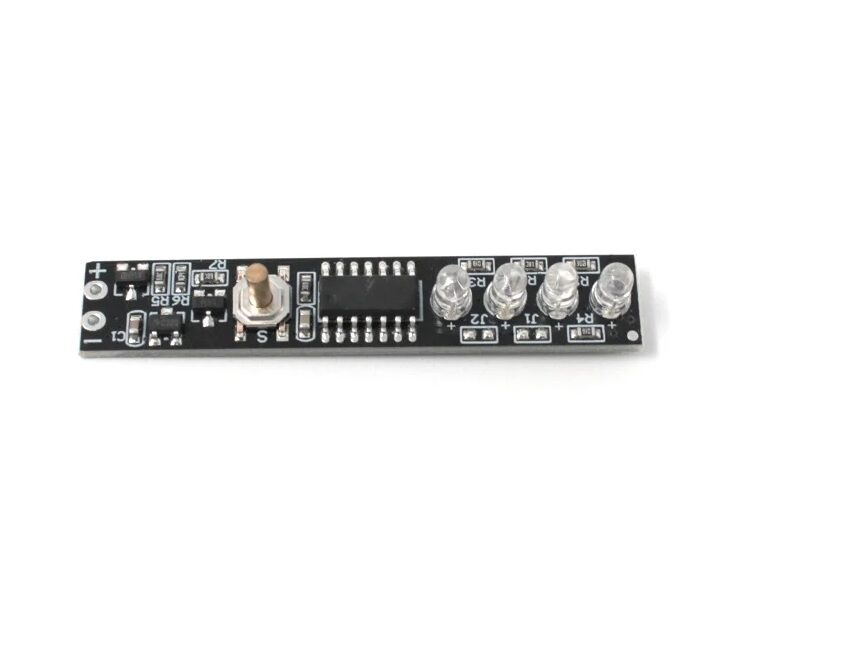

The 2S 18650 Lithium Battery Capacity Indicator Module with LED is an intelligent display board for electricity quantity. A gentle push on the trigger switch activates the display, which automatically powers off after three seconds.
LED Indication:
- 25% –>First Light is on (Voltage: 2.1 V)
- 50% –>Second light is on (Voltage: 4.2 V)
- 75% –>Third light is on (Voltage: 6.3 V)
- 100% –>Fourth light is on (Voltage:8.4 V)
Features:
- The intelligent power display panel
- Static power consumption 2~3 mA, It’s negligible
- Power indication(The color of the lamp is green)
Specification:
| Product Type | 2S 18650 Lithium Battery |
|---|---|
| Power Consumption (mA) | 2~3 |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 5 × 1 × 1 cm |
Package Includes:
1 x 2S 18650 Lithium Battery Capacity Indicator Module Level Tester LED
Battery Capacity Testing: Build a Discharge Tester
Table of ContentsWhy Test Battery Capacity How Discharge Testing Works Components Needed Building the Discharge Tester Circuit Arduino...
Read More →
XL6009 Boost Converter: Adjustable Output Voltage Guide
XL6009 Boost Converter: Adjustable Output Voltage Guide The XL6009 boost converter module is one of the most popular...
Read More →
Fast Charging Explained: QC, PD, and VOOC Standards
Table of ContentsFast Charging Standards Overview Qualcomm Quick Charge (QC) USB Power Delivery (PD) VOOC and Proprietary Standards...
Read More →Technical Specifications
| Cell Configuration | 2S |
|---|---|
| SKU | AI3351 |
| Weight | 0.005915 kg |
| Availability | In Stock |
Applications & Use Cases
The 2S 18650 Lithium Battery Capacity Indicator Module Level Tester LED is a versatile lipo voltage checker used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
