6V Two Wire Digital Display Electric Quantity Meter

6V Two Wire Digital Display Electric Quantity Meter

Display Electricity Quantity Parameter: (note: N represents battery quantity)
1. When the battery voltage is over N*3.3V, it will illuminate 1 block electricity quantity
2. When the battery voltage is over N*3.5V, it will illuminate 2 blocks of electricity quantity
3. When the battery voltage is over N*3.7V, it will illuminate 3 blocks of electricity quantity
4. When the battery voltage is over N*3.9V, it will illuminate 4 blocks of electricity quantity
5. When the battery voltage is less than N*3.3V, 4 blocks display will be off; it represents the battery is less than 3.3V, and you can charge the battery

Features:

• Battery type electricity quantity display.
• Wide application fields: lithium battery.
• Using Method: connect display board positive and negative port with tested battery positive and negative port, the digital tube will display real-time battery electricity quantity.

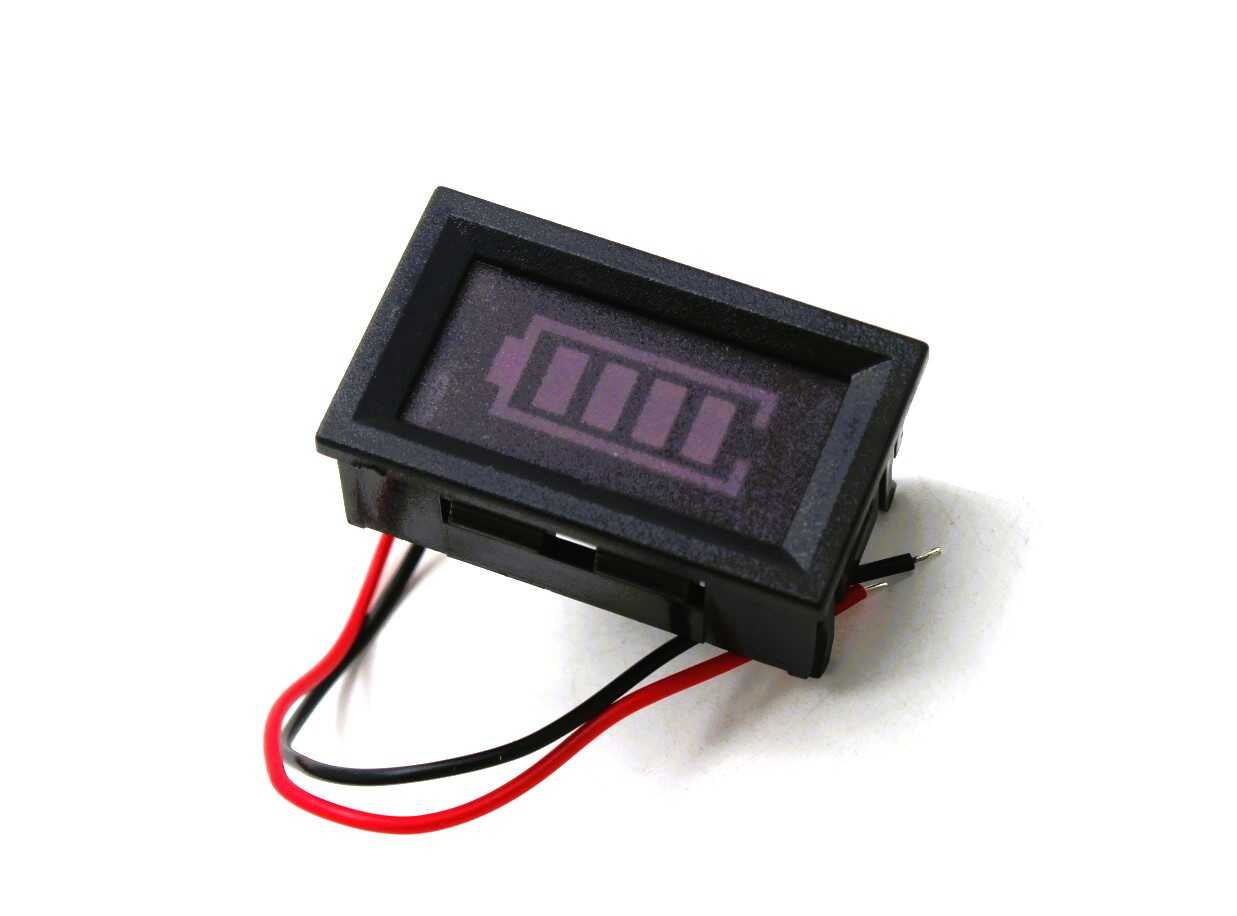

• Digital Color: outline red, display block blue (when battery electricity quantity is full, it will be all on).

Features/Specs:

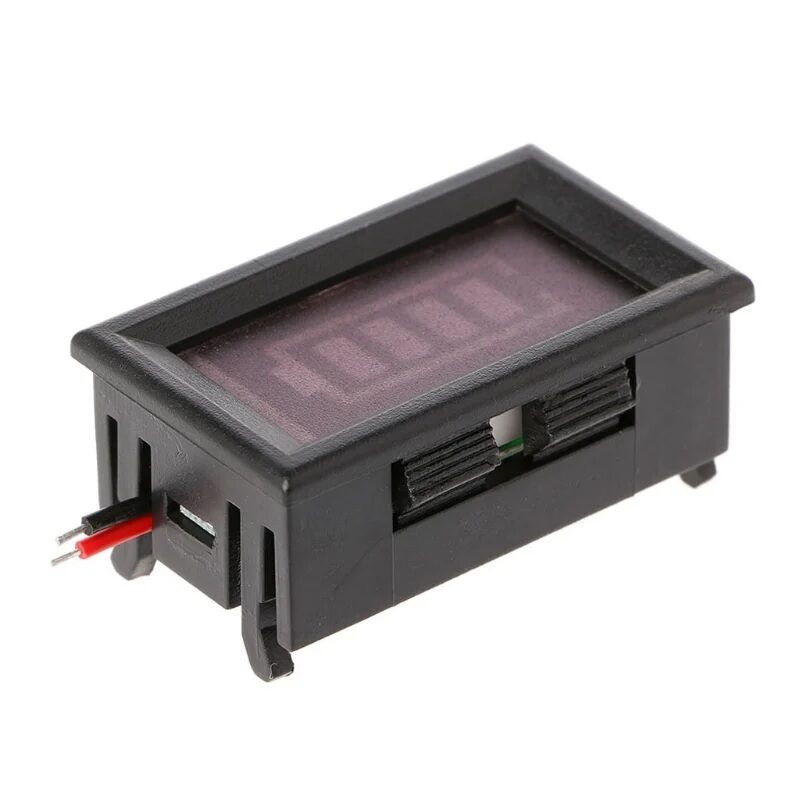

• Shell Color: Black
• Display Color: Outline: Red, Status block: Blue.
• Voltage Tolerance: ±1%
• 4 Levels of Power: 25%, 50%, 75%, 100% full
• Working temperature: -20℃ ~ 65℃
• Working current: 5-15 mA
• Refresh Speed: 300 mS once.

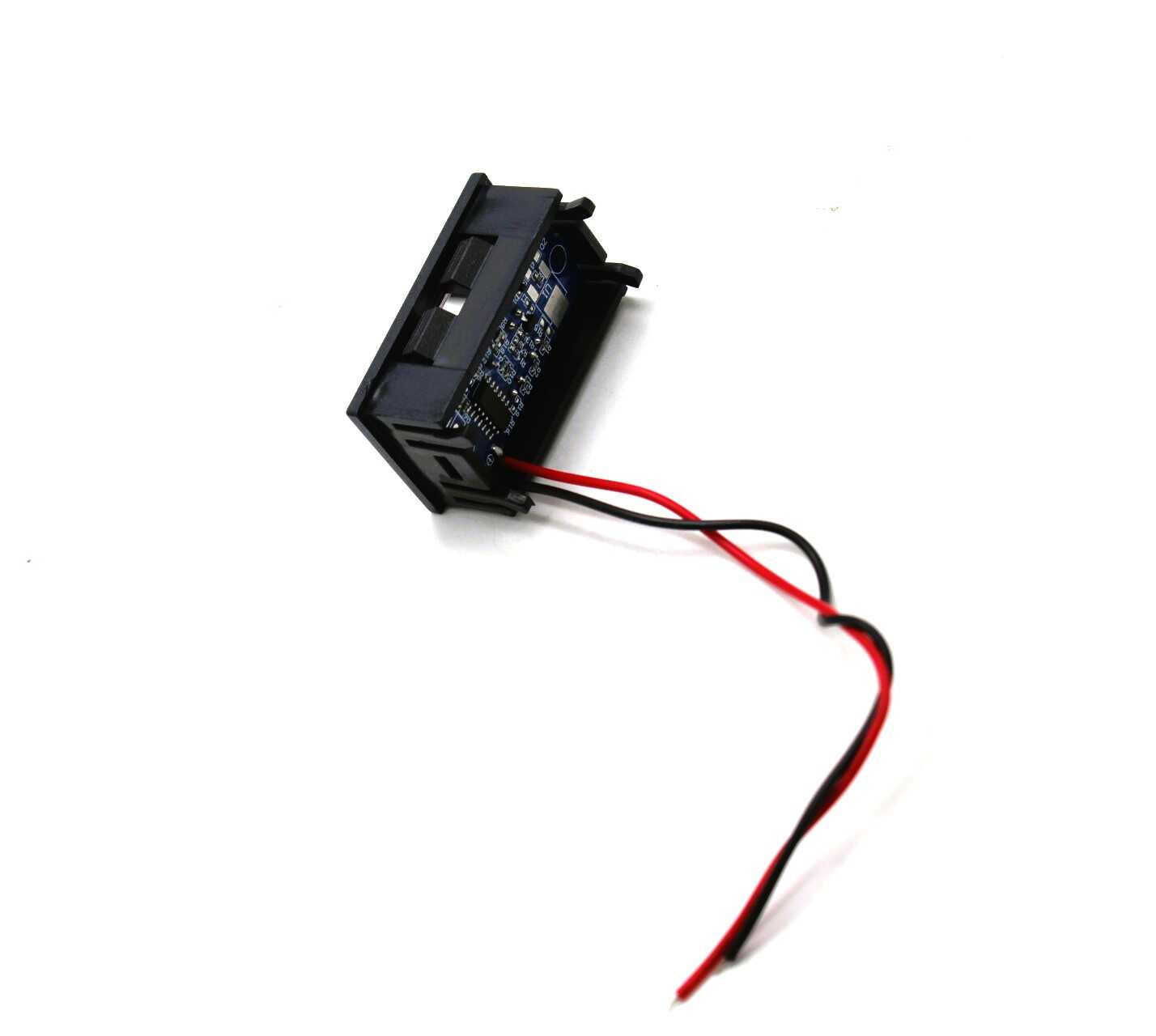

• Lead length: About 20 cm.

Package Includes:

1 x 6V Two Wire Digital Display Electric Quantity Meter
