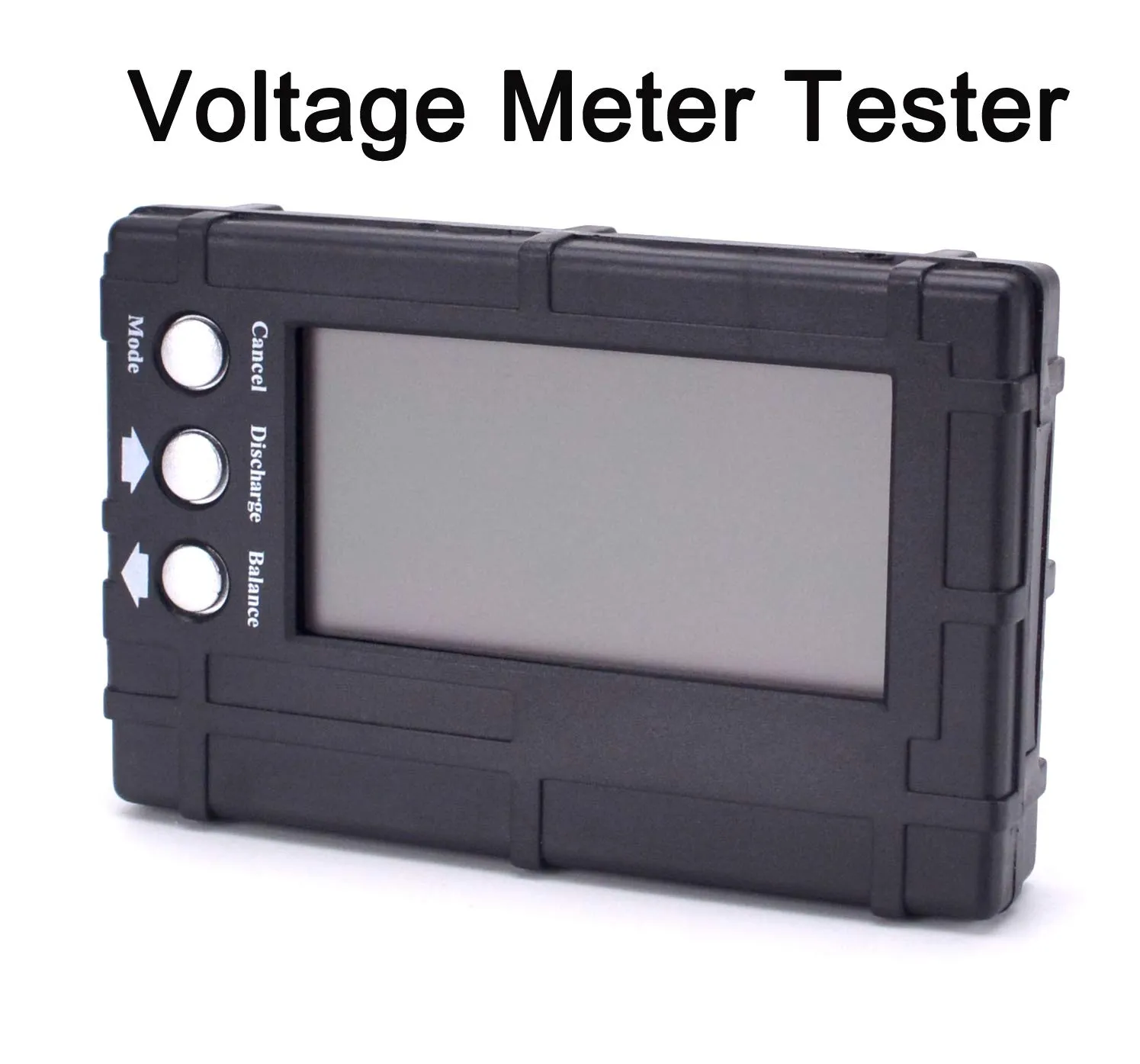

Product instruction

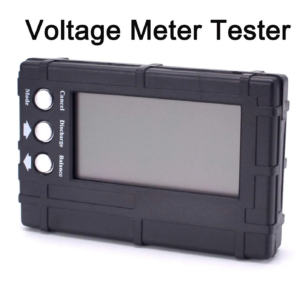

The Balancer/Discharger is designed for Li-Polymer and Li-Fe battery, it can measure battery voltage precisely and balance cell voltage in battery pack or discharging battery for long time storage.
The balance function can be executed before/after battery charged. It also can be done during battery charging process. It makes sure battery pack Keeping in excellent condition

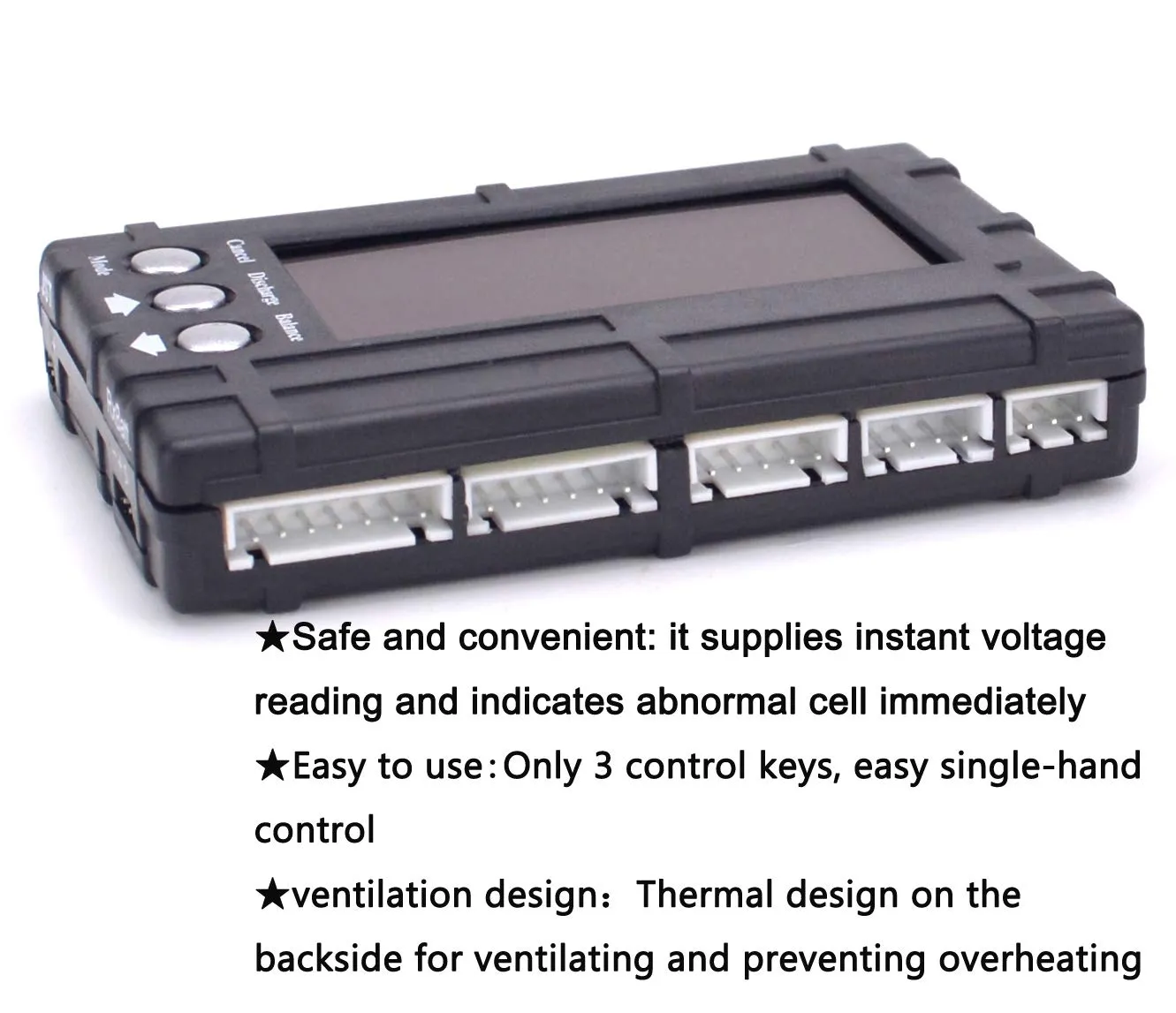

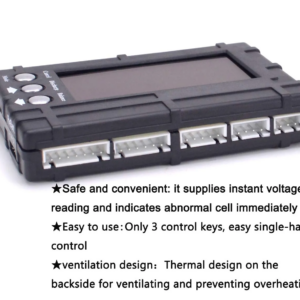

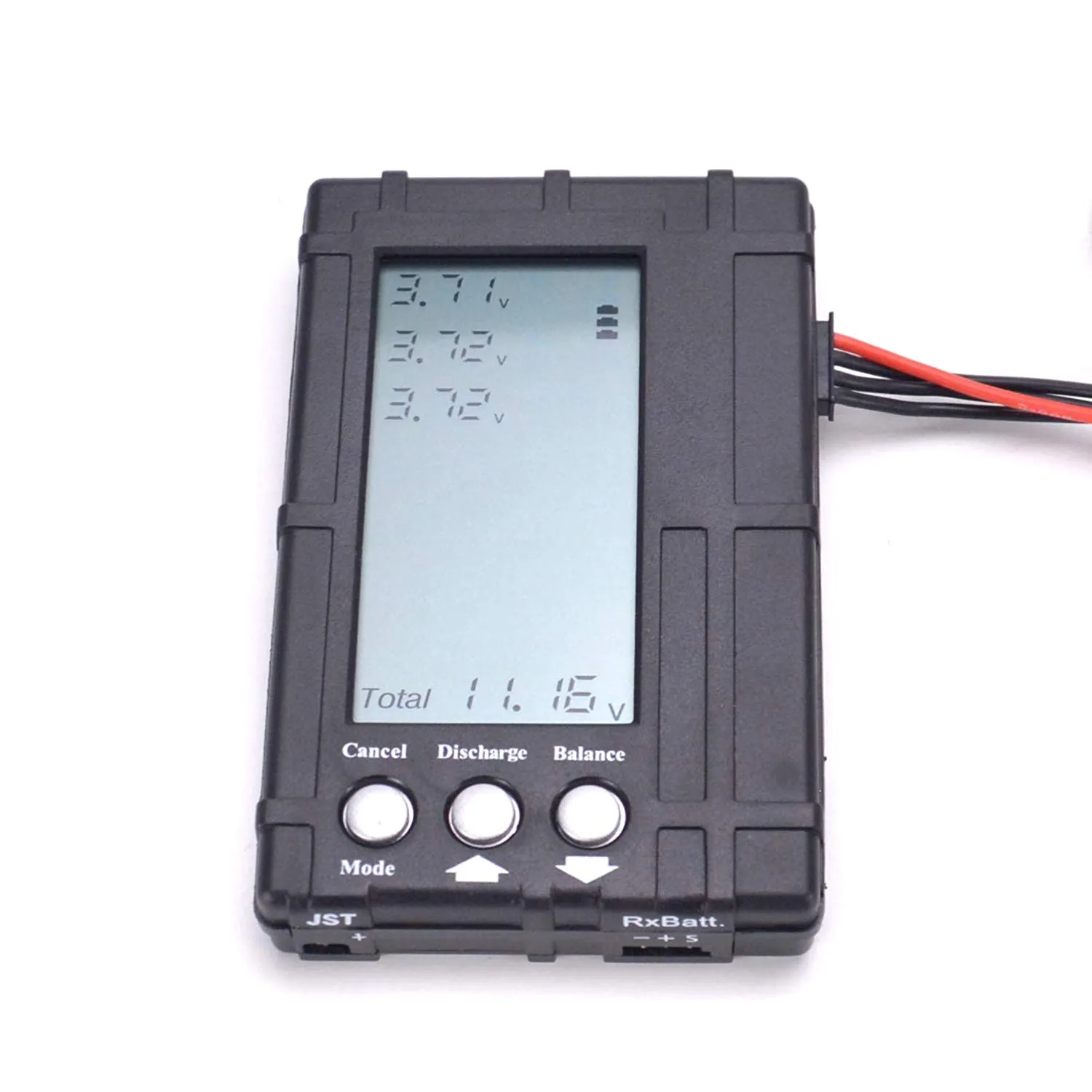

User could observe all cell voltage in whole battery pack at once. It helps user to find out which cell is abnormal during charging or discharging process.
Balancer/Discharge voltage setting method:

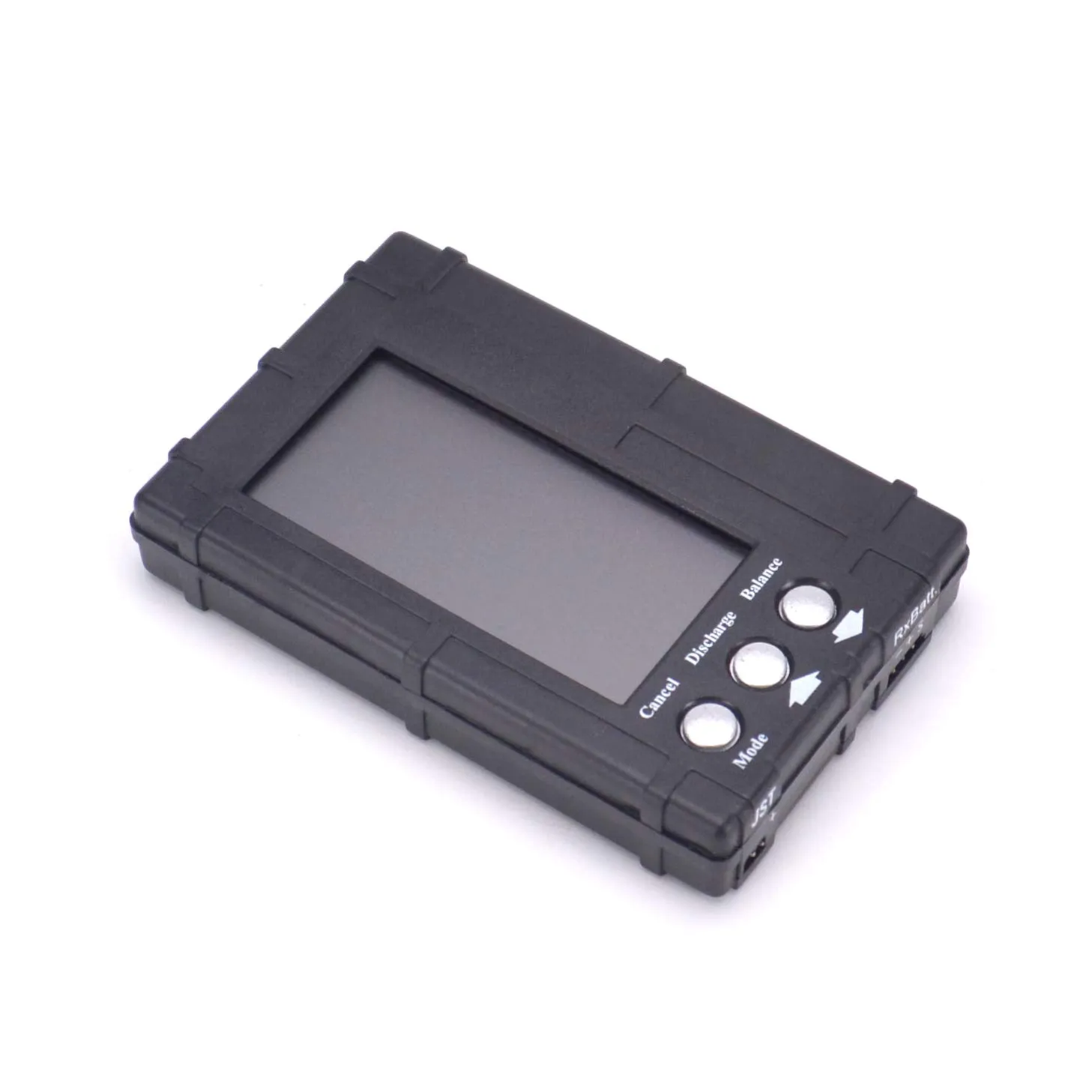

1. Under standard mode, Push Mode key to start setting mode
2. First setting balance the lowest permitted voltage, battery must above the voltage, so it cen execute balance function.
Push or key, it can change voltage setting, after setting then push Mode key into discharge voltage setting (pre-setting value 3.3V, it just only fit for general Li-Polymer battery, about Li-Fe battery please inquiry battery supplier!)
3. While discharging the permitted lowest voltage
generally, be settled to battery stored voltage, the voltage value, please inquiry battery supplier, Pre- setting is 22.20 V (it only fit for general Li-Polymer battery, about Li-Fe battery please inquiry battery supplier)
Push or key, it can change voltage setting. after setting push Mode key and return standard mode
4. Return to standard mode

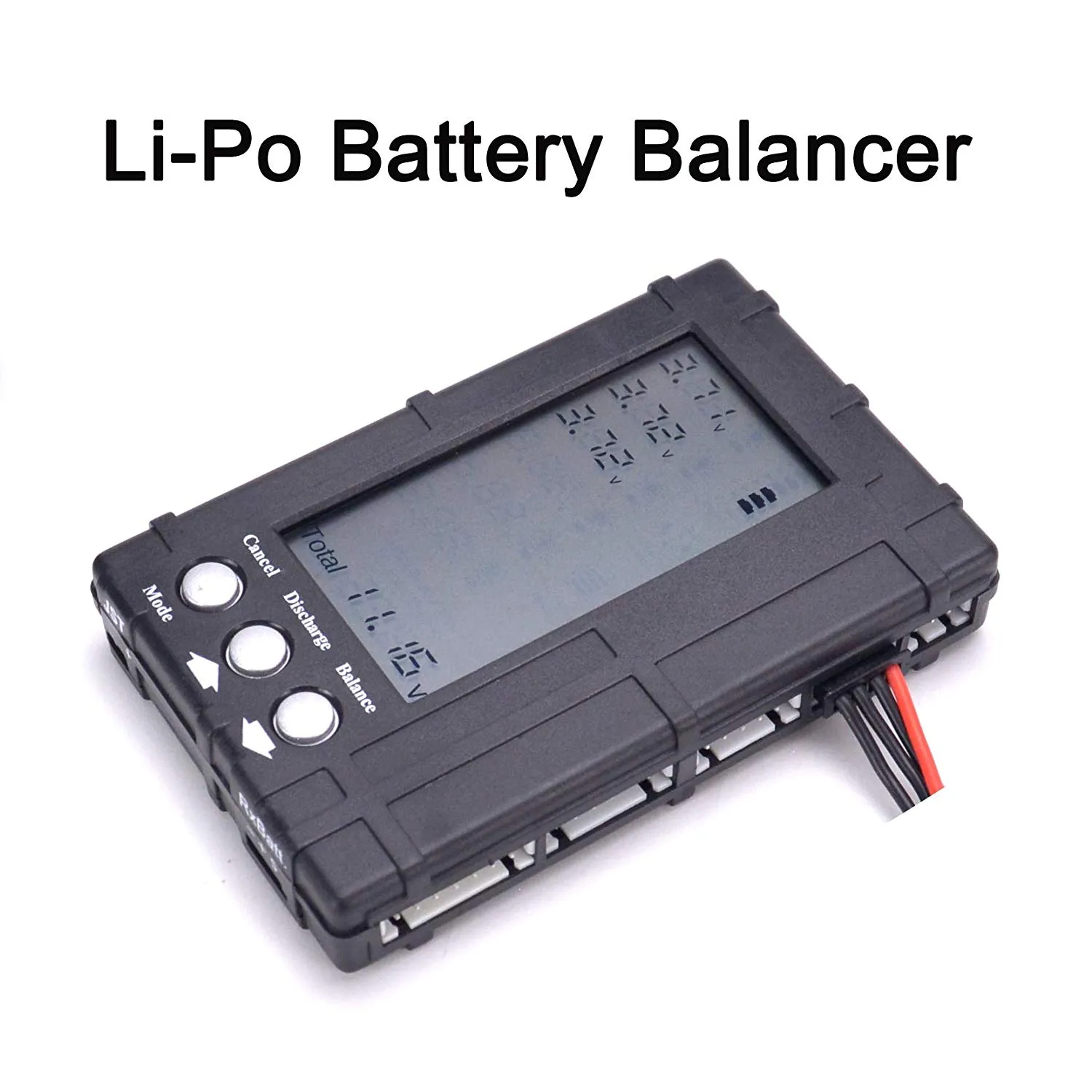

How start to balance battery?
1. Push Balance key.
2. Balancer will take the present lowest voltage battery as a benchmark, start to balance action to battery cell
Tey will show flash signal when battery cell working.
3. After balancing symbol will disappear. then you can push Cancel key to quit balance mode.
P. S. In balancing, you can push Cancel key anytime to break and back and to standard mode.
4. Return to standard mode

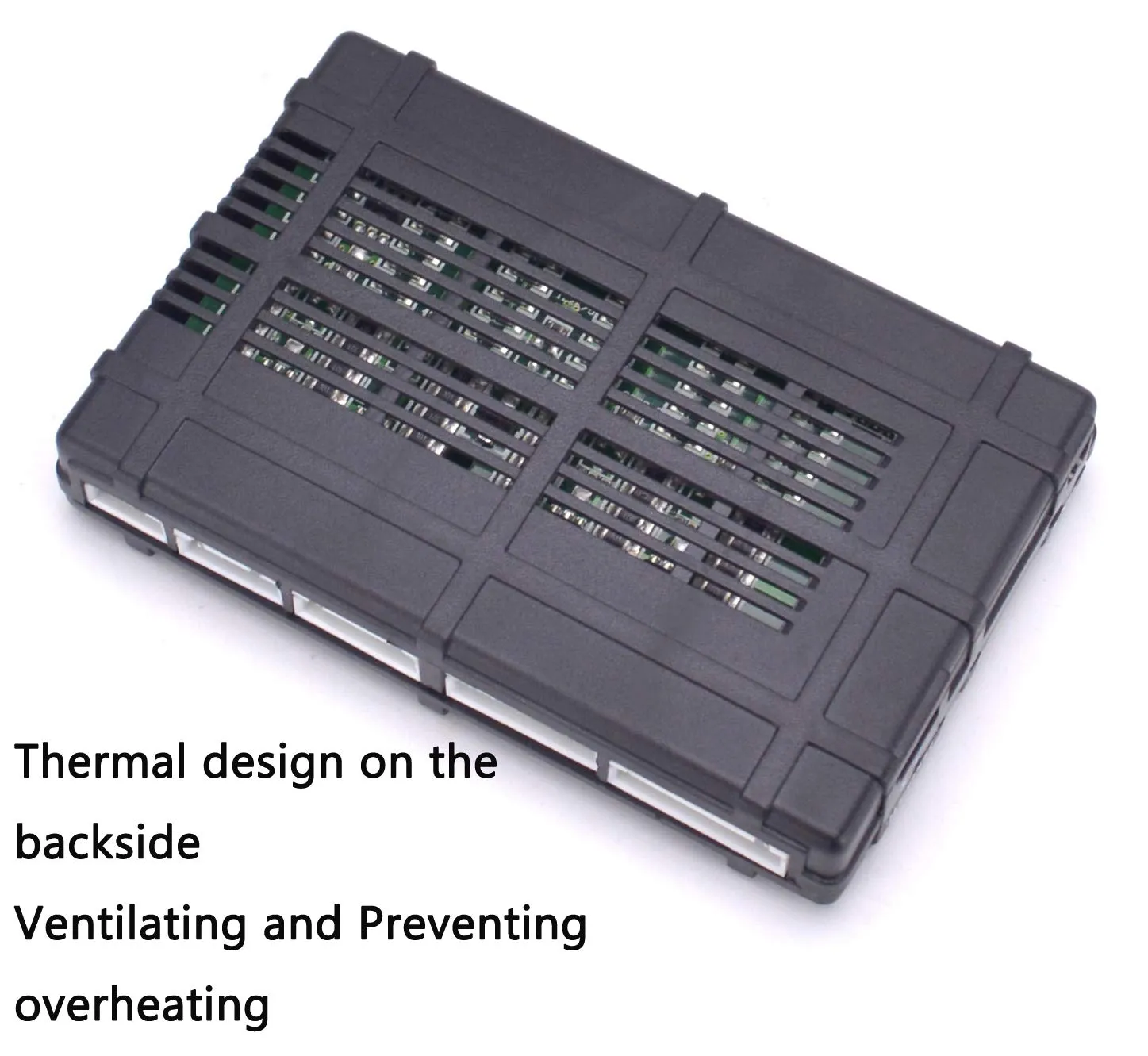

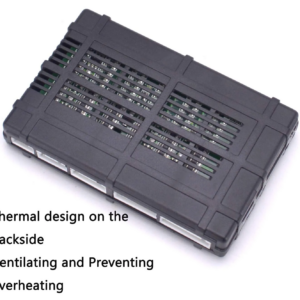

Specification:
1. Outline dimension: 93.5x 60 x 17 mm
2.Measurable battery type and amount:
Li- Polymer/Li-Fe 2-6 cell
(standard voltage 7.4V-25.2V using divided voltage connector)
Receiver battery 1.2V – 8.5V DC

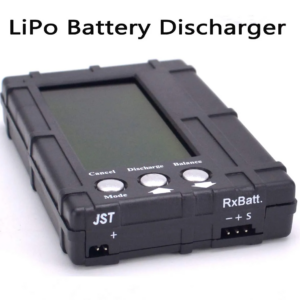

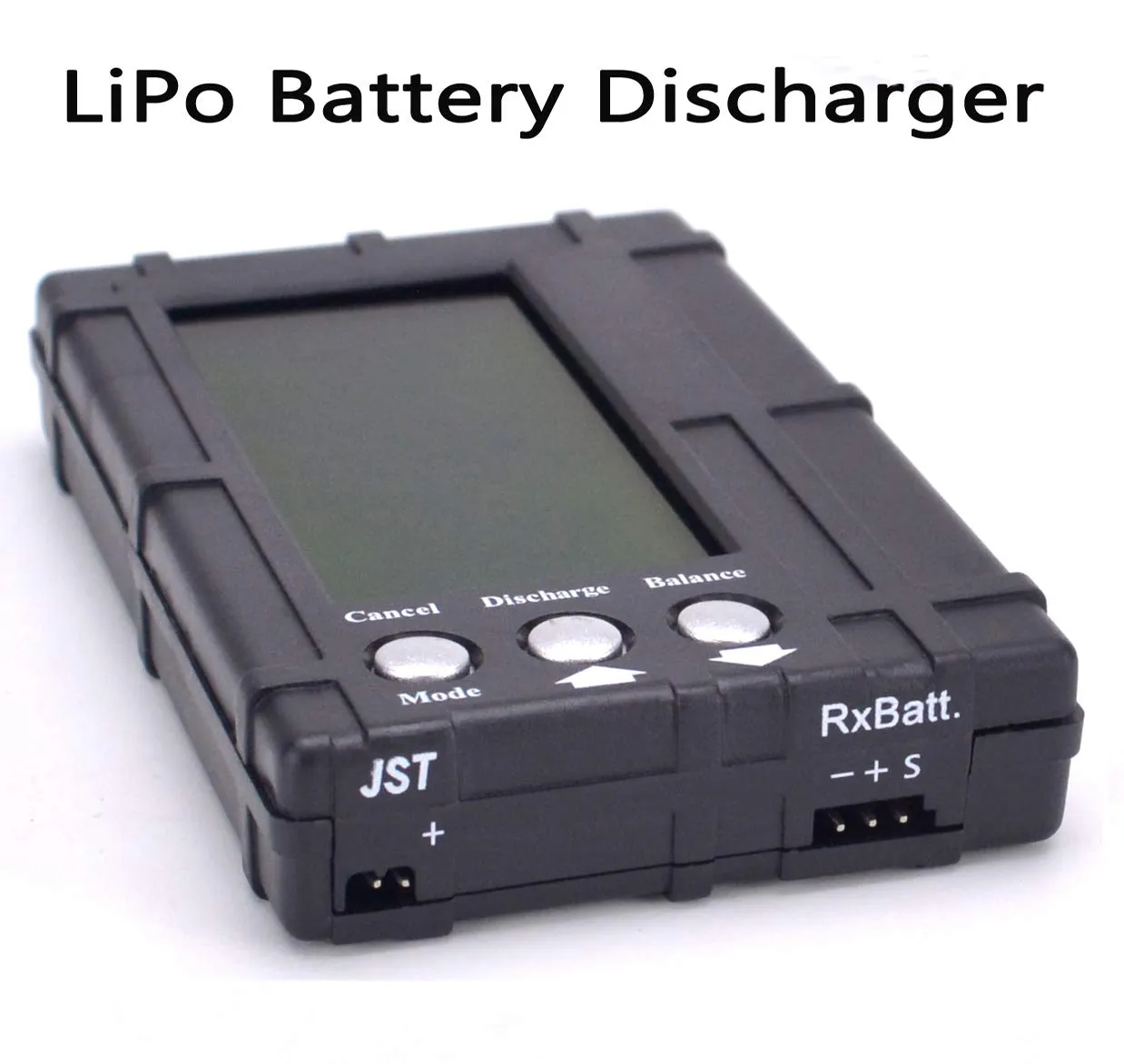

(Not limit battery type, but need external power 7.4- 25.2V, use JST connector)
3.Balance voltage setting range (lower limit):
2.0V-3.9V (pre-setting value 3.2 V)
4.Discharge voltage setting range (lower limit).
3.0V-4.2V (pre-setting value 3.9V)
Package Include:
1 x 3 in 1 Voltage Meter Tester
