PRODUCT DESCRIPTION

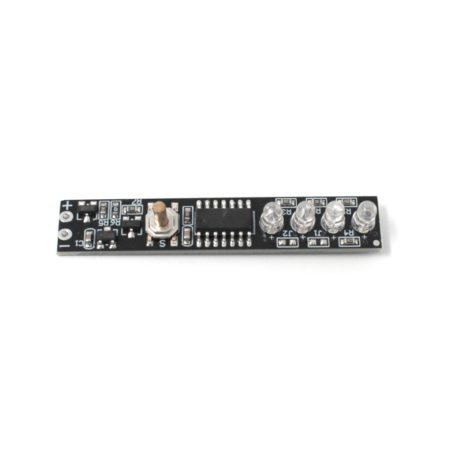

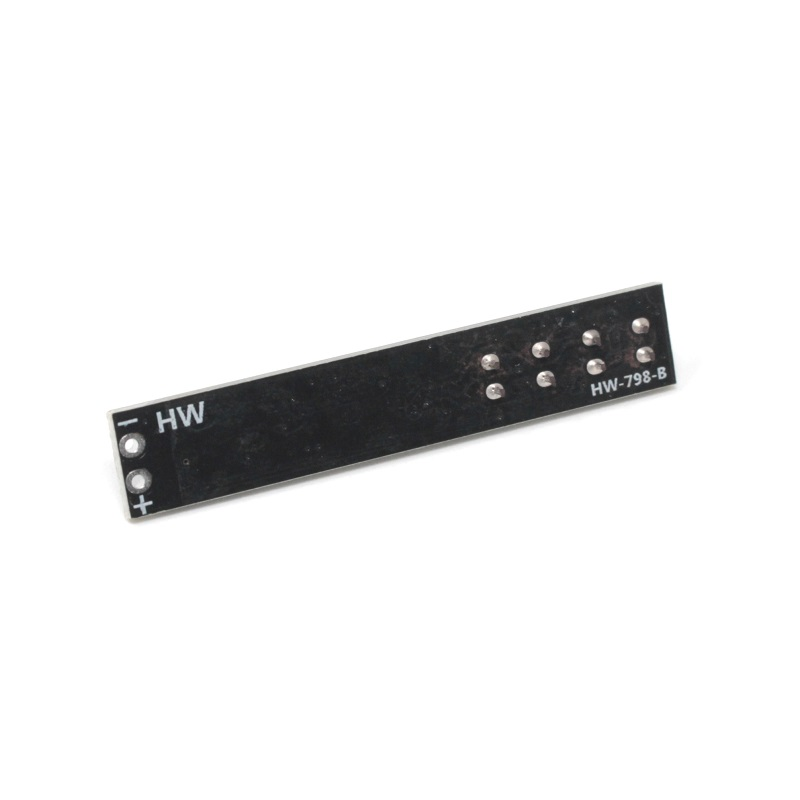

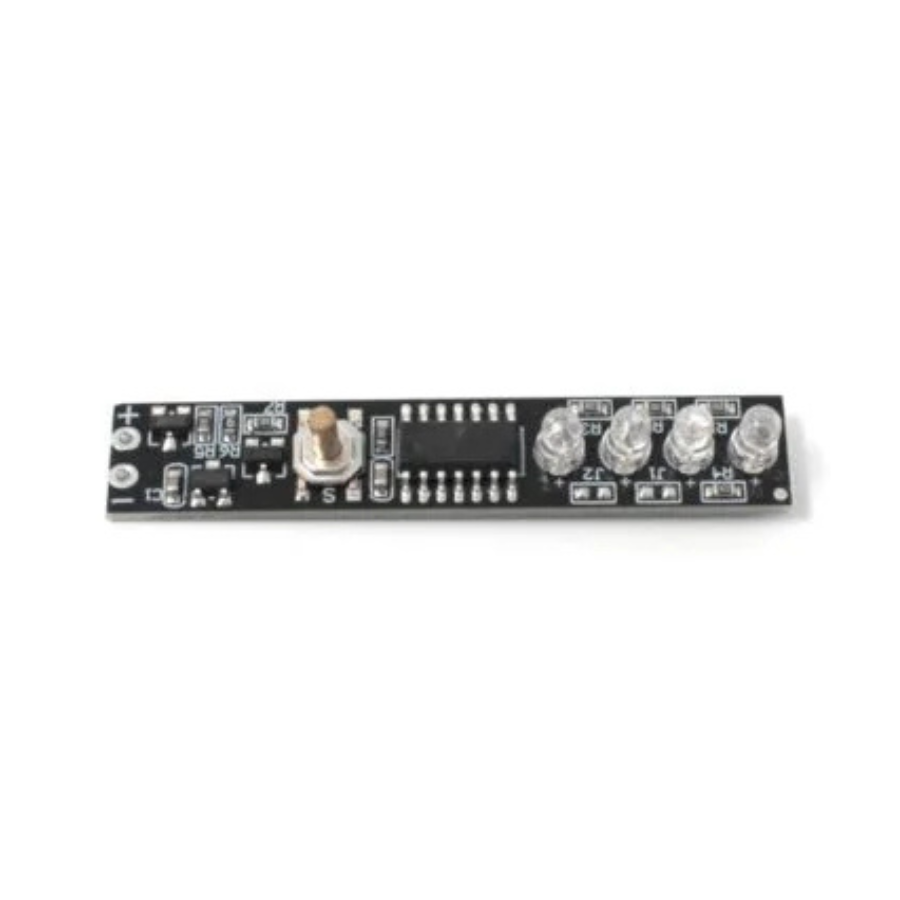

The 1S 18650 Lithium Battery Capacity Indicator Module with LED is a smart display board designed to monitor battery charge levels. A gentle press of the trigger switch activates the module, and it automatically powers off after a 3-second display, making it both convenient and energy-efficient.
LED Indication:
- 25% –>First Light is on (Voltage: 1 V)
- 50% –>Second light is on (Voltage: 2.1 V)
- 75% –>Third light is on (Voltage: 3.1 V)
- 100% –>Fourth light is on (Voltage:4.2V)
Features:
- The intelligent power display panel
- Static power consumption 2~3 mA, It’s negligible
- Power indication(The color of the lamp is green)
Specification:
| Model | 1S 18650 |
|---|---|
| Power Consumption (mA) | 2~3 |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 5 × 1 × 1 cm |
Package Includes:
1 x 1S 18650 Lithium Battery Capacity Indicator Module Level Tester LED
9V Battery Eliminator: AC Adapter for Projects
Table of ContentsWhat Is a Battery Eliminator AC to 9V DC Conversion Using a Buck Converter as Eliminator...
Read More →
LM2596 vs XL4016: Step-Down Buck Converter Comparison
Table of Contents Introduction: Why Buck Converters Matter How Step-Down Buck Converters Work LM2596: Specifications and Strengths XL4016:...
Read More →
TP4056 Lithium Charger Module: Complete Wiring & Safety Guide
The TP4056 charging module wiring is one of the most searched topics among Indian electronics hobbyists — and...
Read More →Technical Specifications
| Cell Configuration | 1S |
|---|---|
| SKU | AI3350 |
| Weight | 0.05 kg |
| Availability | In Stock |
Applications & Use Cases
The 1S 18650 Lithium Battery Capacity Indicator Module Level Tester LED is a versatile lipo voltage checker used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
