This is the 380V variant of the 24-380V SSR-75VA Solid State Voltage Regulator in Solid State Relays, Relays. Available at Original price was: ₹512.12.₹466.10Current price is: ₹466.10. (₹395.00 + GST) with free shipping across India.
Looking for Ssr-75va Regulator? 24-380V SSR-75VA Solid State Voltage Regulator is available at Zbotic with fast shipping across India.

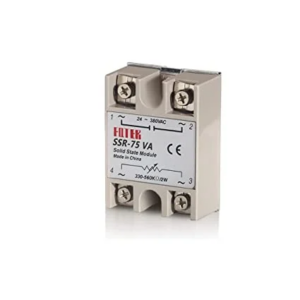

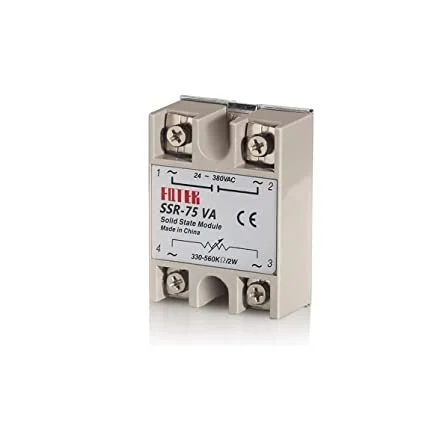

Ssr-75va Regulator – 24-380V SSR-75VA Solid State Voltage Regulator
The SSR-75VA Solid State Relay Module is an electronic switch designed for controlling AC voltage without any moving parts, making it highly reliable and durable. It features a trigger resistance range of 470-560KΩ, allowing for precise control over the switching of voltage. This relay module utilizes a photo-coupled design, where a low-voltage control signal activates an LED, which in turn triggers a photo-sensitive diode to switch the load. The switching voltage range is from 24VAC to 380VAC, making it versatile for various applications.
Features:
- Long service life and high reliability: The absence of moving parts contributes to the reliability and longevity of the relay module.
- Reduced electromagnetic interference: The solid-state design minimizes electromagnetic interference, ensuring stable performance.
- Compact size: The relay module is designed to be compact, making it suitable for installations with limited space.
- Terminal protection: Equipped with a plastic cover to protect the terminals, enhancing safety during operation.
Specifications:
- Dielectric Strength: Withstands over 2.5kVA for 1 minute
- Trigger Resistance: Adjustable within the range of 470-560KΩ
- Switching Voltage (VAC): From 24VAC to 380VAC
- Operating Temperature Range: -20°C to 85°C
- Material: Constructed from ABS plastic
- Dimensions: 45.5mm (Length) x 62.5mm (Width) x 24mm (Height)
- VA: Designed for resistive voltage regulation applications.
Overall, the SSR-75VA Solid State Relay Module offers high performance, reliability, and versatility, making it suitable for a wide range of industrial and commercial applications requiring precise control of AC voltage.
Specifications:
| Specification | Value |
|---|---|
| Dielectric Strength | Over 2.5kVA for 1 minute |
| Trigger Resistance | Adjustable: 470-560KΩ |
| Switching Voltage (VAC) | 24VAC to 380VAC |
| Operating Temperature | -20°C to 85°C |
| Material | ABS Plastic |
| Dimensions | 45.5mm (L) x 62.5mm (W) x 24mm (H) |
| Application | Resistive voltage regulation |
Package Includes:-
1x 24-380V SSR-75VA Solid State Voltage Regulator
24-380V SSR-75VA Solid State Voltage Regulator Overview
The 24-380V SSR-75VA Solid State Voltage Regulator is an AC switching module rated for up to 75 VA load capacity. It uses a photo-coupled design to isolate control and load circuits, enabling precise voltage regulation across a 24 VAC to 380 VAC range.
Key Features of 24-380V SSR-75VA Solid State Voltage Regulator
- Switching Voltage Range: 24 VAC to 380 VAC for versatile AC control
- Trigger Resistance: Adjustable between 470 KΩ and 560 KΩ for fine-tuning sensitivity
- Dielectric Strength: Over 2.5 kVAC isolation for 1 minute ensures safety
- Operating Temperature: -20 °C to 85 °C for reliable performance in varied environments
- Solid State Design: No moving parts for long service life and high durability
- Fast Shipping from Zbotic: Dispatched within 24 hours with full tracking
Applications and Use Cases
- AC heater temperature control in industrial ovens and kilns
- Motor speed regulation for small pumps and fans
- Dimming control for stage and architectural lighting systems
- Power management in laboratory test setups
- Automation PLC output for conveyor belts and packaging machines
- Voltage regulation in audio and broadcast equipment
How to Use 24-380V SSR-75VA Solid State Voltage Regulator
Mount the SSR module on a suitable heatsink or panel, wire the AC load to the output terminals, and apply the low-voltage control signal to the LED input. Adjust the trigger resistor within the 470–560 KΩ range if necessary to achieve the desired switching threshold, then power the control circuit to drive your AC load.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage range can the SSR-75VA handle?
This regulator switches AC voltages from 24 VAC up to 380 VAC and supports loads up to its 75 VA rating.
How do I adjust the trigger sensitivity?
Use the built-in adjustable resistor network (470 KΩ–560 KΩ) to set the exact LED trigger current, refining the switching response.
What is the isolation rating of this regulator?
The SSR-75VA offers dielectric strength above 2.5 kVAC for one minute, ensuring robust isolation between control and load sides.
