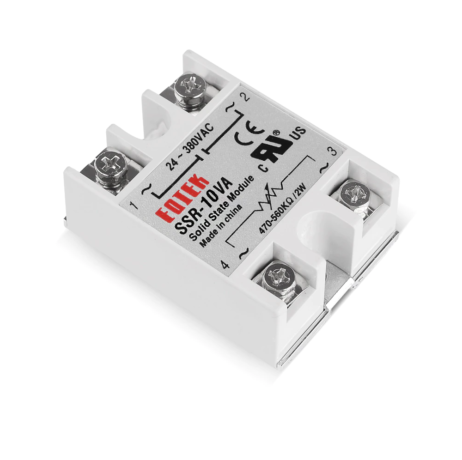

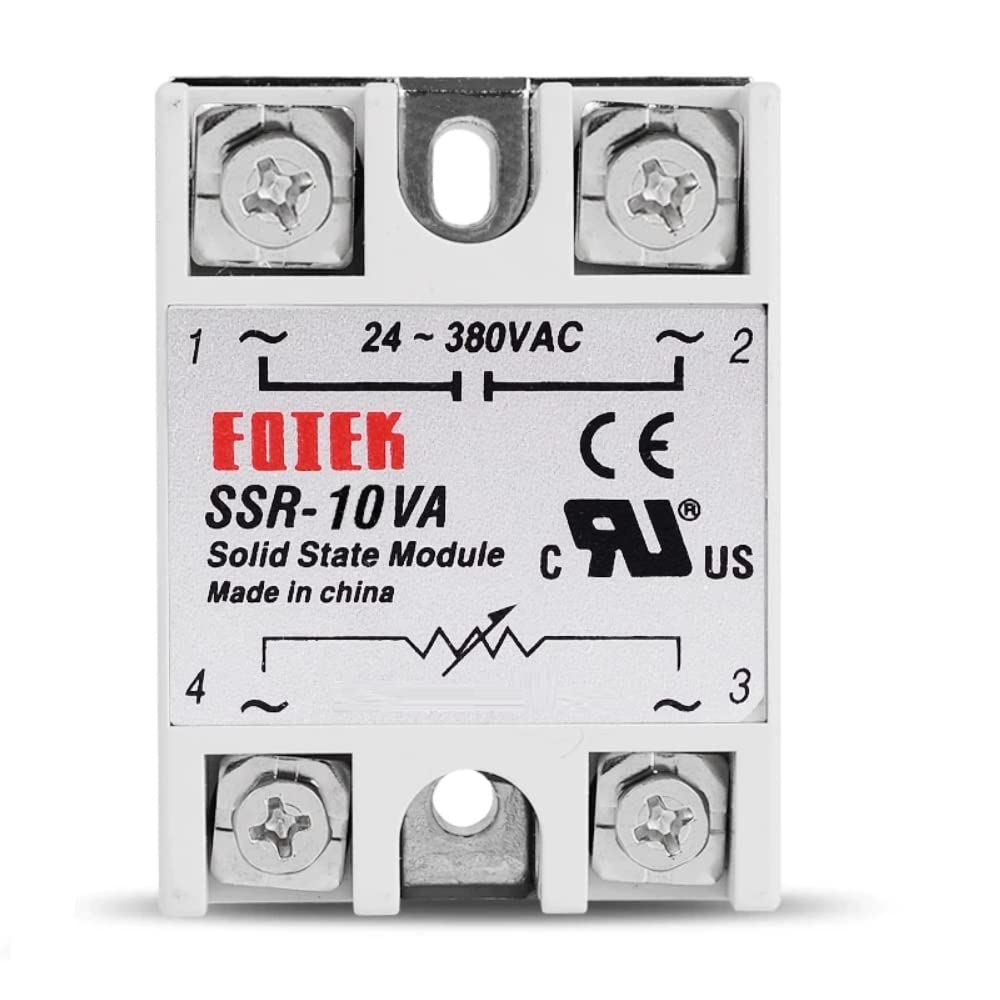

24-380V SSR-10VA Solid State Voltage Regulator
The SSR-10VA Solid State Relay Module 500Ω/24-380VAC 100VA is an advanced electronic switch devoid of any moving parts, unlike conventional electromechanical relays. It operates through various types of SSR technology, including photo-coupled SSR, transformer-coupled SSR, and hybrid SSR.
In the case of a photo-coupled SSR like this one, a low-voltage control signal, isolated optically from the load, triggers an LED, initiating a photo-sensitive diode. This diode activates a back-to-back thyristor, silicon-controlled rectifier, or MOSFET transistor, effectively switching the load.
Notably, this SSR incorporates a variable resistor of 500KΩ to control the power output via the trigger angle of the triac. Each relay module is furnished with four screw terminals suitable for ring or fork connectors, along with a protective plastic cover that slides over the relay, safeguarding the terminals from damage.
Features:
- Long service life and high reliability
- Reduced electromagnetic interference.
- Highly reliable, compact size designed to offer users maximum simplicity.
Specification:
Product: Voltage Regulator
Dielectric Strength: Over 2.5kVA / 1 min
Trigger resistance: 470-560KΩ
Switching Voltage (VAC):24-380
Operating Temperature Range (C):-20 to 85
Package Includes:
1 x 24-380V SSR-10VA Solid State Voltage Regulator Relay
24-380V SSR-10VA Solid State Voltage Regulator Overview
The 24-380V SSR-10VA Solid State Voltage Regulator is a rugged electronic switch designed for AC load control between 24 and 380VAC. It uses optical isolation and thyristor technology to provide fast, silent switching without moving parts, making it ideal for industrial panels and automation systems.
Key Features of 24-380V SSR-10VA Solid State Voltage Regulator
- Wide switching voltage range: 24–380VAC for versatile AC load applications
- High dielectric strength: Over 2.5kVA for 1 minute ensures robust isolation
- Trigger resistance of 470–560KΩ for reliable opto-coupled LED activation
- Solid state design delivers silent, bounce-free operation with no mechanical wear
- Operating temperature from -20°C to 85°C for stable performance in harsh environments
- Fast shipping across India from Zbotic, ensuring quick delivery to your doorstep
Applications and Use Cases
- Switching heaters and lamps in process heating and packaging machines
- Controlling AC motors and fans in ventilation or conveyor systems
- Integration into PLC panels for timed or logic-based AC loads
- Automating lighting banks and industrial signalling circuits
- Replacing noisy electromechanical relays in production lines
How to Use 24-380V SSR-10VA Solid State Voltage Regulator
Mount the SSR-10VA on a suitable heat-dissipating surface or DIN rail, then wire the DC control input to your logic output and connect the AC load to the output terminals. Ensure input voltage and current match the trigger resistance specification, and verify the AC supply falls within the 24–380VAC range before powering up.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What AC voltage range can the SSR-10VA handle?
This regulator switches AC loads from 24VAC up to 380VAC. Always confirm your supply falls within this range before installation.
Do I need a heat sink for continuous operation?
While the SSR-10VA dissipates minimal heat, mounting it on a metal panel or DIN rail is recommended for continuous high-load switching to ensure heat is effectively conducted away.
How does the trigger resistance affect my control signal?
The 470–560KΩ input resistance determines the LED drive current. Ensure your control output provides sufficient voltage and current to exceed the LED’s forward threshold for reliable switching.
