This is the 240V variant of the 150W AC-DC AC-DC 100- 240V to 12V 13A Switching Power Board in Switch Mode Power Supply. Available at ₹691.48 (₹586.00 + GST) with free shipping across India.

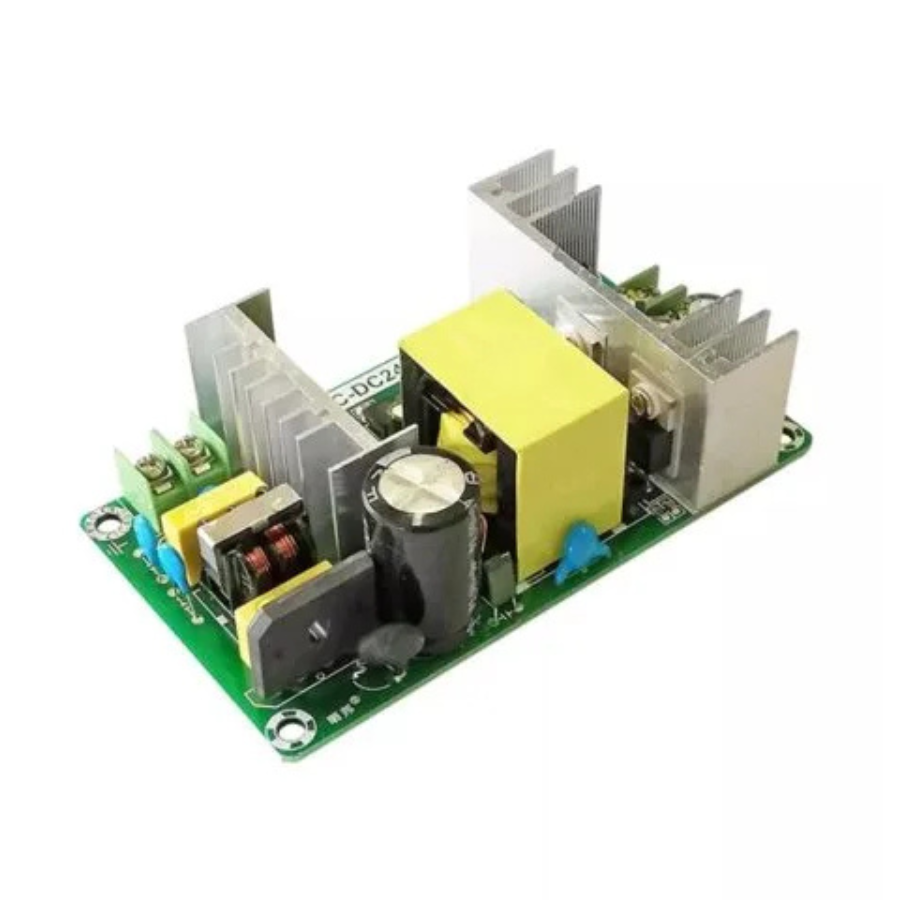

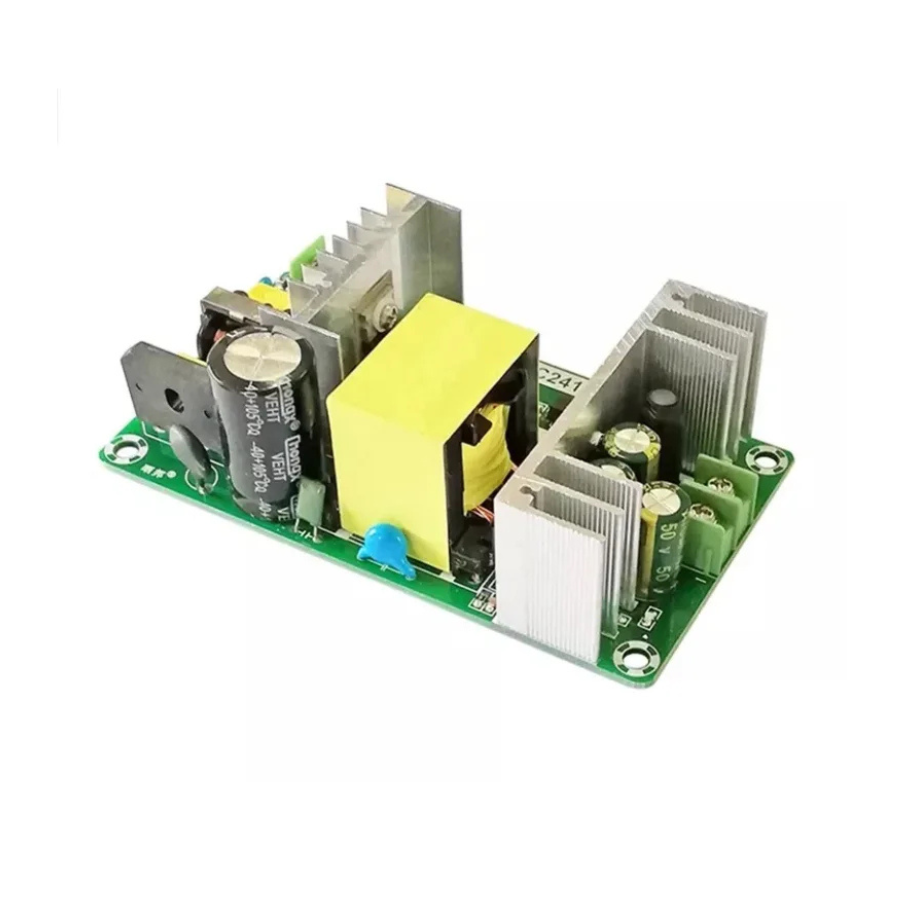

150W AC-DC AC-DC 100- 240V to 12V 13A Switching Power Board
Introducing the 150W AC-DC Buck Converter 100V-240V to 12V 13A Step Down Power Supply Module, featuring a double-sided PCB design that ensures enhanced stability and reliability. This module is specifically tailored for powering industrial control systems, offering robust performance.
Utilizing a switching regulator, this electronic power supply efficiently converts electrical power. Similar to conventional power supplies, it transforms power from AC100V~240V (50HZ/60HZ) sources to DC 12V output.
Switching regulators serve as efficient alternatives to linear regulators, particularly when factors like higher efficiency, smaller size, or lighter weight are prioritized. Moreover, this module provides comprehensive protection mechanisms, including over-voltage, over-current, and short circuit protection. Additionally, it is designed with two heat sinks to facilitate improved heat dissipation, ensuring optimal performance even under demanding conditions.
Features:
- High efficiency and low ripple.
- Maximum Output Current: 13A
- Dual-side plate design.
- Easy to use handy Module.
Specifications:
- Input AC Voltage(V): 100 to 260
- Input Frequency (Hz): 50
- Output Voltage(V): 12
- Max. Output Current (A): 13
- Overload Protection: Yes
- Output Power (Watt): 150
- Over Current Protection: Yes
- Short Circuit Protection: Yes
- Mounting Hole Pitch: 10.5 cm and 5.5 cm
- Mounting Hole Diameter: 4mm
- Length (mm): 115
- Width (mm): 65
- Height (mm): 36
- Weight (gm): 200
Package Includes:
1 x 150W AC-DC 100- 240V to 12V 13A Switching Power Board
Technical Specifications
| Voltage Range | 12V - 240V |
|---|---|
| Current Rating | 13A |
| Power Rating | 150W |
| SKU | AI2346 |
| Weight | 0.25 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 150W AC-DC AC-DC 100- 240V to 12V 13A Switching Power Board is a versatile switch mode power supply used across a wide range of applications including electronics workbench, LED lighting, industrial equipment, embedded system power, and CCTV installations.
Common use cases:
- Powering a development board or test setup
- Driving LED strip installations
- Providing regulated DC power to equipment
This product is ideal for electronics labs, makers, and system integrators.
Technical Tip: Ensure output voltage and current match your load requirements. Switching power supplies are more efficient but may introduce noise; consider linear for sensitive analog circuits.
