This is the 5V variant of the 2 Channel 5V Low Level Solid State Relay Module in Solid State Relays, Relays. Available at Original price was: ₹236.00.₹188.80Current price is: ₹188.80. (₹160.00 + GST) with free shipping across India.
Looking for 5v Module 454945? 2 Channel 5V Low Level Solid State Relay Module is available at Zbotic with fast shipping across India.

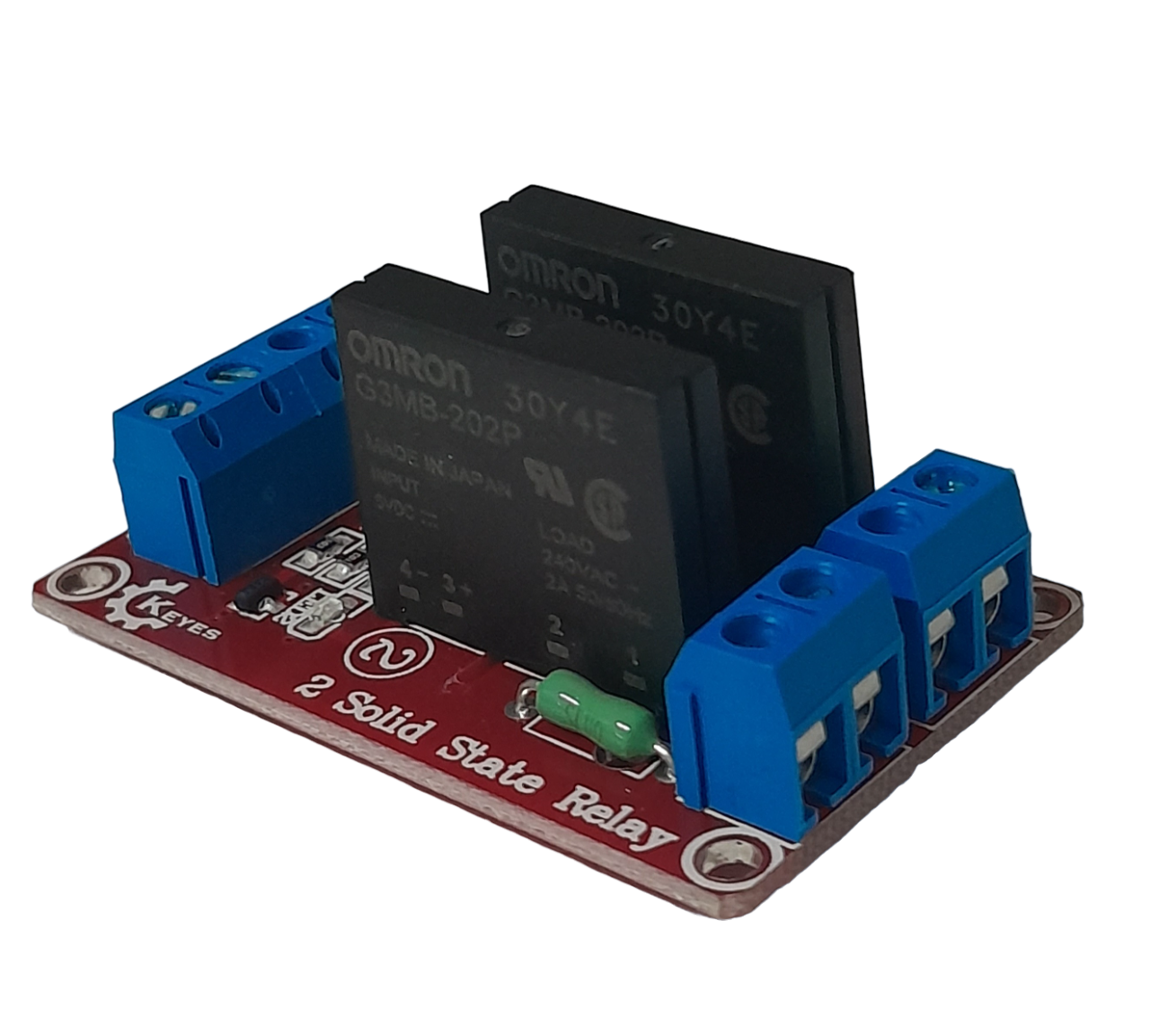

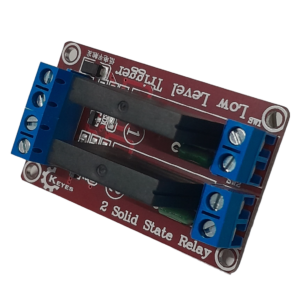

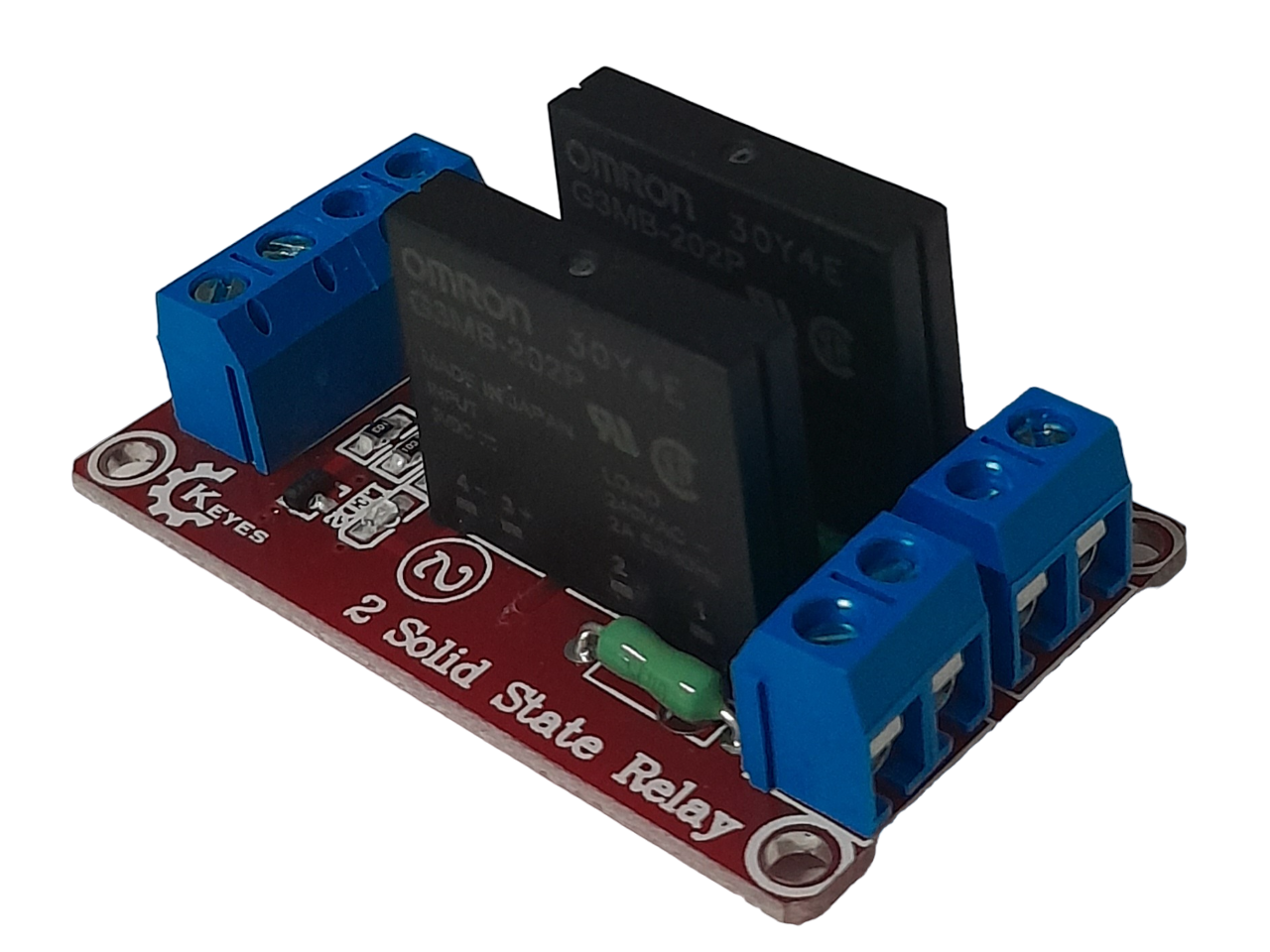

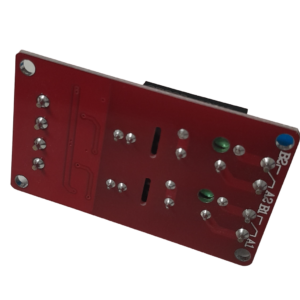

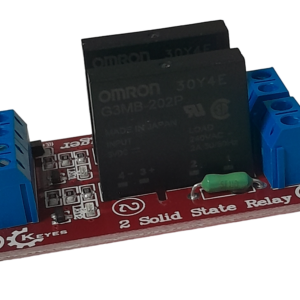

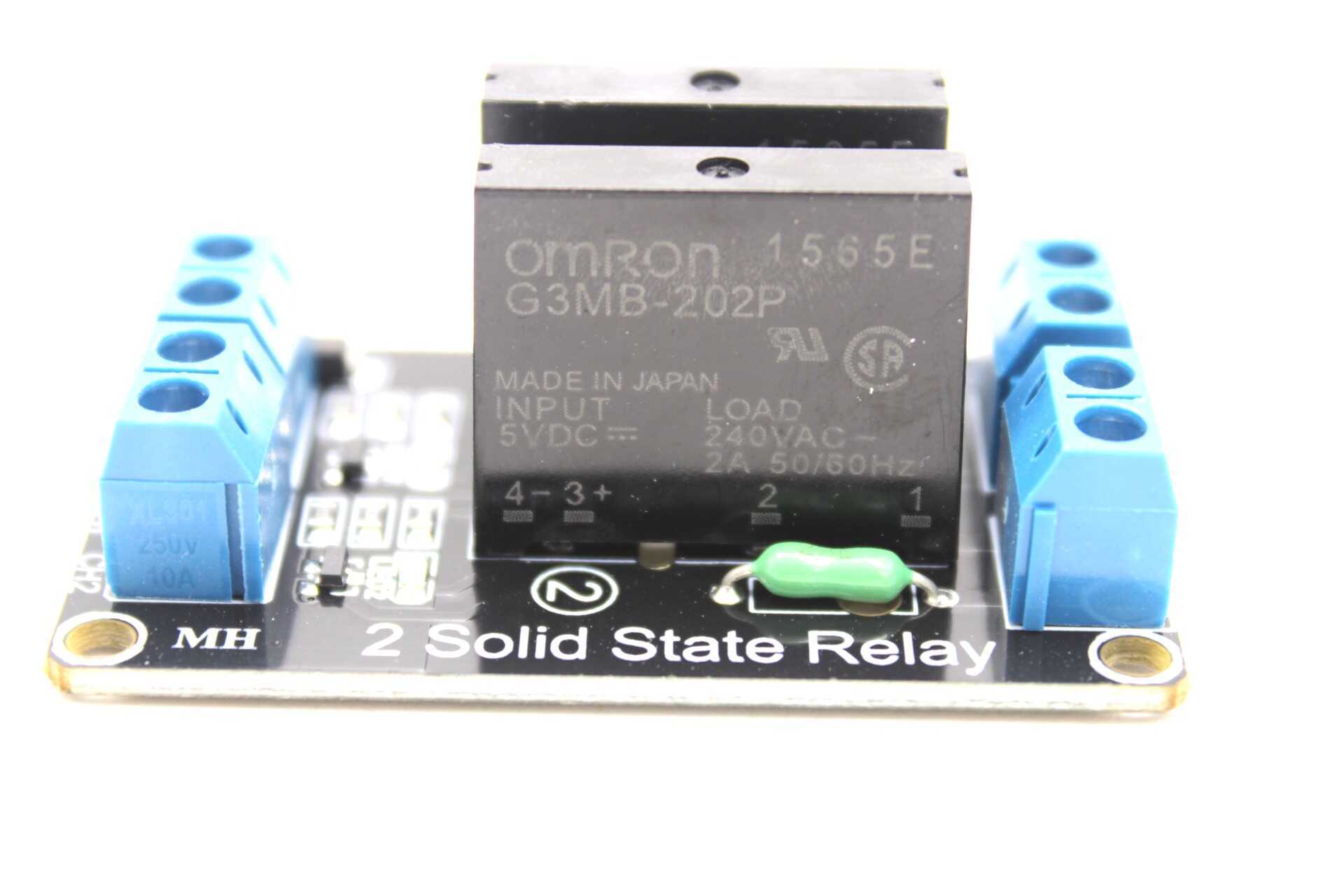

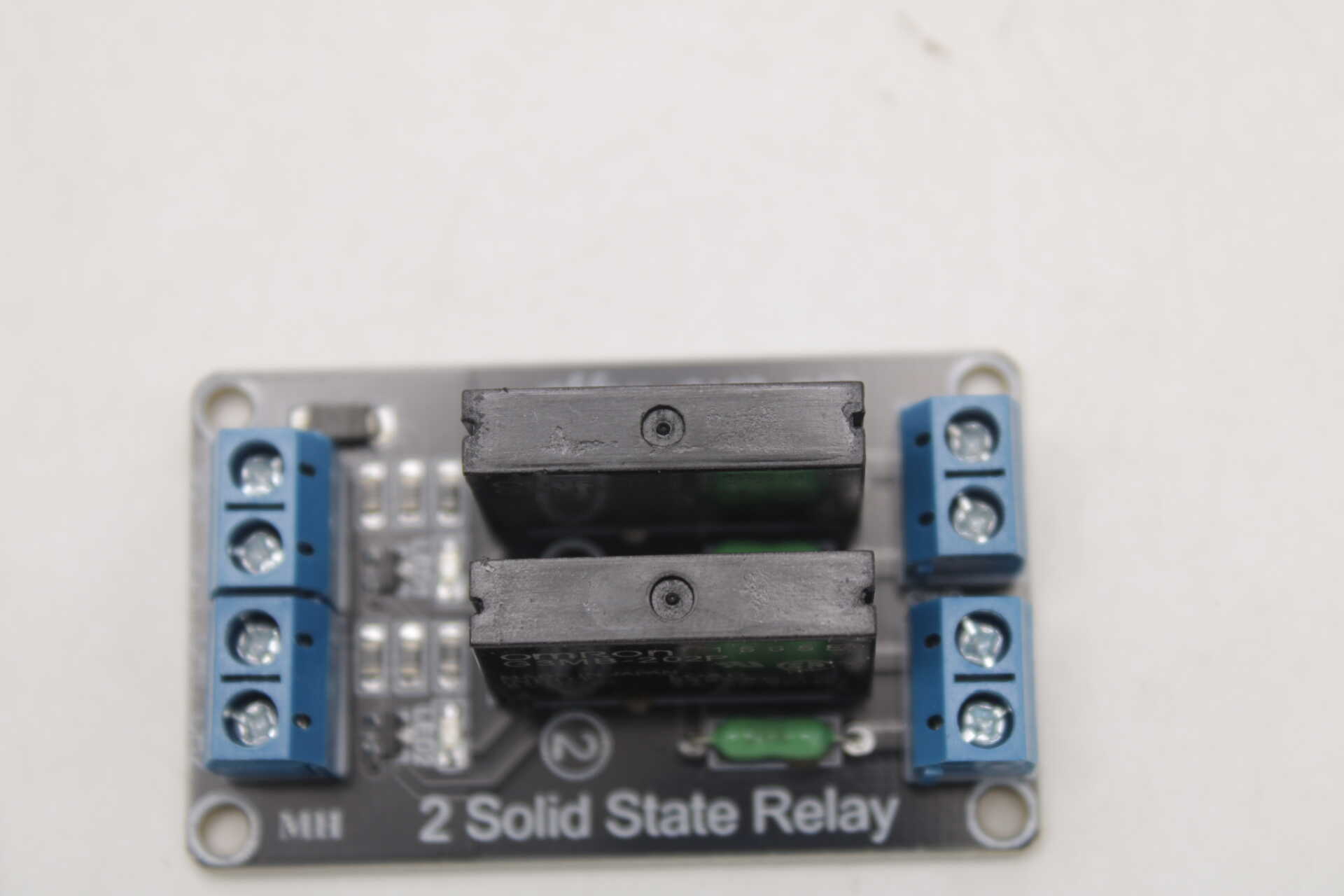

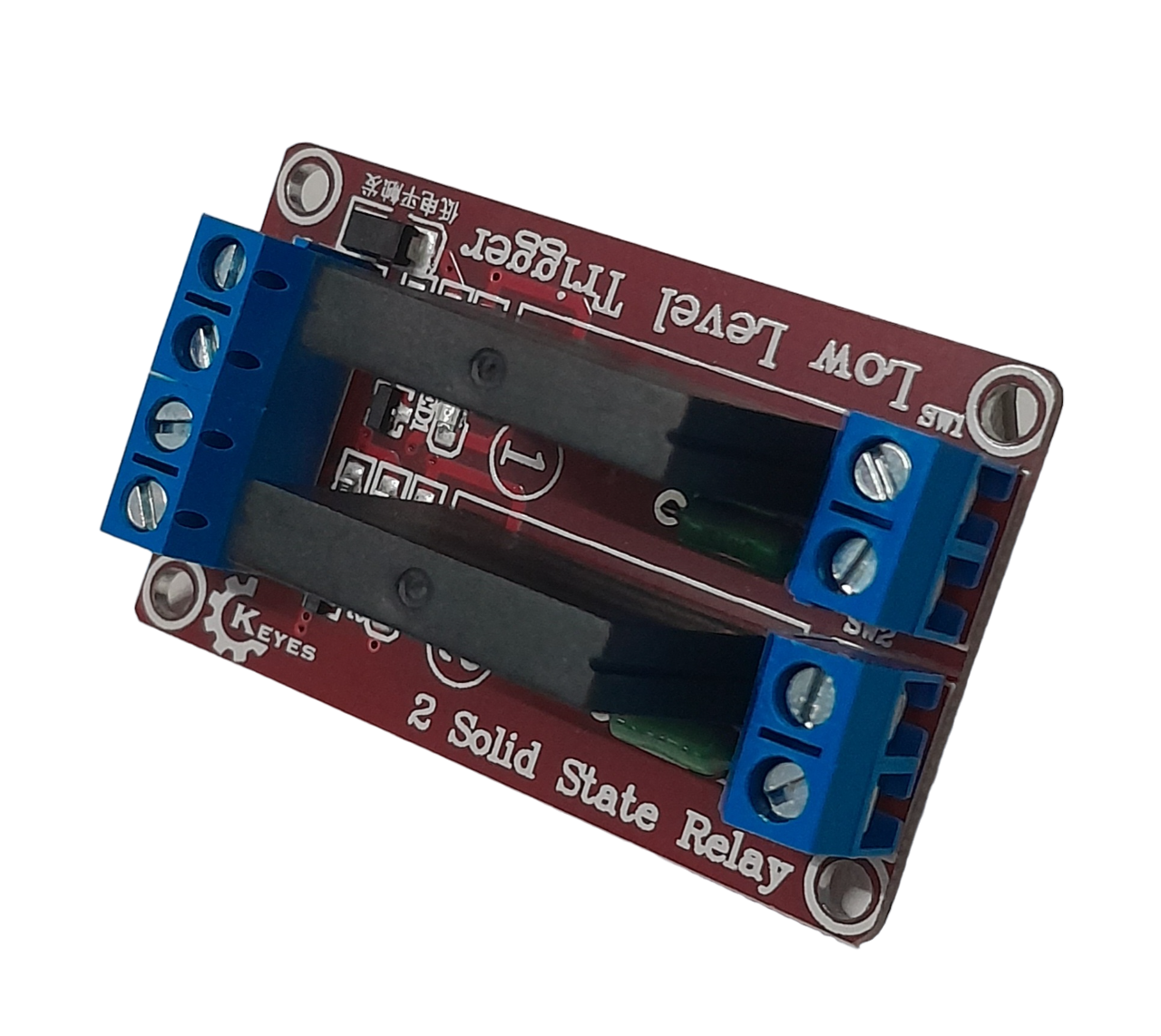

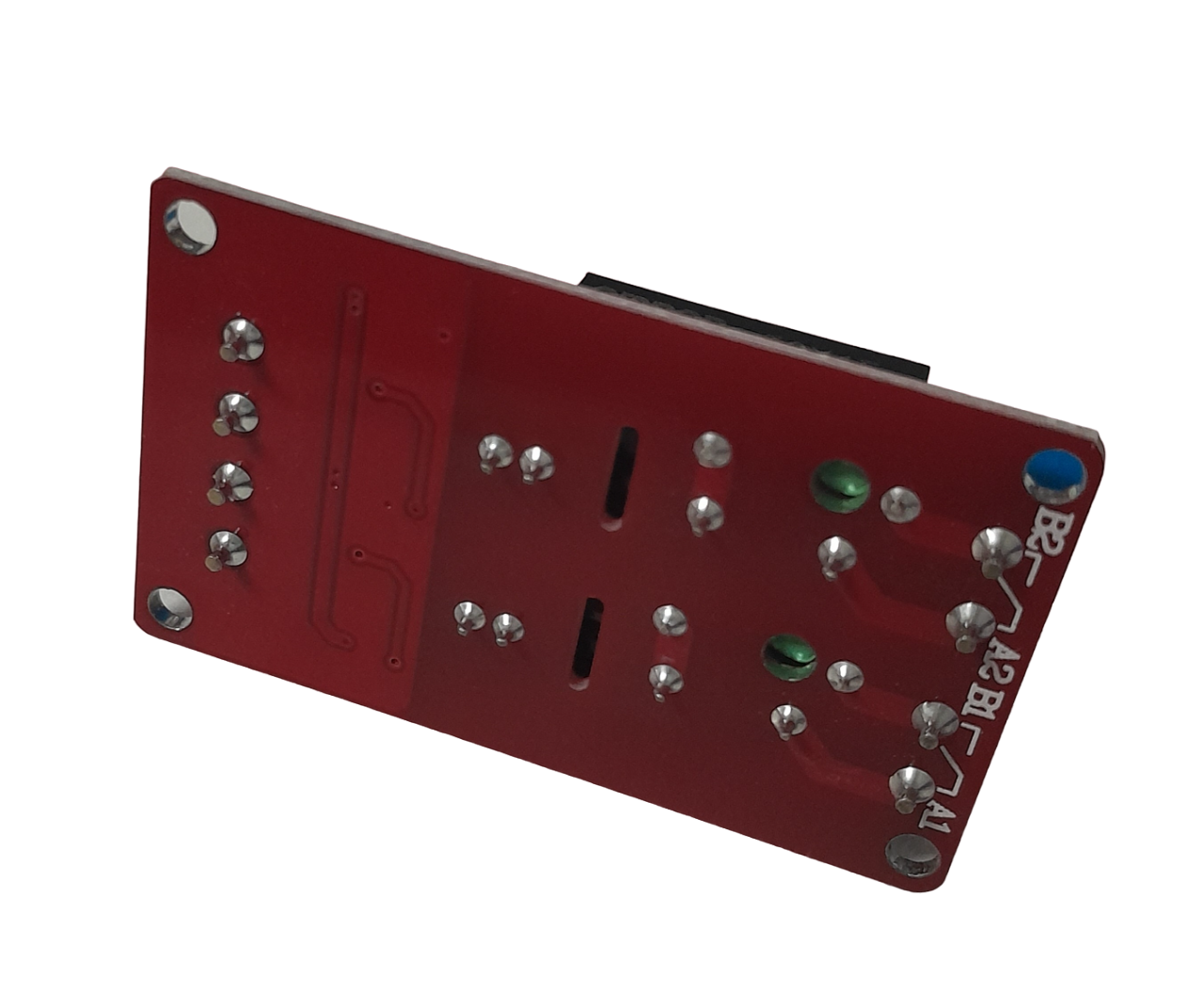

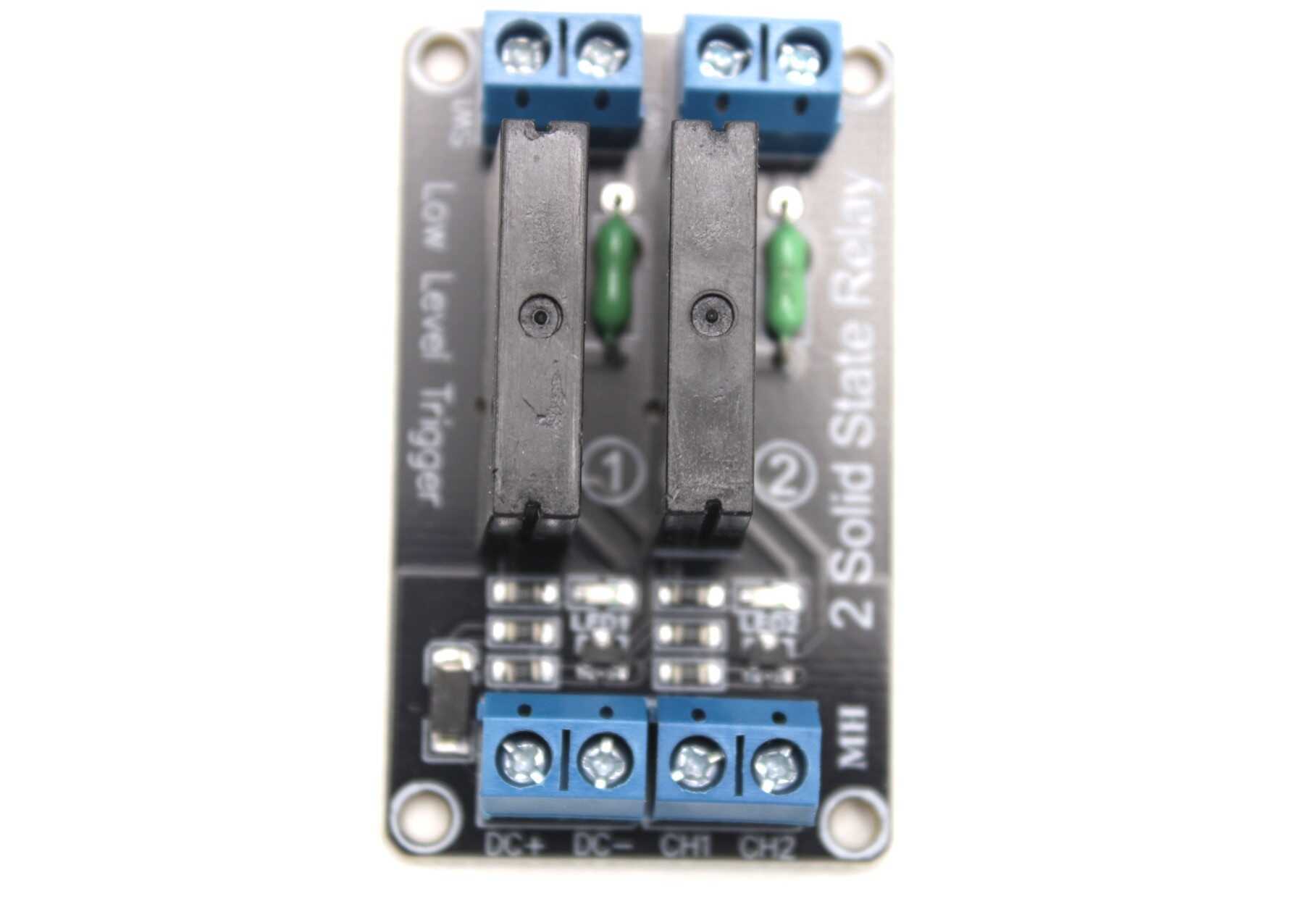

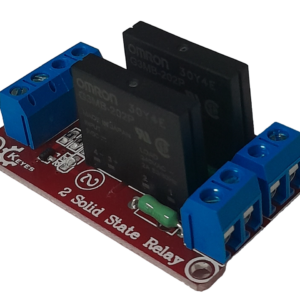

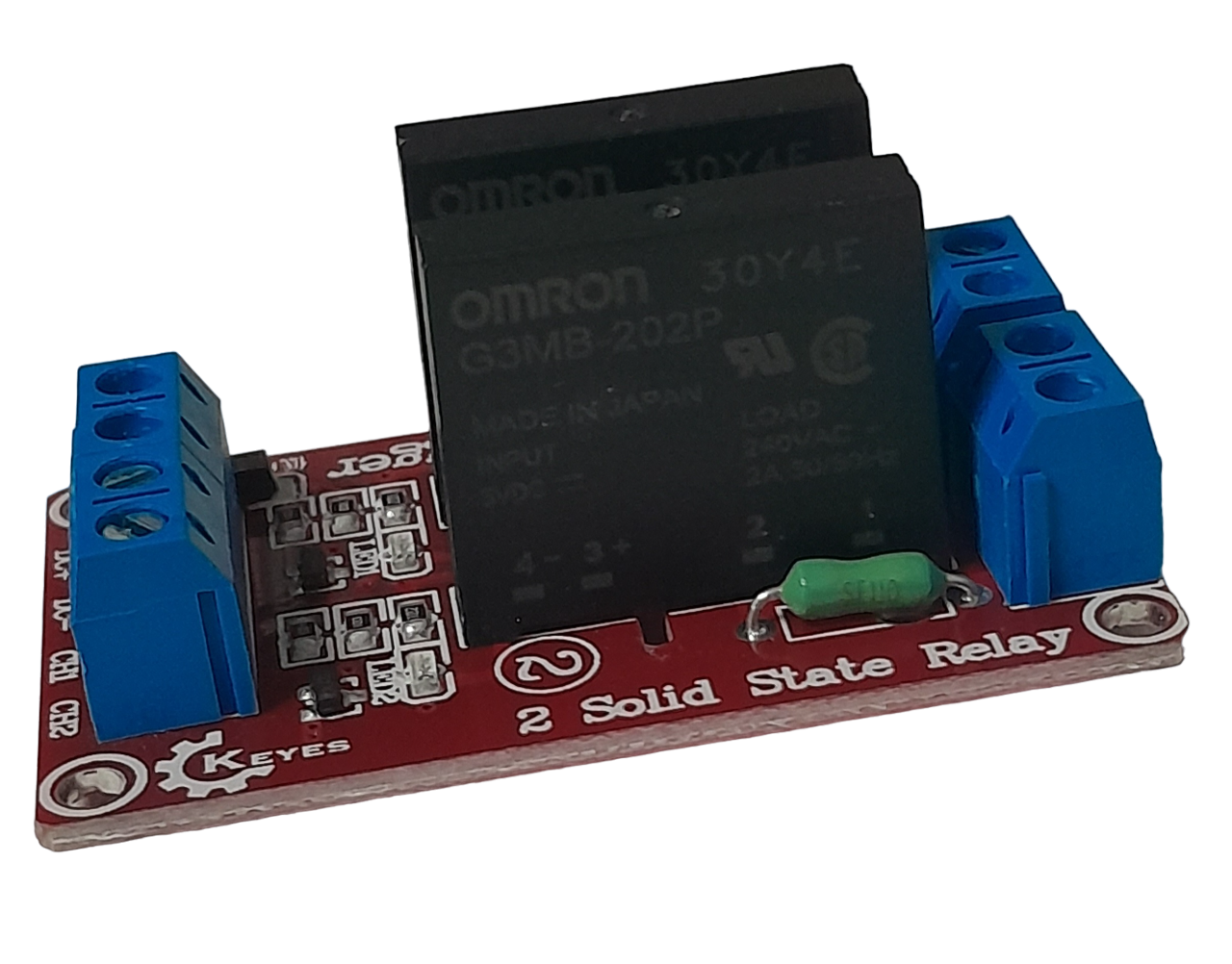

2 Channel 5V Low Level Solid State Relay Module
Introducing the 5V 2-channel low-level solid-state relay module, designed for efficient switching of AC voltages ranging from 100V to 240V and capable of handling up to 2A of current. This module features two independent relay channels, each with three terminals: NO (Normally Open), COM (Common), and NC (Normally Closed), providing flexible control options for various applications.
Unlike traditional mechanical relays, this solid-state relay operates on a low-level trigger, meaning it is activated by a LOW-level input signal, making it easy to control with a digital signal. It offers a longer lifespan, quieter operation, and greater reliability compared to mechanical relays.
When a logic voltage is applied to the input, the NC terminal disconnects from the COM, interrupting conductivity. Simultaneously, the NO terminal connects with the COM, allowing current to flow between the two. Depending on the wiring configuration, this action can either activate or deactivate the connected load, providing efficient and silent switching.
Ideal for projects that require reliable switching of AC loads with minimal noise and extended durability, this solid-state relay module offers a more efficient alternative to traditional mechanical relays.
FEATURES:
- Low-level triggering
- Can be controlled through a digital signal
- Generates no noise
- Long life
Specification:
- Operating voltage : 3V to 5V
- Trigger voltage : 5V
- Supply current : 2mA
- Switching voltage range : 240V at 2A
- Operating current : 16mA
- 2 channel 2 AMP Solid State Relay board
- Control 2 loads of up to 2 amps each at 100V or 240V AC
PACKAGE INCLUDES
- 1 X 2 Channel 5V Low Level Solid State Relay Module
2 Channel 5V Low Level Solid State Relay Module Overview
The 2 Channel 5V Low Level Solid State Relay Module is a compact board designed to switch two independent AC loads up to 2 A each at voltages from 100 V to 240 V. It uses low-level trigger inputs (active on a LOW signal) and a 5 V supply to provide silent, wear-free switching compared to mechanical relays.
Key Features of 2 Channel 5V Low Level Solid State Relay Module
- Dual independent SSR channels with NO, NC and COM terminals for flexible wiring
- Wide AC switching range: 100 V to 240 V at up to 2 A per channel
- Low-level trigger: module activates when input pin is driven LOW (at TTL levels)
- Low input draw: 2 mA trigger current, 16 mA operating current for the board
- Operating supply voltage from 3 V to 5 V for direct interfacing with microcontrollers
- Genuine product, fast shipping across India from Zbotic
Applications and Use Cases
- Home automation: control AC lights and fans via Arduino or Raspberry Pi
- Industrial control panels: replace mechanical relays for long-life switching
- HVAC systems: switch heaters or air conditioners without spark and noise
- Security systems: drive alarm sirens and strobe lighting on low-level signals
- Laboratory setups: isolate sensitive electronics from high-voltage AC loads
How to Use 2 Channel 5V Low Level Solid State Relay Module
Wire the module’s VCC to 5 V and GND to ground of your controller. Connect your AC load between COM and NO (or NC for normally-closed operation). Drive the corresponding IN pin LOW to turn on the SSR channel and supply AC power to the load; drive it HIGH (5 V) to switch off. Ensure correct mains wiring and safety precautions when handling AC voltages.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage level is required to trigger each relay channel?
This module uses a low-level trigger: pulling the input pin to 0 V (LOW) activates the SSR. A HIGH level (5 V) on the input turns the relay off.
Can I switch DC loads with this SSR module?
No. This solid-state relay uses TRIAC output stages and is designed only for AC switching. It will not turn off properly with DC loads.
What is the maximum current and voltage I can switch per channel?
Each channel can handle up to 2 A at AC voltages between 100 V and 240 V. Do not exceed these ratings to ensure reliable operation.
