This is the 200V variant of the 5-200V SSR-10DD Solid State Relay in Solid State Relays, Relays. Available at ₹350.46 (₹297.00 + GST) with free shipping across India.
Looking for Ssr-10dd Relay 200v? 5-200V SSR-10DD Solid State Relay is available at Zbotic with fast shipping across India.
5-200V SSR-10DD Solid State Relay
Introducing the DC To DC SSR-10DD Solid State Relay Module (SSR), a cutting-edge electronic switch designed to revolutionize your control systems. Unlike traditional electromechanical relays, this SSR boasts a sleek and efficient design with no moving parts, ensuring unparalleled reliability and durability.
Features:
- Long Service Life: Built to last, this SSR offers an extended service life, providing consistent performance over time.
- High Reliability: Experience peace of mind with reliable operation in various environments and conditions.
- Reduced Electromagnetic Interference: Minimize signal distortion and ensure smooth operation with reduced electromagnetic interference.
- Compact Size: Designed with a compact form factor, this SSR offers maximum simplicity and ease of integration into existing systems.
- Photo-Coupled Control: Controlled by a low-voltage signal isolated optically from the load, ensuring safe and reliable operation.
Upgrade your control systems with the DC To DC SSR-10DD Solid State Relay Module and experience the future of electronic switching technology. Built for performance and reliability, this SSR delivers exceptional results in a compact and reliable package.
Specifications:
| Rated Load Current (A) | 10 |
|---|---|
| Dielectric Strength | Over 2.5kVA / 1 min |
| Switching Voltage (VDC) | 5-200 |
| Trigger Voltage (VDC) | 3-32 |
| Operating Temperature Range (C) | 20 to 85 |
| Material | ABS |
| Length (mm) | 45.5 |
| Width (mm) | 62.5 |
| Height (mm) | 24 |
| Weight (gm) | 93 |
| Shipping Weight | 0.105 kg |
| Shipping Dimensions | 12 × 9 × 1 cm |
Package Includes:
1 x 5-200V SSR-10DD Solid State Relay
5-200V SSR-10DD Solid State Relay Overview
The 5-200V SSR-10DD Solid State Relay is a DC-to-DC electronic switch designed to control DC loads without any mechanical contacts. Rated for up to 10A at switching voltages between 5 V and 200 V, it delivers reliable, silent operation for automation and control applications.
Key Features of 5-200V SSR-10DD Solid State Relay
- Rated load current: 10 A for moderate DC switching tasks
- Trigger voltage range: 3–32 V DC compatible with common control circuits
- Switching voltage support: 5–200 V DC to suit a wide variety of DC loads
- Dielectric strength over 2.5 kVA for 1 minute to resist voltage spikes
- Operating temperature: −20 °C to 85 °C for use in diverse environments
- Solid-state design with no moving parts for extended service life and high reliability
- Reduced electromagnetic interference for cleaner signal control
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- DC motor control in robotics and industrial automation
- Battery management and solar charge-discharge circuits
- LED lighting dimming and signage switching
- Silent operation in laboratory test rigs and measurement setups
- Process control systems requiring rapid on/off DC switching
How to Use 5-200V SSR-10DD Solid State Relay

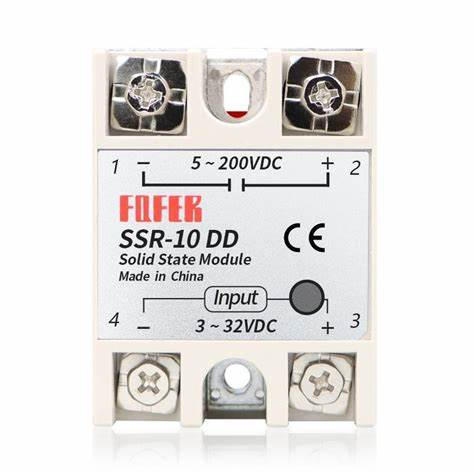

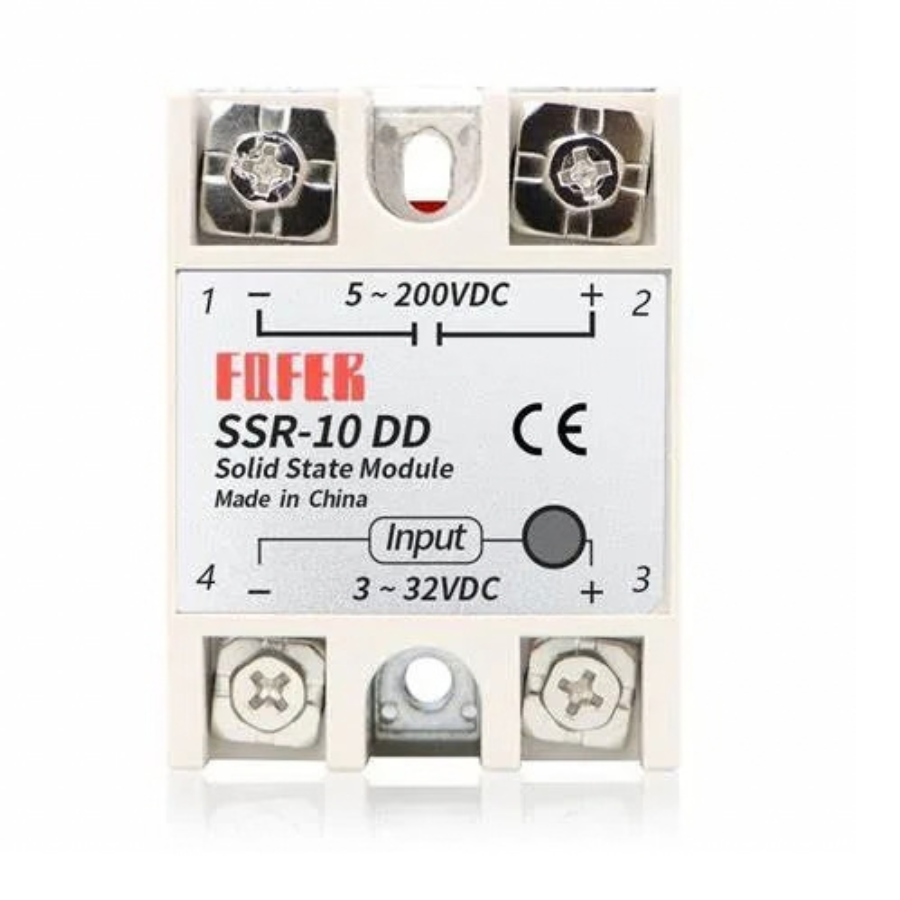

Connect a 3–32 V DC control signal to the input terminals marked “+” and “–,” then wire your DC load (up to 200 V DC, 10 A) through the output terminals. Mount the relay on a suitable heatsink if you consistently approach its maximum current rating, and ensure all connections are insulated to prevent accidental short circuits.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can the SSR-10DD switch AC loads?
No. The 5-200V SSR-10DD is specifically a DC-to-DC solid state relay and is not designed for switching AC voltages. It should only be used with DC loads within the 5–200 V DC range.
Do I need a heatsink for continuous high-current use?
While the SSR-10DD supports up to 10 A, attaching a heatsink is recommended for continuous operation near its maximum rating to maintain safe operating temperatures and ensure longevity.
What control voltage is required to activate the relay?
The SSR-10DD activates when a DC voltage between 3 V and 32 V is applied across its input terminals. No additional components are needed—simply wire the control source directly.
