The 12V/24V/36V 40A PWM DC Motor Speed Controller with Forward/Reverse and Adjustable Knob Switch is a high-power, reversible motor controller designed for efficient motor performance management. It provides precise control over electric motors, allowing you to start and stop the motor, select forward or reverse rotation, adjust speed, regulate torque, and protect against overloads or faults.

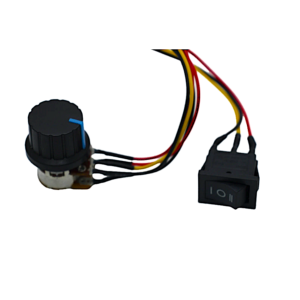

This 40A PWM controller is equipped with high-power automotive relays for durability, a knob to adjust the output voltage, and a toggle rocker switch to switch the motor’s rotation direction (forward or reverse). Additionally, it features a 3-digit seven-segment LED display that shows the selected voltage for easy monitoring and control.
Connections:
Features:
- Input voltage: DC12 to 36V (equal to the rated voltage of the motor)
- Output voltage: linear underload
- Maximum current: 50A
- Continuous current: 40A
- Speed regulation type: current regulation
- Speed regulation mode: potentiometer (linear)
- Support motor: DC brush motor
- Rotation:Â Toggle Forward and reverse
- Speed range: 0——100%
- Wiring type: terminal Knob
- Potentiometer: 100K (with switch)

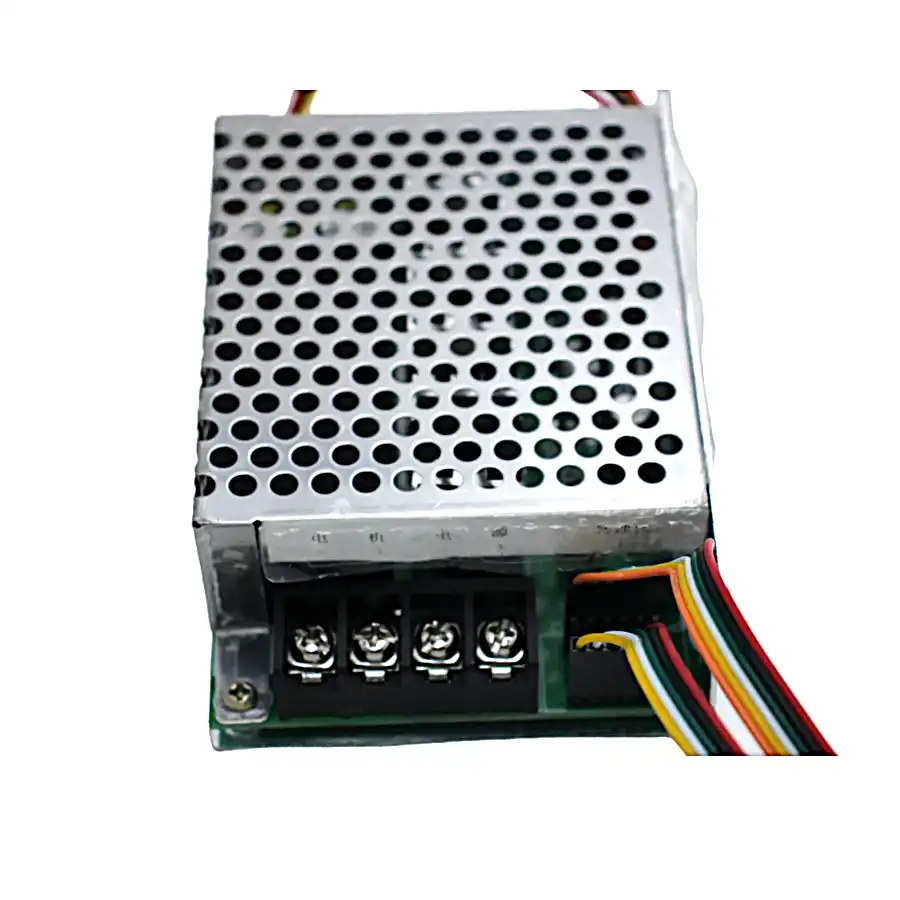

- Wiring type: fence terminal block
- Product weight: 173g
- Board Dimensions (L x W x H) mm: 100 x 76 x 28
Specification
| Item Type: | Motor Rotation Controller Board, PWM Speed Regulator |
|---|---|
| Current Rating (A): | 40 |
| Voltage Rating (V): | 12 to 36 |
| Output Voltage(V) | linear underload |
| Maximum current(A) | 50 |
| Continuous Current (A): | 40 |
| Speed regulation mode | potentiometer (linear) |
| Compatible Motor | DC brush motor |
| Rotation | Toggle Forward and reverse |
| Speed range(%) | 0——100 |
| Wiring type | terminal Knob |
| Potentiometer | 100K (with switch) |
Package Includes:

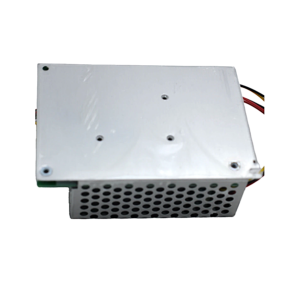

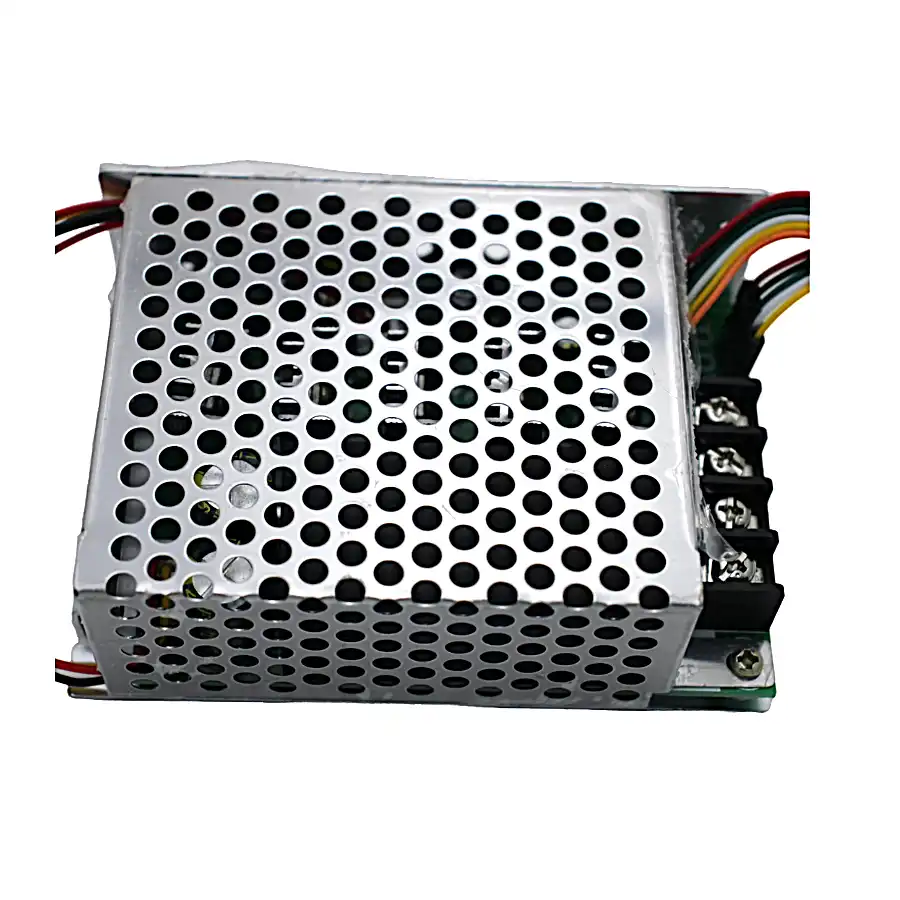

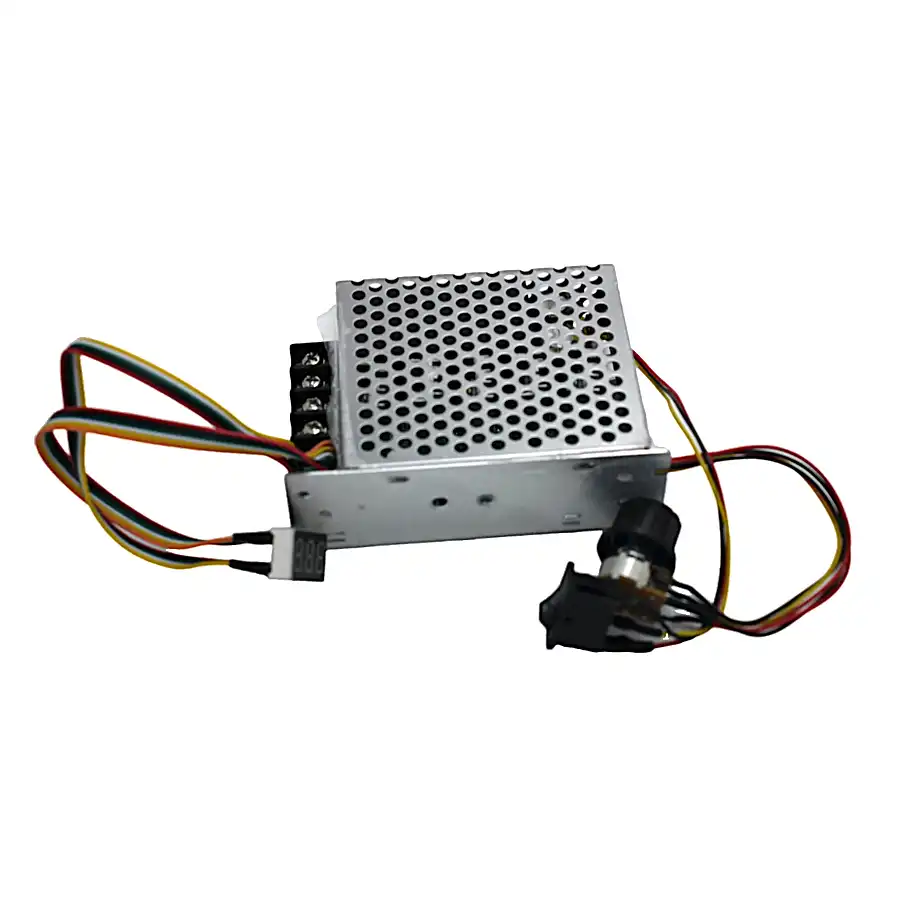

1 x PWM DC Motor Speed Controller Forward Reverse Adjustable Knob Switch with Case
