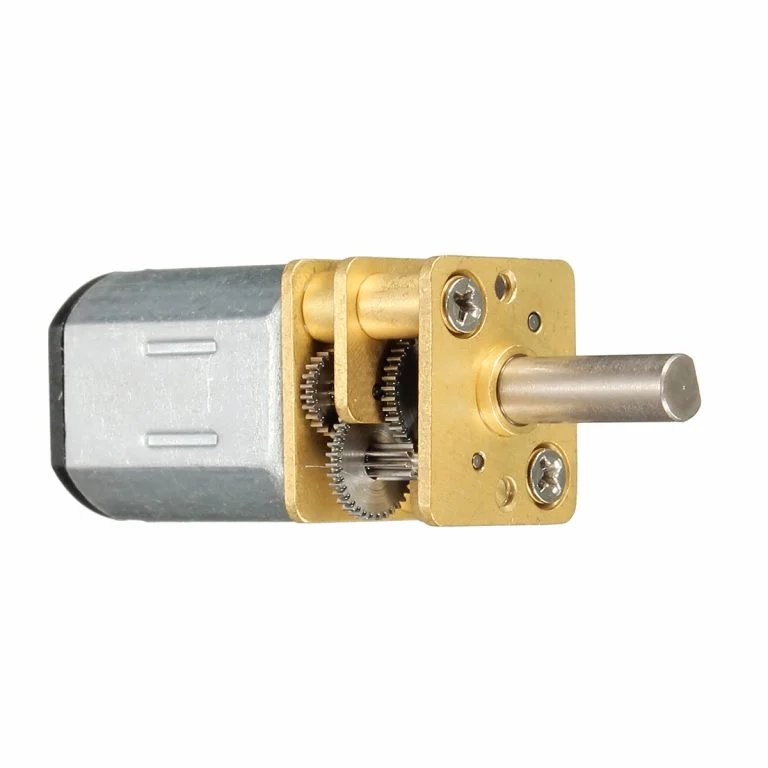

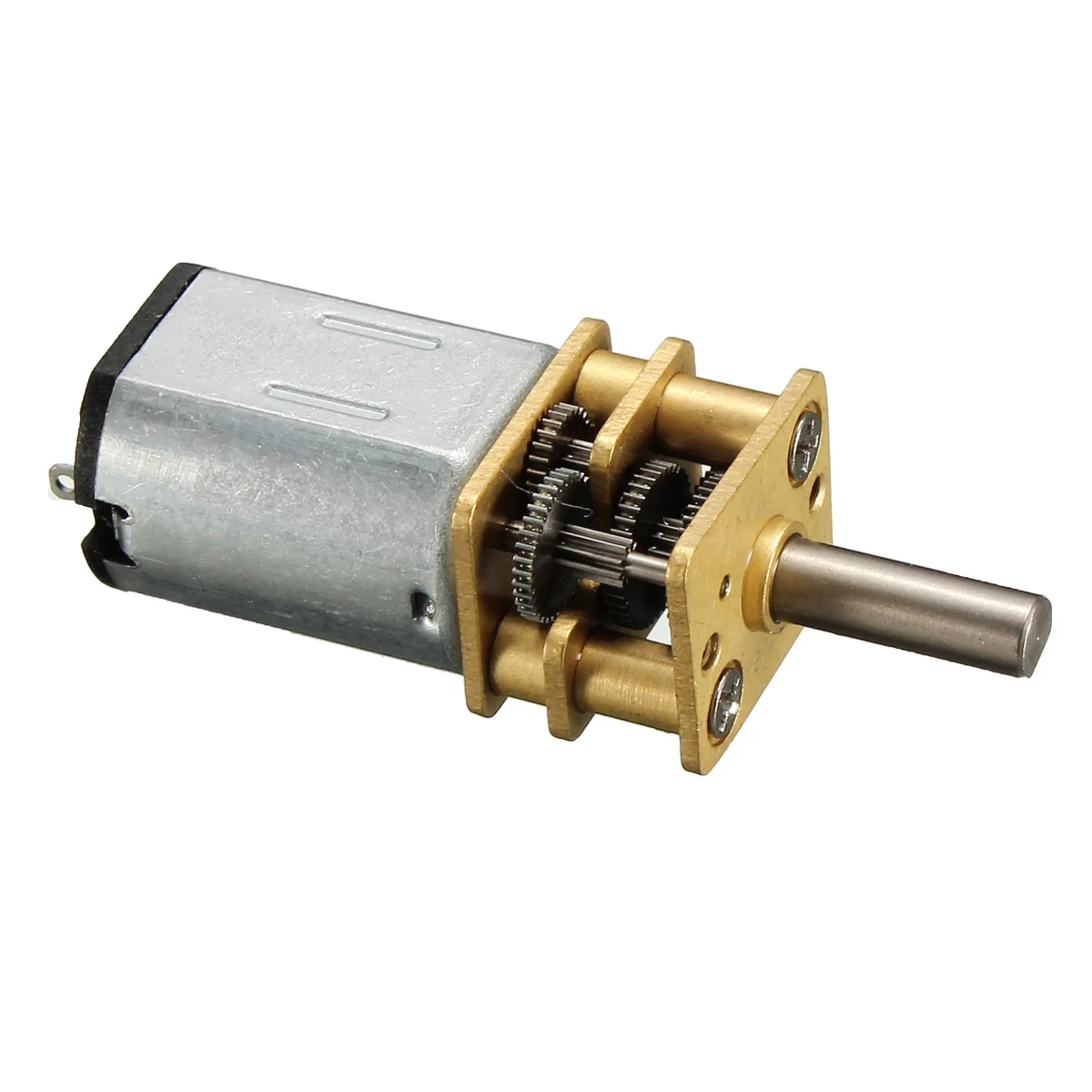

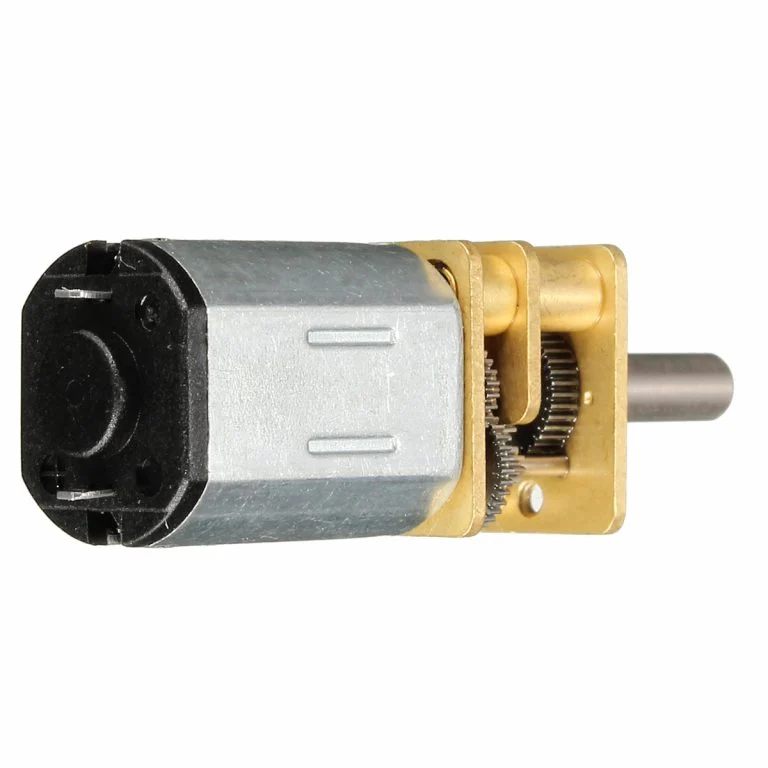

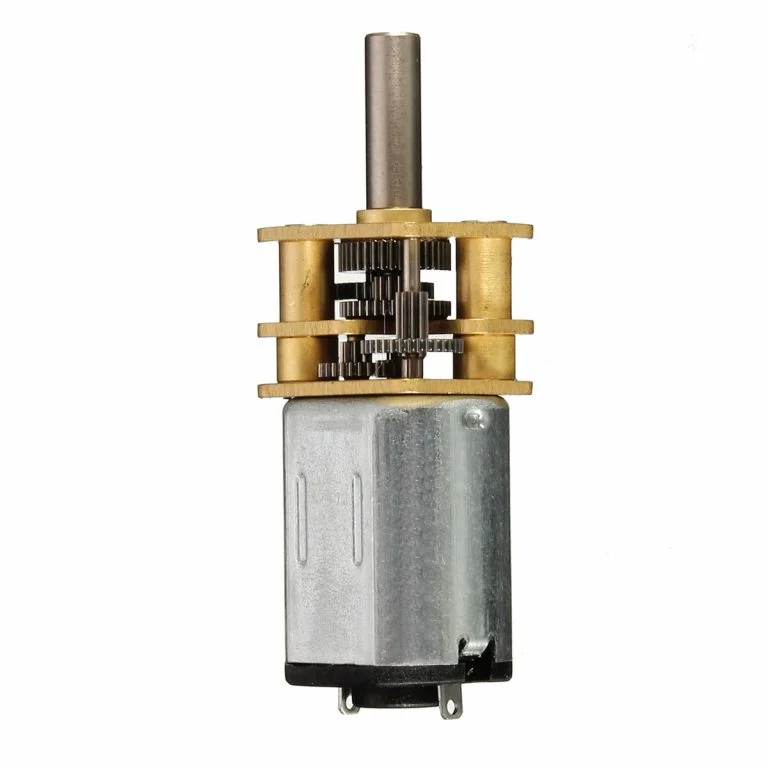

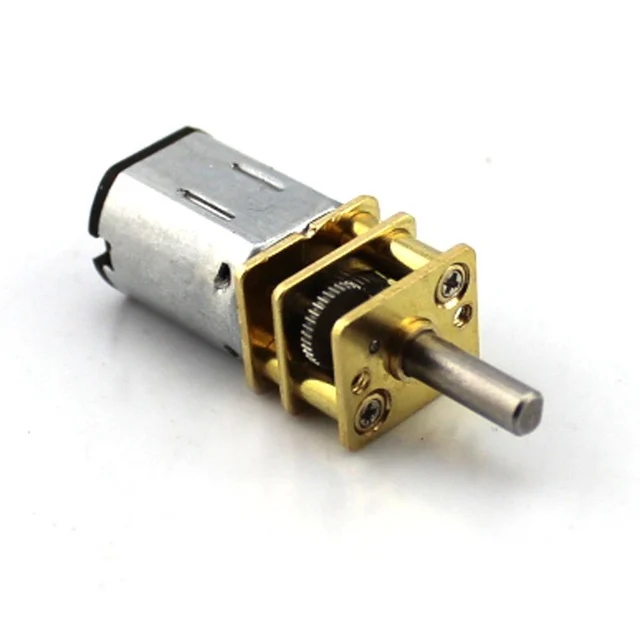

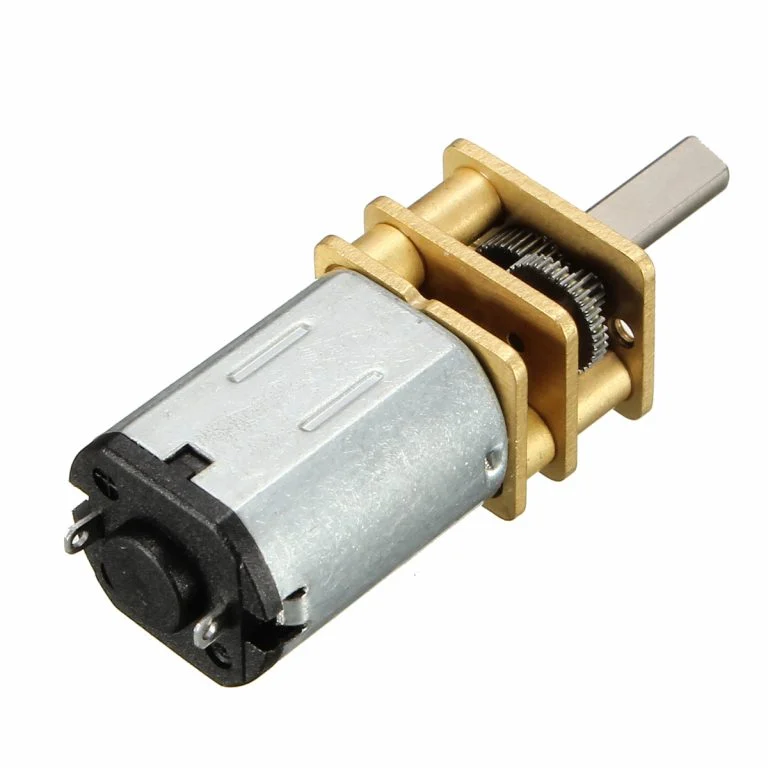

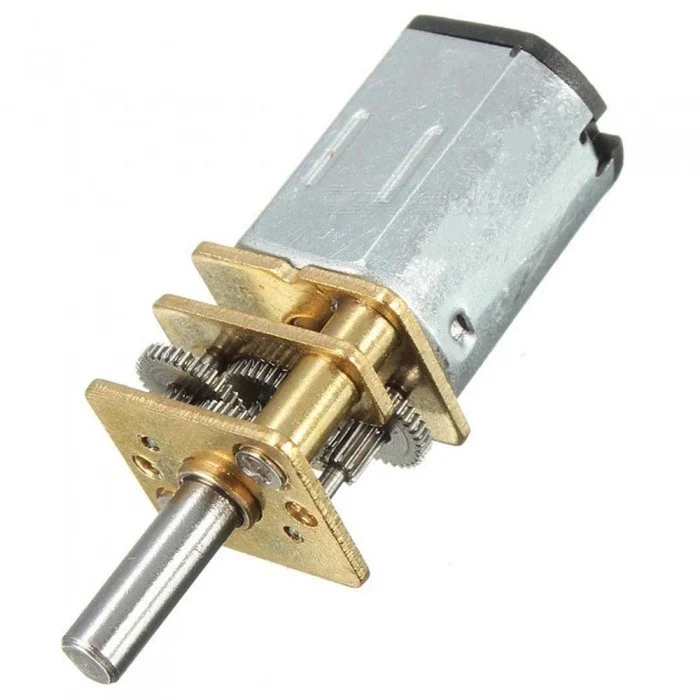

This is the 6V variant of the N20-6V-30 RPM Micro Metal Gear-box DC Motor in N20 Gear Motor without Encoder. Available at Original price was: ₹248.98.₹206.50Current price is: ₹206.50. (₹175.00 + GST) with free shipping across India.
PRODUCT DESCRIPTION
This N20-6V-30 Rpm Micro Metal Gear Motor is a durable DC motor with a small size, a high torque, and an all-metal gear that resists wear and tear. It can be used to replace the old or damaged DC geared speed reduction motor on various machines. It is suitable for applications such as Boats, Cars, Electric Bicycles, Fans, and Home Appliances.
The N20 Micro Gear 6V 100 RPM DC Motor (High Torque) is a low RPM motor with a lightweight design and a high torque. It comes with a gearbox assembly that enhances the torque of the motor. It has a cross-section of 10 × 12 mm, and the gearbox output shaft is D-shaped, 9 mm long, and 3 mm in diameter. The motor can fit in small and complex spaces of different applications. It can also be attached to wheels to drive them while carrying heavy loads.
Features:
- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motor’s output shaft.
Specification:
| Rated Operating Voltage (VDC) | 6 |
|---|---|
| No Load Current (mA) | 25 ~ 45 |
| Stall Current (A) | 1.0 |
| Rated Speed (RPM) | 25 |
| Operating Voltage (VDC) | 3 ~ 9 |
| Rated Torque(kg-cm) | 1.5 |
| Stall Torque(Kg-Cm) | 10 |
| No load Speed (RPM) | 30 |
| Gear Ratio | 298 : 1 |
| Shaft Type | D-type, Single Side |
| Motor Body Size (Diameter) (mm) | 12 |
| Shaft Diameter (mm) | 3 |
| Weight (gm) | 10 |
| Output Axial Length (mm) | 10 |
| Fuselage w/o Shaft Length | 26 |
| Screw Size | M3 |
| Shipping Weight | 0.04 kg |
| Shipping Dimensions | 4 × 2 × 2 cm |
Package Includes :
1 x N20-6V-30 RPM Micro Metal Gear-box DC Motor
