This is the Red variant of the 150 RPM - 12V Centre Shaft DC Geared Motor in 12V DC Centre Shaft Metal Gear Motor. Available at ₹193.52 (₹164.00 + GST) with free shipping across India.
Looking for 150rpm Motor? 150 RPM – 12V Centre Shaft DC Geared Motor is available at Zbotic with fast shipping across India.

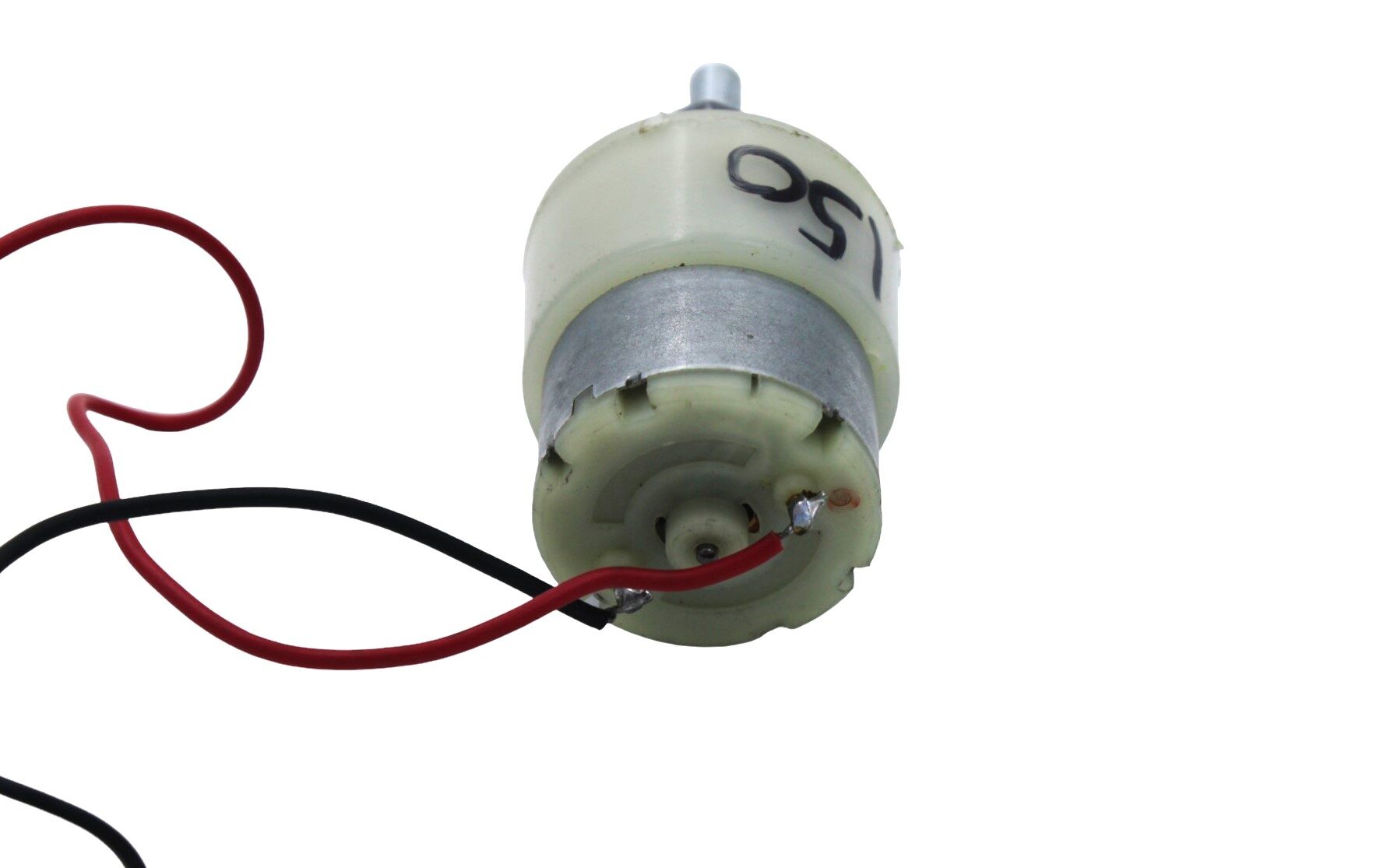

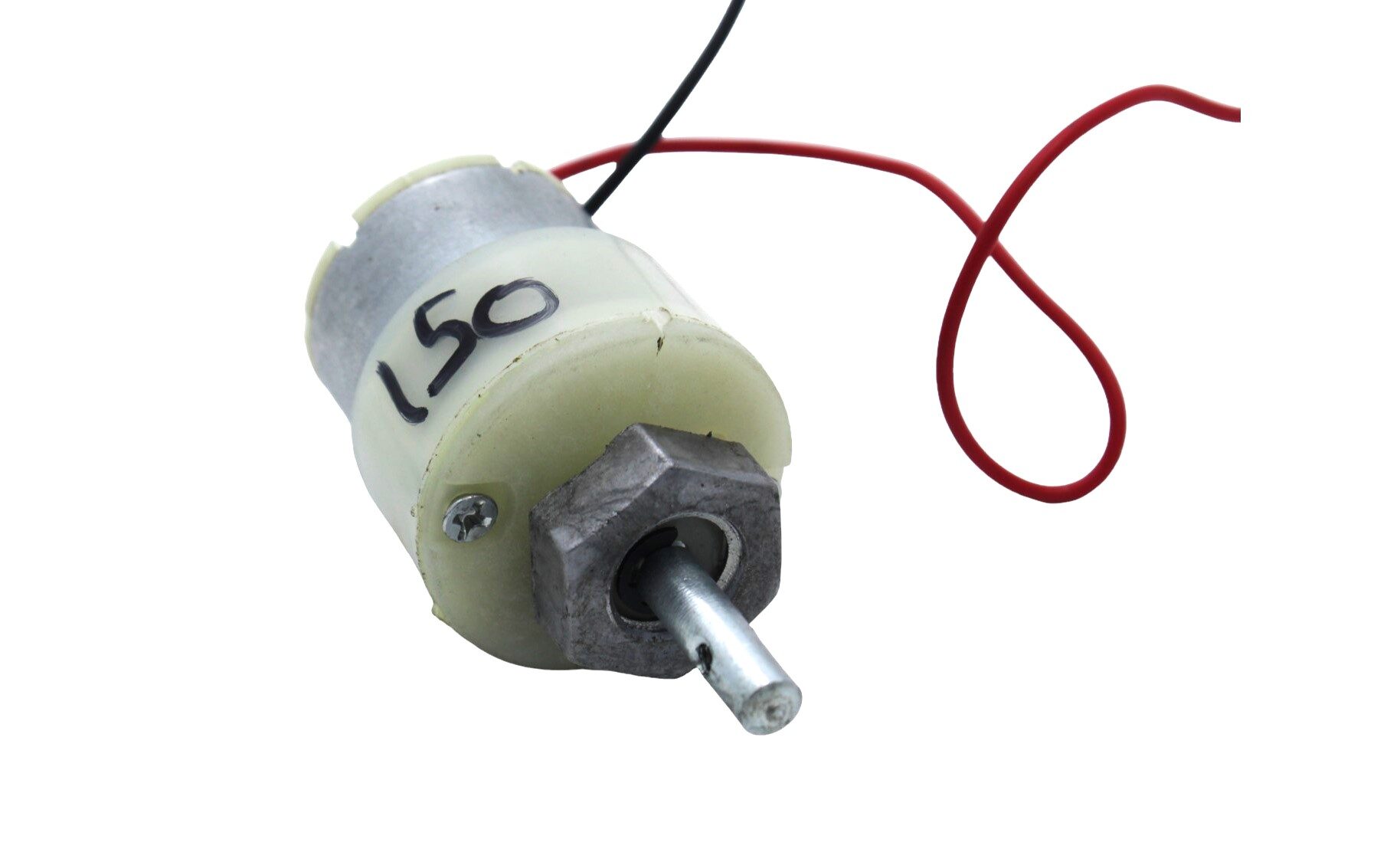

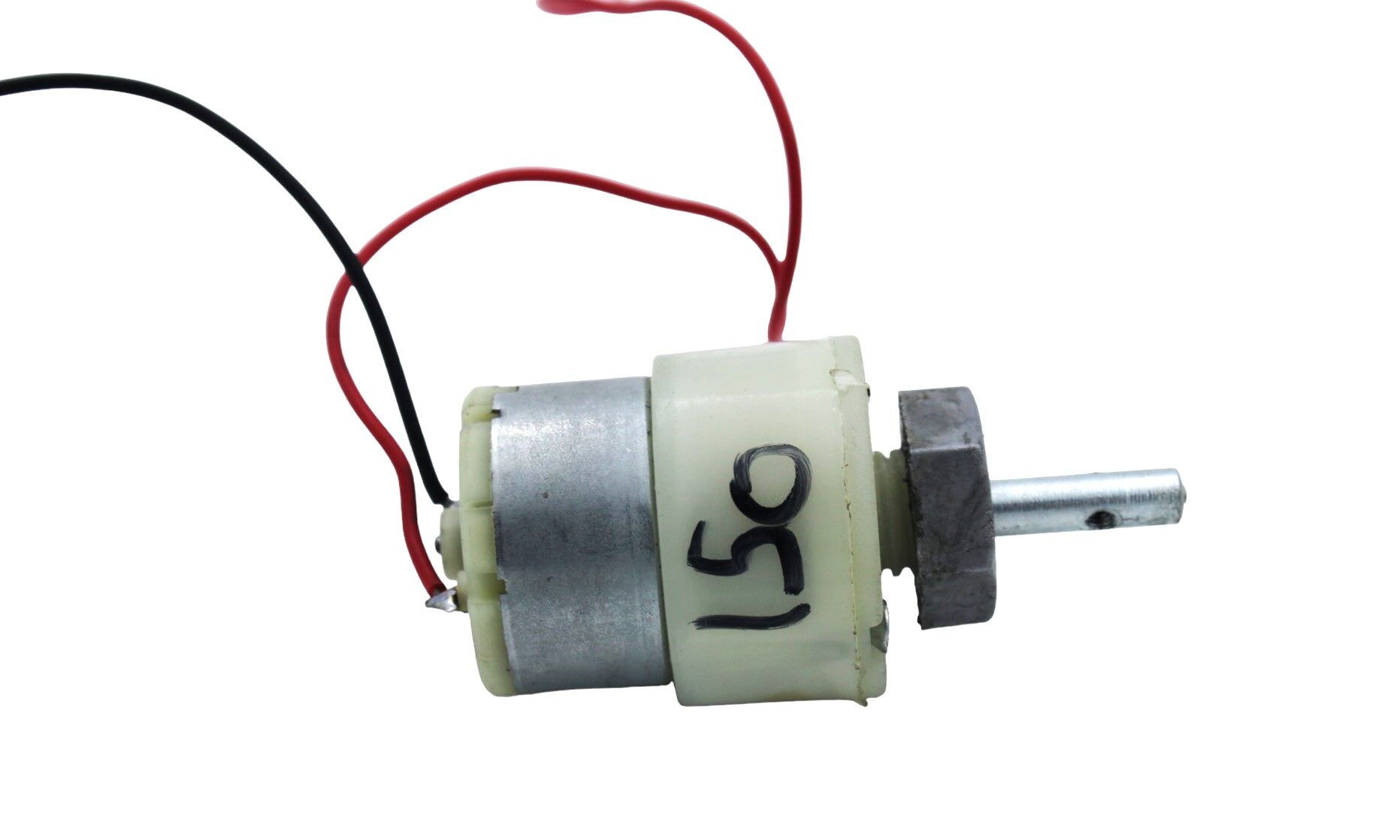

150 RPM – 12V Centre Shaft DC Geared Motor
This text describes a simple DC motor with a gearbox, which is suitable for all-terrain robots and other robotic projects. The motor has a 12V power supply and a speed of 150 RPM. The shaft of the motor has a 3 mm hole with threads in the center, which makes it easy to attach to wheels or other mechanical parts.
These motors have a standard size and are affordable and easy to control with an Arduino or a compatible board. You can use the L298N H-bridge module with a built-in voltage regulator to drive this motor, which can operate between 5 and 35V DC. Alternatively, you can select from a variety of precise motor driver modules in our Motor drivers category, depending on your specific requirements.
The shaft of the motor also has a nut and threads for connection, and a hole with internal threads to fix it to the wheel. The metal gearbox of the motor is sturdy and designed for heavy-duty applications. It comes in different RPMs and is ideal for robotics and industrial applications.
Features
- RPM: 150.
- Operating Voltage: 12V DC
- Gearbox: Attached Plastic (spur)Gearbox
- Shaft diameter: 6mm with internal hole.
- Torque: 2 kg-cm
- No-load current = 60 mA (Max)
- Load current = 300 mA (Max).
Package Includes
- 1 x 150 RPM – 12V Centre Shaft DC Geared Motor
150 RPM – 12V Centre Shaft DC Geared Motor Overview
The 150 RPM – 12V Centre Shaft DC Geared Motor is a compact, low-speed geared motor designed for precise motion control in robotics and automation projects. Operating at 12V DC, it delivers high torque at a consistent 150 revolutions per minute, making it ideal for wheel drives, conveyor belts, and positioning mechanisms.
Key Features of 150 RPM – 12V Centre Shaft DC Geared Motor
- Rated speed of 150 RPM at 12V DC for consistent, low-speed applications
- Built-in plastic spur gearbox for smooth torque transmission
- 6 mm diameter centre shaft with internal hole and threaded mounting
- Maximum torque of 2 kg-cm to drive small robots and mechanisms
- Low no-load current (60 mA max) and efficient load current (300 mA max)
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- All-terrain robot wheel drives for stable, controlled movement
- Miniature conveyor systems in hobby or light industrial setups
- Pan-tilt camera mounts requiring precise angular motion
- Automatic door or window openers in small-scale automation
- DIY robotic arms and grippers for educational robotics kits
How to Use 150 RPM – 12V Centre Shaft DC Geared Motor
Connect the motor terminals to a 12V DC power source or motor driver (e.g., L298N H-bridge) ensuring correct polarity. Secure the 6 mm centre shaft into your coupling or wheel hub using the internal threaded hole. Use pulse-width modulation (PWM) from an Arduino or motor controller to regulate speed and direction. Always mount the motor on a stable bracket to avoid misalignment and gear wear.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum load current for this motor?
The 150 RPM – 12V Centre Shaft DC Geared Motor draws up to 300 mA under load, ensuring efficient operation without overheating.
Can I mount this motor directly to my robot chassis?
Yes. The centre shaft with an internal threaded hole allows you to bolt the motor securely to brackets or chassis mounts for stable integration.
Which motor driver boards are compatible?
This motor works well with standard H-bridge drivers like the L298N or L293D. Ensure your driver supports 12V and at least 500 mA per channel for safe operation.
Solenoid Guide: Door Locks, Valves, and Automation Projects
A solenoid is an electromechanical device that converts electrical energy into linear motion. When you energise the coil,...
Read More →
DC Motor Speed Control: PWM, H-Bridge, and PID Explained
Precise DC motor speed control is fundamental to robotics, automation, and countless Arduino projects. Whether you are building...
Read More →
Peristaltic Pump Motor: DIY Liquid Dosing System with Arduino
Table of Contents What Is a Peristaltic Pump and How Does It Work? Applications: Where Peristaltic Dosing Is...
Read More →Technical Specifications
| Operating Voltage | 12V |
|---|---|
| Speed | 150 RPM |
| Color | Red |
| SKU | AI0697 |
| Weight | 0.0864 kg |
| Availability | In Stock |
Applications & Use Cases
The 150 RPM - 12V Centre Shaft DC Geared Motor is a versatile 12v dc centre shaft metal gear motor used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
