Description
OLED’s are the future of displays, as they possess some of the greatest advantages over both conventional display technologies of LCD’s and LED‘s.
The most attractive thing about using the OLED displays is that they do not need a back-light like conventional LCD/LED screens. The organic material itself has a property known as Electroluminescence (EL), which causes the material to “glow” when stimulated by a current or an electric field. Best energy saving displays ever!!!

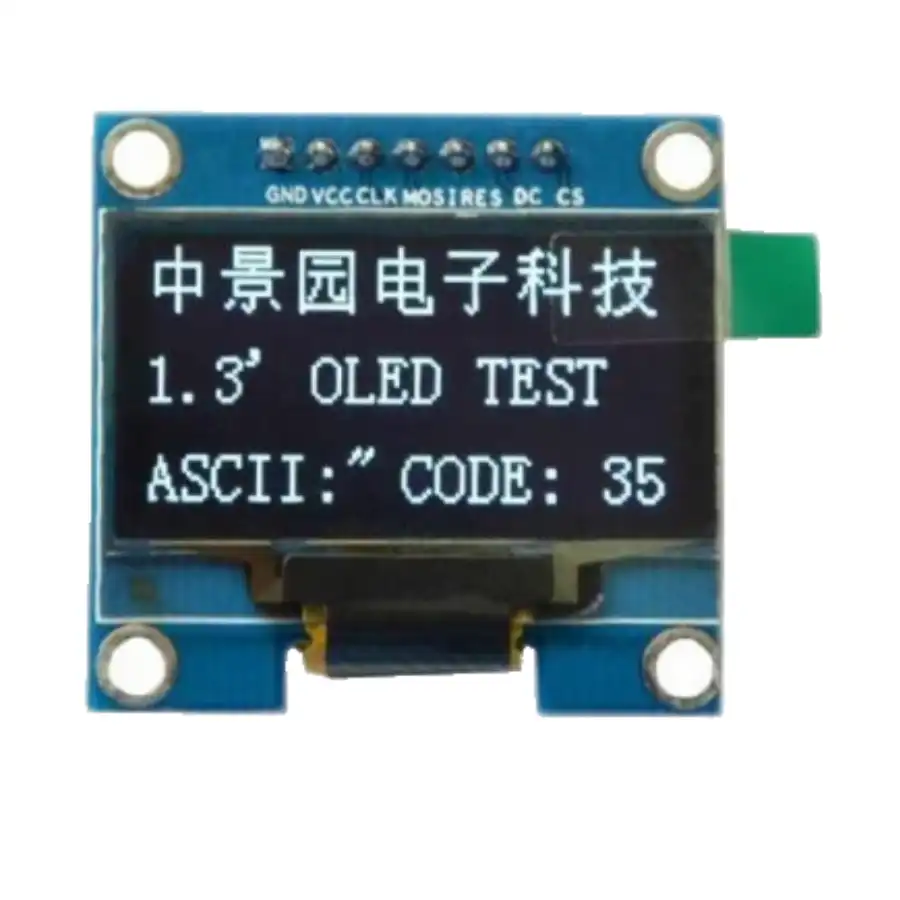

This 1.3 Inch 128×64 OLED Display Screen Module offers 128×64 pixel resolution. They are featuring much less thickness than LCD displays with good brightness and also produce better and true colors.
This OLED Display Module is very compact and will add a great ever user interface experience to your Arduino project. The connection of this display with Arduino is made through SPI interface.
The 1.3 Inch 128×64 OLED Display Screen Module produces blue text on black background with very good contrast when supplied with DC 2.8V supply. The OLED Display Modules also offers a very wide viewing angle of about greater than 160°.
Pin Description:
OLED Display Module to Arduino
GND: GND.
VDD: 3.3V (VCC).
MOSI: D11 (don’t change).
SCK: D13 (don’t change).
D/C: D8 (can be any digital pin).
RST: D9 (can be any digital pin).
CS: D10 (can be any digital pin).
Features :
- No need of the backlight
- The display is self-illuminating
- Power requirement is low
- They are offering the large viewing angle
- Full Compatible with Arduino
- The ultra-low power consumption of around 0.08w at full screen lit.
Package Includes :
- 1 x 1.3 Inch 128×64 OLED Display Screen Module with SPI Serial Interface – V2

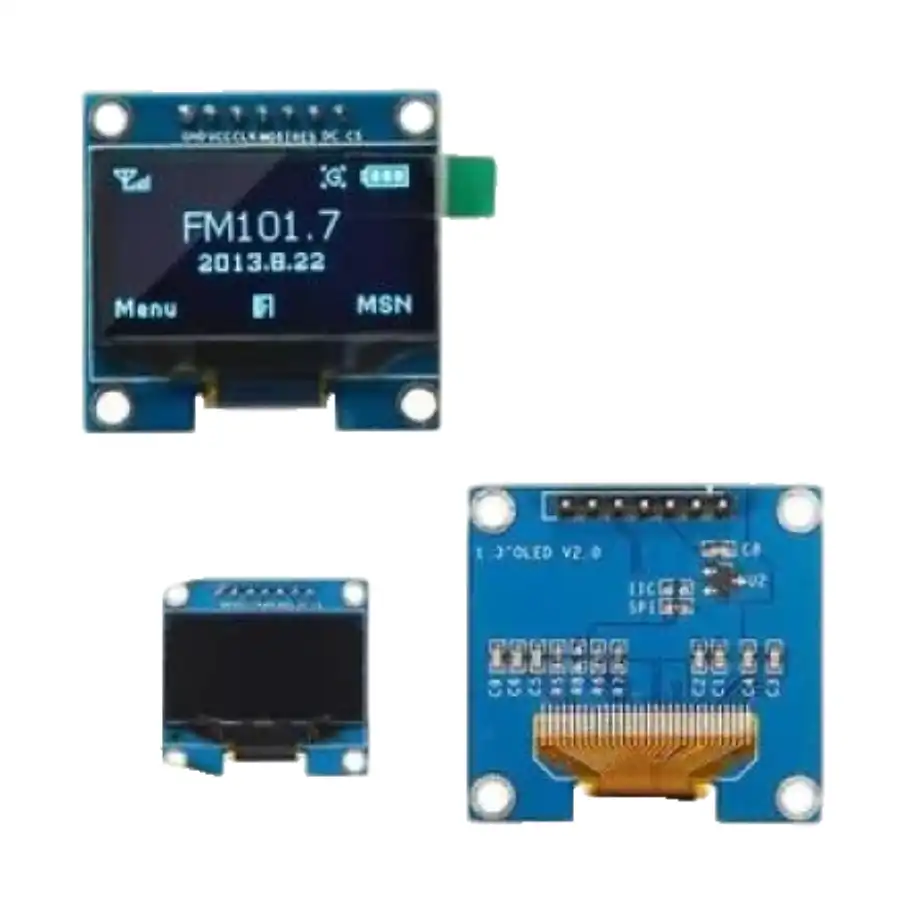

1.3 Inch 128×64 OLED Display Screen Module with SPI Serial Overview
The 1.3 Inch 128×64 OLED Display Screen Module V2 uses the SH1106 driver IC and a blue-pixel panel to deliver crisp, high-contrast graphics. Its SPI serial interface makes it perfect for integrating into microcontroller projects where space and power efficiency are key.
Key Features of 1.3 Inch 128×64 OLED Display Screen Module with SPI Serial
- High-resolution 128×64 pixels on a compact 1.3″ OLED panel
- SH1106 driver IC for stable refresh and ultra-low power consumption
- SPI serial interface for fast, efficient communication
- Wide input voltage range (3.3 V–6 V) compatible with 5 V systems
- Wide viewing angle >160° and vivid blue EL pixels for easy readability
- Genuine module with fast shipping from Zbotic
Applications and Use Cases
- Arduino or ESP32 wearables displaying real-time data
- Status readouts on 3D printers, CNC machines, and DIY controllers
- Portable multimeters, environmental sensors, and diagnostic tools
- Robotics dashboards showing sensor values and system status
- Home automation touch panels for temperature, humidity, and controls
How to Use 1.3 Inch 128×64 OLED Display Screen Module with SPI Serial
Connect VCC (3.3 V–6 V) and GND to your power source, then wire SCLK, MOSI (DIN), CS, DC, and RST pins to your microcontroller’s SPI and control lines. Install an SH1106-compatible library in your development environment, initialize the display over SPI in your code, and use provided library functions to draw text, shapes, and icons.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I power this OLED display directly from a 5 V Arduino board?
Yes. The module accepts 3.3 V to 6 V on its VCC pin, so you can connect it to your Arduino’s 5 V line. Just share the GND and no additional regulator is needed.
Which microcontrollers support its SPI interface?
This display’s SCLK, MOSI/DIN, CS, DC, and RST lines work with any board offering SPI, including Arduino, ESP8266/ESP32, STM32, and Raspberry Pi.
Does this OLED require a backlight to operate?
No. As an electroluminescent OLED driven by the SH1106, it produces its own light, delivering deep blacks and high contrast without a separate backlight.
Frequency Counter Project Using Arduino and 555 Timer
A frequency counter Arduino project is one of the most practical and educational builds for intermediate electronics makers....
Read More →
Crystal Oscillator vs Ceramic Resonator: Which to Choose
Every microcontroller, UART, USB interface, and real-time clock needs a stable timing reference. That timing source is almost...
Read More →
Thermal Resistance in Electronics: Heatsink Selection Guide
Thermal Resistance in Electronics: Complete Heatsink Selection Guide Every power transistor, voltage regulator, and motor driver IC generates...
Read More →Technical Specifications
| Display Size | 1.3" |
|---|---|
| Interface / Protocol | SPI |
| Package Quantity | 64 pcs |
| SKU | AI2324 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 1.3 Inch 128×64 OLED Display Screen Module with SPI Serial Interface – V2 is a versatile oled display used across a wide range of applications including wearable electronics, IoT sensor readouts, small embedded displays, DIY clocks and meters, and battery-powered gadgets.
Common use cases:
- Displaying temperature/humidity on an Arduino project
- Building a DIY smartwatch
- Adding a status display to a custom PCB
This product is ideal for makers, Arduino/ESP32 developers, and electronics hobbyists.
Technical Tip: OLED displays consume power per-pixel — black pixels use zero power, making them ideal for battery-powered projects with sparse displays.
