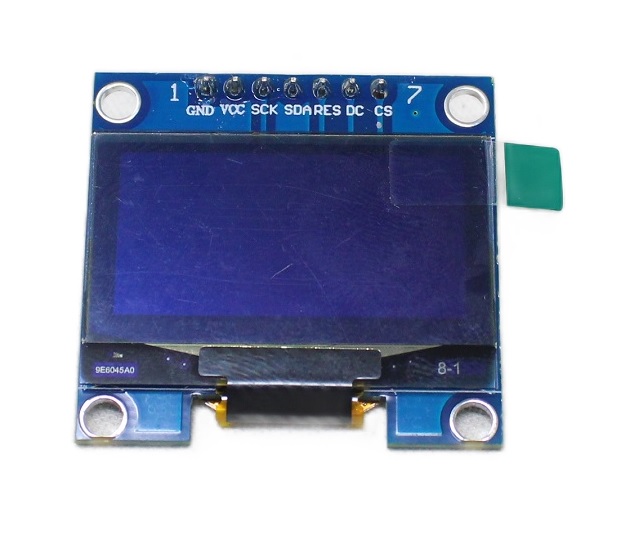

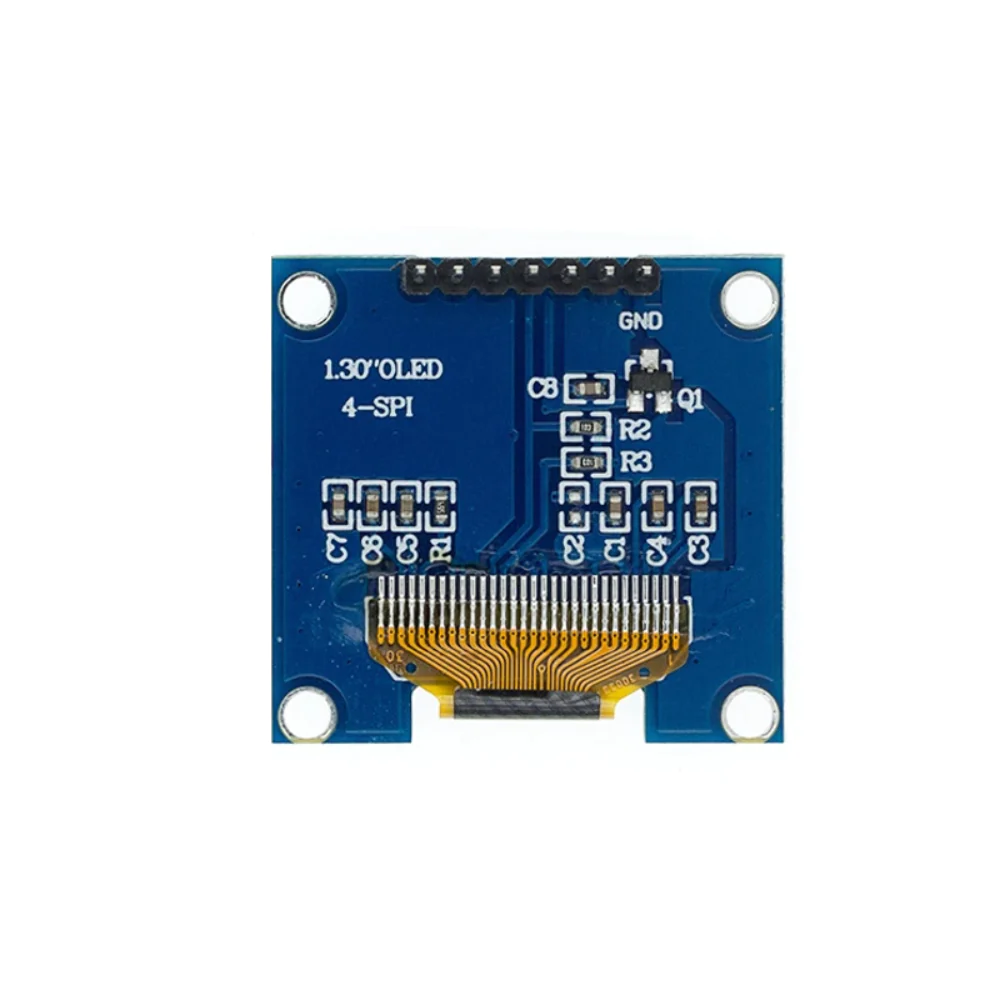

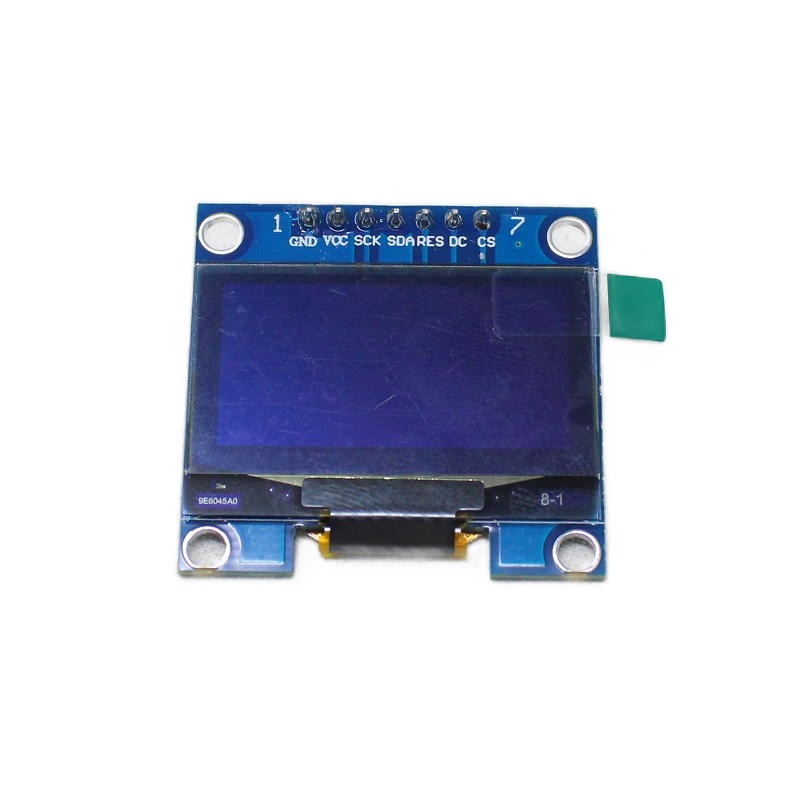

1.3 Inch SPI OLED LCD Module + CSpin 7pin(with GND VCC) White
OLEDs represent the future of displays, offering significant advantages over traditional LCDs and LEDs. One of the most notable benefits is that OLED displays do not require a backlight, unlike conventional screens. This is because the organic material used in OLEDs exhibits Electroluminescence (EL), which causes it to emit light when an electric current is applied. This inherent property makes OLED displays extremely energy-efficient.
The compact design of this OLED Display Module enhances the user interface experience of Arduino projects. Connection to an Arduino is established via the SPI interface.
Featuring a 1.3-inch 128×64 OLED display screen, this module produces white text on a black background with excellent contrast when powered by a DC 2.8V supply. Additionally, OLED Display Modules offer a wide viewing angle of over 160°, ensuring clear visibility from various perspectives.
Pin Description:
OLED Display Module to Arduino
GND: GND.
VDD: 3.3V (VCC).
MOSI: D11 (don’t change).
SCK: D13 (don’t change).
D/C: D8 (can be any digital pin).
RST: D9 (can be any digital pin).
CS: D10 (can be any digital pin).
- No need of the backlight
- The display is self-illuminating.
- Power requirement is low.
- They are offering the large viewing angle.
- Full Compatible with Arduino
- The ultra-low power consumption of around 0.08w at full screen lit.
Specification:
Driver IC: SH1106
Resolution: 128 x 64
Visual Angle: >160°
Input Voltage: 3.3V ~ 6V
Pixel Color: White
PACKAGE INCLUDES
1 X 1.3 Inch SPI OLED LCD Module + CSpin 7pin(with GND VCC) White
1.3 Inch SPI OLED LCD Module + CSpin 7pin(with GND VCC) Overview
The 1.3 Inch SPI OLED LCD Module with CSpin 7-pin connector is a compact white-pixel display driven by the SH1106 IC, offering a 128×64 resolution and wide viewing angle. It’s designed for SPI-based microcontroller projects, providing a crisp, self-illuminating interface without the need for a backlight.
Key Features of 1.3 Inch SPI OLED LCD Module + CSpin 7pin(with GND VCC)
- 1.3″ diagonal OLED panel with 128×64 pixel resolution for clear text and graphics
- SH1106 driver IC ensures stable refresh rates and low power consumption
- Wide viewing angle >160° for legible display from nearly any direction
- SPI interface with dedicated CS, DC, and RST lines on a 7-pin header (including VCC & GND)
- Operates from 3.3 V up to 6 V, compatible with 3.3 V or 5 V logic without level shifting
- Genuine module from authorized distributor; fast shipping across India via Zbotic
Applications and Use Cases
- Arduino projects displaying sensor readings, menus, and status indicators
- Raspberry Pi HATs and system monitors showing CPU load, temperature, and network stats
- Portable instrumentation such as data loggers and handheld meters
- Wearable gadgets requiring low-power, high-contrast readouts
- Battery-powered DIY electronics where efficient, self-illuminating displays are essential
How to Use 1.3 Inch SPI OLED LCD Module + CSpin 7pin(with GND VCC)
Wire VCC to a 3.3–6 V supply and GND to ground, then connect DIN (MOSI), CLK (SCK), CS, DC, and RST to the SPI pins on your microcontroller. Install an SH1106-compatible library (for example U8g2 or Adafruit SH1106 for Arduino), set the resolution to 128×64, call the init routine, and use provided functions to draw text, shapes, or bitmaps.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What are the pin assignments on the 7-pin connector?
The header pins are VCC (3.3–6 V), GND, DIN (MOSI), CLK (SCK), CS (chip select), DC (data/command) and RST (reset). Match them to your microcontroller’s SPI and power pins for proper operation.
Do I need a backlight for this OLED module?
No. OLED panels emit their own light via electroluminescence, so no external backlight is required. Simply power the module and send display data.
Can I use 5 V logic levels with this display?
Yes. The module’s input range up to 6 V allows direct connection to 5 V SPI signals without additional level-shifting components.
EasyEDA PCB Design: Free Tool for Beginners Tutorial
EasyEDA PCB Design: Free Tool for Beginners Tutorial If you have been wanting to design your own printed...
Read More →
Foot Switch: Hands-Free Control for Machines
Understanding the foot switch is essential for anyone working with electronics in India. This comprehensive guide covers foot...
Read More →
How to Test a Capacitor with Multimeter: Step-by-Step
A failing capacitor is one of the most common causes of circuit board failures — from crashing power...
Read More →Technical Specifications
| Display Size | 1.3" |
|---|---|
| Pin Count | 7-pin |
| Interface / Protocol | SPI |
| Color | White |
| SKU | AI3593 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 1.3 Inch SPI OLED LCD Module + CSpin 7pin(with GND VCC) White is a versatile oled display used across a wide range of applications including wearable electronics, IoT sensor readouts, small embedded displays, DIY clocks and meters, and battery-powered gadgets.
Common use cases:
- Displaying temperature/humidity on an Arduino project
- Building a DIY smartwatch
- Adding a status display to a custom PCB
This product is ideal for makers, Arduino/ESP32 developers, and electronics hobbyists.
Technical Tip: OLED displays consume power per-pixel — black pixels use zero power, making them ideal for battery-powered projects with sparse displays.
