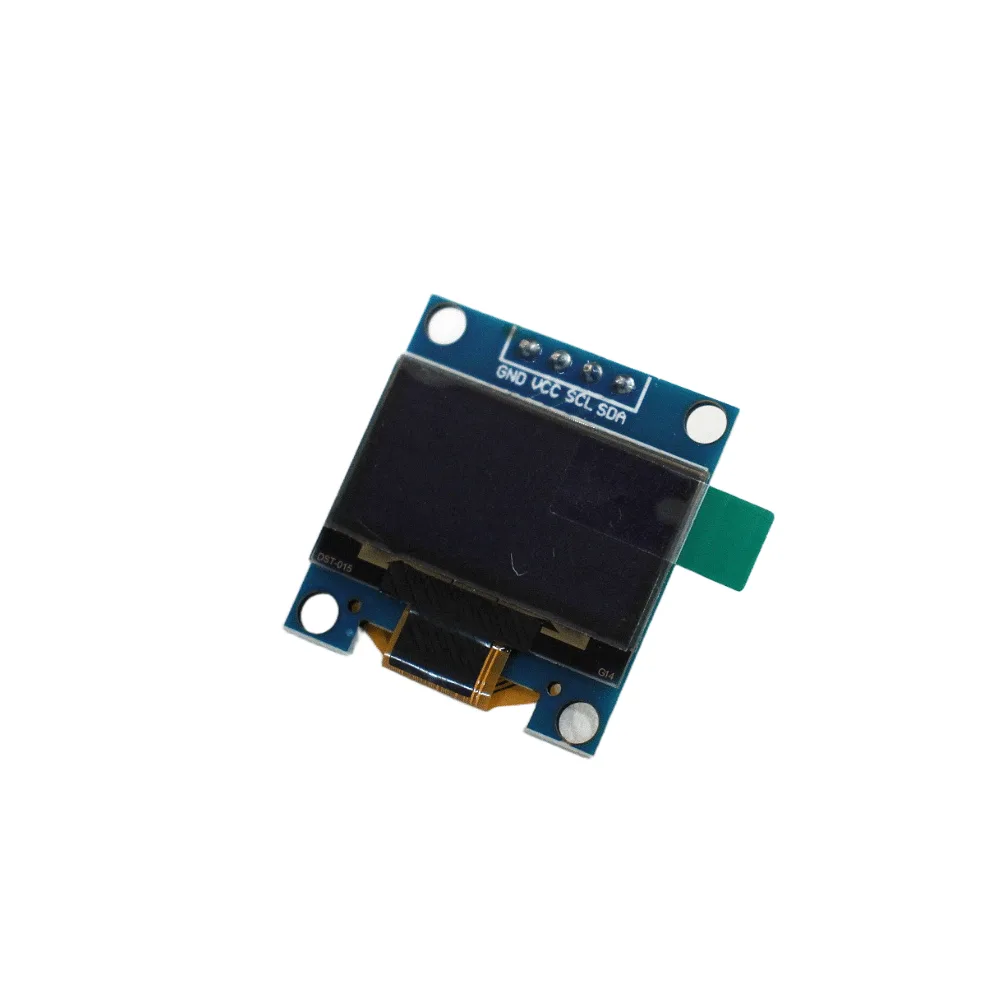

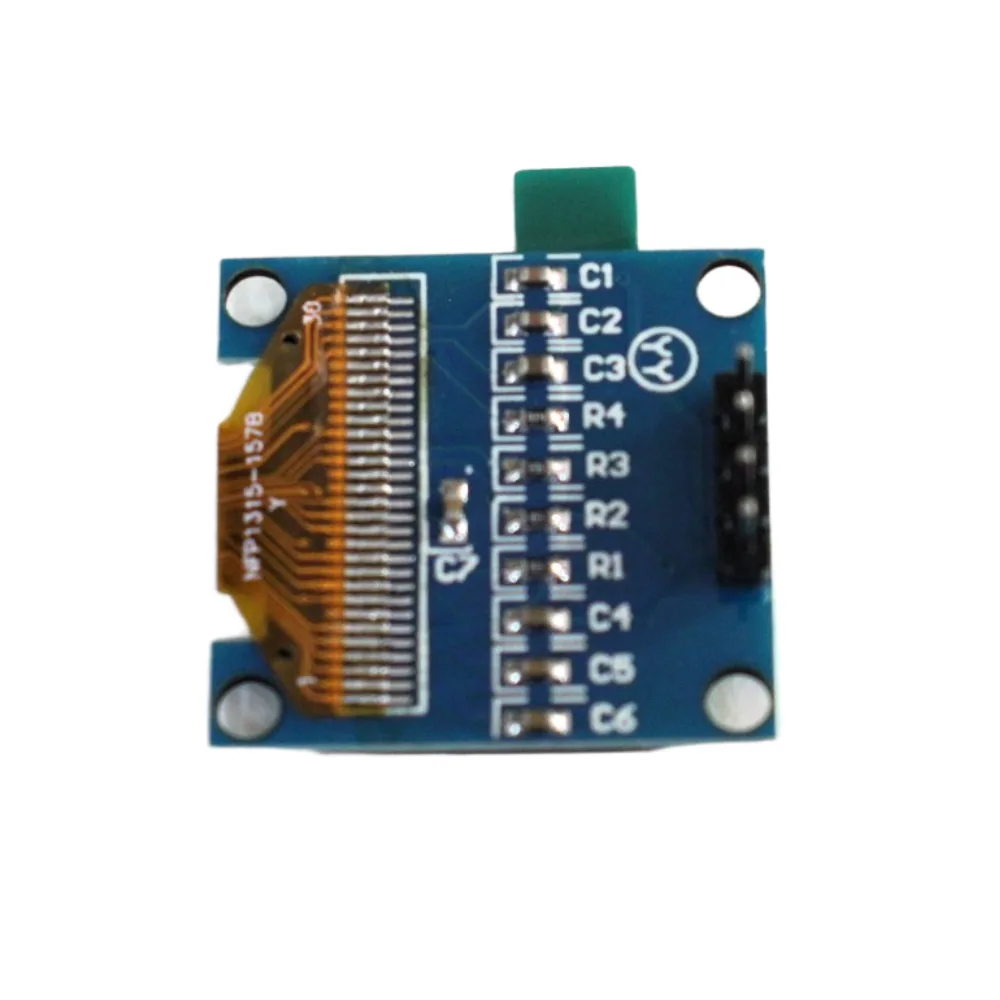

0.96 Inch I2C/IIC 4pin OLED Display Module
OLED (Organic Light-Emitting Diode) is a self-emitting technology consisting of a thin, multi-layered organic film situated between an anode and cathode. Unlike LCD technology, OLED does not need a backlight. OLED has a high application potential for nearly all display types and is considered the ultimate technology for the next generation of flat-panel displays.
The 0.96 Inch I2C/IIC 4-pin OLED Display Module BLUE can interface with any microcontroller via SPI/IIC/I2C protocols. It boasts a resolution of 128×64. The package comes with a display board, display, and a 4-pin male header already soldered to the board.
The OLED monochrome 128×64 dot matrix display module features high brightness, self-emission, a high contrast ratio, a slim/thin outline, a wide viewing angle, a broad temperature range, and low power consumption.
Interface pin for 4 PIN 128×64 OLED
GND : Ground
VCC: 3.3 volts – 5 Volts
SCL: Serial Clock
SDA: Serial Data
Features of 4 pin 128 x 64 OLED Display-
Super High Brightness (Adjustable)
Super High Contrast (Adjustable)
Embedded Driver/Controller
Display size: 0.96″
Resolution radio:128 x 64
Interface modes: I2C/IIC
working voltage: 3.3V
Control Chip: SSD1306
Specifications:
| Pixel Colour | Blue |
|---|---|
| Resolution | 128 x 64 Pixels |
| Active Display Area | 21.74 x 10. 86mm |
| Driving Voltage | 3.3-5V |
| Operating Temperature | -40º~70º Celsius |
| Interface Type | I2C IIC |
| Length (mm): | 27.5 |
| Width (mm): | 27.5 |
| Height (mm): | 11 |
| Weight (g): | 7 |
Package Includes
1 x 0.96 Inch I2C IIC 4pin OLED Display Module BLUE
