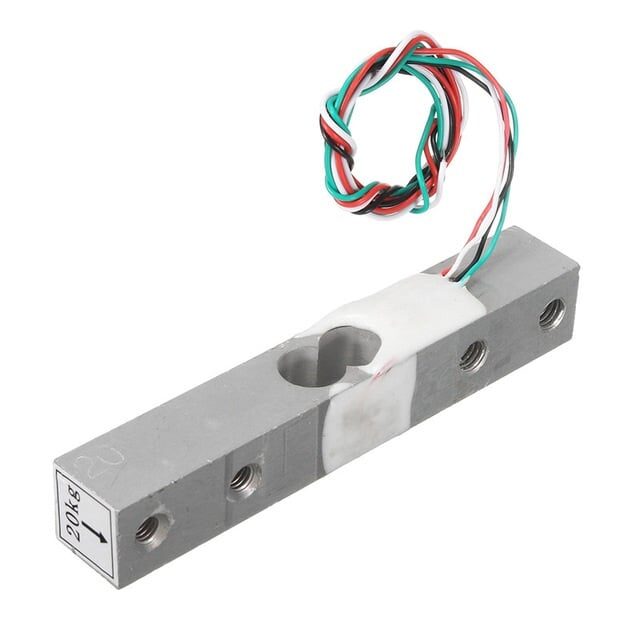

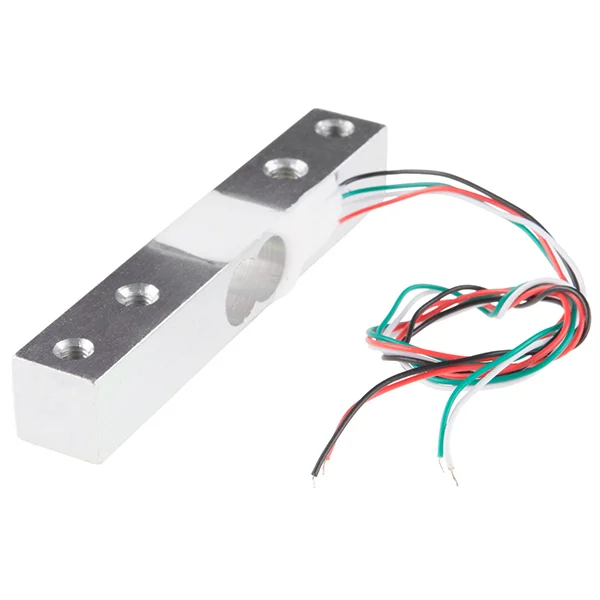

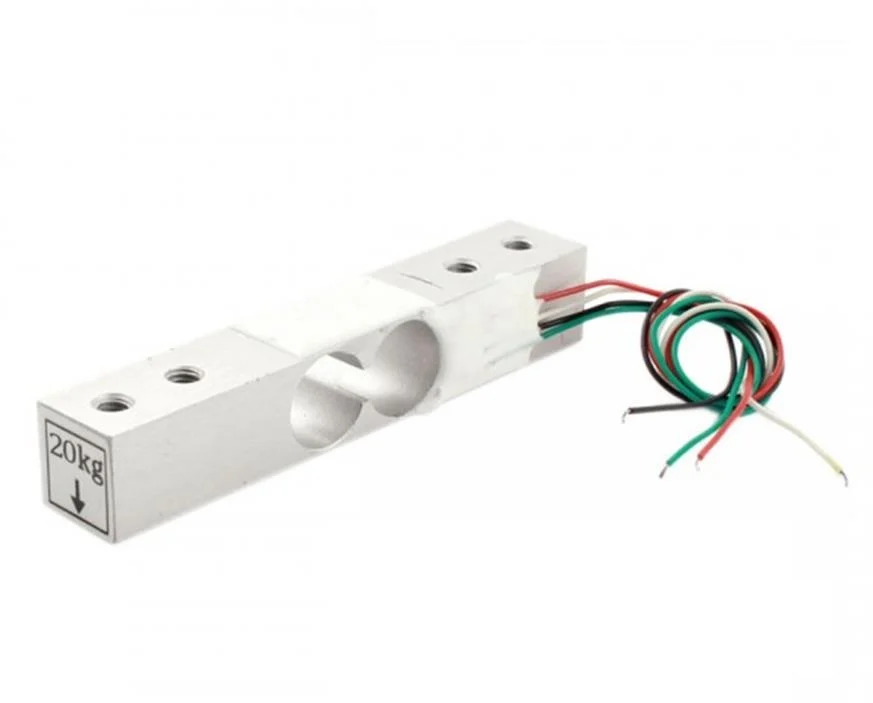

YZC-133 Weighing Load Cell Sensor 20kg For Electronic Weighing Scale
The YZC-133 Weighing Load Cell Sensor 20kg For Electronic Weighing Scale is a device that can convert up to 20 kg of force into an electrical signal. It works by measuring the change in electrical resistance that occurs when a strain (e.g. pressure or force) is applied to the metal bar.
This sensor can be used to measure the weight of an object, detect changes in weight over time, or sense the presence of an object by measuring the strain or load on a surface. The sensor is made of aluminum alloy and has a maximum capacity of 1KG.
The sensor has four lead wires that can be connected to the HX711 A/D Pressure Sensor. It operates with a driving voltage of 5-10V and produces an output voltage that varies according to the force applied to it.
To install the sensor, one end should be fixed with a screw and the other end should be left free. The direction of the gravitational force should match the label on the sensor. The white plastic cover on the sensor should not be pushed directly to avoid damage.
An electronic weighing machine uses a load cell to measure the load or pressure generated by the weight. Most load cells use the strain gauge method, which converts the force into an electrical signal. The load cells have four strain gauges arranged in a Wheatstone bridge circuit.

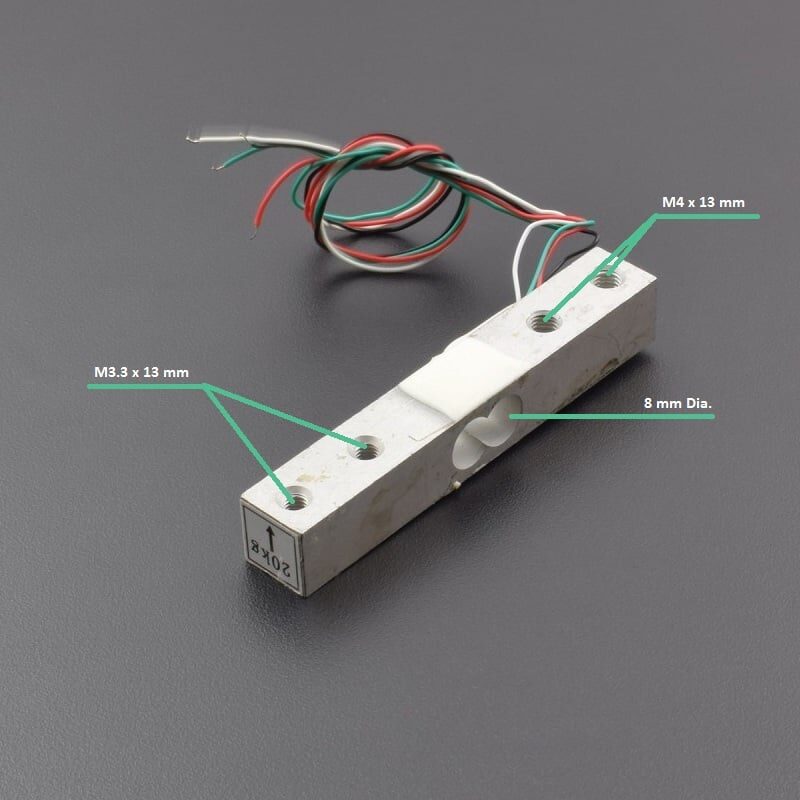

Dimensions:
- Mounting hole diameter (mm): 2 holes – M3.3 x 13(depth) and 2 holes – M4 x 13mm(depth).
- Weight: 32 gm.

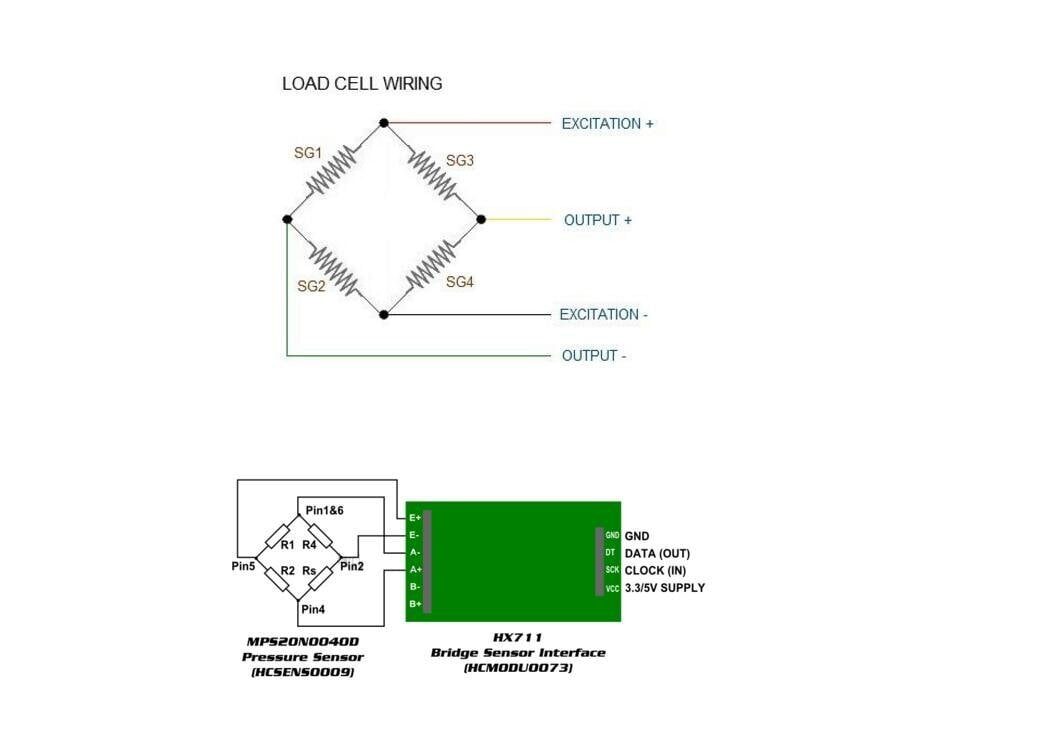

Wheatstone bridge formation of Load Cell:

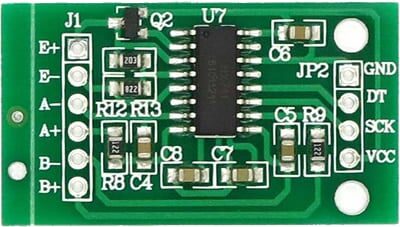

HX711 (24-bit Analog to Digital Converter)
HX 711 is a precision 24-bit analog to digital converter (ADC) specially designed for Weigh scales and industrial control applications to interface directly with a bridge sensor.

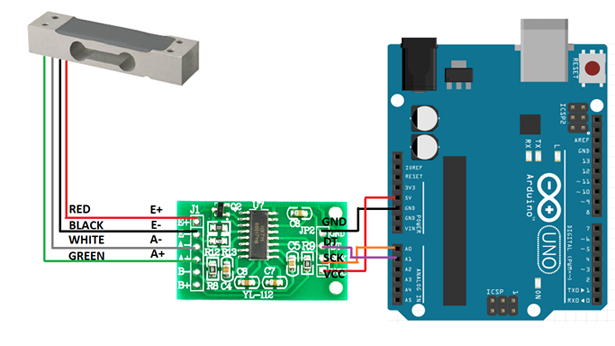

Simply connect Load cell wires to the HX711 module based on their color, then connect DAT (Data) pin to Arduino Analog pin A1 and connect CLK (Clock) pin to Arduin0 Analog pin A0, Put Vcc and GND supply from Arduino power source pins.
Specification:
| Weighing Range (Kg) | 20 |
|---|---|
| Rated Output | 1.0 ± 0.1mV / V |
| Non Linear Output | ± 0.03% F.S |
| Hysteresis | 0.03% F.S |
| Repeatability | 0.05% F.S |
| Creep | 0.03%F.S./30min |
| Cable Length (cm) | 18 |
| Zero Balance | ± 0.1 mV / V |
| Protection Standard | IP65 |
| Insulation Resistance (MΩ) | 2000 |
| Impedance (Ω) | 1115±10% Ω |
| Output Impedance | 1000 ± 10% Ω |
| Operating Temperature (°C): | -20 to 65 |
| Weight (g): | 29 |
| Shipping Weight | 0.08 kg |
| Shipping Dimensions | 8 × 3 × 1 cm |
Package Includes:
Smoke Particle Counter: PM Sensor for Indoor Air Quality
Table of Contents Why Indoor Air Quality Matters Understanding PM2.5 and PM10 Types of PM and Smoke Sensors...
Read More →
ADXL345 Accelerometer: Tilt and Vibration Sensing with Arduino
Table of ContentsWhat Is the ADXL345?How MEMS Accelerometers WorkADXL345 Key FeaturesWiring ADXL345 via I2CWiring ADXL345 via SPIArduino Code:...
Read More →
BME688 Environmental Sensor: Gas, Humidity, Temperature and Pressure Guide
The BME688 is arguably the most versatile environmental sensor ever created for the maker and IoT community. In...
Read More →Technical Specifications
| Model | YZC-133 |
|---|---|
| SKU | AI2683 |
| Weight | 0.04 kg |
| Availability | In Stock |
Applications & Use Cases
The YZC-133 Weighing Load Cell Sensor 20kg For Electronic Weighing Scale is a versatile load / pressure / force / flex sensor used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
