Looking for Zs03 Module? Winsen ZS03 Temperature and Humidity Sensor Module is available at Zbotic with fast shipping across India.

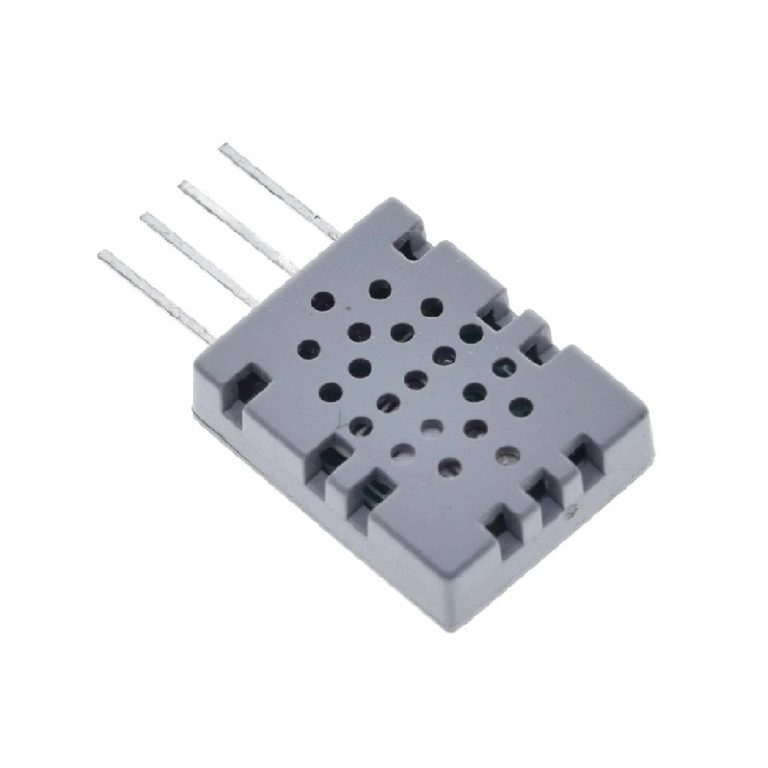

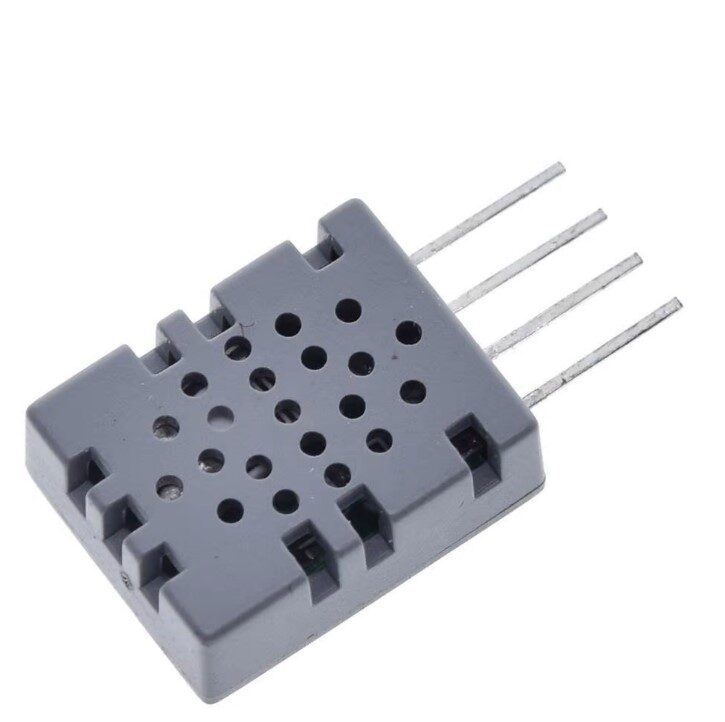

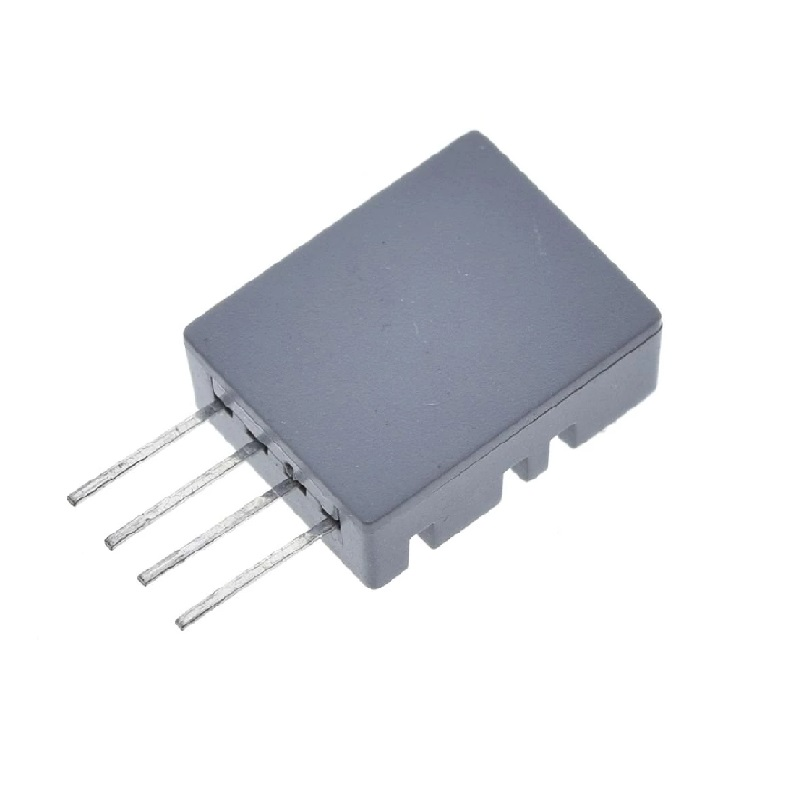

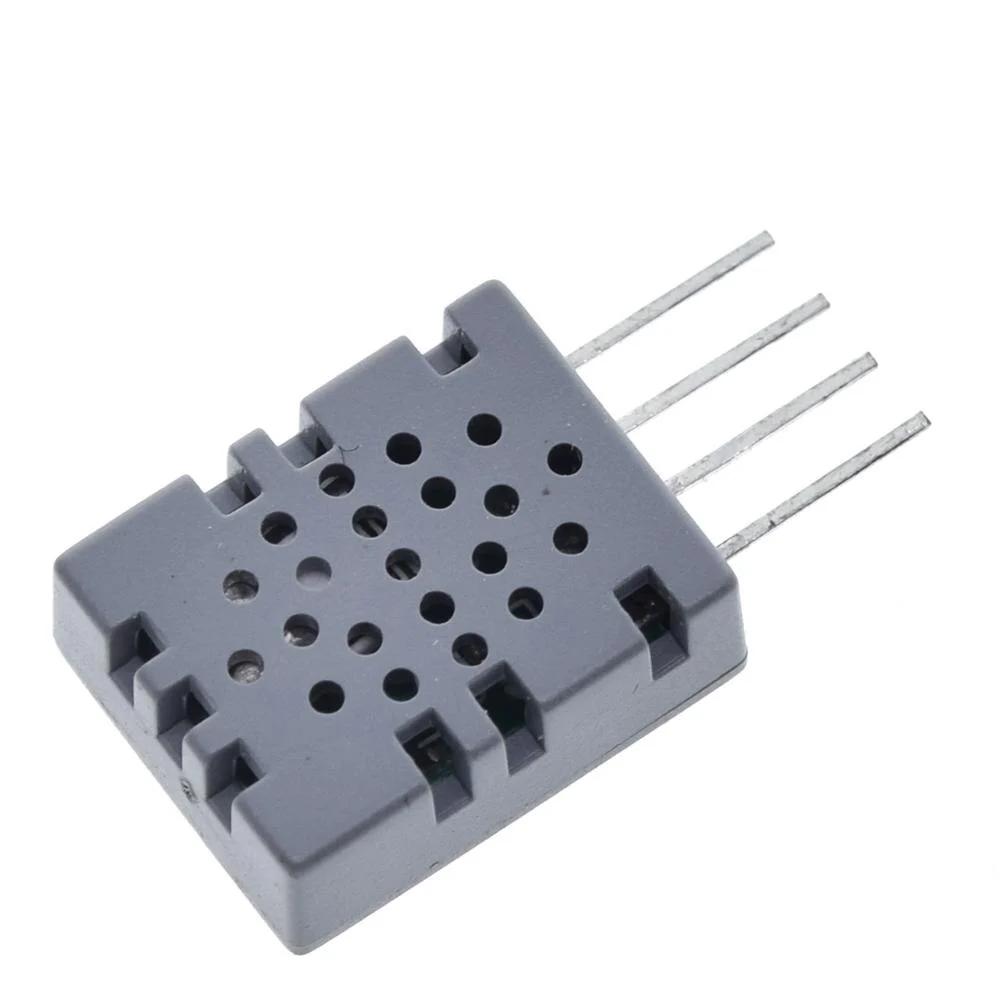

Winsen ZS03 Temperature and Humidity Sensor Module
ZS03 is a digital temperature and humidity sensor module. It uses a polymer resistance-type moisture sensor and an NTC thermistor, and connects to a high-performance 8-bit microcontroller. It has high quality, fast response, and strong anti-interference capabilities.
A temperature and humidity sensor (or RH temp sensor) is a device that can convert temperature and humidity into electrical signals that can be easily measured.
Humidity sensors are used to measure and monitor the amount of water vapor in the air.
Applications:
- Storage
- industrial production
- process controlling.
- environment monitoring
- household appliances
- meteorological field
Features
- Small in size
- Best quality product
- It detects Temperature and Humidity
- High sensitivity, high resolution, low power consumption
- Fast response time
- Temperature compensation, excellent linear output
- Excellent stability
- Long lifespan
- Anti-poisons, anti-vapor interference
Specifications
- Model: ZS03
- Detection Object: Relative humidity, temperature
- Operation Voltage: 2.7～5.5V DC
- Detection Range: 20～90%RH
- Accuracy for humidity detection: ±5%RH (at25℃，60%RH，Vin=2.7V)
- Accuracy for temperature detection: ±2℃
- Operation temperature: 0～60℃
- Operation humidity: 20～90%RH（non-condensation）
- Package Single row straight: 4-pins (SIP4)
Packages Includes
1 x Winsen ZS03 Temperature and Humidity Sensor Module
Winsen ZS03 Temperature and Humidity Sensor Module Overview
The Winsen ZS03 Temperature and Humidity Sensor Module is a compact digital monitoring device that integrates a polymer resistance humidity sensor and an NTC thermistor with an 8-bit microcontroller. It converts ambient relative humidity and temperature into stable electrical signals, making it ideal for storage, industrial processes and environmental control applications.
Key Features of Winsen ZS03 Temperature and Humidity Sensor Module
- Detection Range: 20 – 90% RH for versatile humidity monitoring
- Humidity Accuracy: ±5% RH at 25℃, 60% RH (Vin=2.7 V)
- Operation Voltage: 2.7 – 5.5 V DC, compatible with most microcontrollers
- Polymer Resistance-Type Moisture Sensor for stable long-term performance
- NTC Thermistor for reliable temperature measurement
- High-performance 8-bit MCU ensures fast response and strong anti-interference
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Warehouse storage humidity and temperature monitoring
- Industrial production line environment control
- Automated process control systems requiring RH/temp feedback
- Greenhouse climate regulation for horticulture
- HVAC system performance testing and calibration
- Environmental monitoring stations in labs and schools
How to Use Winsen ZS03 Temperature and Humidity Sensor Module
Wire the module’s VCC to a stable 3.3 V–5.5 V supply, GND to common ground and connect its data output pin to your microcontroller’s digital input. After powering on, allow the sensor to stabilize for a few seconds, then poll the data line using simple digital-read routines and apply the voltage-to-%RH/°C conversion formulas provided in the ZS03 datasheet.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
1. How do I interface the ZS03 with a microcontroller?
Connect VCC to 2.7 – 5.5 V, GND to ground and the module’s data pin to your microcontroller’s digital input. Use a simple digital-read routine and convert raw values into %RH and °C using the formulas in the ZS03 datasheet.
2. What is the response time of this sensor?
The ZS03 exhibits fast response to changes in humidity and temperature thanks to its high-performance MCU and polymer moisture element, making it suitable for dynamic monitoring.
3. Is calibration required before use?
The ZS03 comes factory-calibrated for general applications. For higher precision, you can perform two-point calibration in known humidity conditions and adjust readings in your code.
