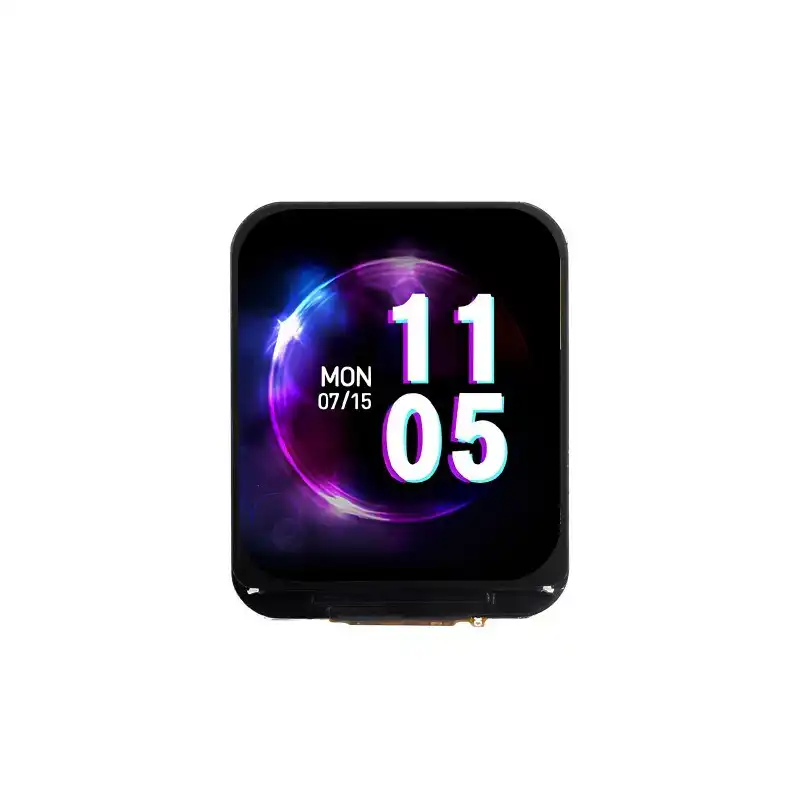

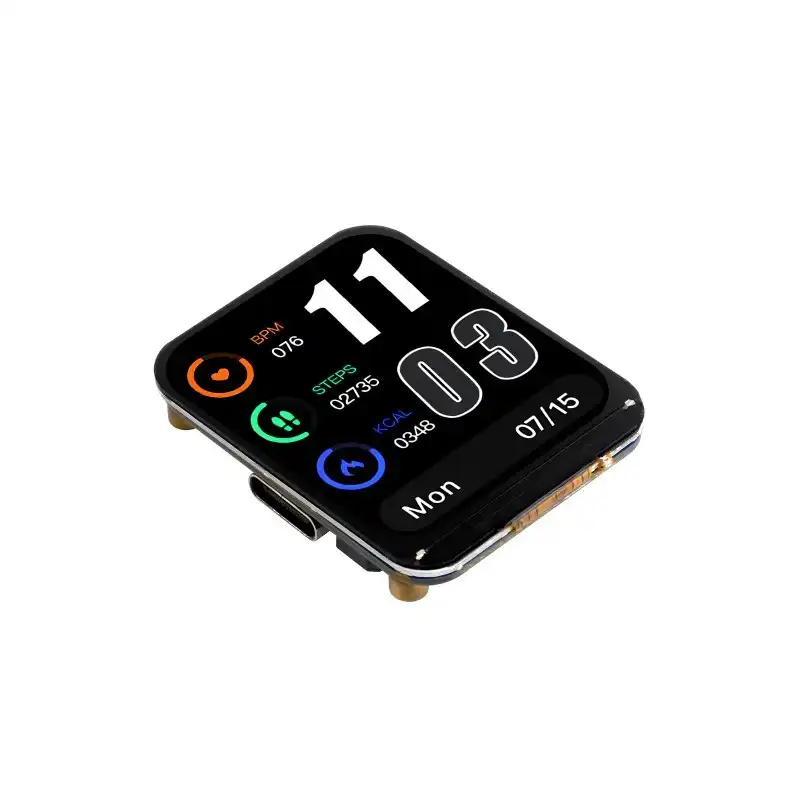

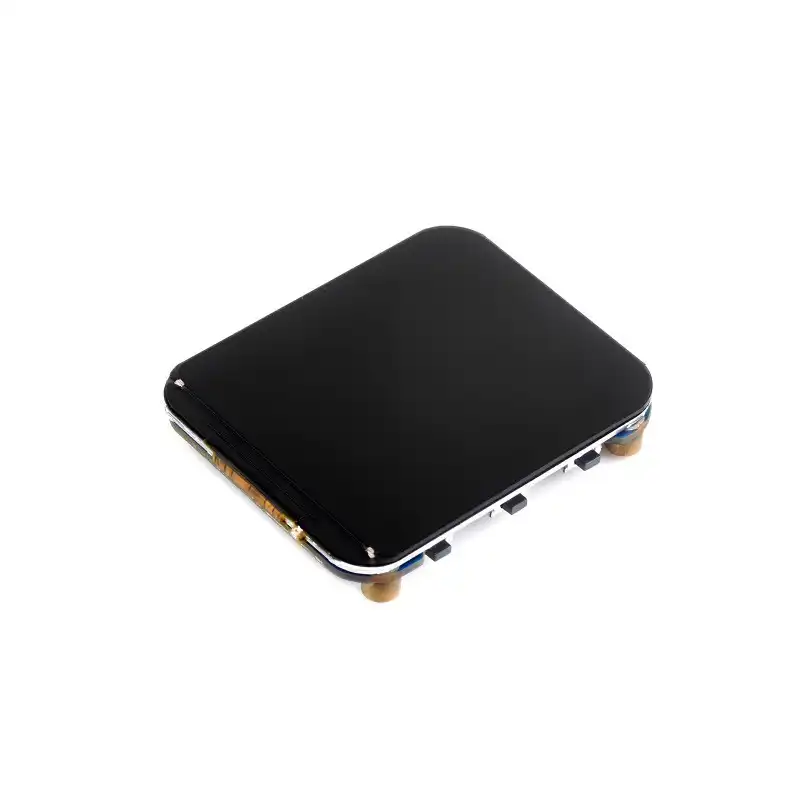

This is the 69inch variant of the Waveshare ESP32-S3 1.69inch Display Development Board, 240MHz Dual-Core Processor, 240×280 Pixels, Supports WiFi/Bluetooth, Micro LCD Display With ESP32-S3 in IoT Development Boards. Available at Original price was: ₹2,055.56.₹1,886.82Current price is: ₹1,886.82. (₹1,599.00 + GST) with free shipping across India.
The Waveshare ESP32-S3 1.69-inch Display Development Board is a compact and powerful development platform designed for projects requiring both advanced processing capabilities and integrated display functionality. This board combines the robust features of the ESP32-S3 microcontroller with a high-resolution micro LCD display, making it an ideal choice for developing interactive and visually driven applications.
Features:
- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built-in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
- Type-C connector, keeps it up to date, easier to use
- Onboard 1.69inch 240×280 pixels 262K display for clear color pictures
- Built-in ST7789V2 display driver chip, using SPI communication, effectively saving the IO resources
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
- Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement
- Onboard RST, BOOT, and a programmable PWM button for easy custom function development
- Onboard 3.7V MX1.25 lithium battery recharge/discharge header
- Reserved 12PIN header of 5 × GPIO, I2C, and UART interfaces, for connecting peripherals and debugging
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
Specification:
| SoC | ESP32-S3R8 |
|---|---|
| Frequency | 240MHz |
| PSRAM | 8MB |
| Flash | 16MB NOR-Flash |
| RTC (Real Time Clock) | PCF85063 |
| IMU | 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer |
| Antenna (Y/N): | 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) |
Package Includes:
1 x Waveshare ESP32-S3 1.69inch Display Development Board, 240MHz Dual-Core Processor, 240×280 Pixels, Supports WiFi/Bluetooth, Micro LCD Display With ESP32-S3
ESP32-H2 Zigbee and Thread Native Support Guide
The ESP32-H2 Zigbee Thread native support marks a turning point for Indian IoT developers who want to build...
Read More →
MQTT vs HTTP vs CoAP: IoT Protocol Comparison
Table of Contents Understanding IoT Protocols MQTT: The IoT Standard HTTP and REST APIs for IoT CoAP: Lightweight...
Read More →
ESP32 Watchdog Timer: Prevent System Freeze in Production
Deploying an ESP32 watchdog timer to prevent freeze in production environments is not optional — it is a...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ESP32-S3 |
| Display Size | 1.69" |
| Interface / Protocol | WiFi, Bluetooth |
| Frequency | 240MHz |
| Color | Blue |
| SKU | AI6656 |
| Weight | 0.03 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare ESP32-S3 1.69inch Display Development Board, 240MHz Dual-Core Processor, 240×280 Pixels, Supports WiFi/Bluetooth, Micro LCD Display With ESP32-S3 is a versatile iot development boards used across a wide range of applications including rapid IoT prototyping, connected sensor platforms, edge computing, wearable devices, and home automation.
Common use cases:
- Prototyping a smart environmental monitor
- Building a BLE-connected fitness tracker
- Creating an edge AI inference device
This product is ideal for IoT engineers, embedded developers, and electronics students.
Technical Tip: Development boards with built-in displays and sensors accelerate prototyping. Check GPIO count and peripheral support for your project needs.
