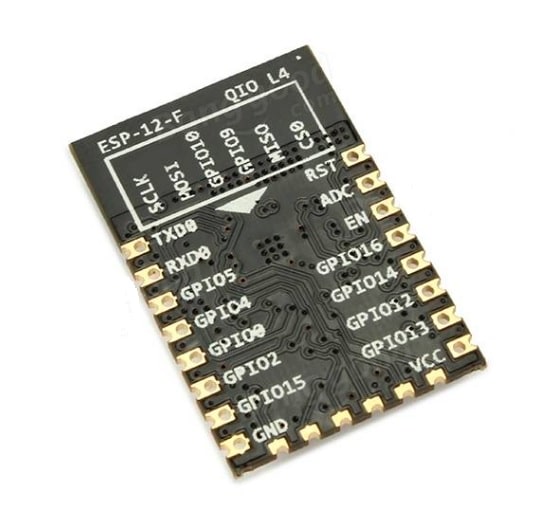

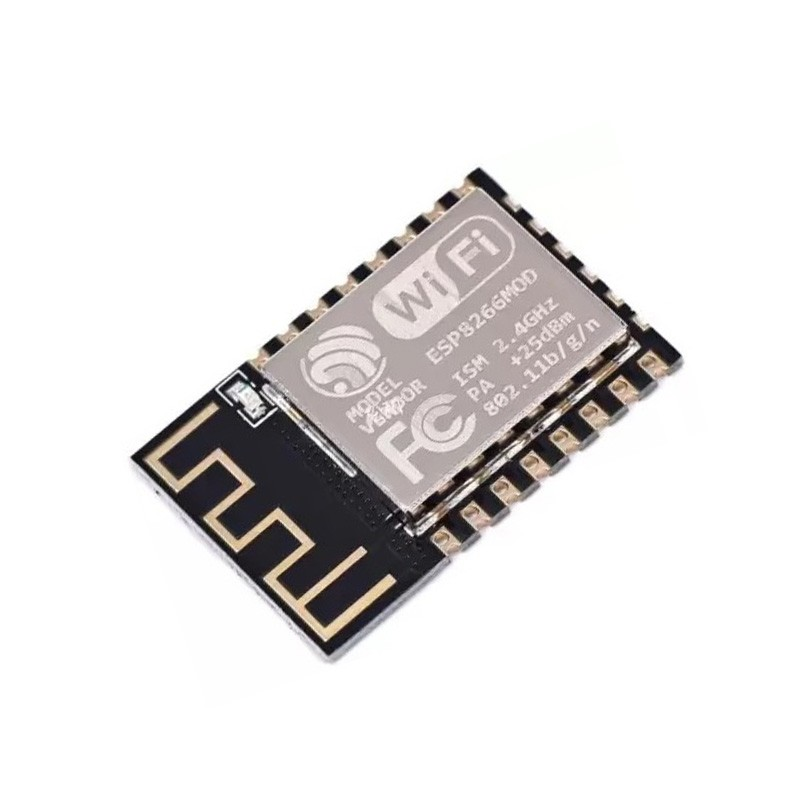

ESP-12F ESP8266 WiFi Wireless IoT Board Module
Introducing the ESP-12F ESP8266 WiFi Wireless IoT Board Module, your gateway to the world of wireless connectivity and Internet of Things (IoT) applications. Designed to meet the demands of a connected world, the ESP8266 chip offers a comprehensive Wi-Fi networking solution, capable of hosting applications or offloading Wi-Fi networking functions from other processors.
The Latest ESP-12F ESP8266 Wifi Module AP & Station Remote Serial Wireless IoT Board provides seamless communication with your network, handling essential tasks such as TCP/IP stack and 802.11 network communication. With full addressability over SPI and UART protocols, you can easily connect sensors or projects directly to its GPIO pins.
This low-cost Wi-Fi chip boasts a full TCP/IP stack and MCU capability, making it ideal for a wide range of applications. Each ESP8266 module comes pre-programmed with an AT command set firmware, enabling effortless integration with Arduino devices for instant Wi-Fi connectivity.
Featuring powerful on-board processing and storage capabilities, the ESP8266 module can be seamlessly integrated with sensors and other devices, requiring minimal upfront development and runtime loading. Its high level of on-chip integration minimizes the need for external circuitry, optimizing PCB space and reducing complexity.
The ESP8266 supports various wireless network modes, including Station, SoftAP, and SoftAP station, ensuring flexibility for diverse IoT applications. With support for 802.11 b/g/n standards and WPA/WPA2 security modes, you can rely on secure and reliable wireless communication.
Unlock the potential of wireless connectivity with the ESP-12F ESP8266 WiFi Wireless IoT Board Module and embark on your journey into the world of IoT innovation.
- They are collectively referred to as “ESP-xx modules”.
It improved on the Following:
- Peripheral circuit
- The four laminates plate process
- Enhanced impedance matching
- Stronger WiFi signal output
- Anti-jamming ability
- PCB antenna redesigned after professional laboratory testing
Corresponding Interface :
-
- SDIO 2.0, SPI, UART
- 32-pin QFN package
- Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
- Integrated RISC processor, on-chip memory, and external memory interfaces
- Integrated MAC/baseband processors
- Quality of Service management
- I2S interface for high fidelity audio applications
- On-chip low-dropout linear regulators for all internal supplies
- Proprietary spurious-free clock generation architecture
- Integrated WEP, TKIP, AES, and WAPI engines
Features
- Compatible with ESP-12（ESP-202）
- WIFI @ 2.4 GHz, support for WPA / WPA2 security mode
- It is very easy to develop projects with AT commands
- Surface Mount Package with 2mm Pitch Pads
- Multiple GPIO’s for all your sensor needs
- Wi-Fi Direct (P2P), soft-AP
- Integrated TCP/IP protocol stack
- Integrated TR switch, balun, LNA, power amplifier and matching network
- Integrated PLL, regulators, DCXO and power management units
- 19.5dBm output power
- Power down leakage current of <10uA
- Integrated low power 32-bit CPU could be used as an application processor
- SDIO 1.1/2.0, SPI, UART
- STBC, 1×1 MIMO, 2×1 MIMO
- A-MPDU & A-MSDU aggregation & 0.4ms guard interval
- Wake up and transmit packets in < 2ms
- Standby power consumption of < 1.0mW (DTIM3)
- Both SMD and Inline package are available, and the pin pitch is 2.0mm.
Specification:
| Compatibility | ESP-12 |
|---|---|
| Communication interface voltage(V) | 3.3 |
| Working current(mA) | 240 |
| Serial port baud rate | 115200(can be modified) |
| Serial communication format | 8N1 |
| Antenna Type | Built-in PCB antenna |
| Wireless Network Mode | station / softAP / SoftAP + station |
| Wireless criteria | 802.11 b / g / n |
Package Includes
- 1 x ESP-12F ESP8266 Wifi Module
Technical Specifications
| Model | ESP-12F |
|---|---|
| Interface / Protocol | WiFi |
| SKU | AI0155 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The ESP-12F ESP8266 WiFi Wireless IoT Board Module is a versatile other esp wifi modules used across a wide range of applications including WiFi connectivity for microcontrollers, IoT sensor nodes, remote monitoring, OTA firmware updates, and cloud-connected devices.
Common use cases:
- Adding WiFi to an existing Arduino project
- Building a cloud-connected weather station
- Enabling remote firmware updates
This product is ideal for IoT developers and electronics hobbyists.
Technical Tip: ESP-WROOM-32 modules need proper decoupling capacitors and antenna clearance for reliable WiFi performance.
