Product Description:

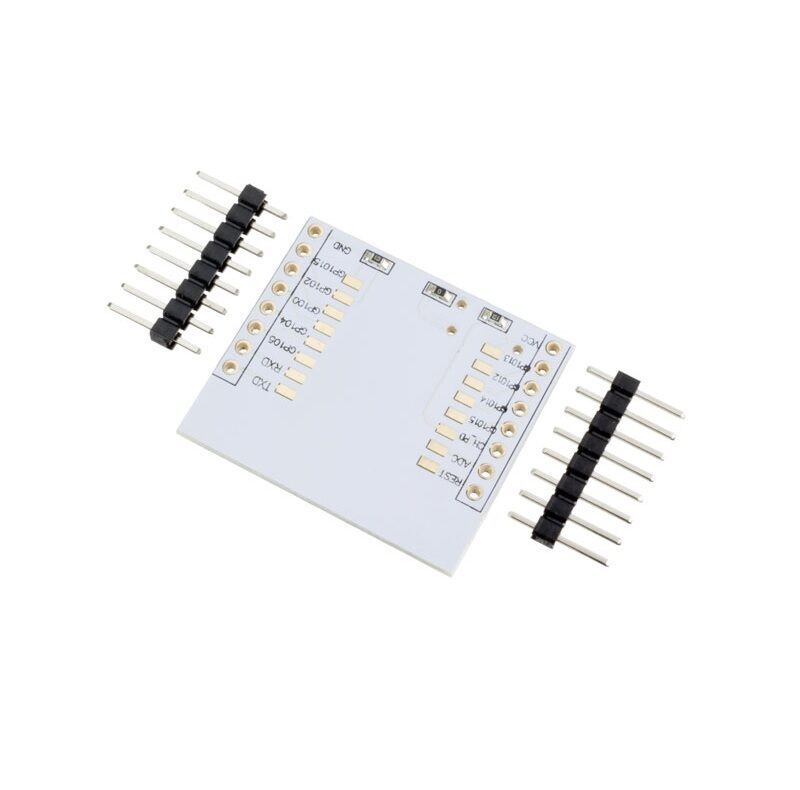

The ESP8266 Serial Wireless Wi-Fi Module Adapter Plate is designed for use with the ESP-07, ESP-08, and ESP-12E SMD ESP8266 modules. This adapter plate makes it easy to connect these Wi-Fi modules to your project. The ESP8266 module can be soldered onto the PCB, and the adapter provides clearly labeled headers for easy connection.
This adapter is perfect for quickly integrating an ESP-12 module into your breadboard setup. The pins are spaced at standard 0.1″ intervals, and the male header pins are fully compatible with the ESP-12F module, making it a versatile and convenient solution for your ESP8266-based projects.
Feature:

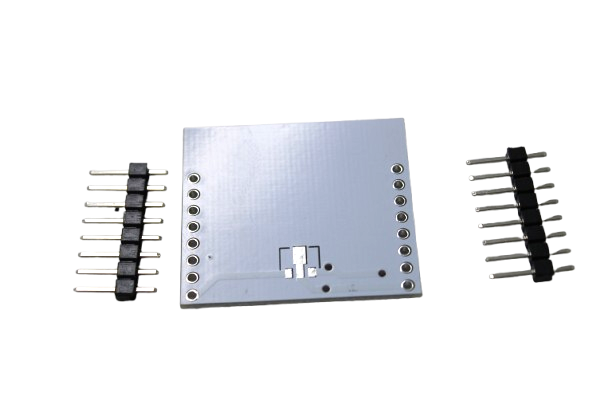

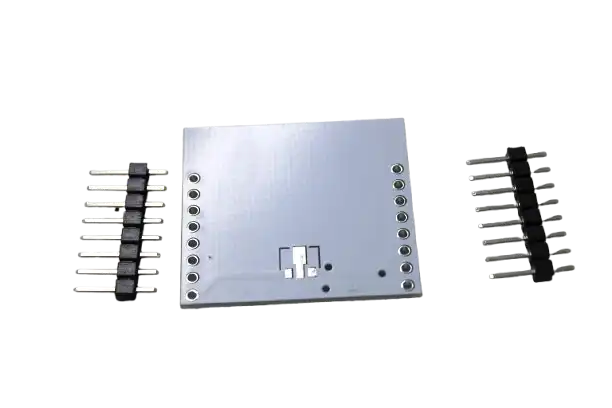

- It has a reserved land pattern for a 3.3V regulator.
- Pinouts in black colour are on the upper layer.
Package Includes:
- 1 x ESP8266 I/O Lead Out Adapter Plate Expansion Module for ESP-07 ESP-12E
Technical Specifications
| Model | ESP8266 |
|---|---|
| SKU | AI0525 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The ESP8266 I/O Lead Out Adapter Plate Expansion Module for ESP-07 ESP-12E is a versatile other esp wifi modules used across a wide range of applications including WiFi connectivity for microcontrollers, IoT sensor nodes, remote monitoring, OTA firmware updates, and cloud-connected devices.
Common use cases:
- Adding WiFi to an existing Arduino project
- Building a cloud-connected weather station
- Enabling remote firmware updates
This product is ideal for IoT developers and electronics hobbyists.
Technical Tip: ESP-WROOM-32 modules need proper decoupling capacitors and antenna clearance for reliable WiFi performance.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
