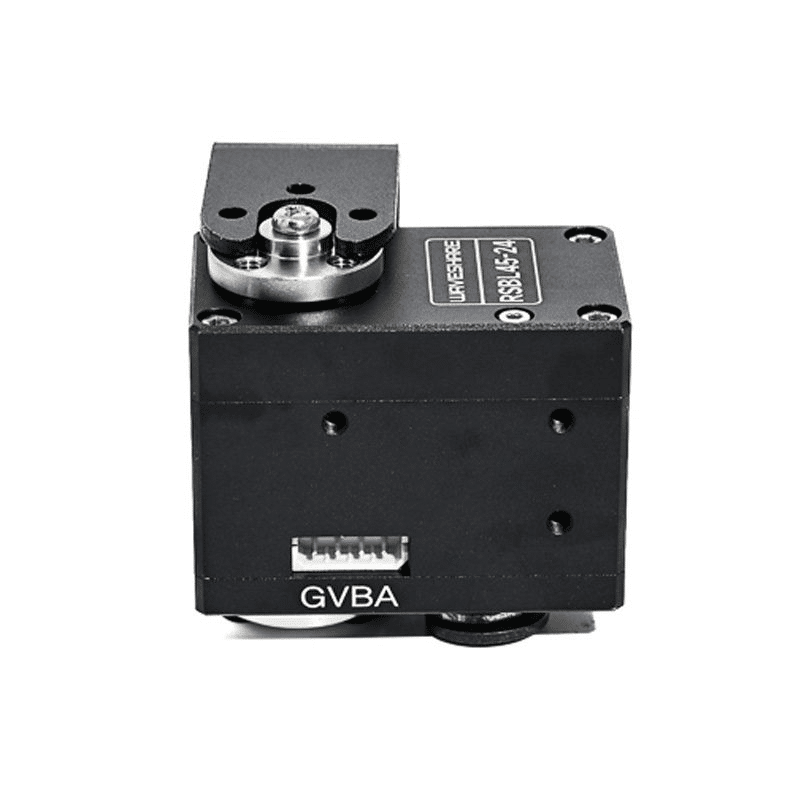

Waveshare 45kg.cm RSBL45-24 Servo Motor, High Precision And Large Torque, Aluminum Alloy Case, With Programmable 360° Magnetic Encoder
45kg.Cm RSBL45-24 Servo Motor, High Precision And Large Torque, Aluminum Alloy Case, With Programmable 360° Magnetic Encoder, Multiple Operation Modes Switchable
Features:
-
Can be used in series, controlling up to 253 servo motors simultaneously (provided sufficient power supply) and obtaining feedback information from each servo motor.
-
360° magnetic encoder allows for a wider range of angle control.
-
High precision with angle control accuracy reaching 360°/4096.
-
Any angle can be set as the servo motor’s middle position, making assembly more convenient.
-
Acceleration start/stop function provides smoother movement.
-
Compact structural design and more nice-looking appearance.
Useful Link:
https://www.waveshare.com/wiki/RSBL45-24
Specification:
| Operating Voltage | 9 ~ 24 V (typ. 24V) |
|---|---|
| Rotation angle | 360° |
| UART Baud Rate | 38400bps |
| No-load speed (r/min) | 0.142sec/60°（70RPM）@24V |
| ID range | 1 ~ 253 |
| No-Load Current (mA) | 160mA |
Package Includes:
1 xWaveshare 45kg.cm RSBL45-24 Servo Motor, High Precision And Large Torque, Aluminum Alloy Case, With Programmable 360° Magnetic Encoder
BLDC Motor Controller Programming: Six-Step Commutation Guide
Table of ContentsIntroduction to BLDC Motor ControlBLDC vs Brushed Motors: Why It MattersSix-Step (Trapezoidal) Commutation TheoryHall Effect Sensors:...
Read More →
How to Use Stepper Motor with Arduino: NEMA 17 + A4988 Guide
The NEMA 17 stepper motor paired with an A4988 driver is one of the most popular combinations for...
Read More →
Stepper Motor Wiring: 4-Wire, 6-Wire & 8-Wire Types Explained
Stepper motors are the backbone of precision motion control in 3D printers, CNC machines, robotic arms, and DIY...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | RSBL45-24 |
| Interface / Protocol | BLE |
| SKU | AI7715 |
| Weight | 0.23 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare 45kg.cm RSBL45-24 Servo Motor, High Precision And Large Torque, Aluminum Alloy Case, With Programmable 360° Magnetic Encoder is a versatile waveshare servo motors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
