Looking for Es09a Motor? Original MAX ES09A (Dual-bearing) Specific Swash Servo Motor for 450 Helicopters-(original) is available at Zbotic with fast shipping across India.

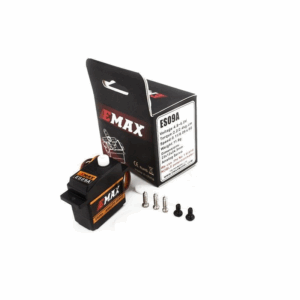

This is Original MAX ES09A (Dual-bearing) Specific Swash Servo Motor for 450 Helicopters-(original)
The EMAX ES09A is a high-quality analog-servo for RC 450 helicopter. With plenty of torque and ample speed, the ES09A is the perfect budget everyday servo. Supplied with mounting hardware and additional servo output arms.
Features:
- NOBLE potentiometer, assuring high accuracy and coherence.
- Dual-bearing and large diameter shaft design minimize the diastema and keep the servo operating smoothly for a long time.
- Different structure strengthens gear hardness, maximizes transmission efficiency, and provides a higher torque from
- same drive current.
- Includes servo horns and mounting screws.
Specification:
| Model Name | ES09A |
|---|---|
| Operating Voltage (VDC): | 4.8 to 6 |
| Operating Speed @4.8V | 0.11sec/60° at no load |
| Stall Torque @ 4.8V (Kg-Cm) | 2.2 |
| Operating Speed @6V | 0.09sec/60° at no load |
| Stall Torque @6V (Kg-Cm) | 2.4 |
| Gear Type | Plastic |
| Servo Plug | FUT;JR |
| Length (mm): | 23 |
| Width (mm): | 12 |
| Height (mm): | 24.5 |
Package Includes:
1 x EMAX ES09A plastic analog servo
1 x Servo horns and fitting set
Original MAX ES09A (Dual-bearing) Specific Swash Servo Overview
The Original MAX ES09A is an analog swash servo motor engineered for 450 class RC helicopters. It features a NOBLE potentiometer and dual-bearing shaft for precise, reliable cyclic and collective pitch control.
Key Features of Original MAX ES09A (Dual-bearing) Specific Swash Servo
- NOBLE potentiometer for exceptional positional accuracy
- Dual-bearing, large-diameter shaft design for smooth, long-lasting operation
- Reinforced plastic gears maximize transmission efficiency
- Specially tuned for swashplate control in 450 class helicopters
- Includes mounting hardware and extra servo output arms for easy installation
- 100% genuine MAX ES09A servo with fast shipping across India from Zbotic
Applications and Use Cases
- Precise cyclic pitch control in RC 450 class helicopters
- Collective pitch adjustments for responsive flight handling
- Replacement or upgrade for stock swashplate servos in 450 helicopter kits
- Swashplate mixing setups on flybarless rotor head systems
- Workshop calibration and bench testing of swash control mechanisms
How to Use Original MAX ES09A (Dual-bearing) Specific Swash Servo
Mount the ES09A onto your helicopter’s swashplate tower using the included screws and output arms, then connect the standard three-wire lead to your receiver or flight controller. Power the servo through a compatible onboard BEC, set neutral position and endpoints via your transmitter’s servo menu, and verify smooth, jitter-free cyclic movement before flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What mounting accessories are included with the ES09A?
The ES09A package includes all necessary screws and various servo output arms to fit different swashplate linkage setups in 450 class helicopters.
How does the dual-bearing design benefit swashplate control?
The dual-bearing, large-diameter shaft minimizes endplay, ensuring smoother motion and longer life under the cyclic and collective loads of 450 helis.
Is this servo compatible with standard analog flight controllers?
Yes, the ES09A is a standard three-wire analog servo compatible with any RC receiver or flight controller that provides PWM control signals.
