Product Description
A Slotted Opto isolator module, with an IR transmitter and a photodiode, is called a Photoelectric Speed Sensor Encoder Coded Disc code wheel. It senses objects without touching them. It can be used as a positional sensor switch (limit switch) or as a Position Encoder sensor to measure the wheel’s position.

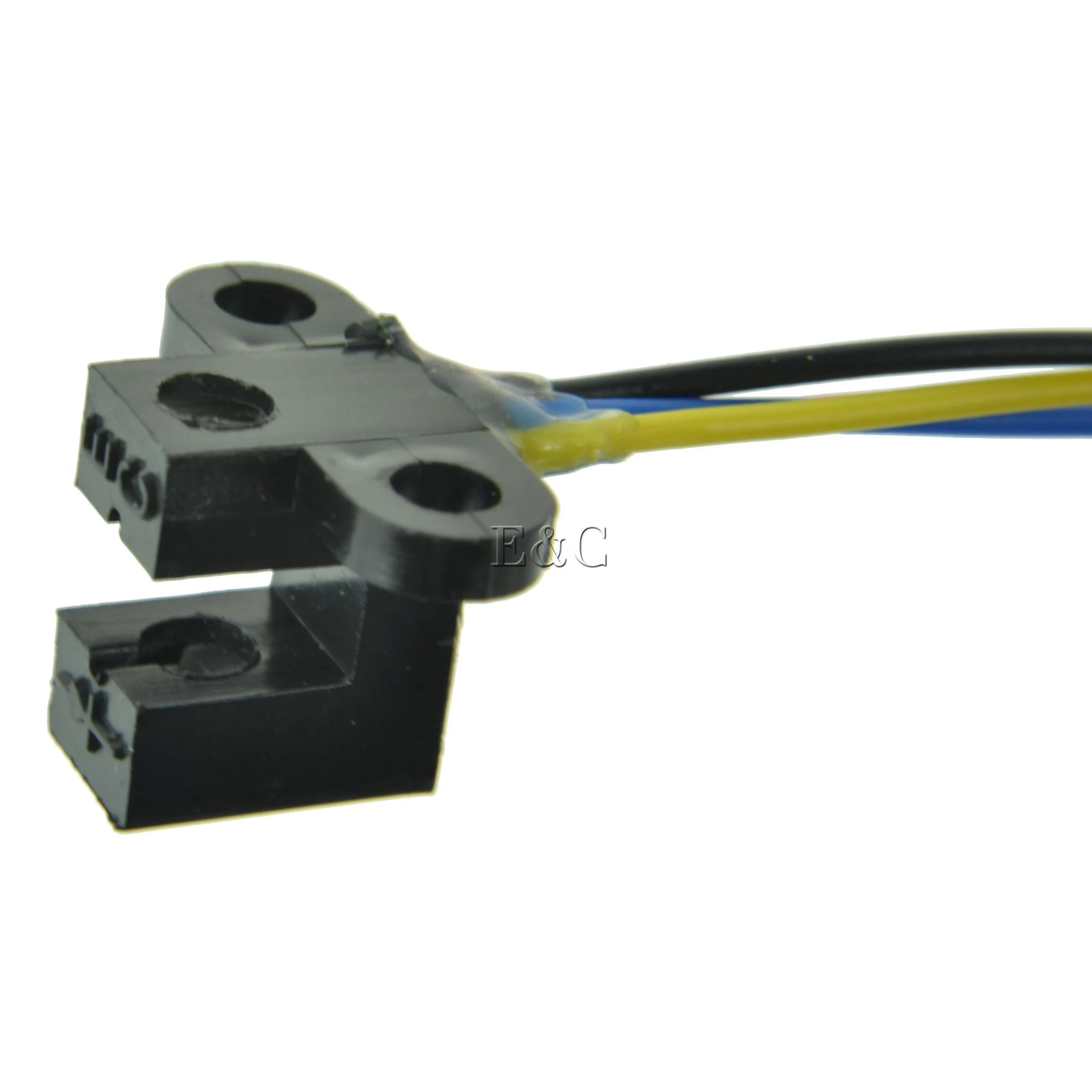

This module has a plastic body that encloses an IR LED and a photodiode, which face each other.
Applications
- DC motor position / velocity control
- Position and velocity servomechanisms.
- Factory automation robots
- Numerically controlled machinery
- Computer printers and plotters
Features :
- Small and Easy to use the module.
- It offers the fast response at a very good accuracy
- Two signal lines, one yellow, one blue.
- Yellow and blue are two TTL level signals
- (Note: Measuring Reversible rely on these two levels to distinguish between forward or reverse).
Package Includes:

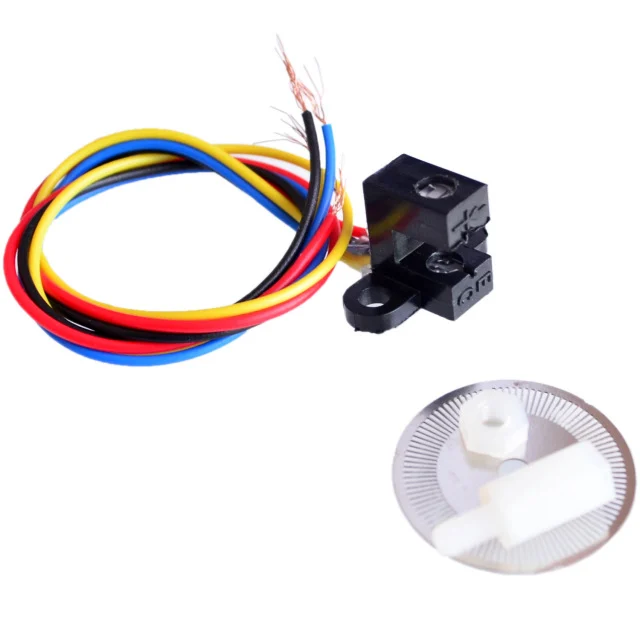

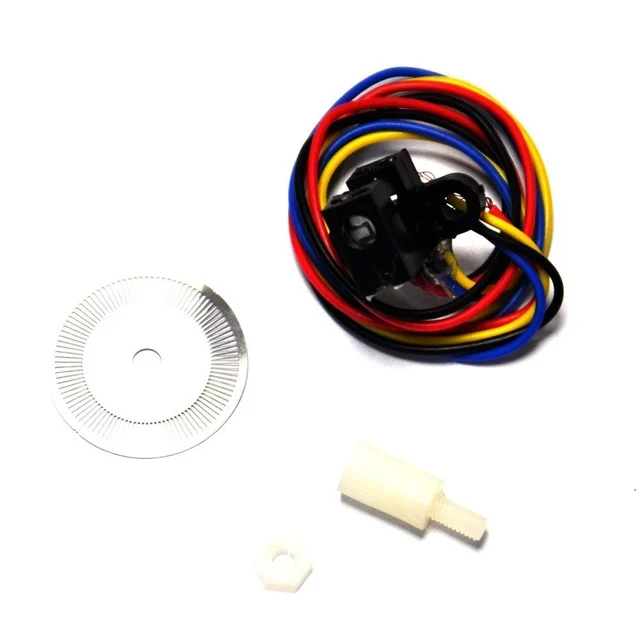

1 x Photoelectric Speed Sensor Encoder Coded Disc code wheel
Technical Specifications
| SKU | AI2564 |
|---|---|
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Photoelectric Speed Sensor Encoder Coded Disc code wheel is a versatile rotary encoder used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
