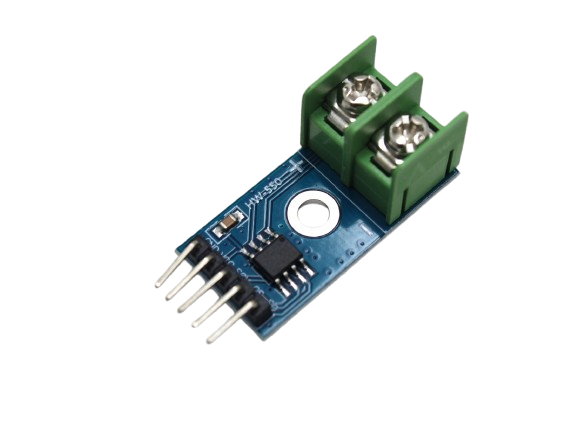

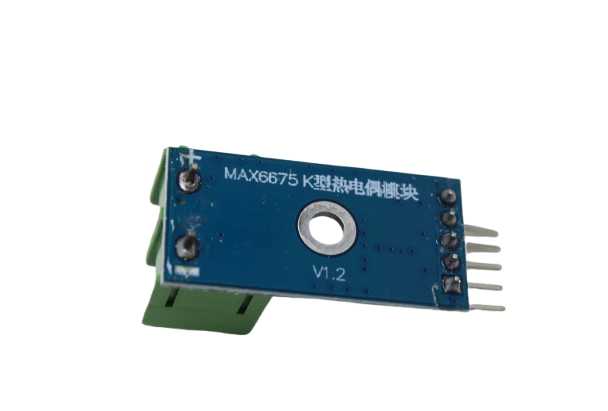

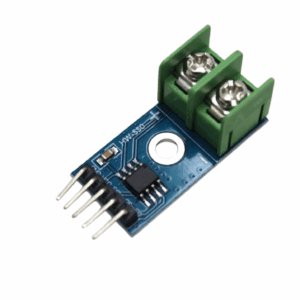

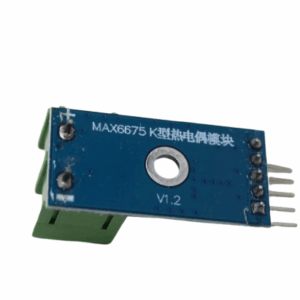

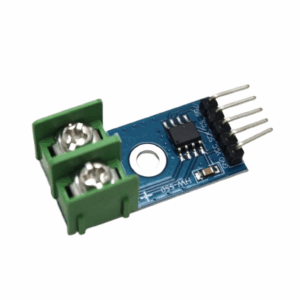

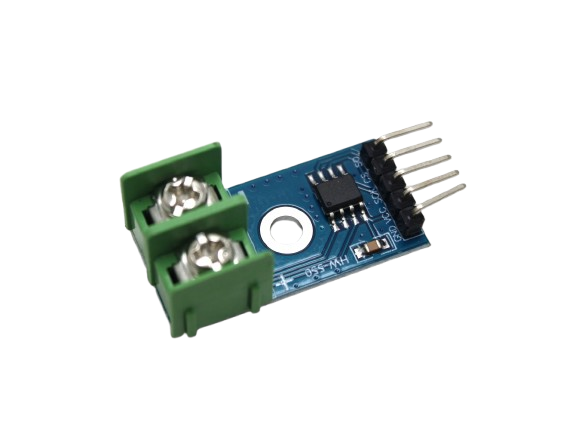

MAX6675 Thermocouple Sensor Module

Looking for Max6675 Module? MAX6675 Thermocouple Sensor Module is available at Zbotic with fast shipping across India.

• Thermocouples have long been a reliable method for measuring temperature due to their wide temperature range, durability, and availability in various lengths, tip configurations, and protective sheaths. However, working with thermocouples does come with challenges, including the need for cold junction compensation and the ability to detect very small voltage changes corresponding to each degree of temperature change.
• Fortunately, components like the MAX6675 make connecting a thermocouple to an Arduino easy and cost-effective. This chip simplifies the process by measuring the output of a K-type thermocouple and sending the data to the Arduino via an SPI interface.
• The MAX6675 Thermocouple Sensor Module uses the Maxim MAX6675 K-Thermocouple-to-Digital Converter IC to provide a microcontroller-compatible digital interface (SPI) for precise temperature measurements. It outputs data in a 12-bit resolution, read-only format, with an accuracy of 0.25°C. Capable of measuring temperatures as high as +1024°C, the MAX6675 offers thermocouple accuracy within 8 LSBs for temperatures ranging from 0°C to +700°C, ensuring reliable and accurate readings for a wide range of applications.

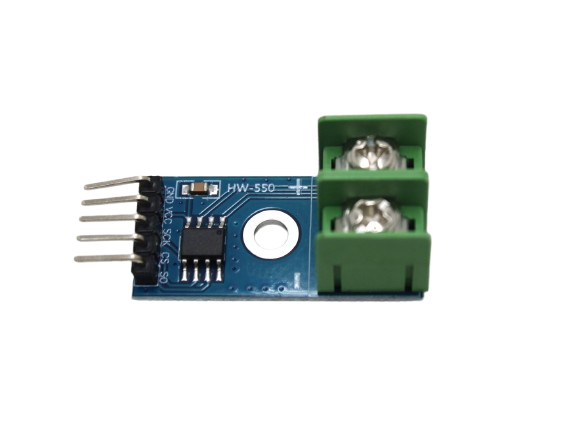

MAX6675 Module Pin Outs:

• The pin-outs for this module are shown in the illustration below. Click on the image to make it larger.

These pins function as follows:

• SO: The module’s serial output.   Your Arduino will read this output.
• CS:  Chip Select.   Setting low selects the Module and tells it to supply an output that is synchronized with a clock
• SCK: The Serial Clock… input from your Arduino.
• VCC: 5V supply
• GND:  Ground.
• – (or Minus):   The K thermocouple minus input.
• + ( or Plus):  The K Thermocouple plus input.

Max6675 Schematic:Important Note: Most K thermocouples come with a red lead and a yellow lead.  The red lead is normally your negative connection and the yellow lead is your positive.  That is the industry standard. That said, some of the suppliers for the module will, in fact, jack this up and provide you with a thermocouple with red indicating positive. The way to know is if you increase the temperature at the thermocouple tip and the indication goes lower.

Features

• High impedance differential inputs.
• Thermocouple break detection.
• 2000V of ESD signal.
• Embedded thermocouple break detection circuitry.
• Compatible with K-type temperature probe
• Simple SPI serial output temperature.
• The internal integrated cold junction compensation circuit
• Temperature signals can be converted into 12-bit digital.

Package Includes

• 1 x MAX6675 Thermocouple Sensor Module

Datasheet

MAX6675 Thermocouple Sensor Module Overview

The MAX6675 Thermocouple Sensor Module is a ready-to-use breakout board that converts temperature readings from a K-type thermocouple into digital values over SPI. It handles cold-junction compensation and provides fault detection for reliable high-temperature measurement.

Key Features of MAX6675 Thermocouple Sensor Module

• High-impedance differential inputs for precise thermocouple voltage measurement.
• Built-in cold-junction compensation ensures accurate readings.
• Embedded thermocouple break detection and 2000V ESD protection for safe, reliable operation.
• Directly compatible with K-type thermocouple probes, no extra hardware needed.
• Simple SPI serial output streams temperature data to your microcontroller.
• Genuine module with fast shipping from Zbotic across India.

Applications and Use Cases

• Monitoring high-temperature processes in furnaces and kilns.
• Measuring hotend temperature in custom 3D printers or CNC machines.
• Recording temperature profiles in food processing and safety compliance.
• Integrating with Arduino or Raspberry Pi for DIY environmental sensing projects.
• Scientific experiments requiring precise, high-range temperature data.

How to Use MAX6675 Thermocouple Sensor Module

Connect a K-type thermocouple probe to the module’s input terminals, then wire VCC, GND, CS, SCK, and SO to your microcontroller’s SPI pins. Initialize SPI communication in your code, read the digital temperature output over SPI, and check the fault flag to detect any probe disconnection issues.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Which thermocouple probe is compatible?

This module is designed specifically for K-type thermocouples; simply attach your probe to the input terminals and read temperature data via SPI.

How does the MAX6675 detect a thermocouple disconnection?

The embedded break detection circuitry monitors the input and sets a fault flag in the SPI output if the thermocouple is open or shorted, allowing your code to handle errors.

Can I use this module with an Arduino or Raspberry Pi?

Yes, the MAX6675 outputs temperature readings over a standard SPI interface, making it compatible with Arduino, Raspberry Pi and other SPI-enabled development boards.
