This is the 40mm variant of the TEC1-12710 40x40mm Thermoelectric Cooler 10A Peltier Module in Thermoelectric Peltier Elements. Available at ₹338.66 (₹287.00 + GST) with free shipping across India.
Looking for Tec1-12710 Module? TEC1-12710 40x40mm Thermoelectric Cooler 10A Peltier Module is available at Zbotic with fast shipping across India.
Product Description
If you need to cool down your DIY project or any electronic device, this product is for you. The TEC1-12710 40×40 mm Thermoelectric Cooler 6A Peltier Module uses the Peltier Thermoelectric Effect to create a temperature difference between its two sides. The module has 127 semiconductor couples in a 40 x 40mm area that can cool or heat up to 67°C. The TEC1-12710 40x40mm Thermoelectric Cooler 10.5A Peltier Module works on the same principle.
Thermoelectric coolers, also known as TEC or Peltier Modules, can either warm something up or cool something down, depending on which side you use. You can also use a temperature difference to generate electricity.
This Peltier module works well as long as you remove the heat from the hot side. When you turn on the device, the hot side will heat up quickly and the cold side will cool down quickly. If you do not remove the heat from the hot side (with a heat sink or another device), the Peltier module will reach equilibrium and stop working. We suggest using an old computer CPU heat sink or another metal block to draw heat from the hot side. We used a computer power supply and CPU heat sink to make the cold side so cold that we could not touch it with our finger.
A thermoelectric cooling (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying the DC power source to a TEC, heat will be transferred from one side of the module to the other. It creates a cold and hot side. They are widely used in industrial areas, for example, computer CPUs, CCDs, portable refrigerators, medical instruments, and so on.
Also Known as Thermoelectric cooling modules, Thermoelectric modules, Peltier modules, Thermoelectric cooling modules.
Operating Tips:
- Do not exceed Imax or Vmax when operating the module.
- Please carry out moisture protection options (sealing) in final application use.
- Life expectancy: 200,000 hours.
- Failure rate based on longtime testings: 0.2%.

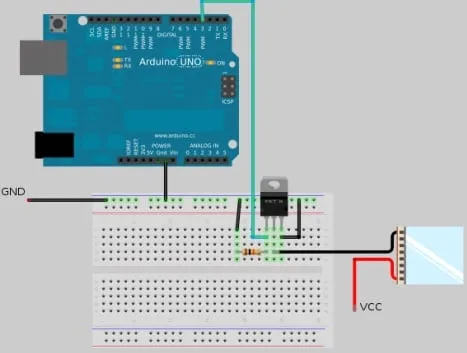

Connection Diagram of TEC1-12710 With Arduino:
To Explore more Thermoelectric Peltier Modules, Click here
Features :
- Small module.
- Easy transition between the hot side to the cool side and vice-versa just by reversing the polarity of the supply.
- Quality tested cooling cells.
- Solid-state, vibration-free, noise-free.
- Simple to install and operate.
- Should use with a heat sink.
Package Includes:

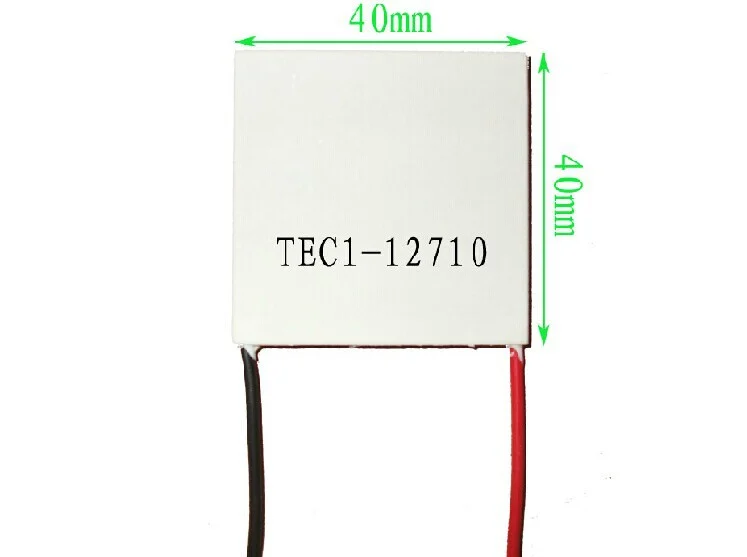

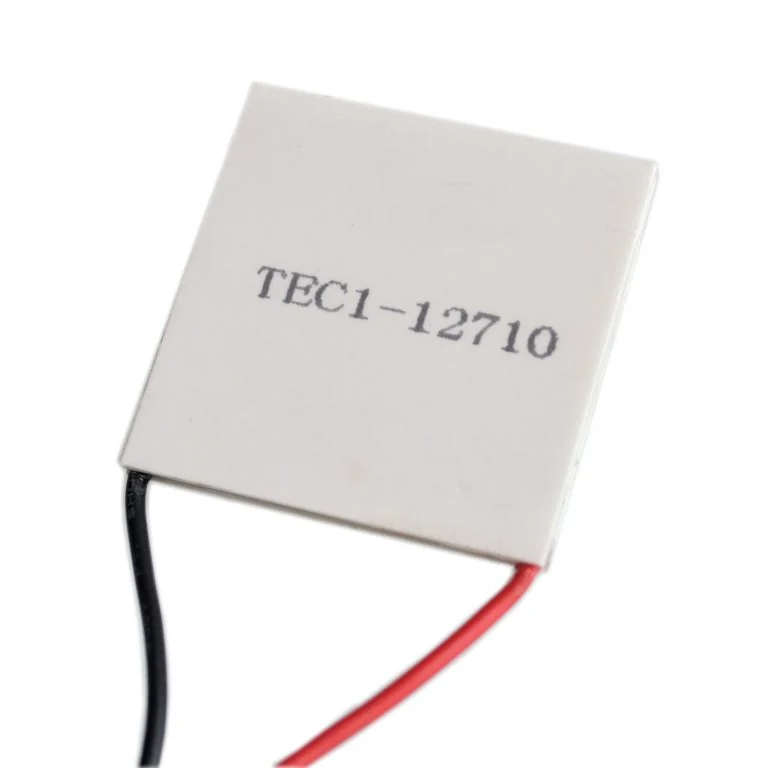

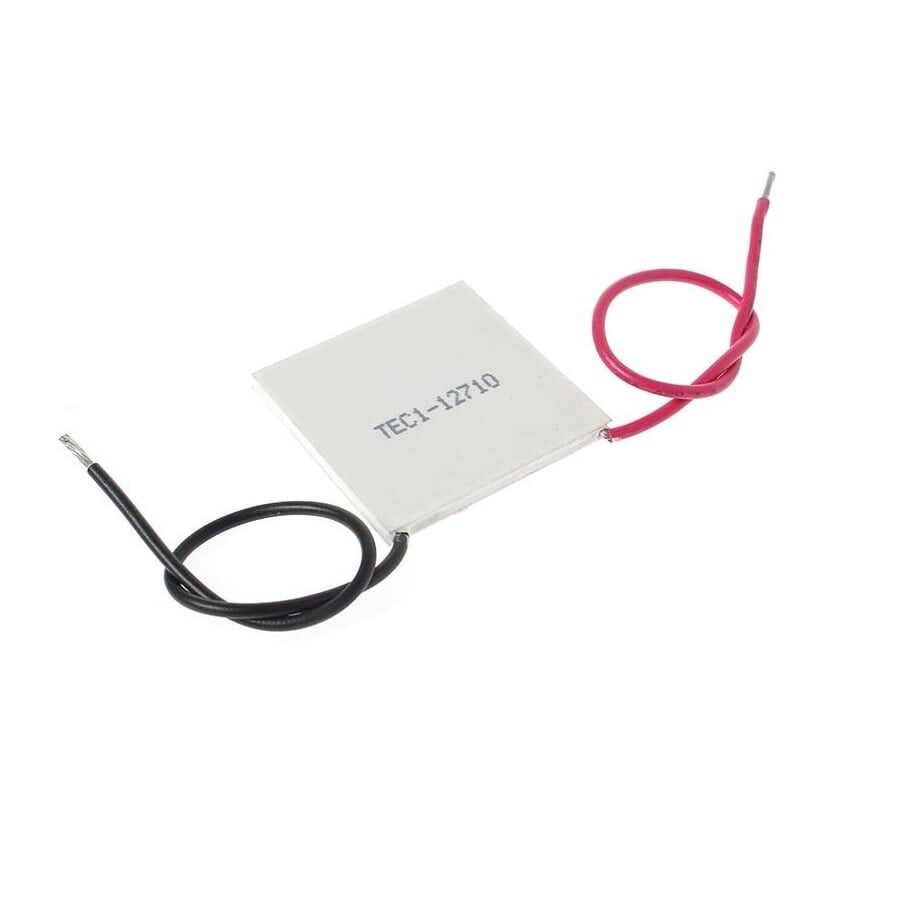

1 x TEC1-12710 40x40mm Thermoelectric Cooler 10A Peltier Module
Datasheet:
TEC1-12710 40x40mm Thermoelectric Cooler 10A Peltier Module Overview
The TEC1-12710 40x40mm Thermoelectric Cooler is a high-performance Peltier module designed for both cooling and heating applications. Operating at 12V and up to 10A, this solid-state element creates a temperature differential of up to 67°C, making it ideal for precise thermal management in compact DIY and electronics projects.
Key Features of TEC1-12710 40x40mm Thermoelectric Cooler 10A Peltier Module
- Dimensions: 40×40 mm ceramic plates with 127 semiconductor couples for efficient heat transfer
- Rated Voltage: 12V nominal, Umax 15V for flexibility in power delivery
- Rated Current: Up to 10A (Imax) supporting a maximum of 120 W thermal power
- Temperature Differential: Delta T up to 67°C between hot and cold sides
- 25 cm power cord for easy integration in chassis and enclosures
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- DIY mini-fridges and portable cooling boxes for electronics or beverages
- Thermal stabilization in laser diode, camera sensor, or RF module assemblies
- Precision temperature control for CPU/GPU cooling tests and overclocking
- Enclosed sensor chambers requiring tight environmental control
- Handheld medical or laboratory devices needing compact heat pumps
How to Use TEC1-12710 40x40mm Thermoelectric Cooler 10A Peltier Module
Mount the cold side to your target surface using a thin, even layer of thermal paste, then attach a heatsink or cold plate to the hot side. Connect a 12V DC power supply capable of delivering up to 10A, ensuring correct polarity. Monitor temperatures and use an external fan on the hot side heatsink for optimal heat dissipation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What maximum temperature difference can the TEC1-12710 achieve?
Under optimal conditions with adequate heatsinking, the TEC1-12710 can generate a temperature difference of up to 67°C between its hot and cold sides.
Which power supply should I use for this Peltier module?
Use a stable 12V DC power supply capable of providing at least 10A continuous current. Ensure the supply has low ripple and proper overcurrent protection.
How do I ensure reliable operation and longevity?
Apply high-quality thermal paste on both ceramic faces, mount solid heatsinks on the hot side with a fan for airflow, avoid moisture ingress, and prevent mechanical stress or bending of the module.
Technical Specifications
| Model | TEC1-12710 |
|---|---|
| Current Rating | 10A |
| Dimensions | 40x40mm |
| Package Quantity | 40 pcs |
| SKU | AI2623 |
| Weight | 0.03 kg |
| Availability | In Stock |
Applications & Use Cases
The TEC1-12710 40x40mm Thermoelectric Cooler 10A Peltier Module is a versatile thermoelectric peltier elements used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
