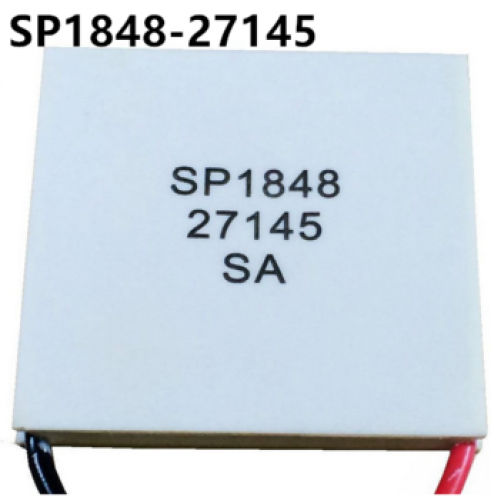

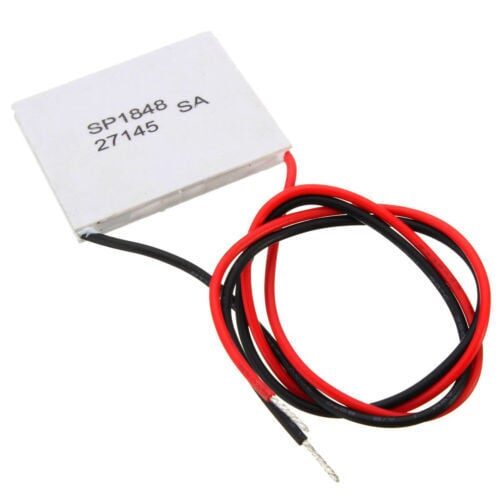

SP1848-27145 40*40mm 120 degree

Product Description

Based on the Peltier effect, these cells can generate electric power. The SP1848-27145 40x40mm Thermoelectric Power Generator TEG 120°C Peltier Module can operate up to 120°C and produce different voltages and currents at different temperatures.

Thermoelectric Power Generators, also known as TEGs or Peltier Modules, detect a temperature difference on each side. You can use this temperature difference to generate electricity.

When you apply heat on one side and cold on the other side, the device will start generating a voltage that depends on the amount of heat applied. The SP1848-27145 40x40mm Thermoelectric Power Generator TEG 120°C Peltier Module can generate a moderate voltage with mA of current.

A Thermoelectric Generator (TEG) module is a semiconductor-based electronic component that functions as a small generator.

Temperature (°C)                       20         40       60      80      100
Open circuit voltage (V)            0.97      1.8      2.4     3.6      4.8
Current (mA)                            225      368      469     558      669

Operating Tips:

1. Do not exceed the maximum operating temperature of the module.
2. Life expectancy: 200,000 hours.
3. Failure rate based on longtime testings: 0.2%.

Important Note!!

1. MODEL NUMBER SIDE IS EXPOSED TO “HEAT-SINK or ICE” AND OPPOSITE SIDE TO “HEAT“.
2. Place 2-3 drops of grease compound on both sides of TEG Module

Features :

1. Small and lightweight, convenient for use.
2. Designed specifically for power generation.
3. Sealed for moisture protection and contain thermal elements formulated for optimum Seebeck power generation.
4. High-temperature 120°C, with NM static protection.
5. Quality tested cooling cells.
6. Simple to install and operate.
7. with 5v Booster board you can charge the cell phone

Package Includes :

1 x SP1848-27145 40x40mm Thermoelectric Power Generator TEG 120°C Peltier Module
