Looking for At7224 Motor? T Motor AT7224 KV190 is available at Zbotic with fast shipping across India.

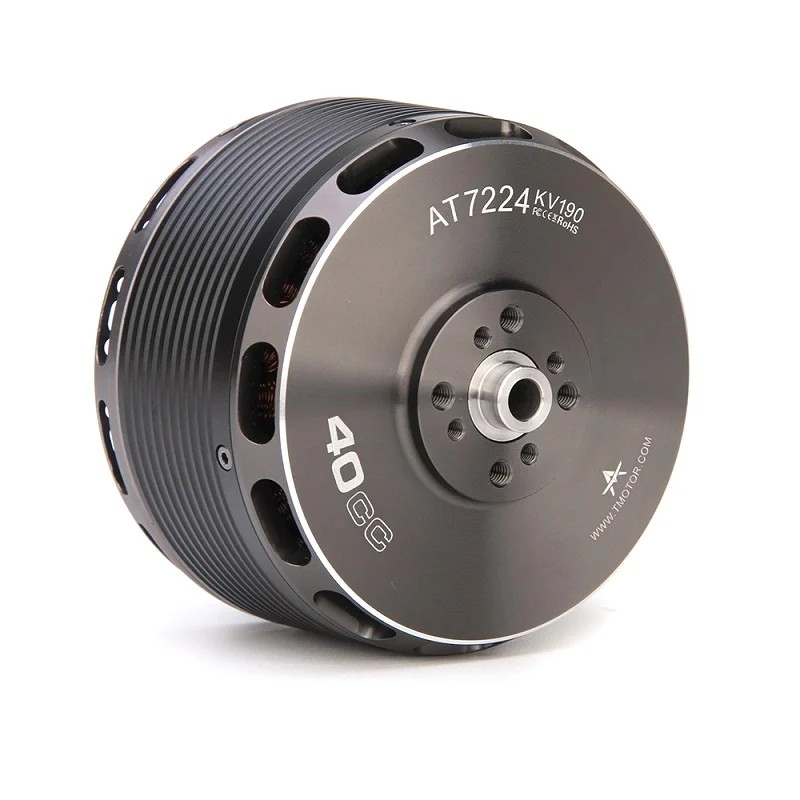

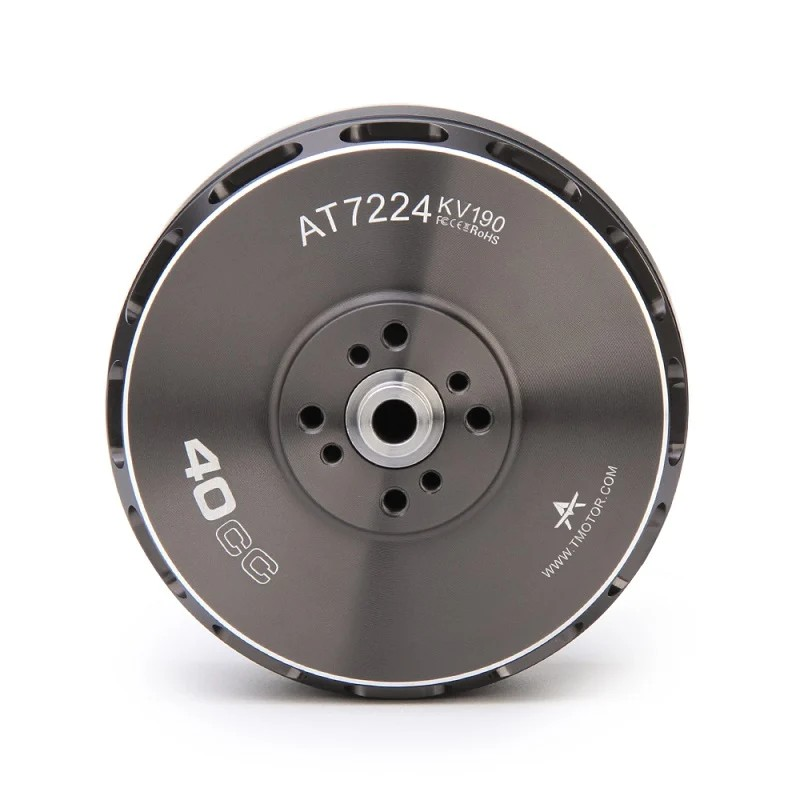

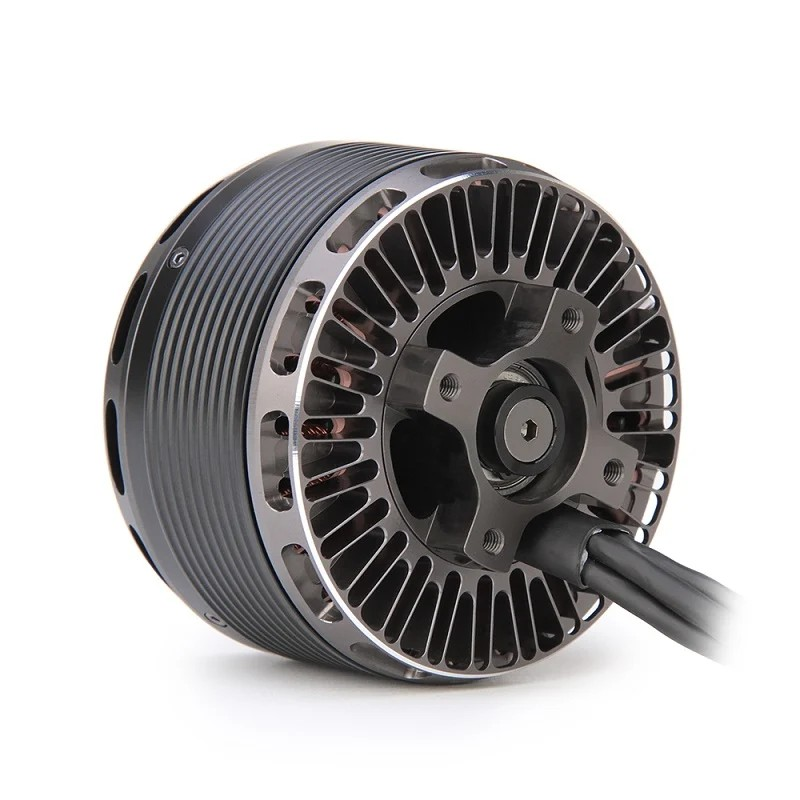

T Motor AT7224 KV190
Introducing the T-Motor AT7224 KV190, a high-end motor designed for larger outdoor category airplanes. This powerful motor from T-MOTOR is versatile, suitable for both fixed-wing aircraft and multi-copters.
With a maximum power output of 6000W and a thrust of 17.72kg, the AT7224 delivers impressive performance. It supports 10-12S power systems and can handle currents of up to 135A for short durations.
This is T motor AT7224 KV190. This Hi-end motor is suitable for larger airplanes of the Outdoor category. T-MOTOR powerful AT7224 enables to mounting on the fixed-wing and multi-copter. The 6000w maximum power with 17.72kg thrust. It supports 10-12S is capable to reach currents up to 135A shortly.
Features:
- Tons of power

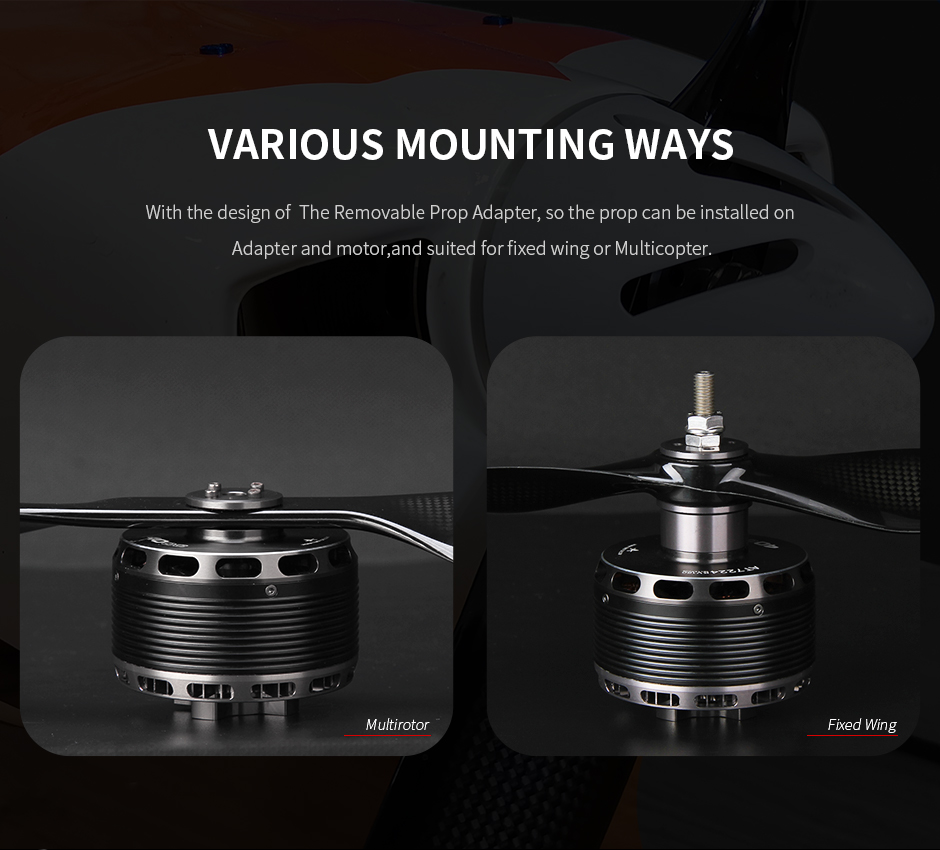

- Various mounting ways
- Safety and long endurance
- Powerful output excellent cooling
Specification:
| Peak Current(180s) | 135A |
|---|---|
| Max. Power(180s) | 6000W/12S |
| Model | Long Shaft KV190 |
| Weight (Incl. Cable) | 780g |
| Shaft Diameter | IN : 10mm OUT: 10mm |
| Idle Current(10V) | 3.5A |
| Lead | Enameled Wire 100mm |
| Internal Resistance | 16m Ohm |
| Configuration | 24N22P |
| Rated Voltage (Lipo) | 10-12S |

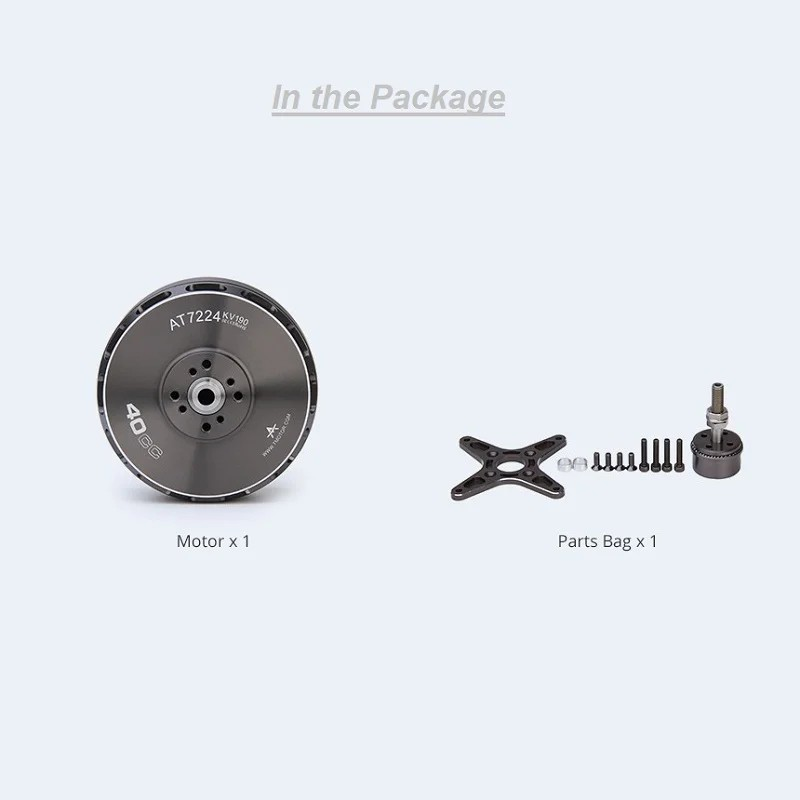

Package Includes:
1 x T motor AT7224 KV190
1 x Accessories set (as shown in image)
T Motor AT7224 KV190 Overview
The T Motor AT7224 KV190 is a high-performance brushless motor engineered for large outdoor fixed-wing aircraft and heavy-lift multi-copters. With its long shaft and robust design, it delivers the power and thrust needed for demanding aerial applications.
Key Features of T Motor AT7224 KV190
- KV190 winding for efficient high-RPM operation
- Maximum power output of 6000W on 12S LiPo systems
- Peak current handling up to 135A (180s rating)
- Generates up to 17.72kg of static thrust
- Long shaft design with 10mm inner and outer diameter
- Fast shipping across India from Zbotic
Applications and Use Cases
- Heavy-lift multi-rotor platforms for professional aerial photography
- Large-scale fixed-wing UAVs for surveying and mapping
- Industrial drones for precision agriculture and crop monitoring
- Cargo delivery drones requiring high thrust-to-weight ratio
- Research UAVs needing reliable 10–12S power systems
- Scale model aircraft demanding robust long-shaft motors
How to Use T Motor AT7224 KV190
Mount the AT7224 KV190 onto your airframe using a compatible motor mount, then slide a suitable prop adapter onto its 10mm shaft and secure with the supplied hardware. Connect to an ESC rated for 10–12S LiPo and a continuous current above 135A, calibrate throttle range, and perform ground tests to verify rotation direction, thrust output, and temperature before flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What battery voltage range is compatible with the T Motor AT7224 KV190?
Supports 10S to 12S LiPo packs (37V to 50V nominal), delivering optimal power and efficiency within this range.
How much thrust can the AT7224 KV190 generate?
This motor produces up to 17.72kg of static thrust when paired with a suitable propeller and 12S battery setup.
What are the shaft dimensions of the AT7224 KV190?
It features a long shaft design with a 10mm diameter both internally and externally, ensuring compatibility with standard prop adapters.
