Looking for Geprc – Speedx2 Motor? GEPRC – SPEEDX2 1404 3000KV Motor is available at Zbotic with fast shipping across India.

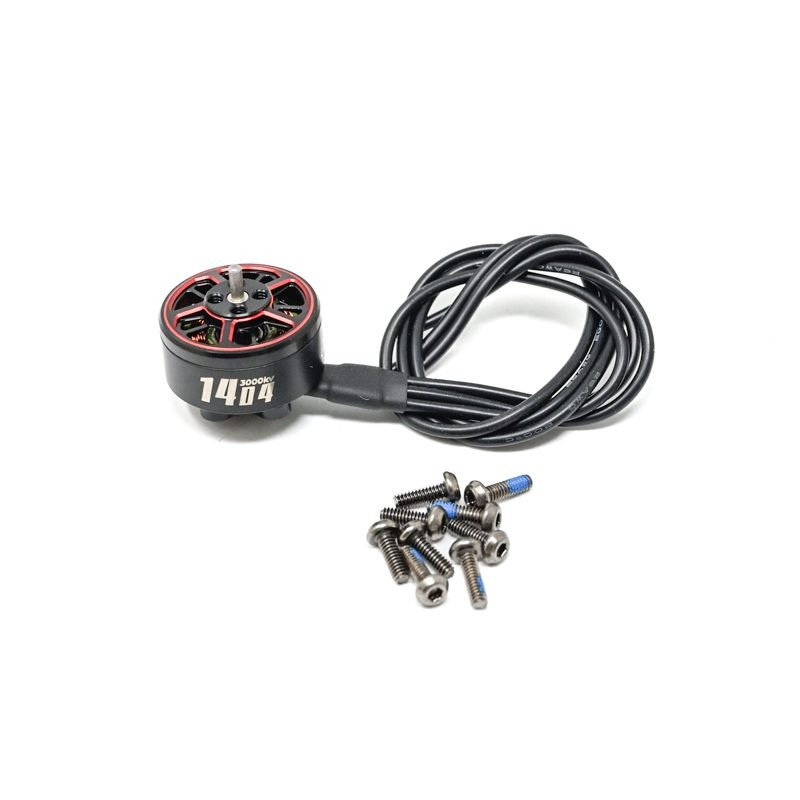

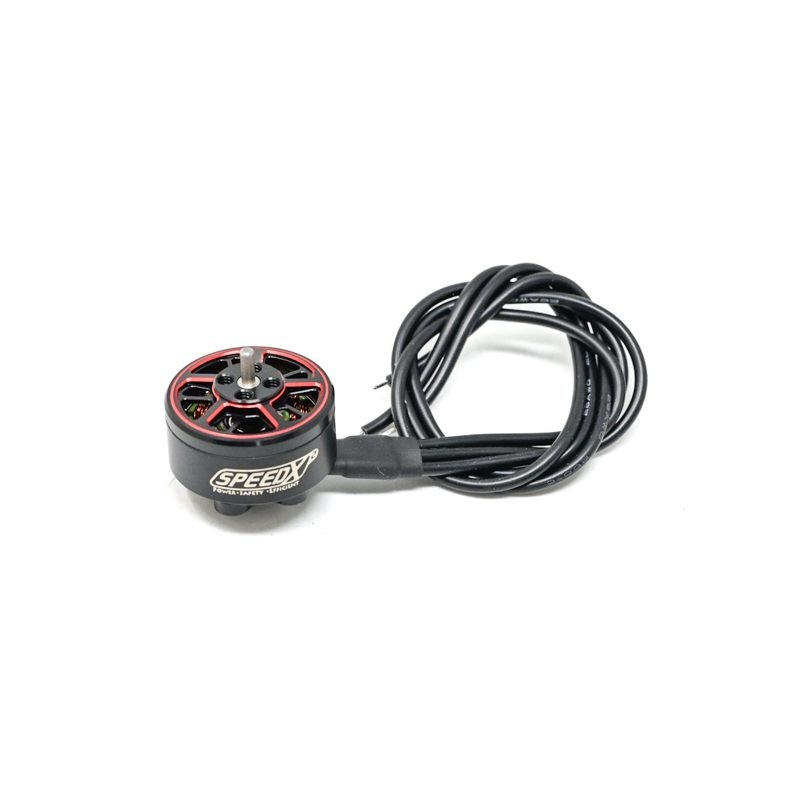

GEPRC – SPEEDX2 1404 3000KV Motor:
The GEPRC SPEEDX2 1404 3000KV motor is a high-performance brushless motor built for lightweight FPV drones. Featuring an ultra-lightweight 10.5g design, durable NSK/NMB bearings, and high-quality N52H magnets, it provides strong power with excellent efficiency. Designed for 2-inch to 4-inch lightweight quadcopters, this motor ensures smooth handling and reliability. With a peak current of 10A and a max wattage of 160W, it delivers optimal performance for freestyle and racing drones. The sleek red and black design adds a high-end aesthetic while enhancing durability. Perfect for FPV enthusiasts looking for precision, power, and longevity.
Features:
- Premium red and black design for a high-end aesthetic.
- Ultra-lightweight at only 10.5g, including wires
- NSK/NMB bearings for excellent wear resistance and durability
- Designed for 2-inch to 4-inch lightweight FPV quads
- Supports 4S LiPo input with a max power of 160W
Specification
| Motor KV (RPM/V): | 3000 |
|---|---|
| Model No.: | SPEEDX2 1404 |
| Compatible LiPO Batteries: | 2S to 4S |
| Shaft Diameter (mm): | 1.5 |
| Max. Power (W) | 160 |
| No of poles | 12 |
| Shipping Weight | 0.5 kg |
Package Includes:
- 1 x GEPRC – SPEEDX2 1404 3000KV
GEPRC – SPEEDX2 1404 3000KV Motor Overview
The GEPRC SPEEDX2 1404 3000KV is a lightweight brushless motor built for 2″–4″ FPV drones. With a 10.5 g design, high-precision NSK/NMB bearings and N52H magnets, it delivers responsive thrust for freestyle and racing quadcopters.
Key Features of GEPRC – SPEEDX2 1404 3000KV Motor
- Ultra-light 10.5 g brushless construction for minimal weight penalty
- High-precision NSK/NMB bearings ensure smooth rotation and durability
- N52H magnets provide strong power density and efficient throttle response
- 3000 KV winding optimized for 2S–3S LiPo setups driving 2″–4″ propellers
- Peak current of 10 A and max output of 160 W for agile flight performance
- Sleek red and black anodized finish for enhanced durability and aesthetics
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- 2″ cinewhoop quads for smooth indoor footage
- 3″ freestyling drones requiring quick throttle response
- Micro FPV racing on tight courses with lightning-fast bursts
- Lightweight 2S or 3S builds for beginner and intermediate pilots
- Agility training rigs focusing on punchy thrust and precise control
How to Use GEPRC – SPEEDX2 1404 3000KV Motor
Secure the SPEEDX2 1404 3000KV to your drone’s motor mounts using M2 screws, solder each phase wire to a compatible ESC, verify correct rotation direction, calibrate the ESC through your flight controller, then attach 2″–4″ propellers. Perform hover and throttle-response tests to fine-tune PID settings.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which propeller sizes work best with the SPEEDX2 1404 3000KV?
This motor excels with 2″–4″ propellers. A 3″ tri-blade offers an ideal balance of thrust and efficiency on a 3S LiPo setup.
Can I run this motor on a 4S battery?
GEPRC recommends 2S–3S LiPo for the 1404 3000KV. Using 4S will exceed its 160 W/10 A rating and may cause overheating or reduced lifespan.
How do I maintain the NSK/NMB bearings?
Every 30–50 flight hours, remove dust with compressed air and apply a drop of light bearing oil. Avoid water exposure to preserve bearing life.
Drone Return to Home (RTH): Setup, Modes & Troubleshooting
Drone Return to Home (RTH): Setup, Modes & Troubleshooting Return to Home (RTH) is arguably the most important...
Read More →
Hexacopter vs Quadcopter: When More Motors Mean More Value
Hexacopter vs Quadcopter: When More Motors Mean More Value The drone world is built around the quadcopter. Four...
Read More →
DC Motor Back-EMF Protection: Flyback Diode Circuit Guide
Every DC motor project has a hidden danger that can silently destroy transistors, microcontrollers, and motor driver ICs:...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| KV Rating | 3000KV |
| Package Quantity | 2 pcs |
| SKU | AI6891 |
| Weight | 0.0234 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GEPRC – SPEEDX2 1404 3000KV Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine GEPRC product sourced from authorized channels
