Solid State Relay G3MB-202P-5VDC 4PIN 2A240VAC China Quality

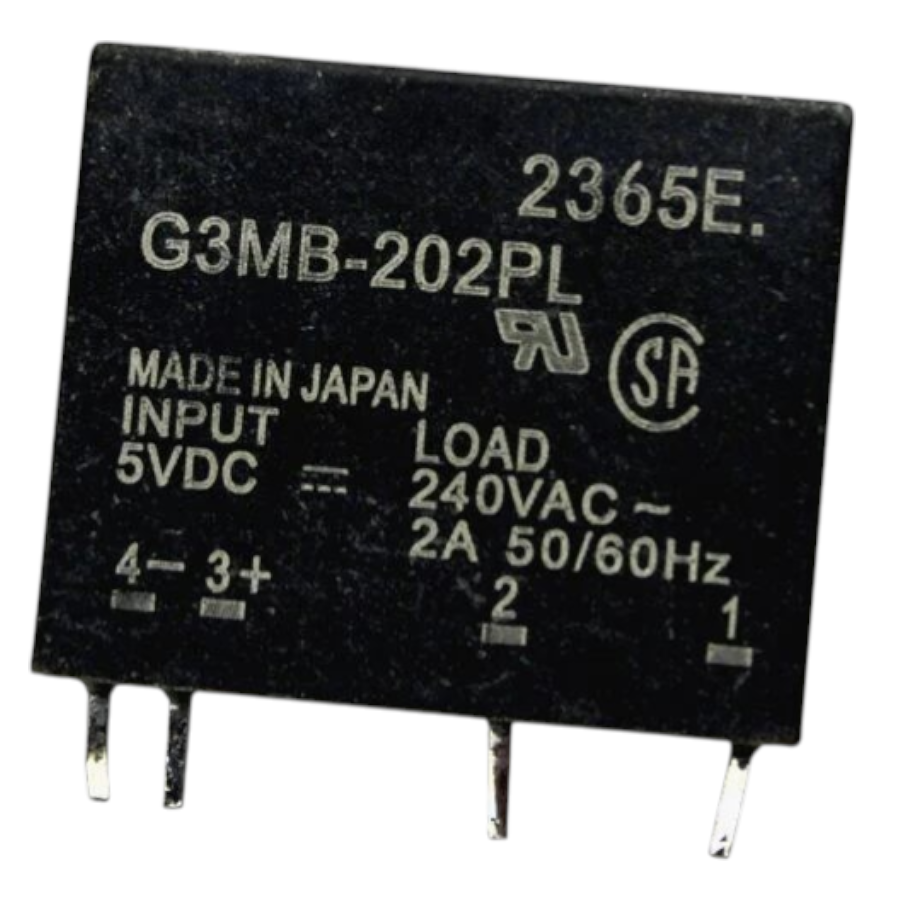

To utilize this Relay effectively, connect the control input pin (number 3) to the 5V GPIO pin of your microcontroller board, and pin number 4 to GND. When a 5V supply is applied, there will be contact between pins number 1 and number 2, allowing current to flow through the load.
Relays serve to manage high voltage and high current systems using low voltage control inputs or to offer protection and electrical isolation between systems. Traditional electromagnetic relays operate based on electromagnetism: when a coil is energized, it acts as a magnet, closing the connections in the control line; when de-energized, the connection opens. However, Solid State relays utilize photocoupling for load switching. Their operation is quicker than electromagnetic relays, suitable for applications such as Switched Mode Power Supply and PWM control of motors and servo motor applications. Additionally, they are more compact than conventional relays and can be packaged more efficiently.
- Small Size and Easier to use.
- Fast Switching rate and Low response time
- Can be controlled by a microcontroller.
- Can Support upto 2A of continuous current.
Specification:
Specification | Description |
---|---|
Model | G3MB-202P-5VDC |
Type | Solid State Relay |
Number of Pins | 4 |
Control Voltage | 5V DC |
Rated Load Current | 2A |
Maximum Load Voltage | 240V AC |
Quality | China Quality |
Operating Temperature | -30°C to +80°C |
Storage Temperature | -30°C to +100°C |
Isolation Voltage | 2500V AC |
Switching Time | Turn-on time: 10ms max, Turn-off time: 10ms max |
Mounting Type | PCB Mount |
PACKAGE INCLUDES
1X Solid State Relay G3MB-202P-5VDC 4PIN 2A240VAC China Quality
