This is the 250V variant of the 80-250V SSR-75AA Solid State Relay in Relays, Solid State Relays. Available at ₹377.60 (₹320.00 + GST) with free shipping across India.
Description
This is AC To AC SSR-75AA Solid State Relay Module 80-250VAC/24-380VAC 75A. A solid-state relay (SSR) is an electronic switch, which, unlike an electromechanical relay, contains no moving parts. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR. A photo-coupled SSR is controlled by a low voltage signal which is isolated optically from the load.
The control signal in a photo-coupled SSR typically energizes an LED which activates a photo-sensitive diode. The diode turns on a back-to-back thyristor, silicon-controlled rectifier, or MOSFET transistor to switch the load.

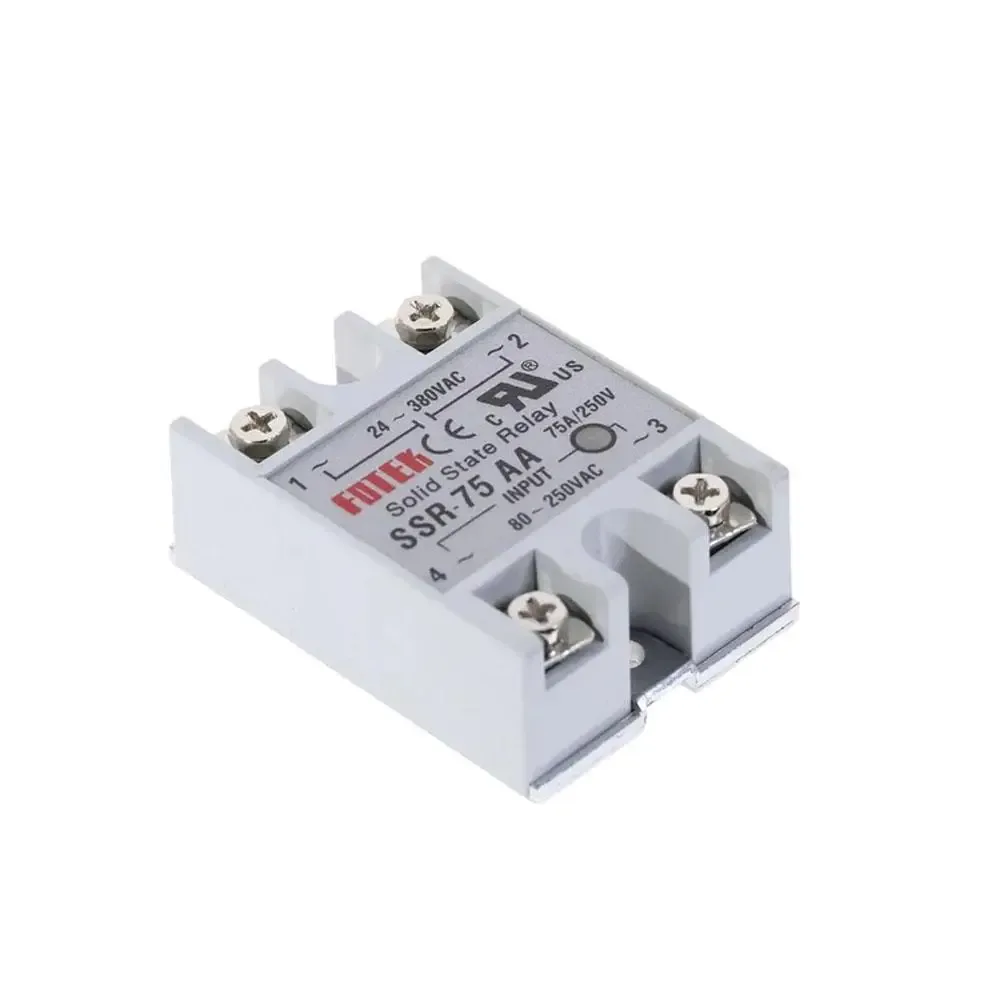

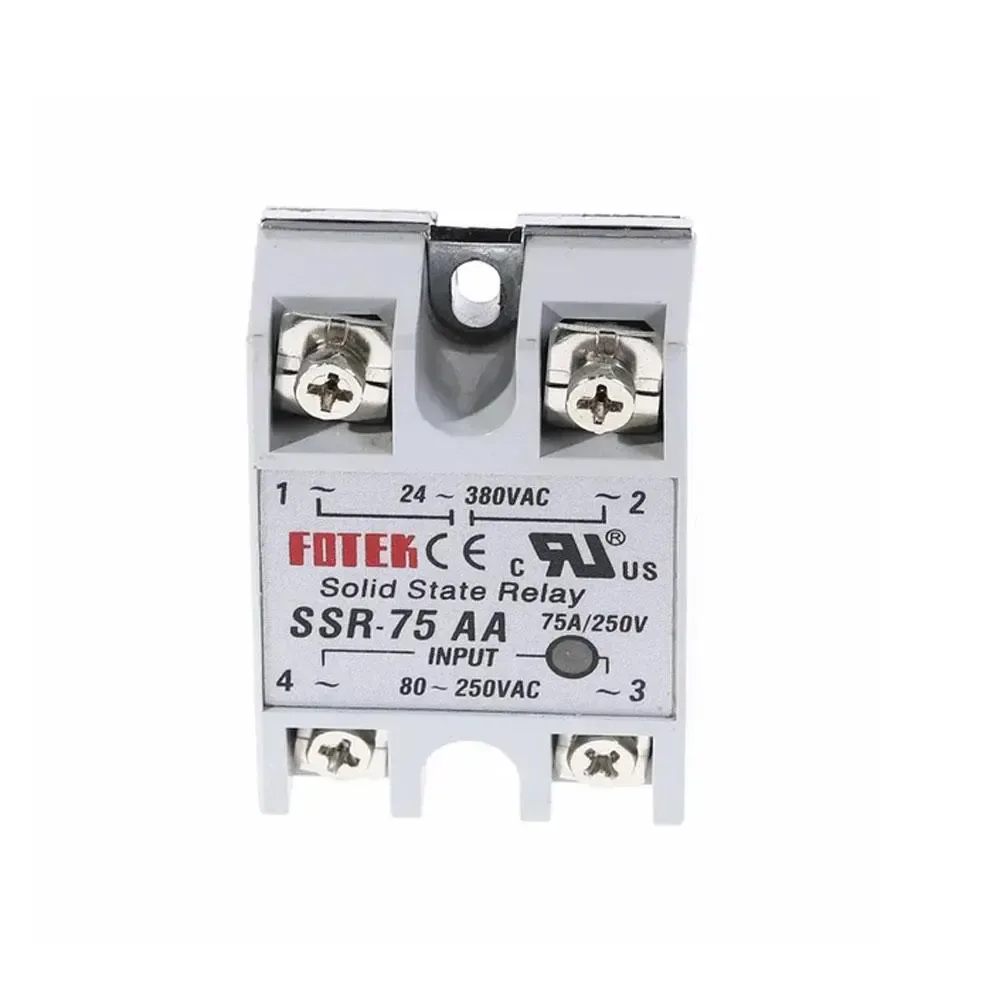

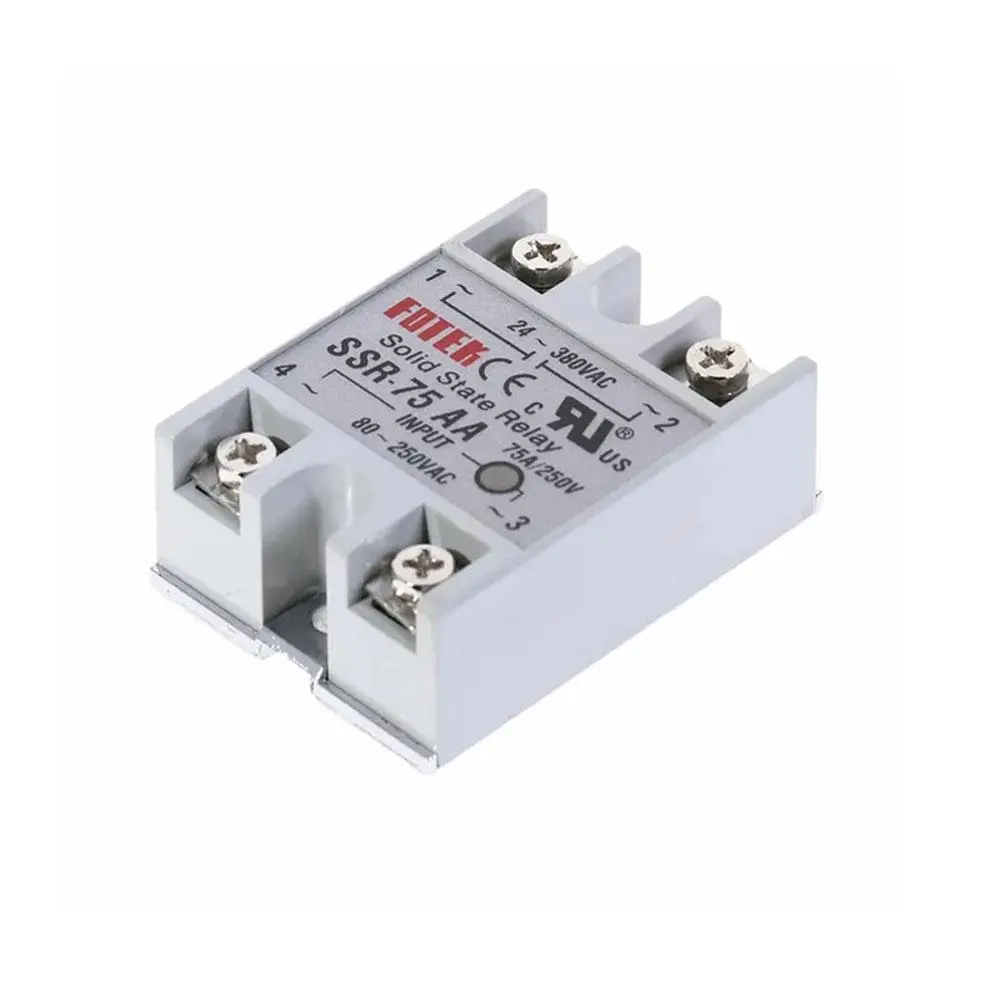

This particular SSR can switch current loads of up to 75A with an 80-250VAC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.
Features:
- Long service life and high reliability
- Reduced electromagnetic interference
- Highly reliable, compact size designed to offer users maximum simplicity.
specification-
| Rated Load Current (mA) | 75A |
|---|---|
| Dielectric Strength | Over 2.5kVA / 1 min |
| Trigger Voltage (VAC) | 80-250V |
| Switching Voltage (VAC | 24-380@80A |
| Operating Temperature (°C) | -20 to 85 °C |
| Material | ABS |
| Length (mm) | 45.5 |
| Width (mm) | 62.5 |
| Height (mm) | 24 |
| Weight (gm) | 93 |
| Shipping Weight | 0.105 kg |
| Shipping Dimensions | 12 × 9 × 1 cm |
Package Includes:
1 x 80-250V SSR-75AA Solid State Relay
Google Firebase with ESP32: Real-Time Database IoT Guide
If you are building IoT projects in India and want to send sensor data to the cloud, Google...
Read More →
IoT Dashboard Design: Best Practices for Data Display
Table of Contents Principles of IoT Dashboard Design Choosing the Right Dashboard Platform Essential Widgets for Sensor Data...
Read More →
Smart Classroom IoT: Attendance, Air Quality, Projector Control
Table of Contents Smart Classroom Concept Attendance Tracking with IoT Air Quality Monitoring Projector and AV Control Energy...
Read More →Technical Specifications
| Model | SSR-75AA |
|---|---|
| SKU | AI4148 |
| Weight | 0.13 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 80-250V SSR-75AA Solid State Relay is a versatile solid state relays used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
