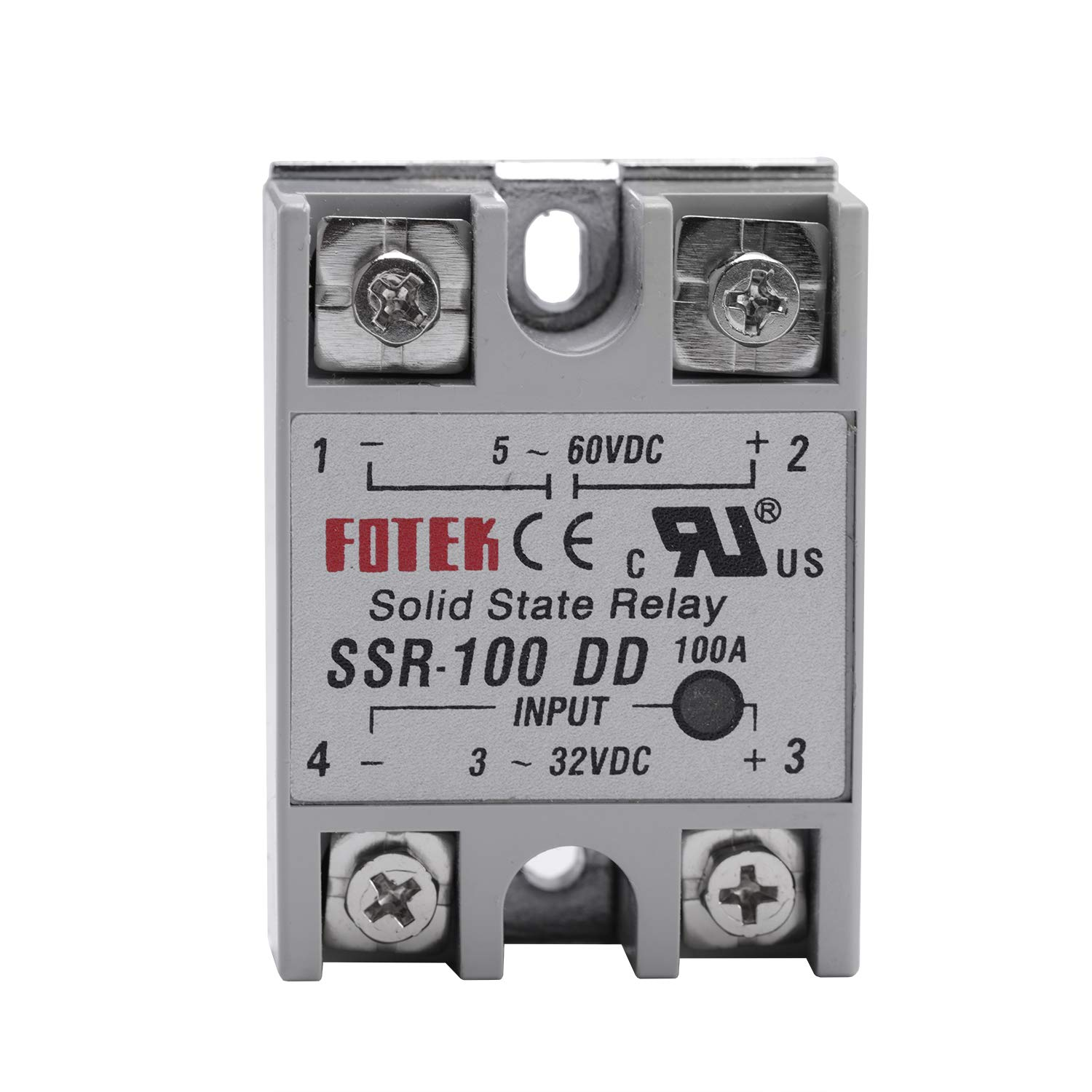

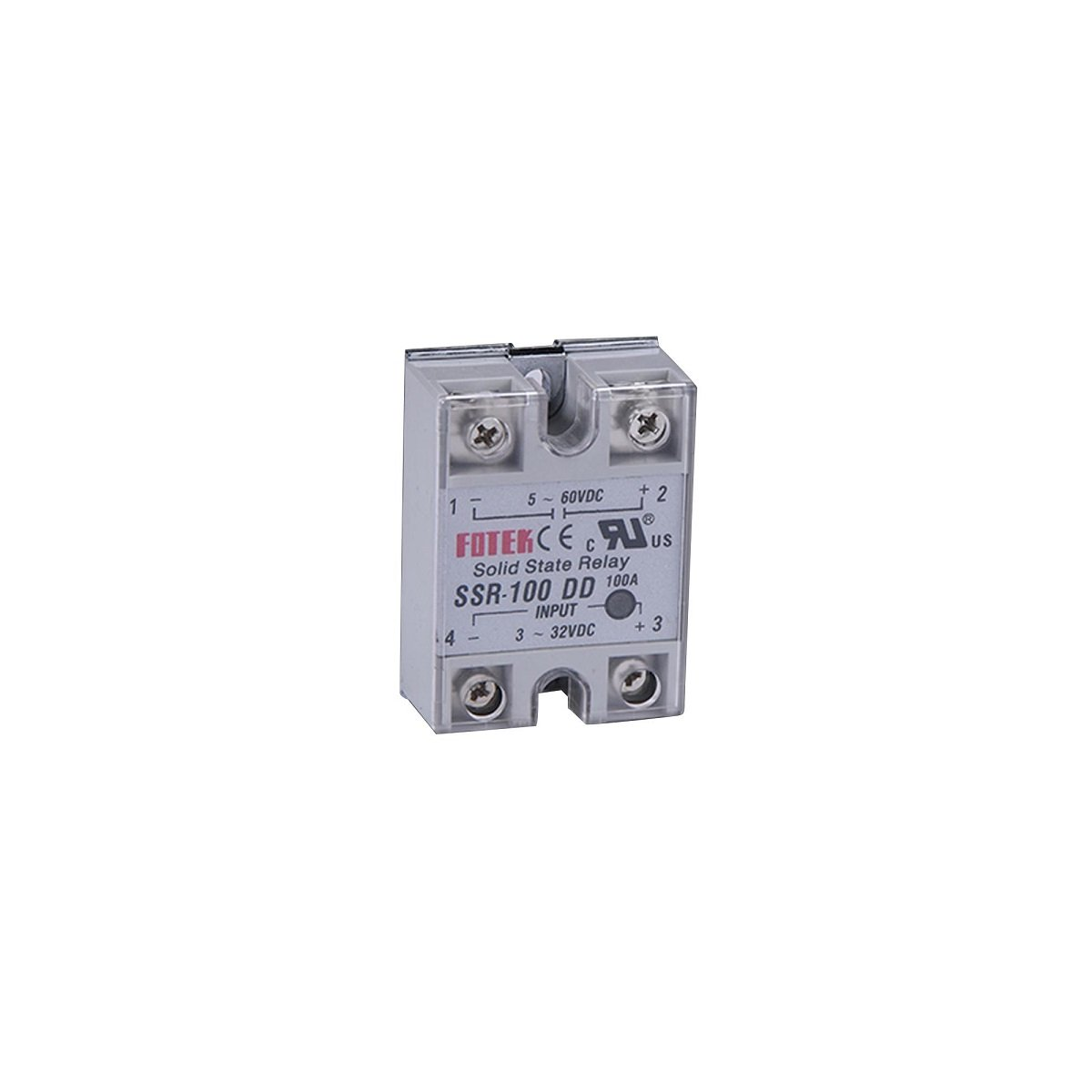

5-60V SSR-100DD Solid State Relay
Introducing the DC To DC SSR-100DD Solid State Relay Module (SSR), a state-of-the-art electronic switch designed to provide efficient and reliable control of DC loads without any moving parts. Unlike traditional electromechanical relays, this solid-state relay (SSR) utilizes advanced technology for enhanced performance and longevity.
Features:
- Solid State Design: Utilizes solid-state technology for durability and reliability.
- Photo-coupled Control: Controlled by a low-voltage signal isolated optically from the load, ensuring safe and reliable operation.
- Long Service Life: Offers a long service life, providing consistent performance over time.
- Reduced Electromagnetic Interference: Minimizes electromagnetic interference for improved operational stability.
- Compact Size: Features a compact and space-saving design, ideal for applications with limited space.
- High Reliability: Ensures reliable operation in various environments and conditions.
Applications:
- DC motor control
- LED lighting systems
- DC power distribution
- Battery charging systems
- Solar power systems
- Automotive electronics
Upgrade your control systems with the DC To DC SSR-100DD Solid State Relay Module, offering unparalleled reliability and efficiency for your DC load control applications.
Specifications:
| Product Type | Solid State Relay |
|---|---|
| Rated Load Current (A) | 100 |
| Dielectric Strength | Over 2.5kVA / 1 min |
| Trigger Voltage (VDC | 3-32VDC |
| Switching Voltage (VDC) | 5-200 |
| Operating Temperature (°C): | -20 to 85 |
| P3D Material | ABS |
| Length (mm): | 45.5 |
| Width (mm): | 62.5 |
| Height (mm): | 24 |
| Weight (g): | 93 |
| Shipping Weight | 0.105 kg |
| Shipping Dimensions | 12 × 6 × 3 cm |
Package Includes:
1 x 5-200V SSR-100DD Solid State Relay
5-60V SSR-100DD Solid State Relay Overview
The 5-60V SSR-100DD Solid State Relay is a DC-to-DC electronic switch designed to handle up to 100A of continuous load current. It provides insulated photo-coupled control with a trigger voltage range of 3–32VDC and switches DC loads from 5–200VDC without mechanical wear.
Key Features of 5-60V SSR-100DD Solid State Relay
- Load current rating of 100A for demanding DC applications
- Trigger voltage range: 3–32VDC input isolation via internal photo-coupler
- Switching voltage capacity: 5–200VDC with dielectric strength over 2.5kVAC for 1 minute
- Operating temperature from –20°C to 85°C for industrial environments
- Zero mechanical wear—no moving contacts means silent operation and long service life
- Fast shipping from Zbotic across India for immediate project deployment
Applications and Use Cases
- Switching high-current DC motors in automation and robotics
- Controlling LED arrays or lighting systems in signage and displays
- Battery management and DC power distribution in renewable energy setups
- On/off control of DC heating elements and resistive loads
- PWM speed control for fans and conveyors in industrial panels
- Isolated DC switching in test rigs and laboratory equipment
How to Use 5-60V SSR-100DD Solid State Relay
To install the SSR-100DD, mount the relay on an appropriate heatsink, connect a 3–32VDC control signal to the input terminals (observing polarity), and wire your DC load (5–200VDC) in series with the output terminals. Ensure tight screw connections, adequate heat dissipation, and proper wiring practices to achieve reliable switching without mechanical noise.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What control voltage is required to activate this SSR?
The SSR-100DD activates with a DC input between 3V and 32V. Apply the control voltage across the input terminals (+ to +, – to –) to switch the output on.
Do I need a heatsink when switching 100A loads?
Yes. For continuous currents near 100A, mounting the relay on a suitable heatsink ensures junction temperature remains below 85°C and maintains reliable operation.
Can I use this relay for PWM speed control?
Yes. The SSR-100DD handles PWM switching of DC loads up to 200VDC. Ensure your PWM frequency is within the relay’s switching capability and that you provide proper heat management.
