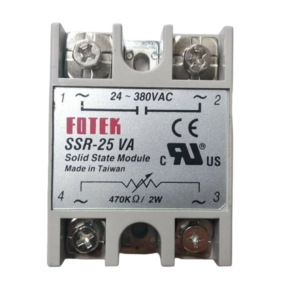

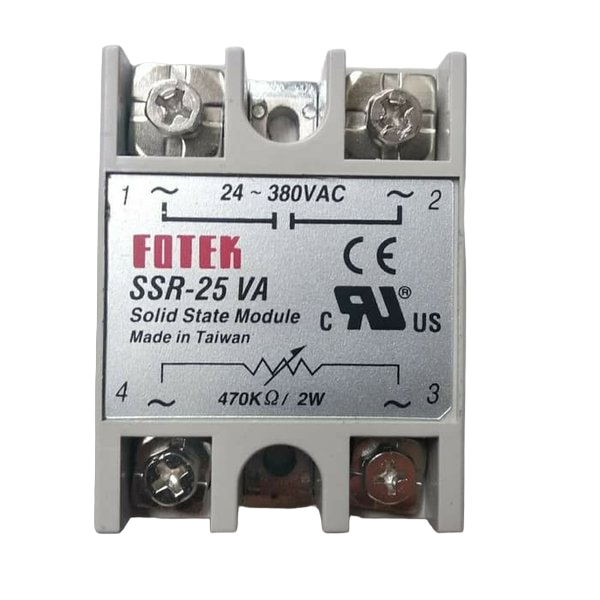

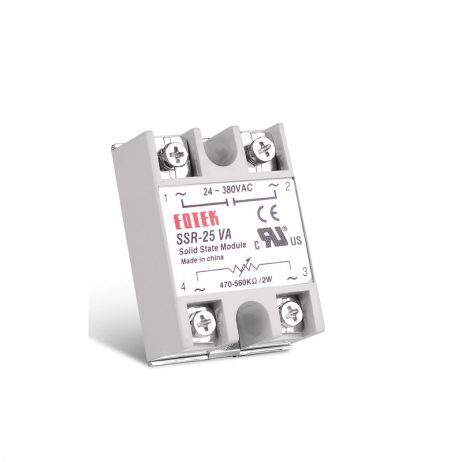

This is the 380V variant of the 24-380V SSR-25VA Solid State Voltage Regulator in Solid State Relays, Relays. Available at ₹345.74 (₹293.00 + GST) with free shipping across India.
Looking for Voltage Regulator? 24-380V SSR-25VA Solid State Voltage Regulator is available at Zbotic with fast shipping across India.
PRODUCT DESCRIPTION
A solid-state relay (SSR) is an electronic switch that has no moving parts, unlike an electromechanical relay. SSRs can be classified into three categories: photo-coupled SSR, transformer-coupled SSR, and hybrid SSR. A photo-coupled SSR uses an LED and a photo-sensitive diode to isolate the low voltage signal from the load optically. The diode triggers a thyristor, a silicon-controlled rectifier, or a MOSFET transistor that switches the load on or off.
The power output of this SSR depends on the triac’s trigger angle, which can be varied by a resistor of 470-560KΩ. The relay has a plastic cover to protect four screw terminals for ring or fork connectors.
Features:
- Long service life and high reliability
- Reduced electromagnetic interference.
- Highly reliable, compact size designed to offer users maximum simplicity.
Specification:
| Product Type | Voltage Regulator |
|---|---|
| Dielectric Strength | Over 2.5kVA / 1 min |
| Trigger resistance | 470-560KΩ |
| Voltage | 24-380V |
| Operating Temperature Range (°C): | -20 to 85 °C |
| Material | ABS |
| Length (mm): | 45.5 |
| Width (mm) | 62.5 |
| Height (mm) | 24 |
| Weight (gm) | 93 |
| Shipping Weight | 0.105 kg |
| Shipping Dimensions | 15 × 8 × 7 cm |
Package Includes:
1 x 24-380V SSR-25VA Solid State Voltage Regulator
24-380V SSR-25VA Solid State Voltage Regulator Overview
The 24-380V SSR-25VA Solid State Voltage Regulator is an electronic switch designed to control AC voltage from 24 to 380VAC without moving parts. It uses a triac triggered via an adjustable resistor and offers reliable, silent switching for heating elements, motors, lighting and other AC loads.
Key Features of 24-380V SSR-25VA Solid State Voltage Regulator
- Wide input range: 24–380VAC switching capability
- Adjustable trigger resistance: 470–560KΩ for fine control of triac firing angle
- High dielectric strength: over 2.5kVA for one minute ensures electrical isolation
- Operating temperature range: -20°C to 85°C for varied environments
- Durable ABS housing with four screw terminals for secure wiring
- Solid-state design for silent, maintenance-free operation
- Fast shipping from Zbotic across India
Applications and Use Cases
- AC motor speed control in conveyor systems and fans
- Temperature regulation for industrial heaters and ovens
- Dimming control for stage or architectural lighting
- Batch process control in food and chemical industries
- Automated switching of high-power resistive or inductive loads
- Replacement of mechanical relays to reduce electrical noise
How to Use 24-380V SSR-25VA Solid State Voltage Regulator
Mount the SSR-25VA on a suitable heatsink or panel, connect the low-voltage control source across the input terminals, and wire the AC load between the output terminals. Adjust the 470–560KΩ resistor to set the triac trigger angle, ensuring proper isolation and secure tightening of all screw terminals before powering the system.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I wire the SSR-25VA correctly?
Connect the control signal (e.g., 5–24VDC) to the designated input terminals, then wire your AC load between the two output terminals. Ensure the regulator is mounted on a heatsink and all connections are tightened to avoid loose contacts.
What is the maximum load current supported?
The SSR-25VA is rated for up to 25A of AC current within the 24–380VAC range, making it suitable for high-power resistive and inductive loads when paired with an appropriate heatsink.
Can I use this regulator in industrial environments?
Yes, its ABS housing and wide operating temperature range (-20°C to 85°C) suit most indoor industrial settings; however, for outdoor or wet locations, install it within a weatherproof enclosure.
