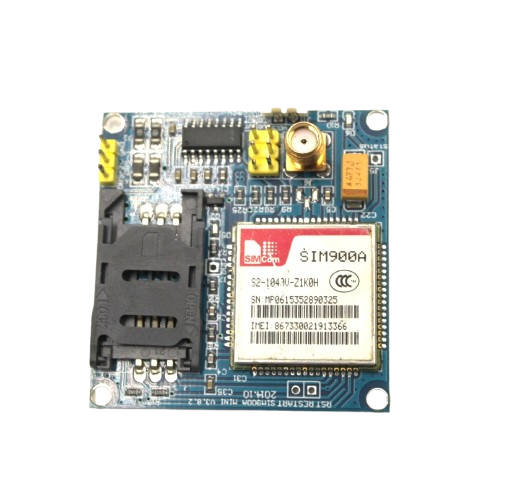

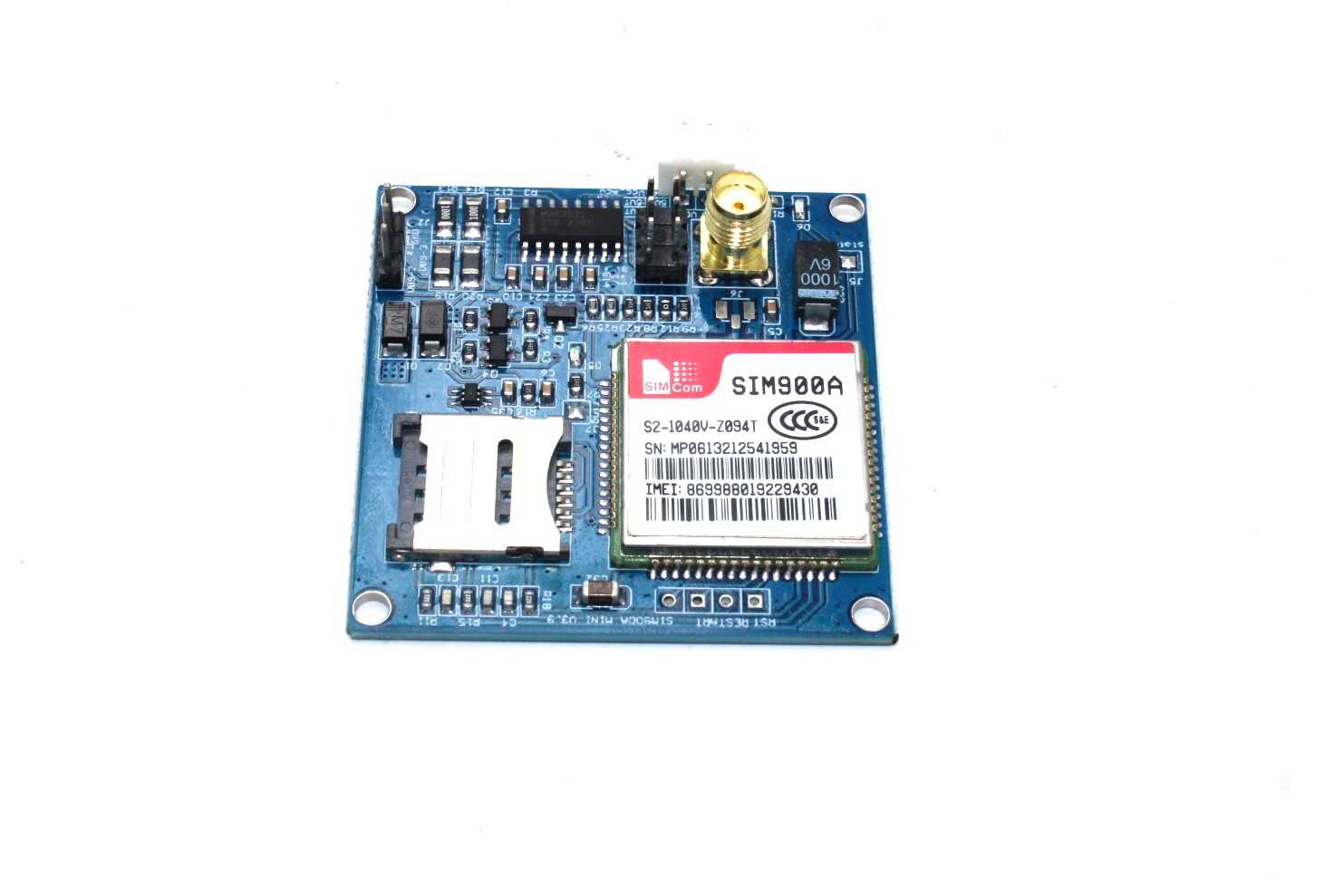

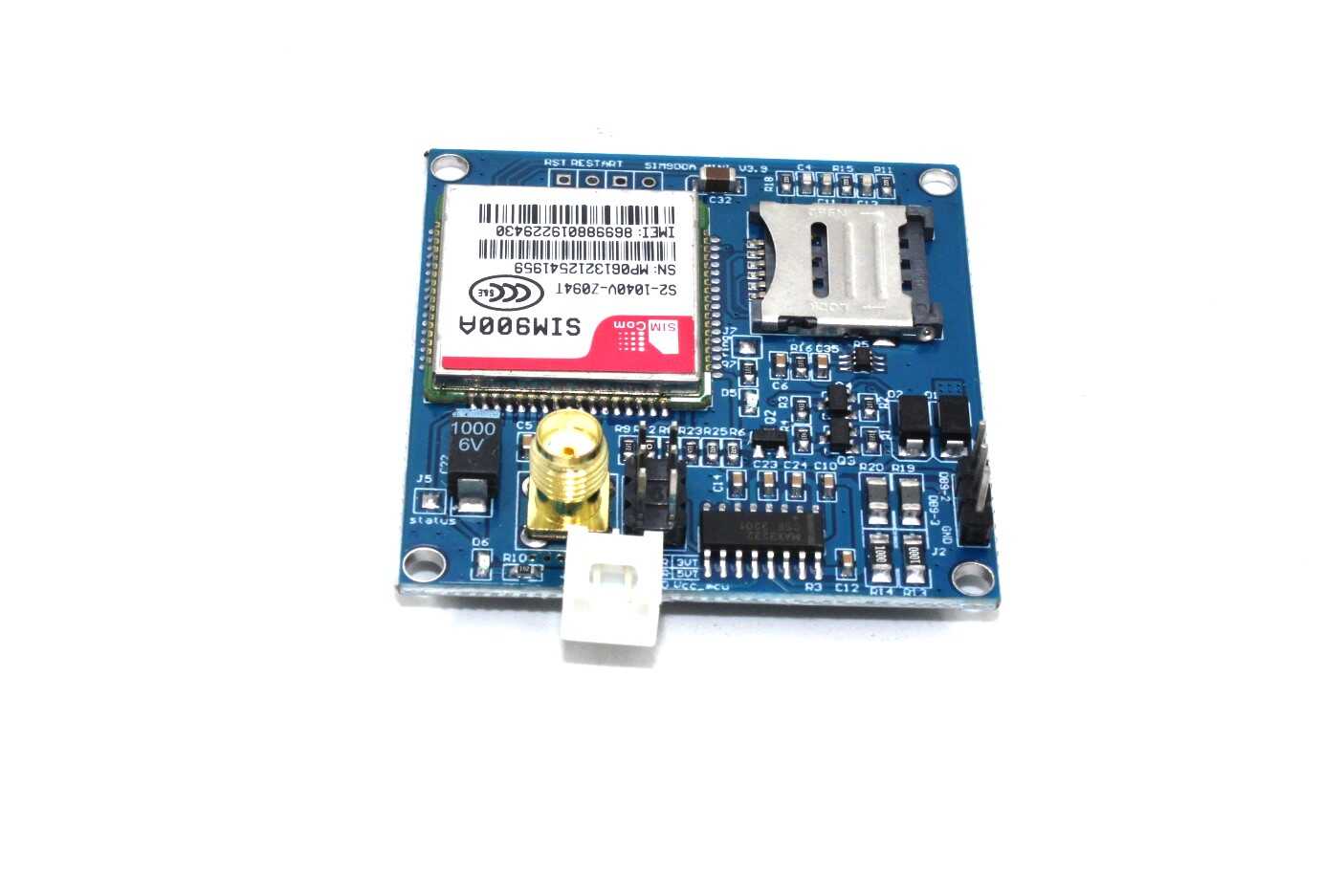

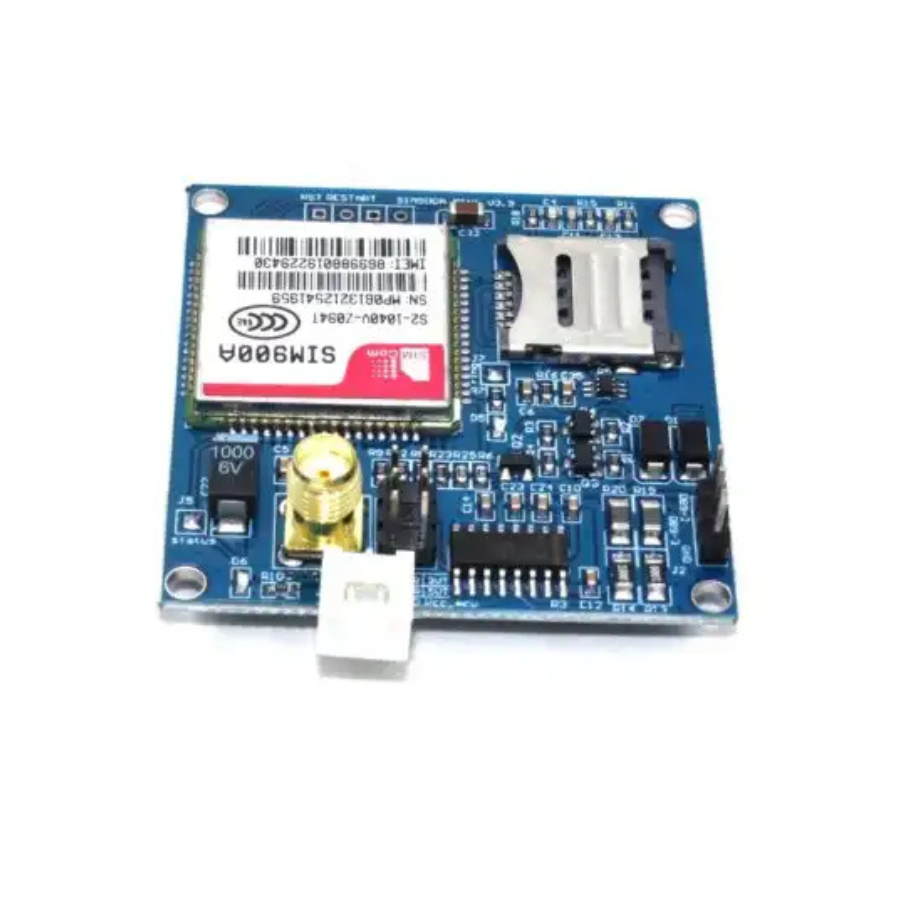

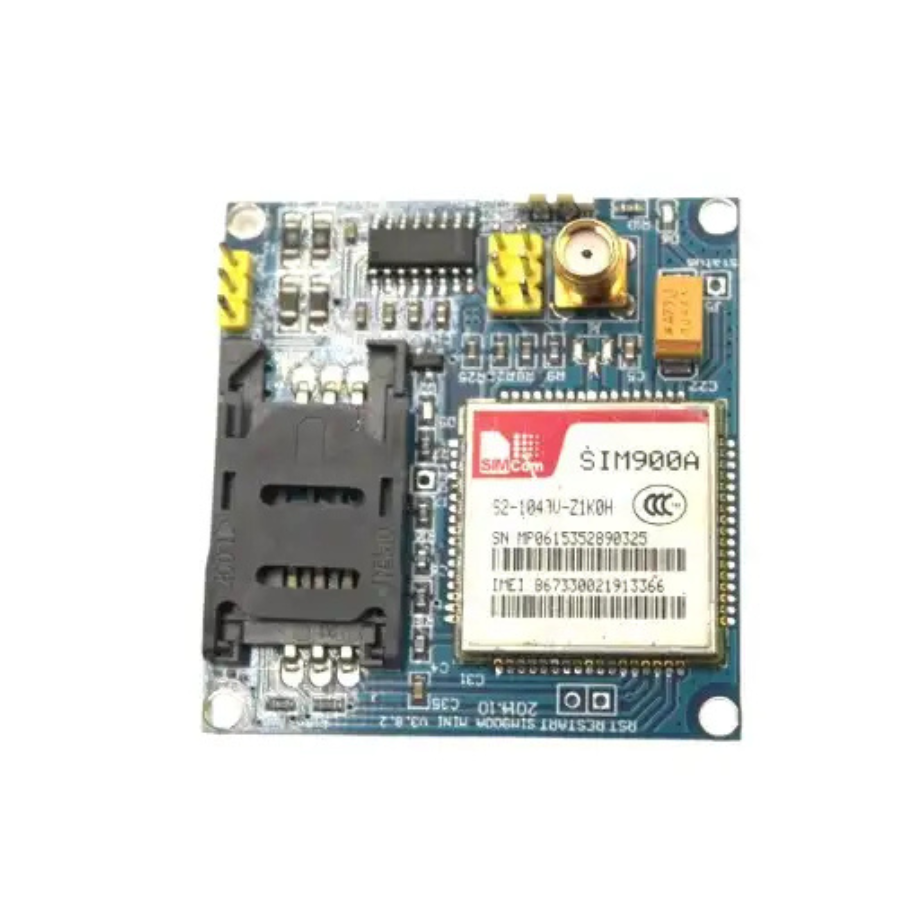

SIM900A V4.0 Kit Wireless Extension Module GSM GPRS Board with Antenna is based on SIM900A chip having onboard two set power of supply interface namely VCC5 5V power supply, VCC4 interface, 3.5–4.5V power supply, optional power on self-starting (default), and control start. The onboard SMA (default) and IPXmini antenna interface, SIM900A interface reserved reset. The computer can give early computer debugging USB module power supply, a very large amount of data under the condition of the recommended current more than 1A. Standby dozens of MA data can be set to provide dormancy, dormancy of 10MA low power. Support 2G, mobile phone 3,4G card.
The serial port circuit can support for 3.3V single-chip microcomputer. TTL serial port support 3.3 and 5V single-chip microcomputer. The SIM card circuit to increase the SMF05C ESD chip. Antenna circuit guarantee short and straight so as to ensure the higher signal strength.
Features:
- The computer can give early computer debugging USB module power supply, a very large amount of data under the condition of the recommended current more than 1A. Standby dozens of MA data can be set to provide dormancy, dormancy of 10MA low power. Support 2, mobile phone 3,4G card.
- The serial port circuit: support for 3.3V single chip microcomputer. TTL serial port support 3.3 and 5V single chip microcomputer.
- The SIM card circuit to increase the SMF05C ESD chip.
- Antenna circuit: guarantee short and straight, so as to ensure the signal strength.
- PCB display screen printing mark: each interface, convenient development two times, the SIM900/A hardware is completely follow the design when the design manual.
- Two power supply interface: VCC5, 5V DC above 1A. Computer 5V power supply can be early computer USB. DC long data circuit over larger recommended 5V1A. VCC4, 3.5–4.5V power supply, ibid., suitable for lithium battery.
- Control pin all leads.
- A TTL level, compatible with 3.3V and 5V.
- The two antenna interface, the default SMA straight head, connector for IPXmini antenna.
- One way of speech interface, the way Mike interface.
Specifications:
| Frequency bands | Dual-band |
| GPRS connectivity | 90dBGPRS multi-slot class 10 (default) , GPRS multi-slot class 8 (option) |
| On-Off Button | Yes |
| Operating Temperature Range | -30 to 80 ºC |
| Supply Voltage | VCC5 : DC 5V input.
VCC4 : DC3.5 – 4.5 input |
| Dimensions (LxW) | 49x47mm (approx) |
| Weight (gm) | 28 |
Onboard Resources:
- Serial port circuit(with protection)
- Antenna interface circuit(SMA bend female port)
- SIM card circuit (flip SIM slot)
- 4×3.5mm fixture hole 4pcs
- SIM900A serial port output terminal
Pin Description:
- GND – GNDSIMR SIM900A RXD, TTL level,
- can not be directly connected to the 232 level SIMT SIM900A TXD, TTL level,
- can not be directly connected to the 232 level RST – SIM900A reset,
- active low VCC_MCU when the SIM900A module and 5V TTL level communication,
- this pin is connected to DC 5V;
- when the level of communication of SIM900A and 3.3V TTL, this pin is connected to DC 3.3V.
- VCC5 – DC 5V input.
- VCC4 – DC3.5–4.5 input
- Onboard Resources: Serial port circuit(with protection)
- Antenna interface circuit(SMA bend female port)SIM card circuit
Package Includes:

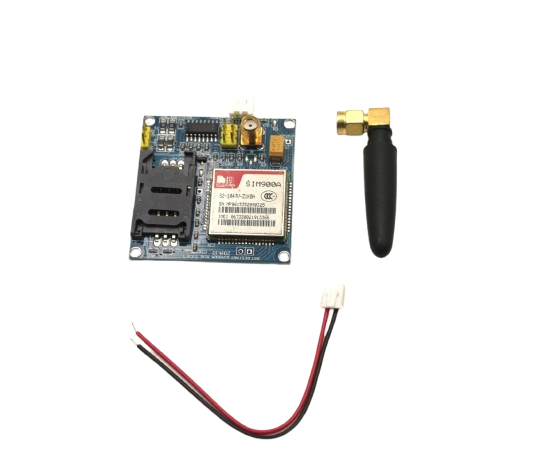

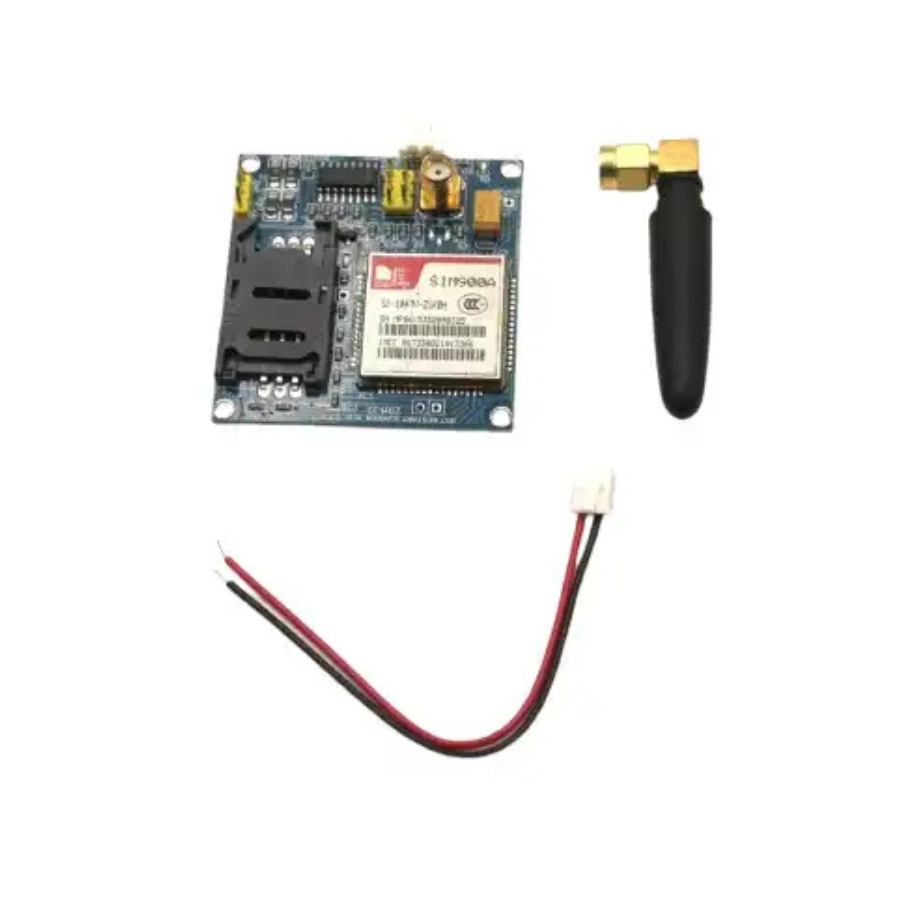

- 1 x SIM900A V4.0 Kit Wireless Extension Module GSM GPRS Board with Antenna.
Technical Specifications
| Model | SIM900A |
|---|---|
| SKU | AI4227 |
| Weight | 0.03 kg |
| Availability | In Stock |
Applications & Use Cases
The SIM900A V4.0 Kit Wireless Extension Module GSM GPRS Board Antenna is a versatile gprs and gsm modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
