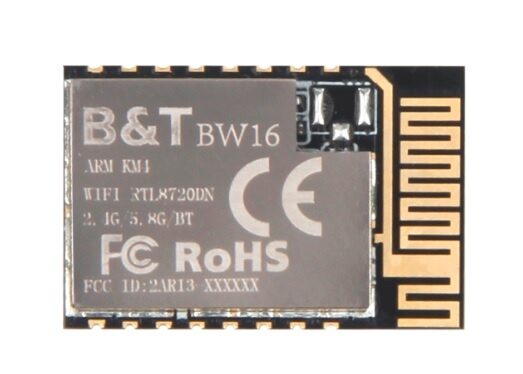

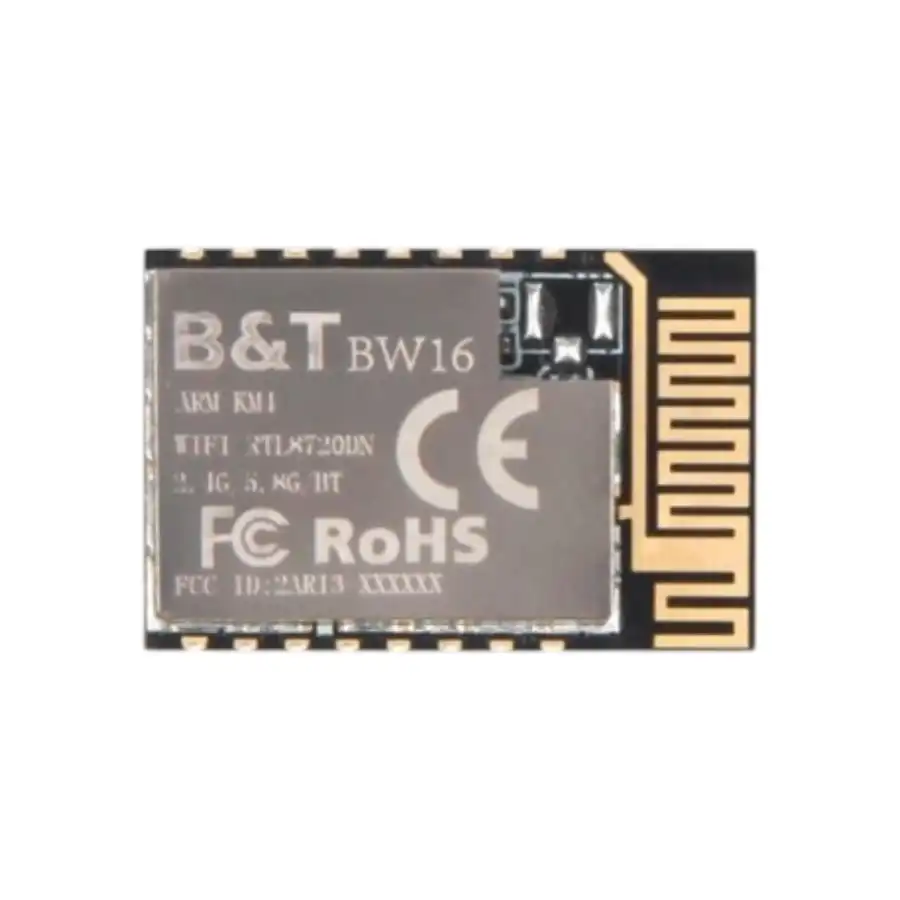

Realtek RTL8720DN 2.4G/5G Dual Bands Wireless and BLE 5.0
- The Realtek RTL8720DN is a compact yet powerful WiFi and Bluetooth module, supporting dual-band WiFi communication, including WiFi 5G and Bluetooth Low Energy 5.0 This versatile module integrates both WiFi and Bluetooth capabilities, making it an ideal solution for single-board computer (SBC) applications.
- At the heart of the RTL8720DN module is the highly integrated RTL8720DN chip, which includes a high-performance MCU (KM4) for intensive tasks and a low-power MCU (KM0) for energy-efficient operations. In addition to these, it features a WLAN (802.11 a/b/g/n) MAC, a 1T1R WLAN baseband, RF circuitry, Bluetooth support, and various peripherals. The module also includes an internal antenna, offering a complete solution for wireless communication needs.
- Compared to the ESP series, the RTL8720DN stands out with its support for 5G WiFi and Bluetooth 5.0, providing enhanced capabilities for more demanding applications. This makes it an excellent choice for a wide range of wireless projects, offering more functionality than many other WiFi and Bluetooth modules available today.
Peripheral Interfaces
- 1 common ADC interface
- 2 log UART with standard baud rate support
- 1 I2C interfaces are shared with the PWM interfaces
1 SPI interfaces are shared with the PWM interfaces
- 4 PWM interfaces
- All of the above interfaces can be used as GPIO
Features
- WiFi and Bluetooth module.
- Support both WiFi 2.4G and WiFi 5G with protocol 802.11 a/b/g/n 1×1 from 20/40 MHz up to MCS7.
- Support WiFi low power mode.
- Support Bluetooth (BLE) 5.0.
Specification

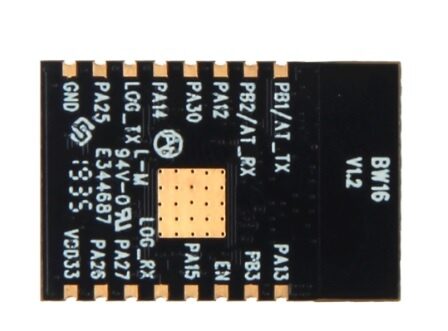

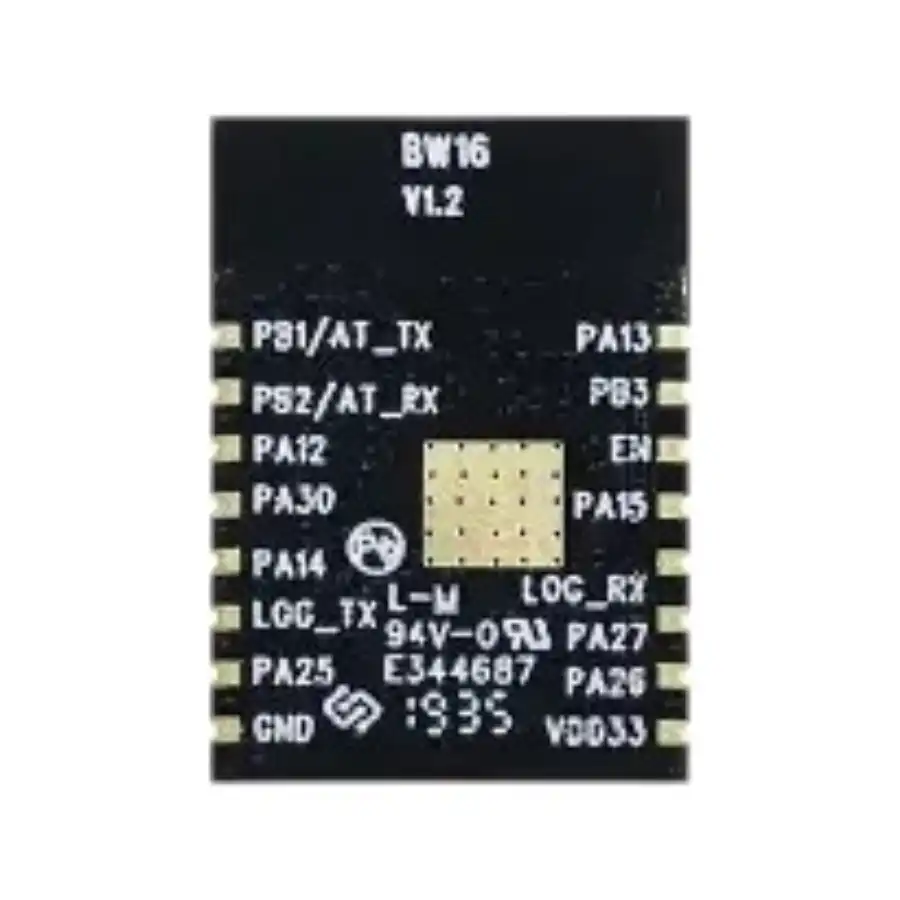

Hardware Features
- Model: BW16
- Antenna Type: IPEX connect or PCB Antenna
- Major Chipset: RTL8720DN
- Power Supply: 3.3±5% V
- Dimension: 24 .0*16.0* 3.0mm (LxWxH) ±0.2mm
WiFi Wireless Features
- Wireless Standards: IEEE 802.11 a/b/g/n
- Frequency Range: 2.412-2.484GHz & 5.180-5.825GHz
- Data Rates: 802.11a : 6,9,12,18,24,36,48,54Mbps / 802.11b : 1,2,5.5,11Mbps /802.11g : 6,9,12,18,24,36,48,54Mbps
- Data Rates: 802.11n : MCS0–MCS7 @ HT20 /2.4GHz and 5GHz band
- Data Rates: 802.11n: MCS0–MCS7 @ HT40 /2.4GHz and 5GHz band
- Modulation Technique: DSSS (DBPSK, DQPSK, CCK) / OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
- Work Mode: AP, Station, AP/Client
Others
- Operating Temperature: -20℃~85℃
- Storage Temperature: -40℃~125℃
- Operating Humidity: 10%~90% (non-condensing)
- Storage Humidity: 5%~90% (non-condensing )
- Certification: RoHS compliance, FCC, CE, SRRC
Bluetooth Wireless Features
- Wireless Standards: Bluetooth5.0 BLE
- Frequency Range: 2.402GHz -2.480GHz
- Receiver Sensitivity: -92dBm
- Transmit Power: 7±2dBm
Applications
- BLE beacon
- Industrial wireless control
- Bluetooth gateway
- Wearable electronic devices
- Security ID tags
- Smart home
Package Includes
- 1 x Realtek RTL8720DN 2.4G/5G Dual Bands Wireless and BLE5.0 Combo Module
