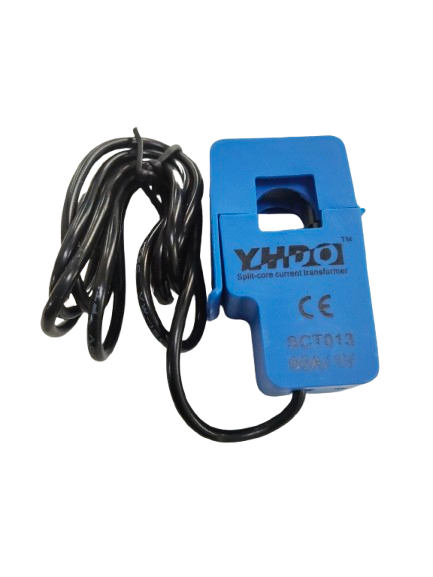

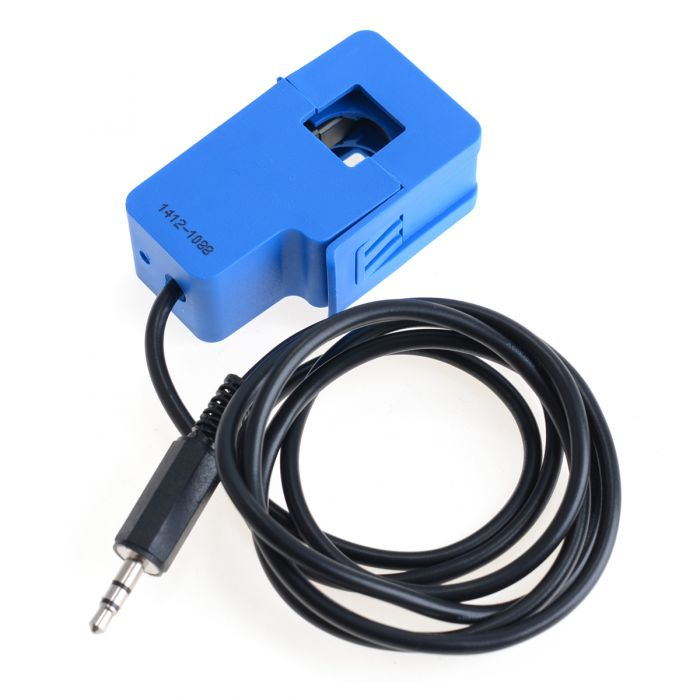

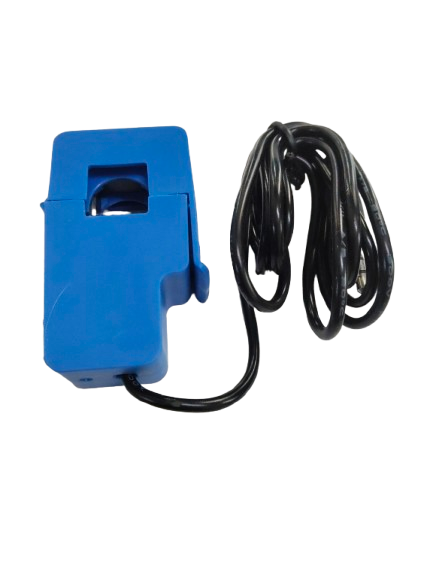

Looking for Sct-013 Sensor 60a? SCT-013-060 Non-invasive AC Current Sensor Clamp Sensor 60A is available at Zbotic with fast shipping across India.
Product Description:
The SCT-013-060 is a non-invasive current sensor that can measure AC current without cutting or piercing wires. It has a split core made of silicon steel sheet that can be easily installed by hanging. It comes with 1m long leads and can be used to monitor and protect AC motors, lighting equipment, air compressors and other devices.
Applications
- Suitable for the current measuring.
- Monitoring and protection of AC motor
- Lighting equipment
- Air compressor
Features:
- Non-invasive current transformer
- Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
- Meet UL94-V0 flame retardant properties.
- Two forms of output current, voltage (voltage output built-in the sampling resistor).

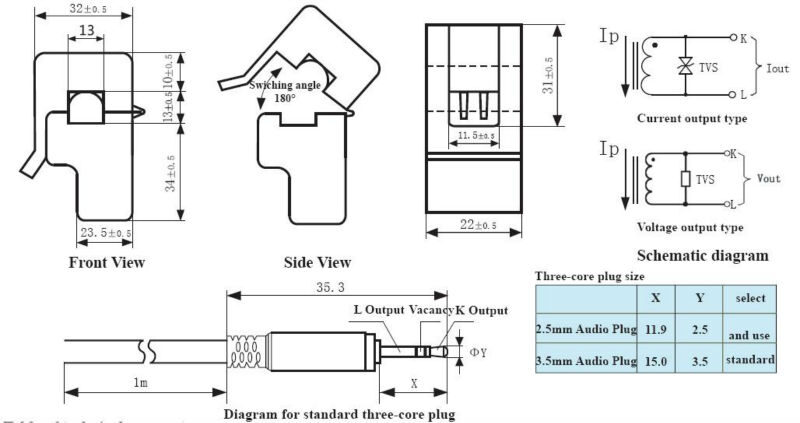

Dimensional diagram:
Package Includes:
1 x SCT-013-060 Non-invasive AC Current Sensor Clamp Sensor 60A.
SCT-013-060 Non-invasive AC Current Sensor Clamp Sensor 60A Overview
The SCT-013-060 is a clamp-on AC current sensor designed for non-invasive measurement of alternating currents up to 60 A RMS. Its split-core design allows quick installation around insulated conductors without interrupting power, making it ideal for energy monitoring and equipment protection tasks.
Key Features of SCT-013-060 Non-invasive AC Current Sensor Clamp Sensor 60A
- Split-core, non-invasive clamp design for tool-free installation around live conductors
- Silicon steel sheet core delivers stable readings for AC currents up to 60 A RMS
- 1 m long, color-coded leads for straightforward connection to meters, data loggers or protection circuits
- High-voltage insulation and 3.5 kV dielectric strength ensure safe operation in industrial settings
- Wide working temperature range (–25 °C to +70 °C) suits diverse environments
- Genuine SCT-013-060 sensor with fast shipping from Zbotic across India
Applications and Use Cases
- Monitoring and protection of AC induction motors against overload
- Energy usage tracking for lighting banks in commercial and residential buildings
- Current measurement in air compressor systems to detect inefficiencies or faults
- Integration into power management panels for phase-by-phase load balancing
- Retrofit in existing switchgear to enable smart metering without rewiring
- Preventive maintenance diagnostics on pumps, generators and HVAC equipment
How to Use SCT-013-060 Non-invasive AC Current Sensor Clamp Sensor 60A
Open the clamp core and position it around a single insulated conductor, then close securely. Route the 1 m leads to your measurement device or protection relay, observing proper polarity markings. Power is not required for the sensor itself—simply connect to your data acquisition system or meter to start real-time AC current monitoring.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can the SCT-013-060 measure DC current?
No. As a current transformer, the SCT-013-060 is optimized for AC measurements and cannot detect DC currents.
Do I need an external power supply to operate this sensor?
No external power is required. The SCT-013-060 is a passive device that generates a secondary current proportional to the measured AC primary current.
Which instruments can I connect to the SCT-013-060?
You can interface it with standard RMS meters, data acquisition modules or microcontroller boards equipped with a suitable burden resistor or input channel for current transformer signals.
