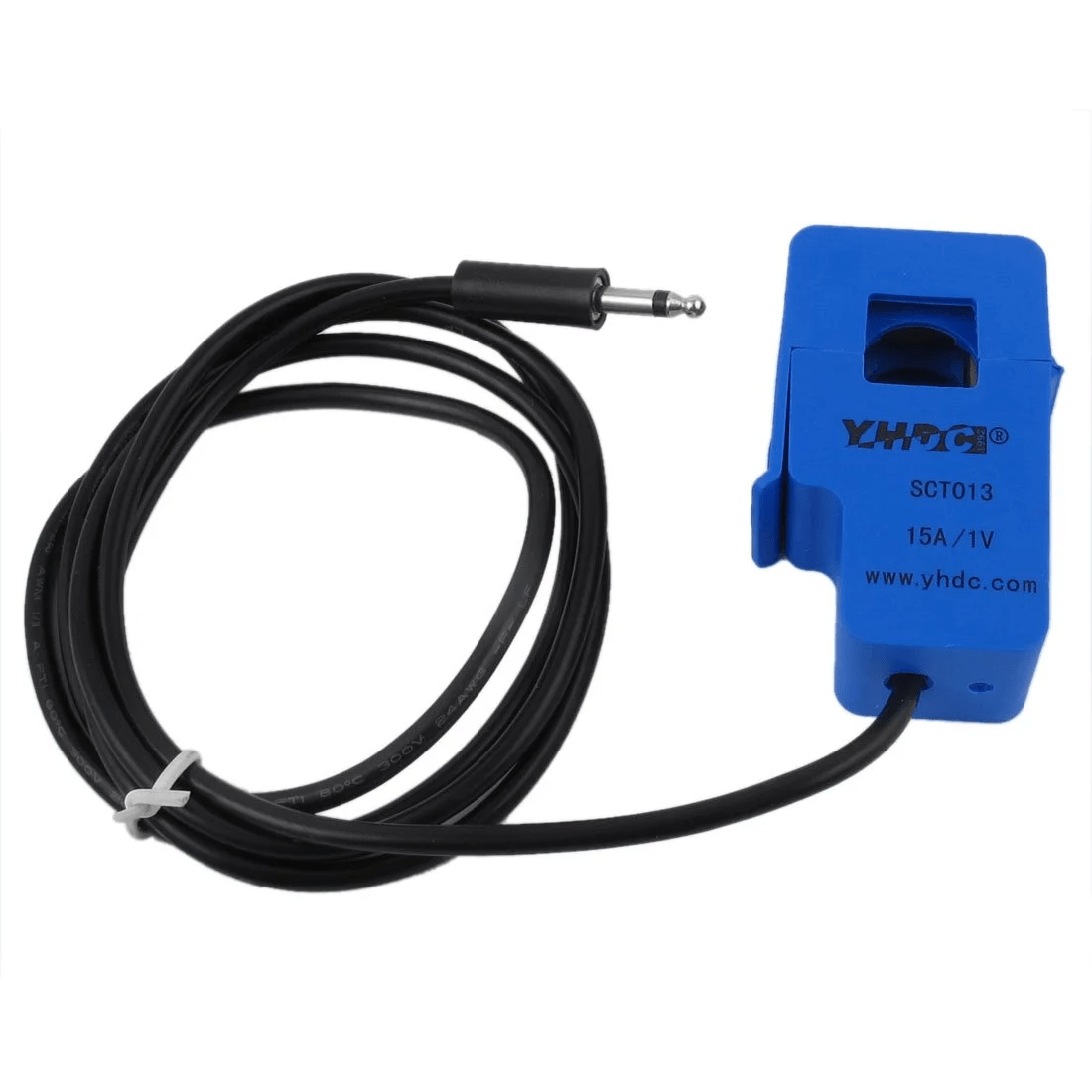

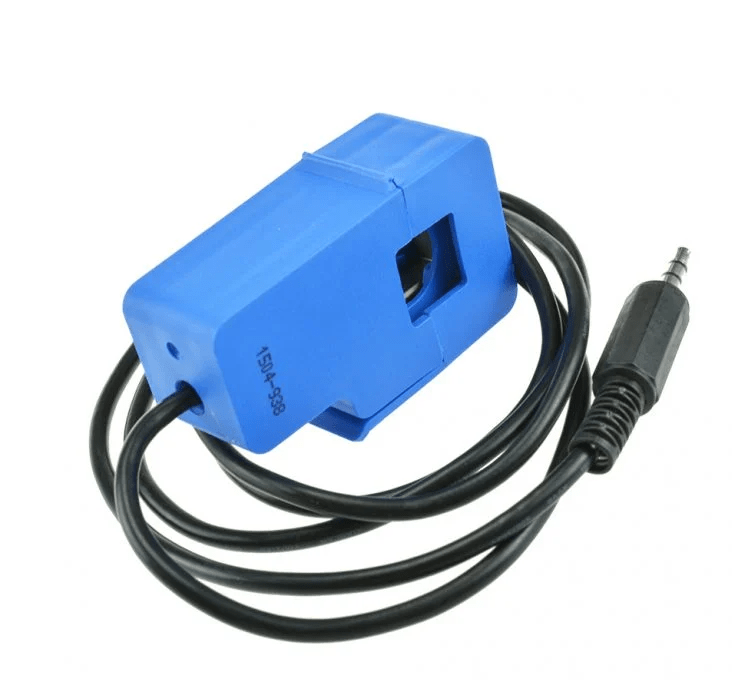

SCT-013-015 Non-Invasive AC Current Clamp Sensor 15A
The SCT-013-015 Non-invasive Current Sensor features a split core structure made of silicon steel, designed for easy hanging installation. With a 1-meter lead length, it is ideal for measuring and monitoring AC currents in applications such as motors, lighting systems, air compressors, and more. This sensor is commonly used for current measurement, as well as for monitoring and protection of electrical equipment.
Features
Non-invasive current transformer
Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
Meet UL94-V0 flame retardant properties
Two forms of output current, voltage (voltage output built-in the sampling resistor).
Specification
| Model | SCT 03 |
|---|---|
| Rated Input (rms) (A) | 15 |
| Max. Input (A) | 40 |
| Rated output (V) | 1 |
| Linearity | <0.2% |
| Accuracy | ±1% |
| Work voltage (V) | 660 |
| Frequency range | 50Hz – 1KHz |
| Dielectric strength | 3.5KV 50Hz 1min |
| Operating Temperature (°C) | -25 ~ 70 |
| Connecting cable length (m) | 1 |
| Length (mm): | 57.5 |
| Width (mm): | 34 |
| Height (mm): | 21 |
| Weight (g): | 62 |
Applications
Suitable for the current measuring.
Monitoring and protection of AC motor
Lighting equipment
Air compressor
Package Includes
1 x SCT-013-015 Non-Invasive AC Current Clamp Sensor 15A
SCT-013-015 datasheet
