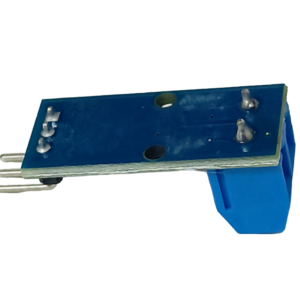

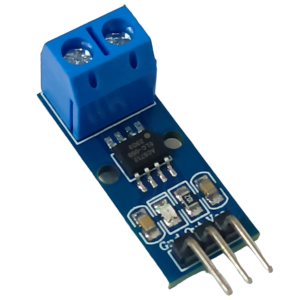

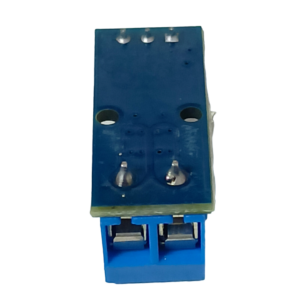

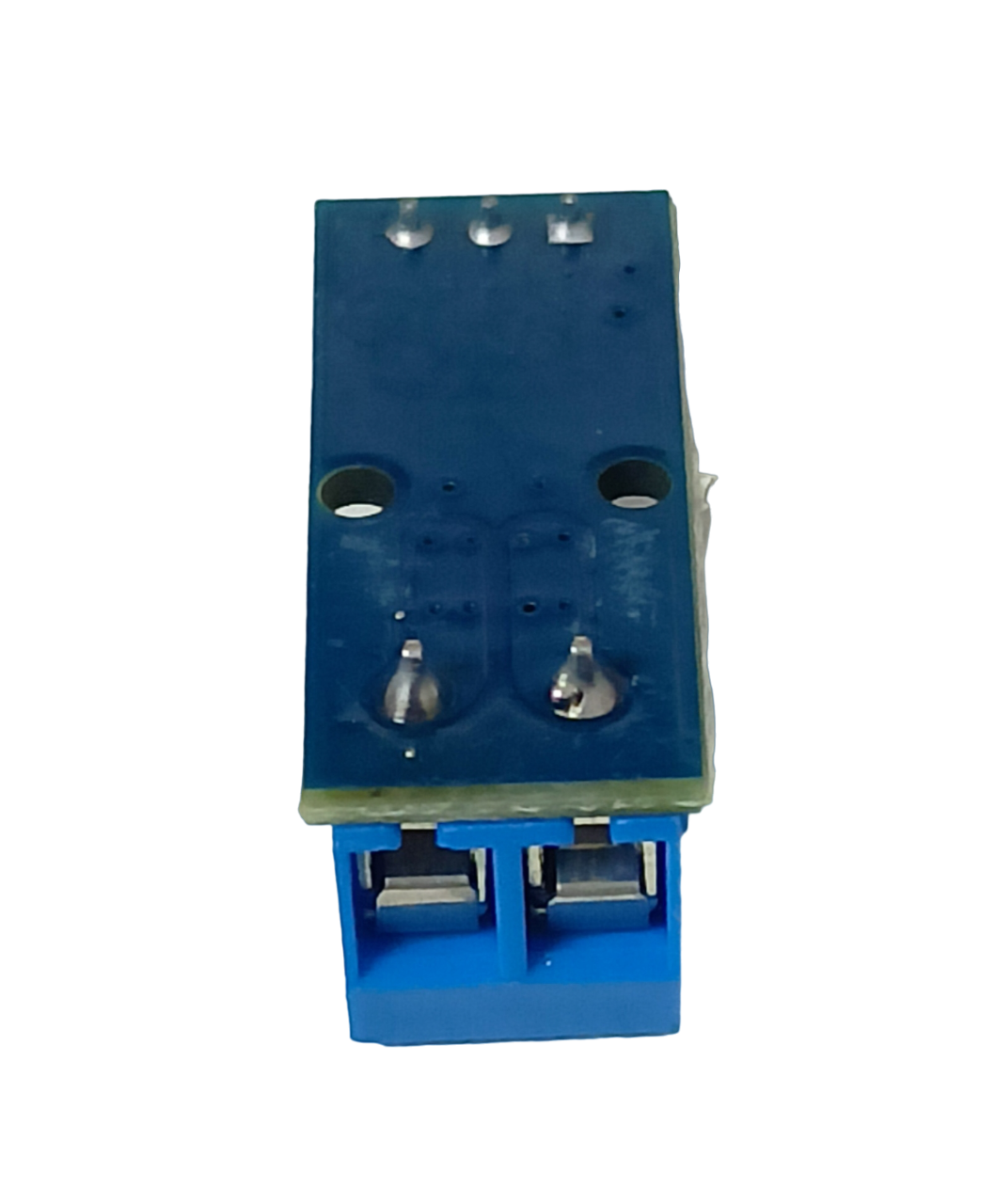

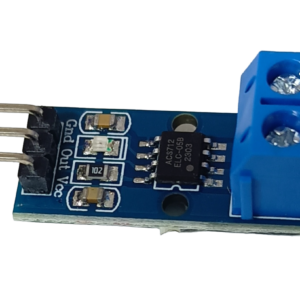

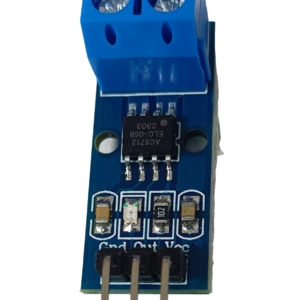

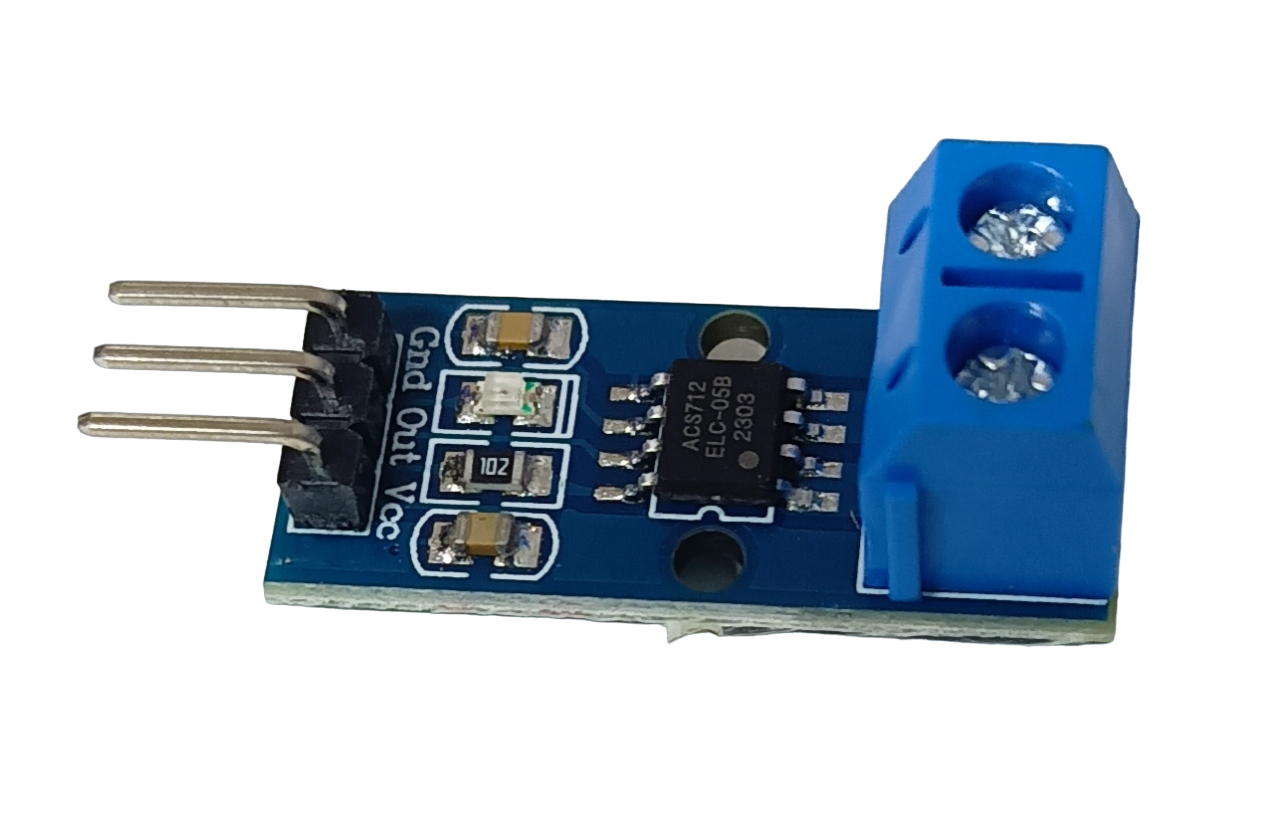

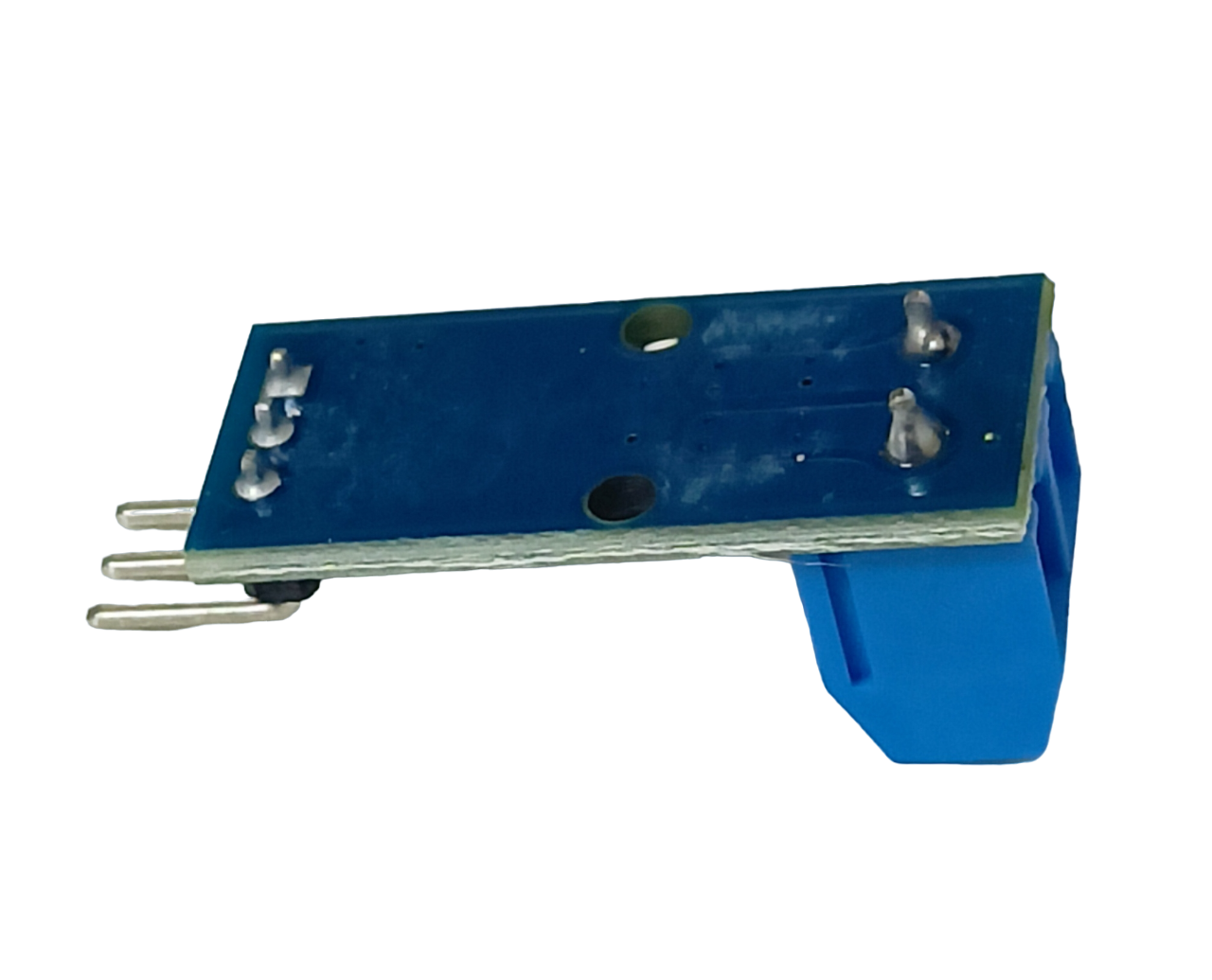

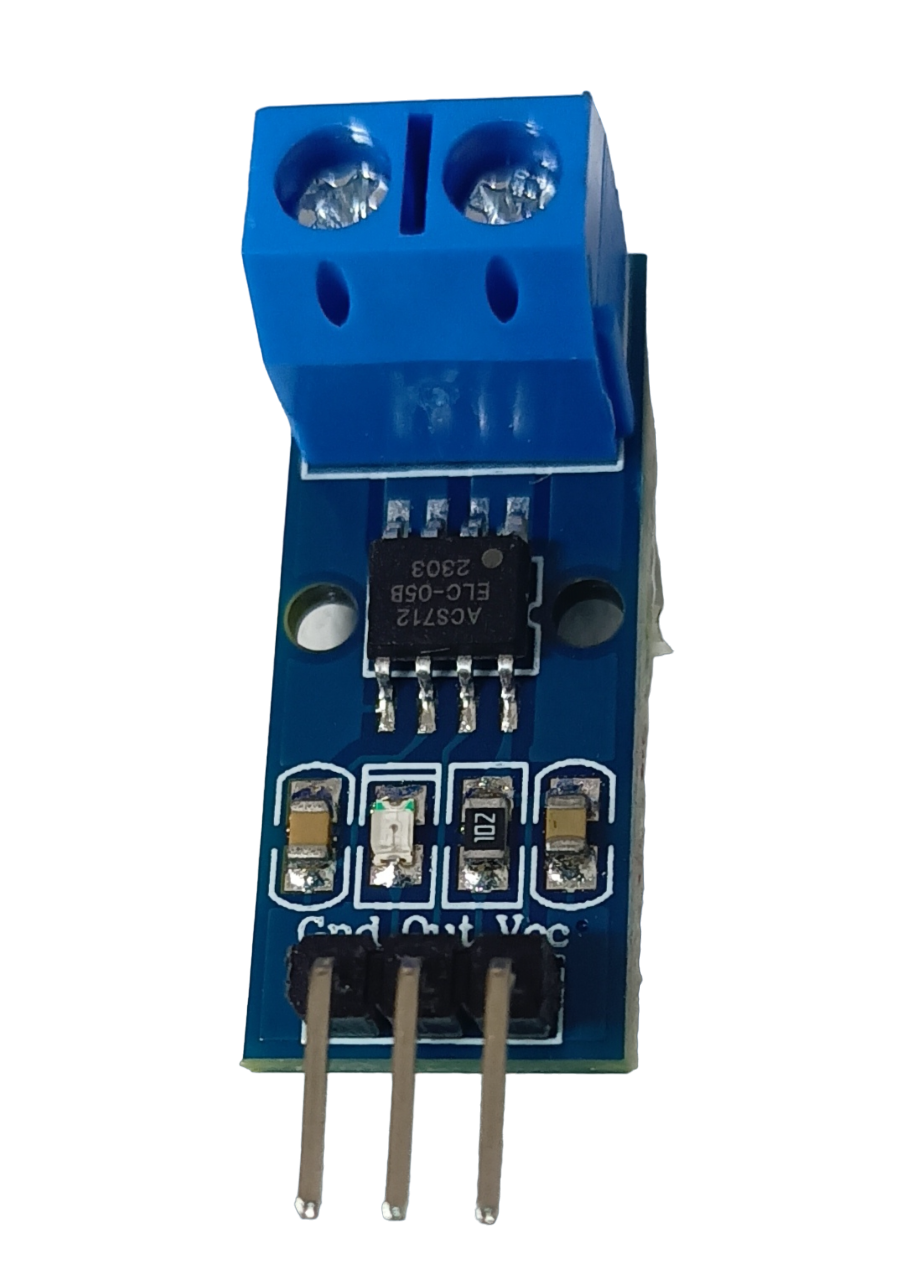

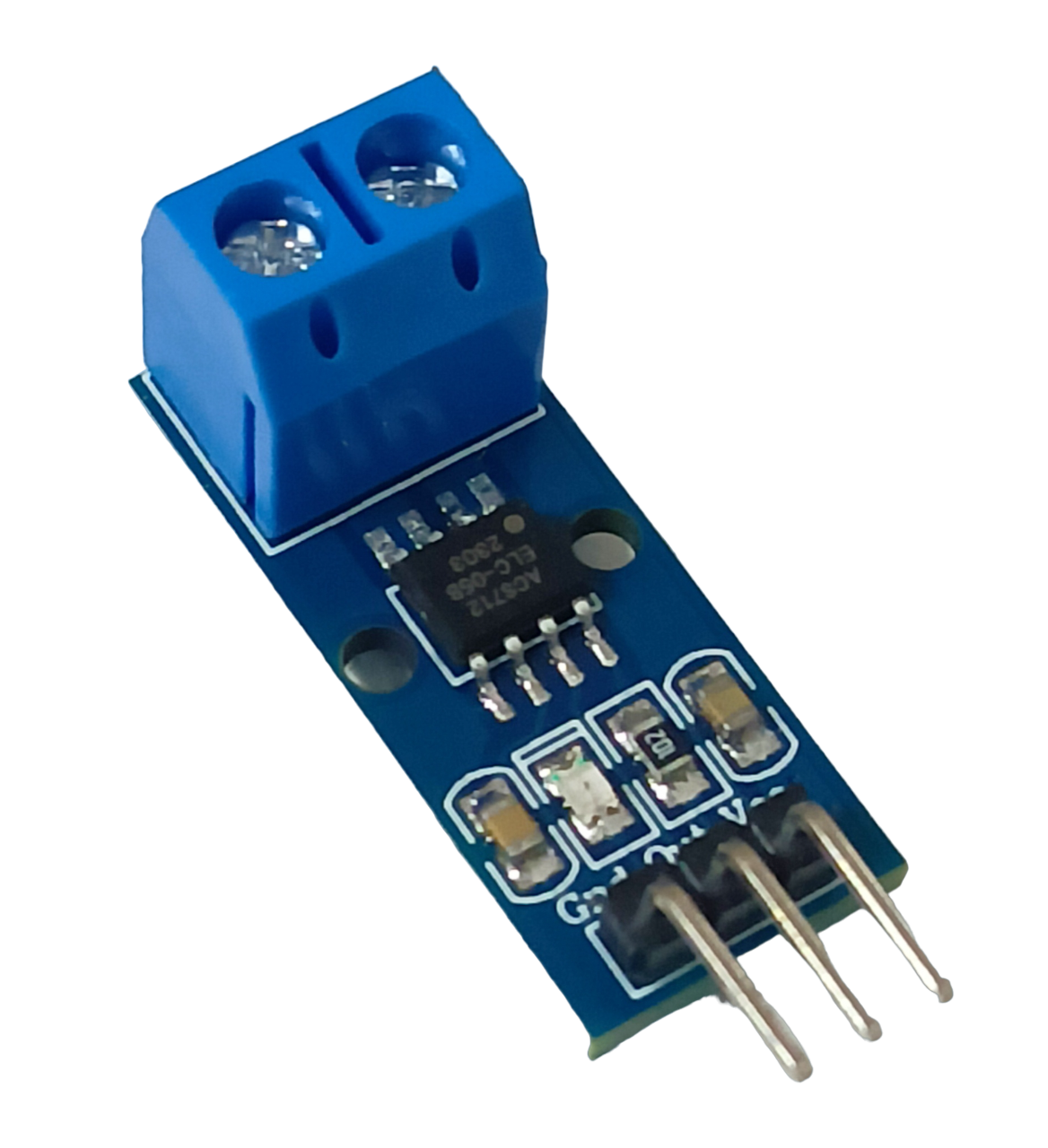

ACS712 5A Range Current Sensor Module
The ACS712 Current Sensor Module – 5A is capable of detecting currents up to 5A, making it an essential component for various applications where monitoring and controlling current flow is crucial. These applications include over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, and programmable current sources.
Built upon the ACS712 sensor, this module provides accurate detection of both AC and DC currents. With a maximum detection range of 5A, it allows for precise monitoring of current signals. Users can easily read the current signal output through the analog I/O port of a microcontroller or an Arduino, enabling seamless integration into electronic systems for real-time current measurement and control.
Specifications: –
Supply Voltage: 4.5V ~ 5.5V DC
Measure Current Range: -5A ~ 5A
Sensitivity: 100mV/A
PACKAGE INCLUDES
1 X ACS712 5A Range Current Sensor Module
Tutorial
https://medium.com/@keirish15/acs-712-20a-current-sensor-interfacing-with-esp-32-5a3d240acfe9
Sharp IR Distance Sensor: Analog Range Measurement Guide
When you need to measure distance in a robotics or automation project, ultrasonic sensors are the default choice...
Read More →
Sensor Accuracy vs Precision: Understanding the Difference
Every hobbyist, engineering student, or professional who has ever worked with sensors has encountered the terms accuracy and...
Read More →
Capacitive Level Sensor: Non-Contact Liquid Level Detection Guide
Table of ContentsWhat Is a Capacitive Level Sensor?How Non-Contact Liquid Detection WorksTypes of Capacitive Level SensorsCapacitive vs Resistive...
Read More →Technical Specifications
| Model | ACS712 |
|---|---|
| Current Rating | 5A |
| SKU | AI3559 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The ACS712 5A Range Current Sensor Module is a versatile current and voltage sensor used across a wide range of applications including power monitoring, energy metering, battery management, solar panel monitoring, and industrial current sensing.
Common use cases:
- Monitoring power consumption of appliances
- Building a solar panel efficiency tracker
- Current sensing in a battery management system
This product is ideal for power electronics engineers and IoT developers.
Technical Tip: Hall-effect sensors are non-invasive (no wire cutting needed). Shunt-based sensors offer higher accuracy. Match the sensor range to your application.
