Description:

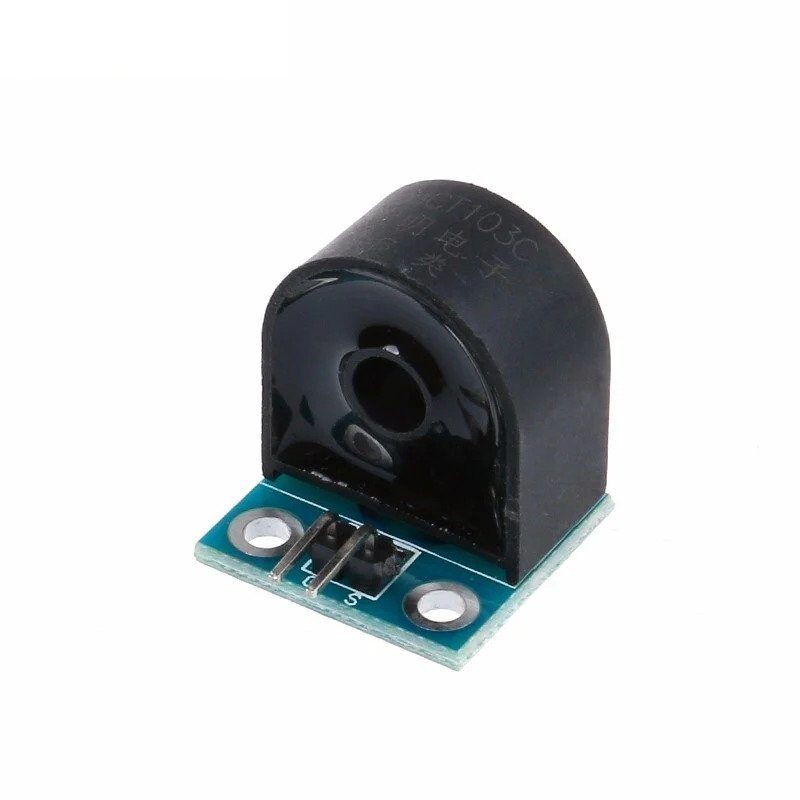

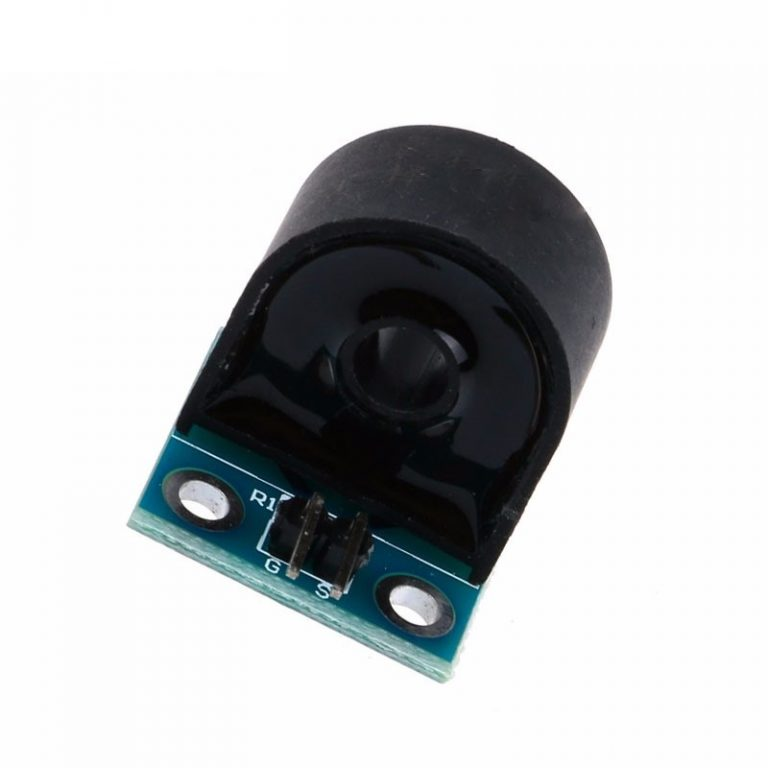

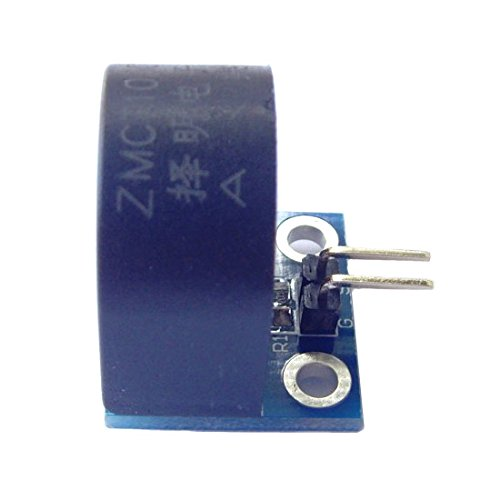

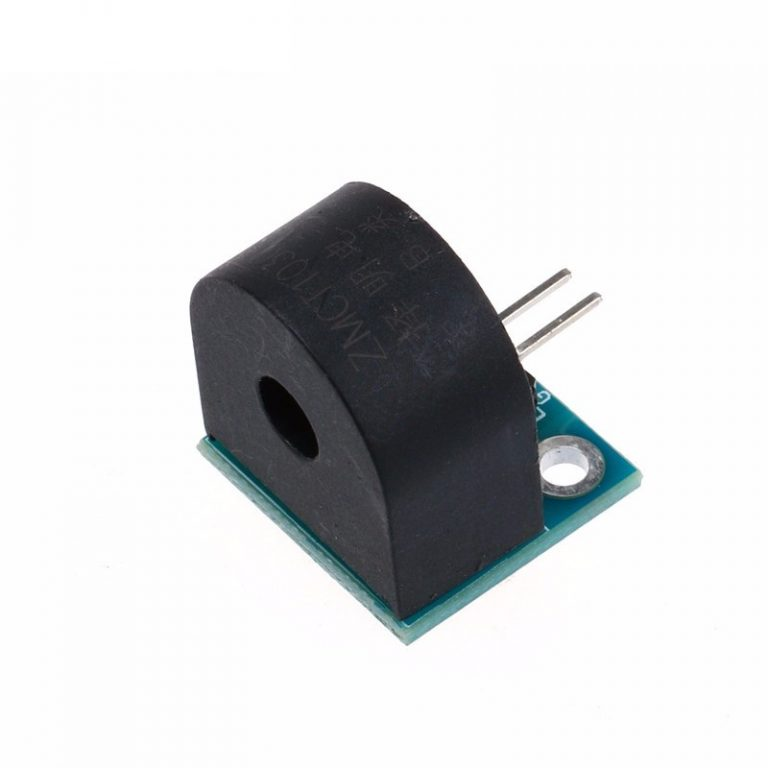

This module is a single-phase AC current sensor that can measure currents up to 5A and output a proportional analog signal of 5A/5mA. It has an onboard sampling resistor and a precision microcurrent transformer that perform accurate sampling and compensation for the signal. The module can measure the current in AC circuits within 5A and the output analog value can be adjusted.
Features:

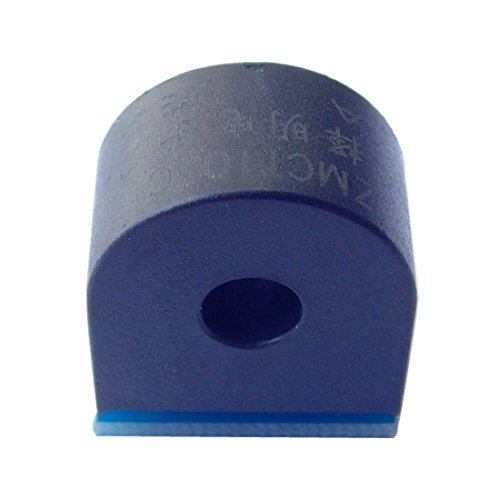

- Onboard precision microcurrent transformer
- Onboard sampling resistor
- The module can measure AC currents less than 5A, with the corresponding analog output 5A/5mA
Specifications:
| Rated Input Current (A) | 5 |
|---|---|
| Rated Output Current (mA) | 5 |
| The linear range | 0 ~ 10A (100 ohms) |
| Change | 1000: 1 |
| Linearity | 0.2% |
| Precision Rating | 0.2 |
| Sealing material | Epoxy Resin |
| Operating Temperature (°C) | -40 to 90 |
| Length (mm): | 18 |
| Width (mm): | 19 |
| Height (mm): | 22 |
Package Includes:
- 1 x 5A Range of Single-Phase AC Current Sensor Module.
Sharp Infrared Distance Sensors: GP2D12 Series Guide
Before ultrasonic sensors became the default choice for beginner obstacle avoidance projects, the Sharp infrared distance sensor series...
Read More →
How to Use Flex Sensor with Arduino: Bend Detection Guide
Table of Contents Introduction What Is a Flex Sensor? How Does a Flex Sensor Work? Types of Flex...
Read More →
Capacitive Soil Sensor vs Resistive: Which Is More Accurate?
Table of ContentsIntroductionHow Resistive Soil Sensors WorkHow Capacitive Soil Sensors WorkAccuracy ComparisonDurability and LifespanWiring Both Sensors to ArduinoArduino...
Read More →Technical Specifications
| Current Rating | 5A |
|---|---|
| SKU | AI0658 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 5A Range of Single-Phase AC Current Sensor Module is a versatile current and voltage sensor used across a wide range of applications including power monitoring, energy metering, battery management, solar panel monitoring, and industrial current sensing.
Common use cases:
- Monitoring power consumption of appliances
- Building a solar panel efficiency tracker
- Current sensing in a battery management system
This product is ideal for power electronics engineers and IoT developers.
Technical Tip: Hall-effect sensors are non-invasive (no wire cutting needed). Shunt-based sensors offer higher accuracy. Match the sensor range to your application.
