SCT-013-000 100A Non invasive AC Current Sensor Split Core Type
A current sensor is a device that can detect electric current in a simple way. If you are looking for a good quality and affordable current sensor, you might be interested in this product.
This is the SCT 013 000 100A Non-invasive AC Current Sensor Split Core Type Clamp Meter Sensor. It is a current transformer that can measure AC current up to 100 amperes without interrupting the circuit.

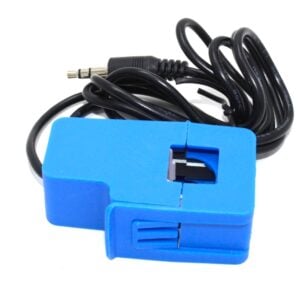

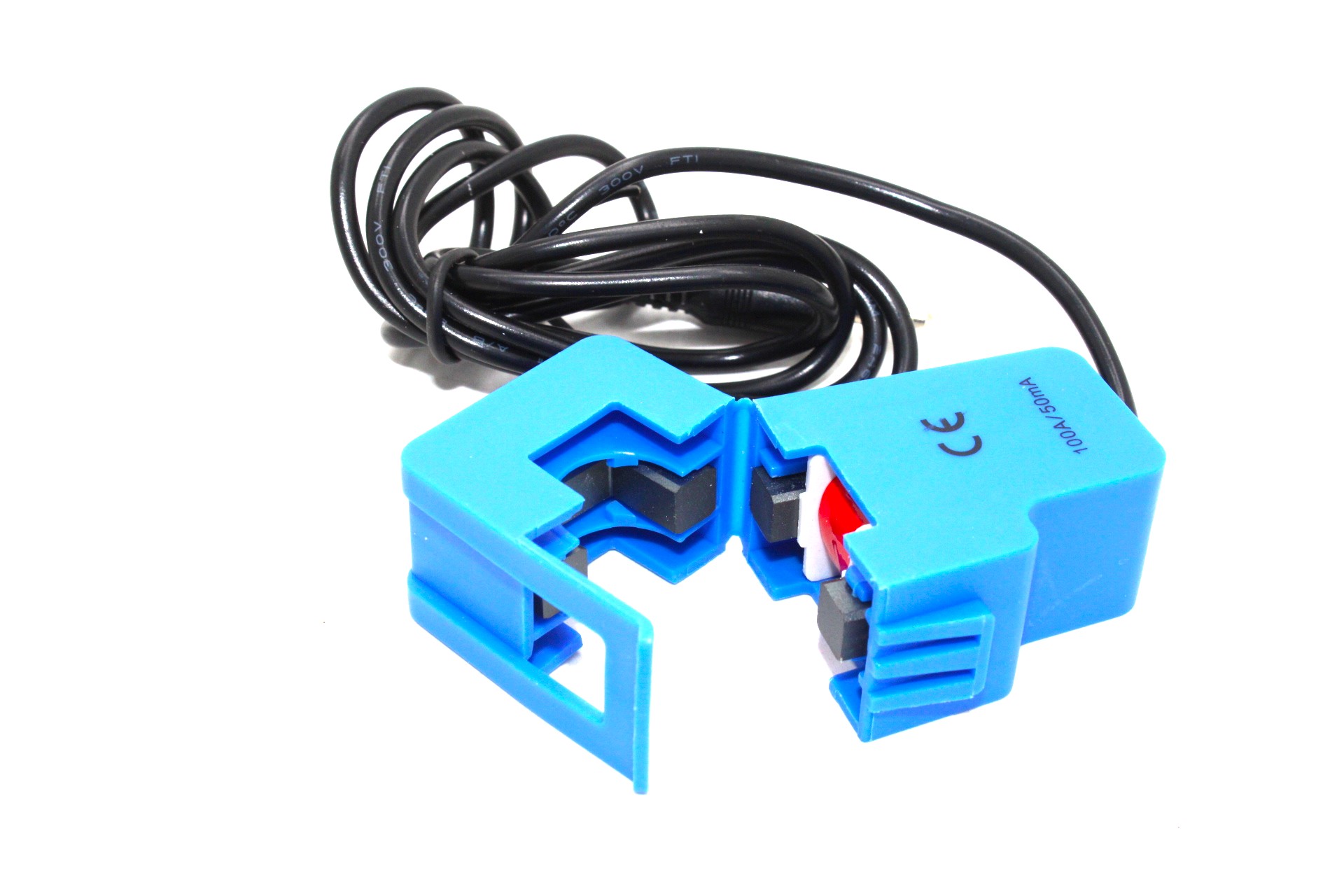

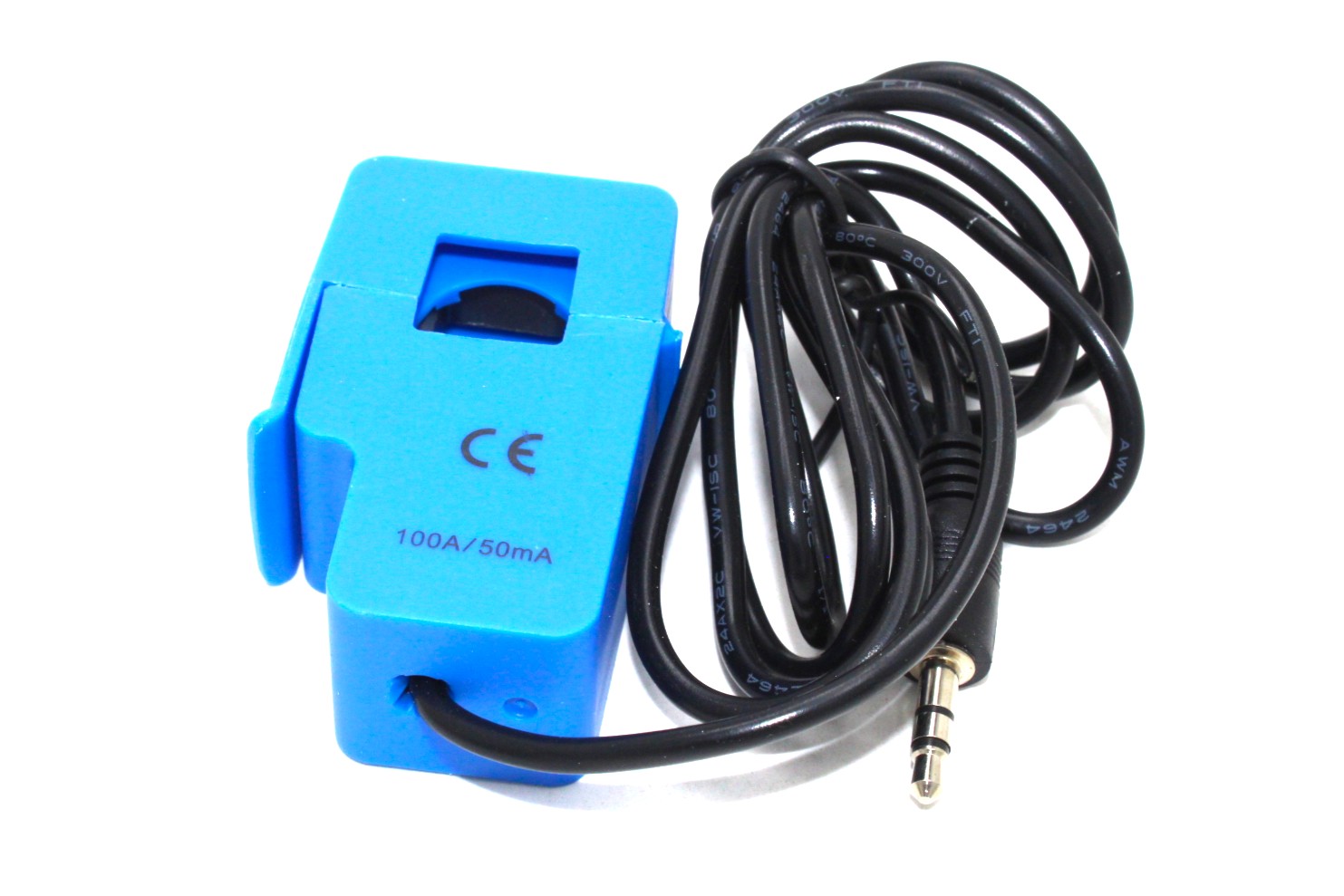

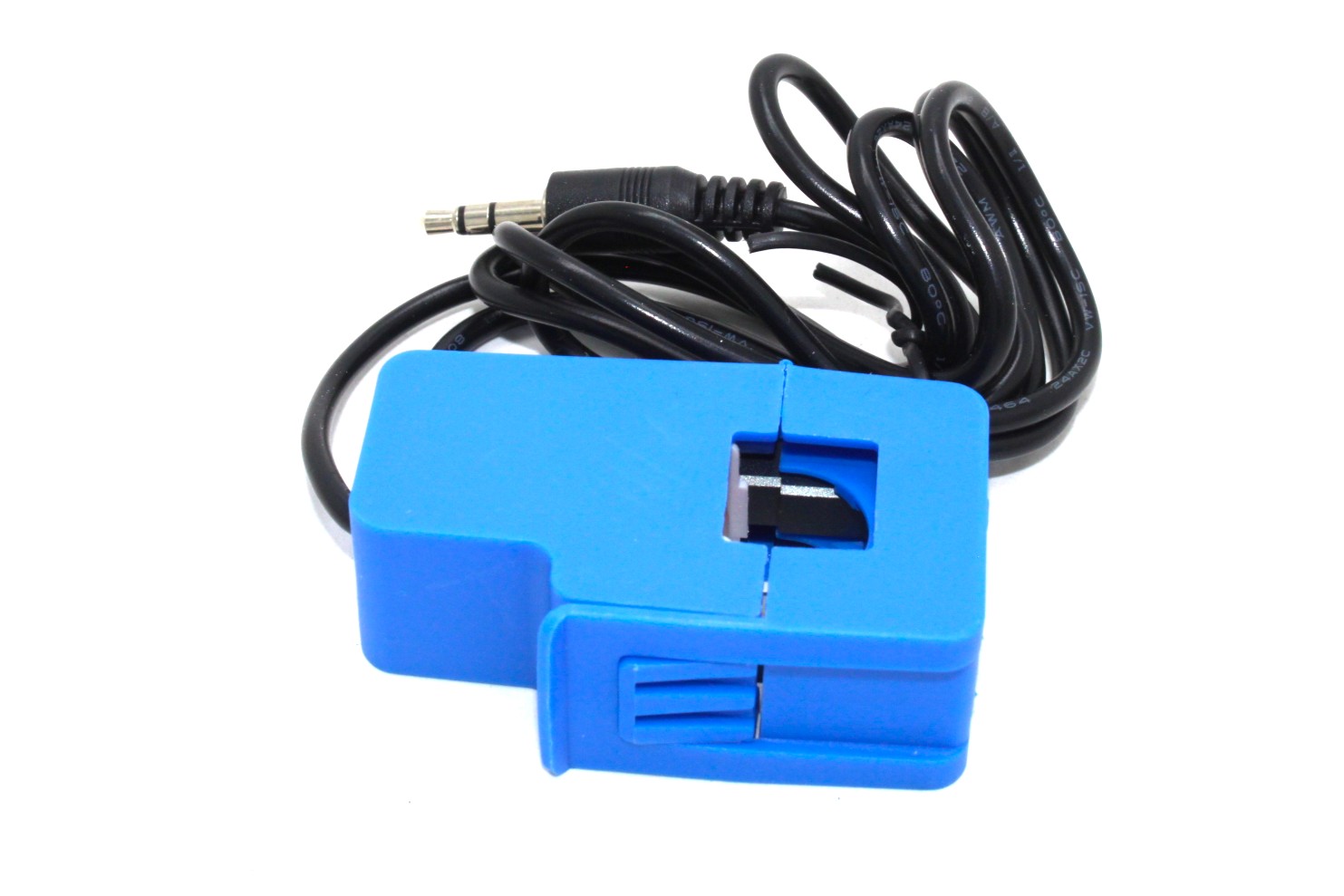

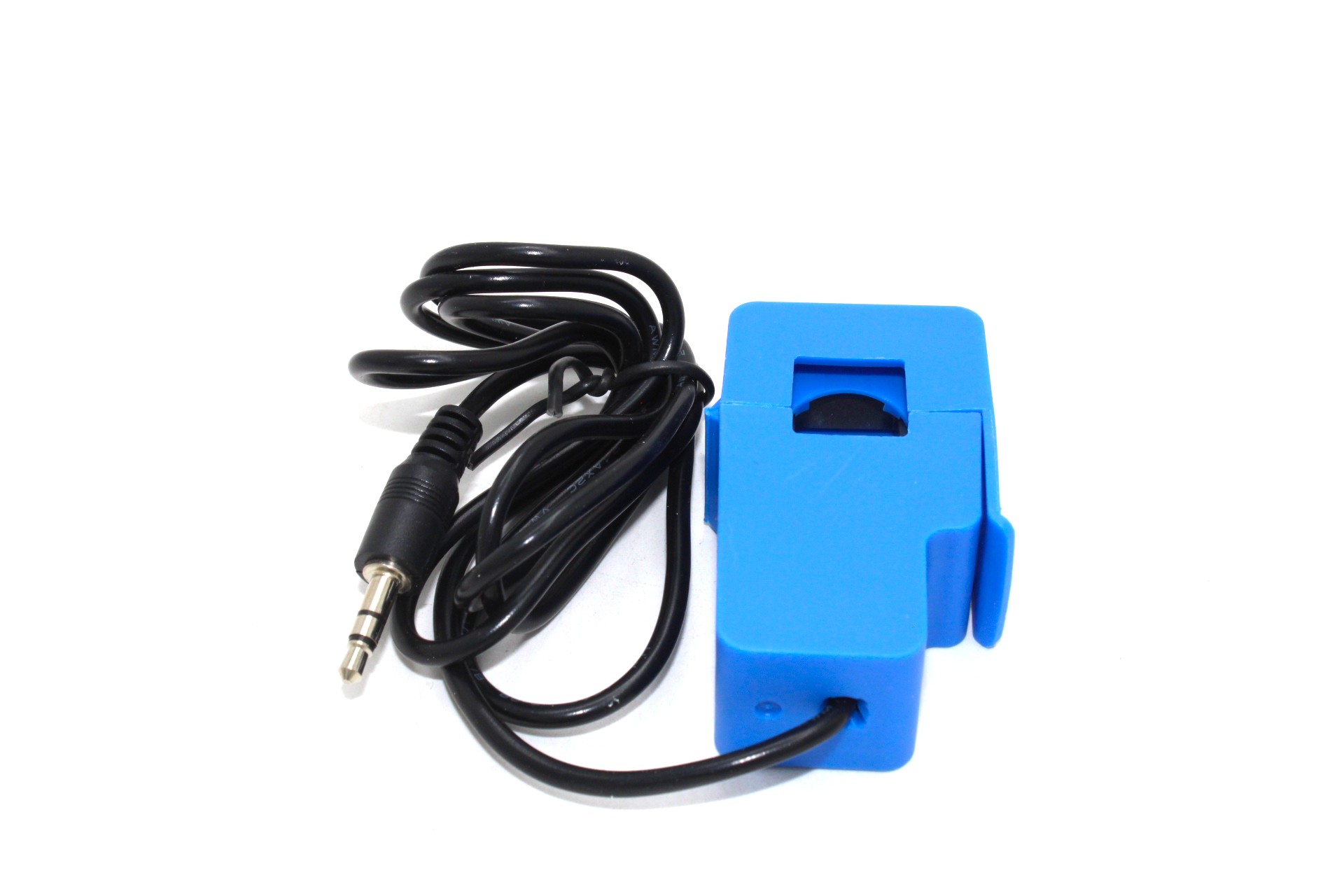

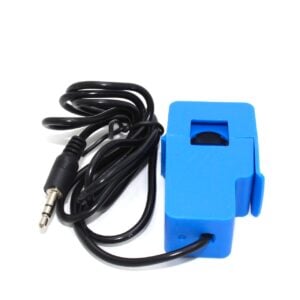

Current transformers (CTs) are sensors that measure alternating current. They are useful for measuring the electricity consumption or generation of a whole building. The split-core type, such as the SCT-013-000 CT shown in the picture, is easy to use for DIY projects. You just need to clip it onto either the live or the neutral wire that enters the building, without doing any high voltage electrical work.
Like any other transformer, a current transformer has a primary winding, a magnetic core, and a secondary winding. For whole building monitoring, the primary winding is the live or the neutral wire (not both) that passes through the hole in the CT. The secondary winding consists of many turns of fine wire inside the casing of the transformer.
Applications
Suitable for the current measuring.
Monitoring and protection of AC motor
Lighting equipment
Air compressor
Features
Non-invasive current transformer
Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
Meet UL94-V0 flame retardant properties.
Two forms of output current, voltage (voltage output built-in the sampling resistor)
Non-linearity ±3% (10%-120% rated input current)
Output Plug 3.5mm
Specifications:
Dielectric Strength(VAC/1min)
6000
Operating Temperature (°C)
-25 to 85
Cable Length (m):
1
Package Includes
1 x SCT-013-000 100A Noninvasive AC Current Sensor Split Core Type
SCT-013-000 100A Non invasive AC Current Sensor Split Core Overview
The SCT-013-000 is a split-core AC current sensor capable of measuring up to 100 A without breaking the circuit. Its clamp-on design and compact 13 × 13 mm opening make it ideal for quick installation on live conductors for monitoring electrical consumption or load currents.
Key Features of SCT-013-000 100A Non invasive AC Current Sensor Split Core
100 A maximum AC current measurement with high accuracy
Wide frequency response from 50 Hz to 150 kHz for diverse applications
13 × 13 mm (0.5″ × 0.5″) split-core opening for easy clamp-on installation
3.5 mm output plug for straightforward connection to meters, data loggers or microcontrollers
6000 V AC dielectric strength ensures safe isolation from high-voltage circuits
UL94-V0 flame-retardant housing for enhanced safety and durability
Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
Home energy monitoring to track appliance-level power consumption
Integration with solar inverters for real-time array current measurement
Industrial control panels for load balancing and preventive maintenance
Three-phase power systems by using three sensors per phase
DIY smart metering projects with microcontrollers and data loggers
UPS and battery backup systems to monitor charging and discharge currents
How to Use SCT-013-000 100A Non invasive AC Current Sensor Split Core
Open the clamp core and snap it around the live conductor ensuring the wire sits fully within the 13 × 13 mm aperture. Connect the 3.5 mm plug to your measuring device or data acquisition system. Use an appropriate burden resistor or input module on your meter, then calibrate the sensor output to read accurately in amperes.
Why Buy from Zbotic?
Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What conductor size fits in the SCT-013-000 opening?
The sensor’s split-core aperture is 13 × 13 mm (0.5″ × 0.5″), accommodating single conductors or small bundled cables within that cross-section.
Can this sensor measure DC current?
No. The SCT-013-000 is a current transformer designed for AC measurements only. It relies on the changing magnetic field of AC to induce a proportional secondary output.
How do I interface the 3.5 mm output plug with an Arduino?
Use a suitable burden resistor to convert the current output into a voltage, then feed it into an analog input pin. Include a voltage divider or amplifier if necessary, and calibrate with known loads to translate readings into amperes.
The SCT-013-000 100A Non invasive AC Current Sensor Split Core Type is a versatile current and voltage sensor used across a wide range of applications including power monitoring, energy metering, battery management, solar panel monitoring, and industrial current sensing.
Common use cases:
Monitoring power consumption of appliances
Building a solar panel efficiency tracker
Current sensing in a battery management system
This product is ideal for power electronics engineers and IoT developers.
Technical Tip: Hall-effect sensors are non-invasive (no wire cutting needed). Shunt-based sensors offer higher accuracy. Match the sensor range to your application.
