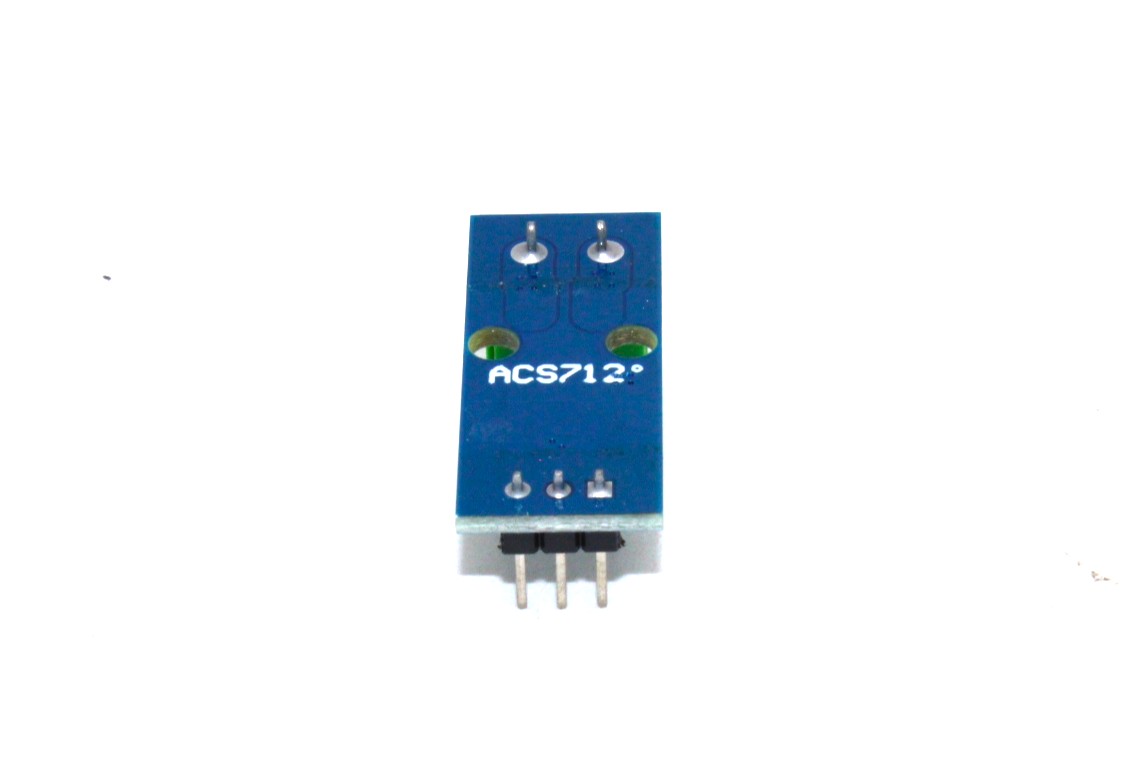

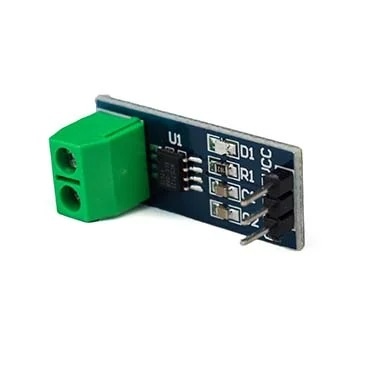

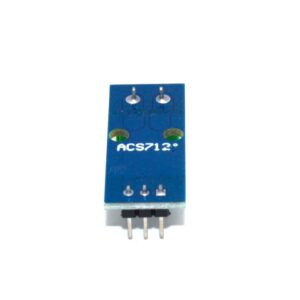

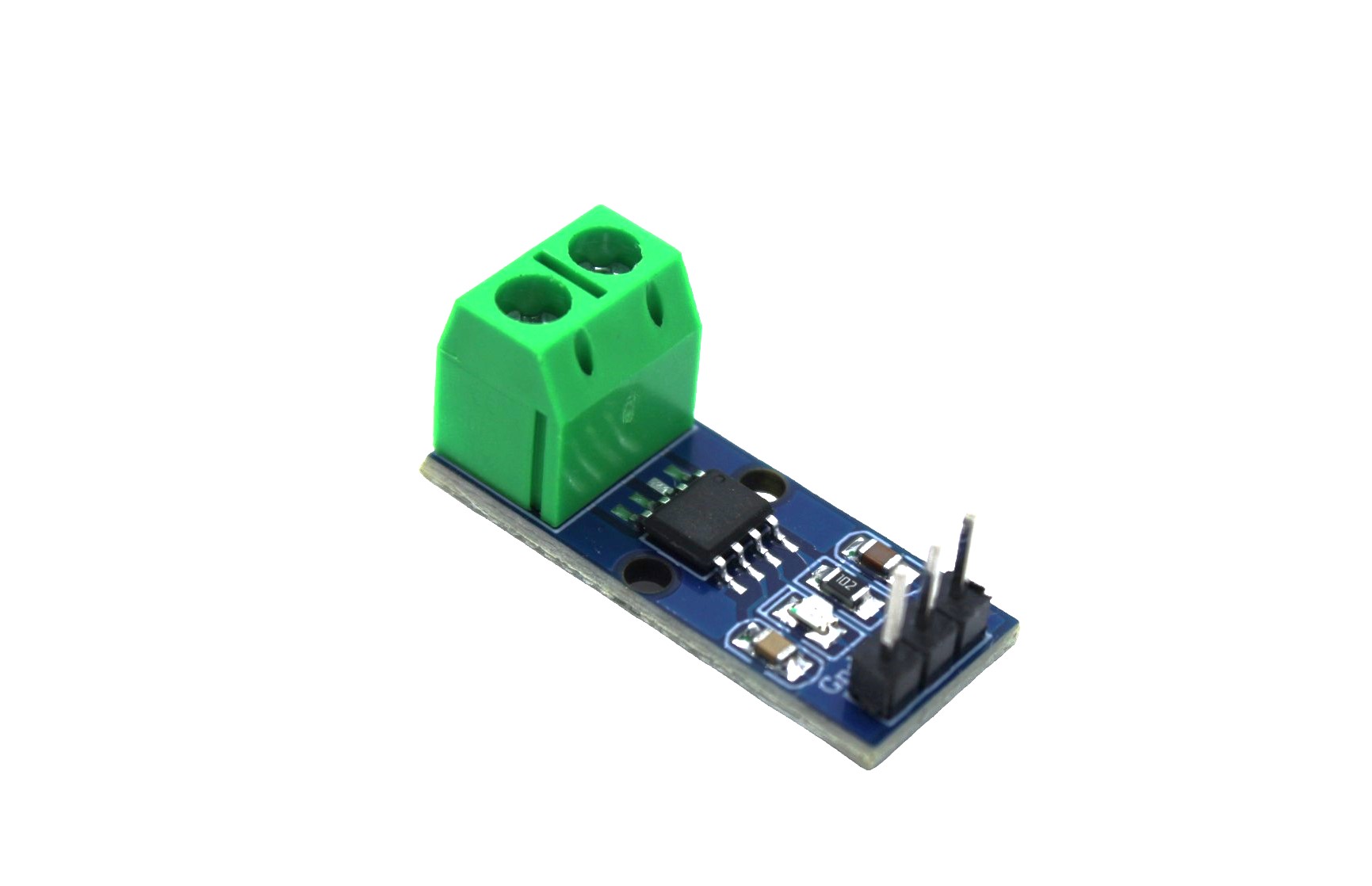

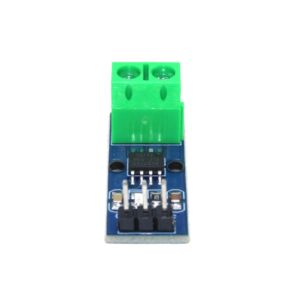

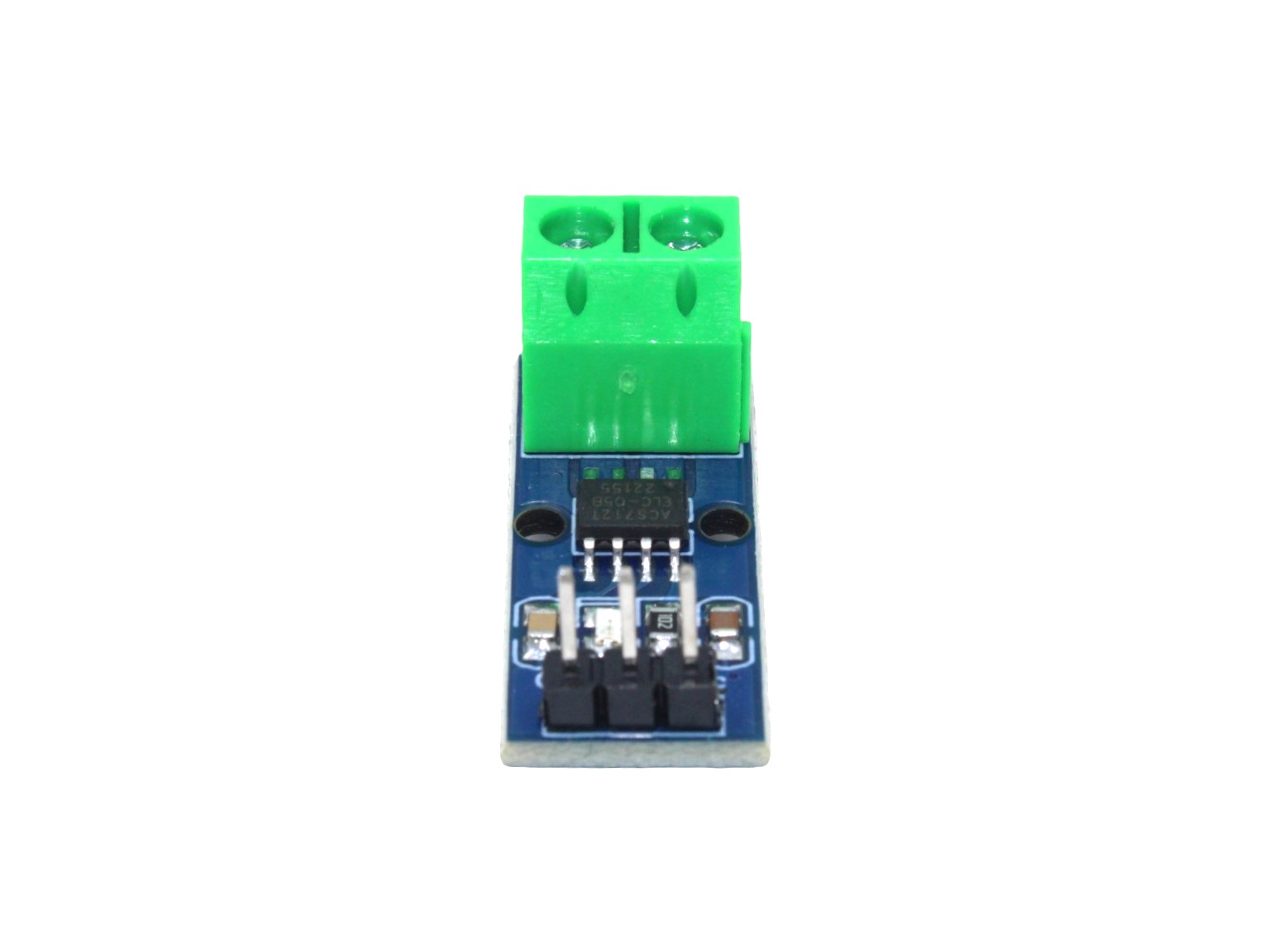

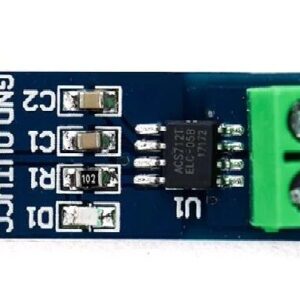

Description:
The ACS712 5A Current Sensor Module utilizes a precise, low-offset linear Hall effect circuit with a copper conduction path near the surface of the die. When current flows through the path, it produces a magnetic field, which the Hall IC converts into a proportional voltage output.
This module supports accurate AC and DC current detection up to 5A. The output signal can be read using the analog I/O port of microcontrollers like Arduino, making it ideal for projects requiring current monitoring and protection.
Applications
- Overcurrent protection
- Battery charging systems
- Switch-mode power supplies
- Digital wattmeters
- Programmable current sources
Features
- Low-noise analog signal path
- Bandwidth adjustable via FILTER pin
- 5 µs output rise time for step input current
- Compact SOIC8 package with low profile
- 2.1 kV RMS isolation voltage (pins 1–4 to pins 5–8)
- Single 5.0V supply operation
- Output sensitivity: 66 to 185 mV/A
- Output voltage proportional to AC or DC currents
- Factory-trimmed for high accuracy
- Extremely stable output offset voltage
- Nearly zero magnetic hysteresis
- Ratiometric output from the supply voltage
Specifications:
| Current sensor chip | ACS712ELC-5A |
|---|---|
| Operating Voltage (V) | 4.5V ~ 5.5V DC |
| Measure Current Range | -5 ~ +5A |
| Sensitivity | 100mV/A |
| Length (mm): | 32 |
| Width (mm): | 13 |
| Height (mm): | 13.5 |
Applications
- Motor control
- Load detection and management
- Switched-mode power supplies
- Over-current fault protection
(Note: This device is not intended for automotive applications.)
Important Note
The ACS712 sensor works on the Hall Effect principle. Ensure the magnetic field environment is free from strong interference to maintain accuracy.
Package Includes:
-
1 × ACS712 5A Current Sensor Module
Attachments:
Videos:
ICM-42688 6-Axis IMU: Low Noise Precision for Drones
When it comes to building high-performance drones and UAVs, the inertial measurement unit (IMU) is arguably the most...
Read More →
Piezoelectric Vibration Sensor: Knock Detection with Arduino
Table of Contents Introduction to Piezoelectric Vibration Sensing The Piezoelectric Effect Explained Piezo Sensor Modules vs Bare Elements...
Read More →
Best Sensors for Arduino Projects: Complete Buying Guide India 2026
Choosing the best sensors for Arduino projects can be overwhelming when you're staring at dozens of options online....
Read More →Technical Specifications
| Model | ACS712 |
|---|---|
| Current Rating | 5A |
| SKU | AI0334 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 5A Range Current Sensor Module ACS712 is a versatile current and voltage sensor used across a wide range of applications including power monitoring, energy metering, battery management, solar panel monitoring, and industrial current sensing.
Common use cases:
- Monitoring power consumption of appliances
- Building a solar panel efficiency tracker
- Current sensing in a battery management system
This product is ideal for power electronics engineers and IoT developers.
Technical Tip: Hall-effect sensors are non-invasive (no wire cutting needed). Shunt-based sensors offer higher accuracy. Match the sensor range to your application.
