Home Sensors Current and Voltage 20A Range Current Sensor Module ACS712
4S 20A 18650 Lithium Battery Protection Board ₹171.0 ( +GST 18% )
Back to products
20mm GL20528 Light Sensitive Photoresistor LDR ₹50.0 ( +GST 18% )

20A Range Current Sensor Module ACS712

₹114.0 ( +GST 18% )

  • ⚡ Dispatched within 24 hours*
  • 💸 COD Orders above 250rs*
  • ✅15 days warranty*
  • 🛠️ Dedicated Technical Support Team
  • 🚚 Free shipping on orders above Rs 499/- for b2c customers

QUICK OVERVIEW

  • Low-noise Analog signal path
  • Device bandwidth is set via the new FILTER pin
  • 5 µs output rise time in response to step input current
  • Small footprint, low-profile SOIC8 package
  • 2.1 kV RMS minimum isolation voltage from pins 1-4 to pins 5-8
  • Supply Voltage: 4.5V~5.5V DC
  • Measure Current Range: 20A
  • Sensitivity: 100mV/A

For B2B Enquiry Email Us:- [email protected]

50 in stock

Frequently Bought Together
This item: 20A Range Current Sensor Module ACS712

50 in stock

₹114.0 ( +GST 18% )
₹114.0 ( +GST 18% )
1 × SCT-013-000 100A Non invasive AC Current Sensor Split Core Type

21 in stock

₹358.0 ( +GST 18% )
1 × TP4056 1A Li-ion Lithium Battery Charging Module With Current Protection-Mini USB

299 in stock

₹32.0 ( +GST 18% )
Compare
Add to wishlist
SKU: AI1058 Categories: Back in Stock, Current and Voltage
Share:
  • Description
  • Additional information
  • Reviews (0)
  • COO Info
Description

Product Description

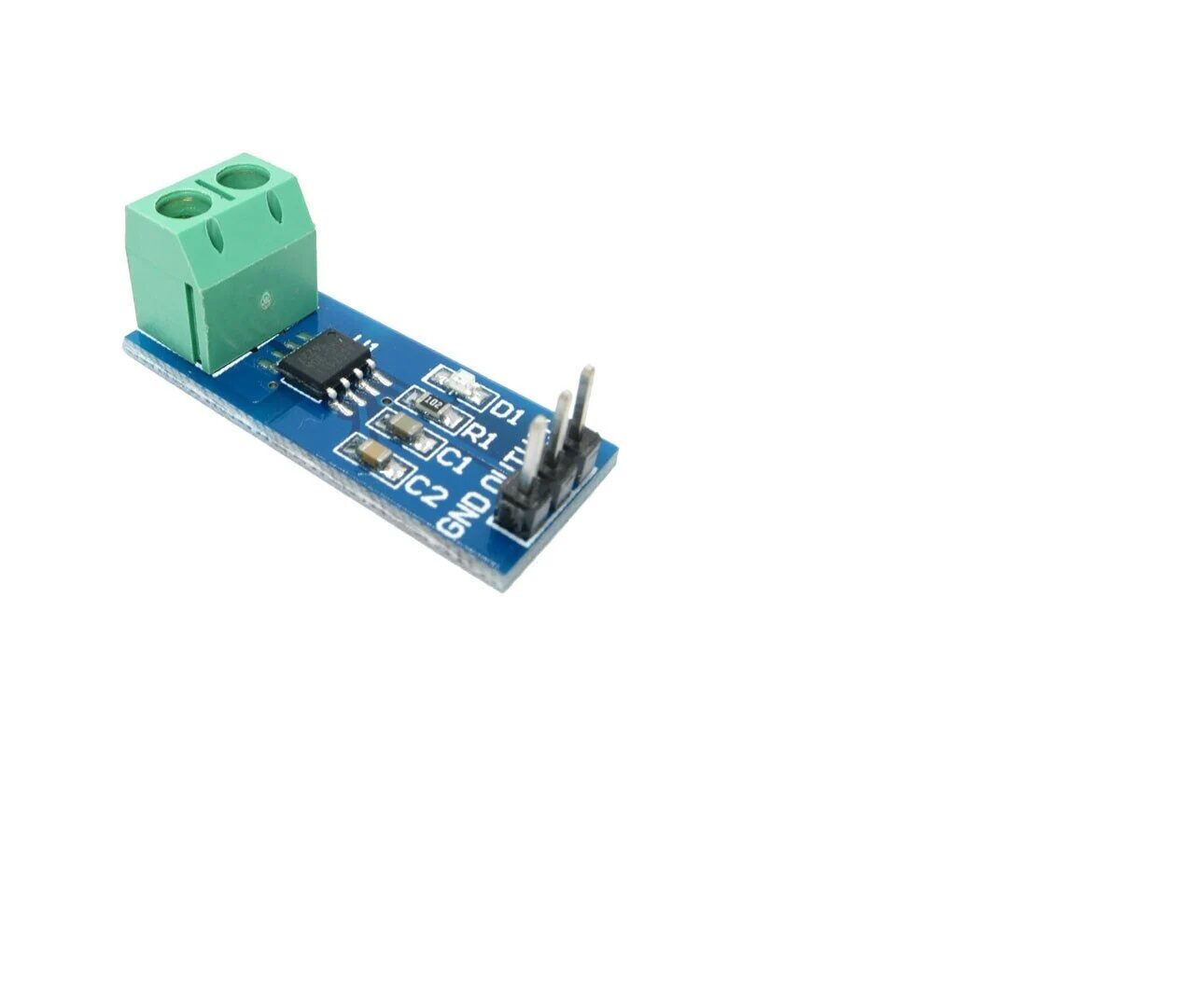

The 20A Range Current Sensor Module ACS712 consists of a precise, low-offset, linear Hall circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field in which the Hall IC converts into a proportional voltage.

Sensing and controlling current flow is a fundamental requirement in a wide variety of applications including, over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc.

This ACS721 current module is based on the ACS712 sensor, which can accurately detect AC or DC current.

The maximum AC or DC that can be detected can reach 20A, and the present current signal can be read via analog I / O port of Arduino.

Note: The color of the product may vary. while shipping you may get any one of them.

We are supplying two more of such modules which equip ACS712 IC for current measurement, they are as below

5A Range Current Sensor Module ACS712
30A Range Current Sensor Module ACS712

Note:

ACS712 is based on the Hall detection principle, please try to avoid the magnetic field, when using it as it may impact the reading accuracy.

Connection Diagram:

arduino_ACS712



arduino_ACS712


Features :

  1. The low-noise analog signal path
  2. Device bandwidth is set via the new FILTER pin
  3. 5 µs output rise time in response to step input current
  4. Small footprint, low-profile SOIC8 package
  5. 2.1 kV RMS minimum isolation voltage from pins 1-4 to pins 5-8
  6. 5.0 V, single-supply operation
  7. 66 to 185 mV/A output sensitivity
  8. Output voltage proportional to AC or DC currents
  9. Factory-trimmed for accuracy
  10. Extremely stable output offset voltage
  11. Nearly zero magnetic hysteresis
  12. The ratio metric output from the supply voltage.

Package Includes :

1 x 20A Range Current Sensor Module ACS712
