Product Description

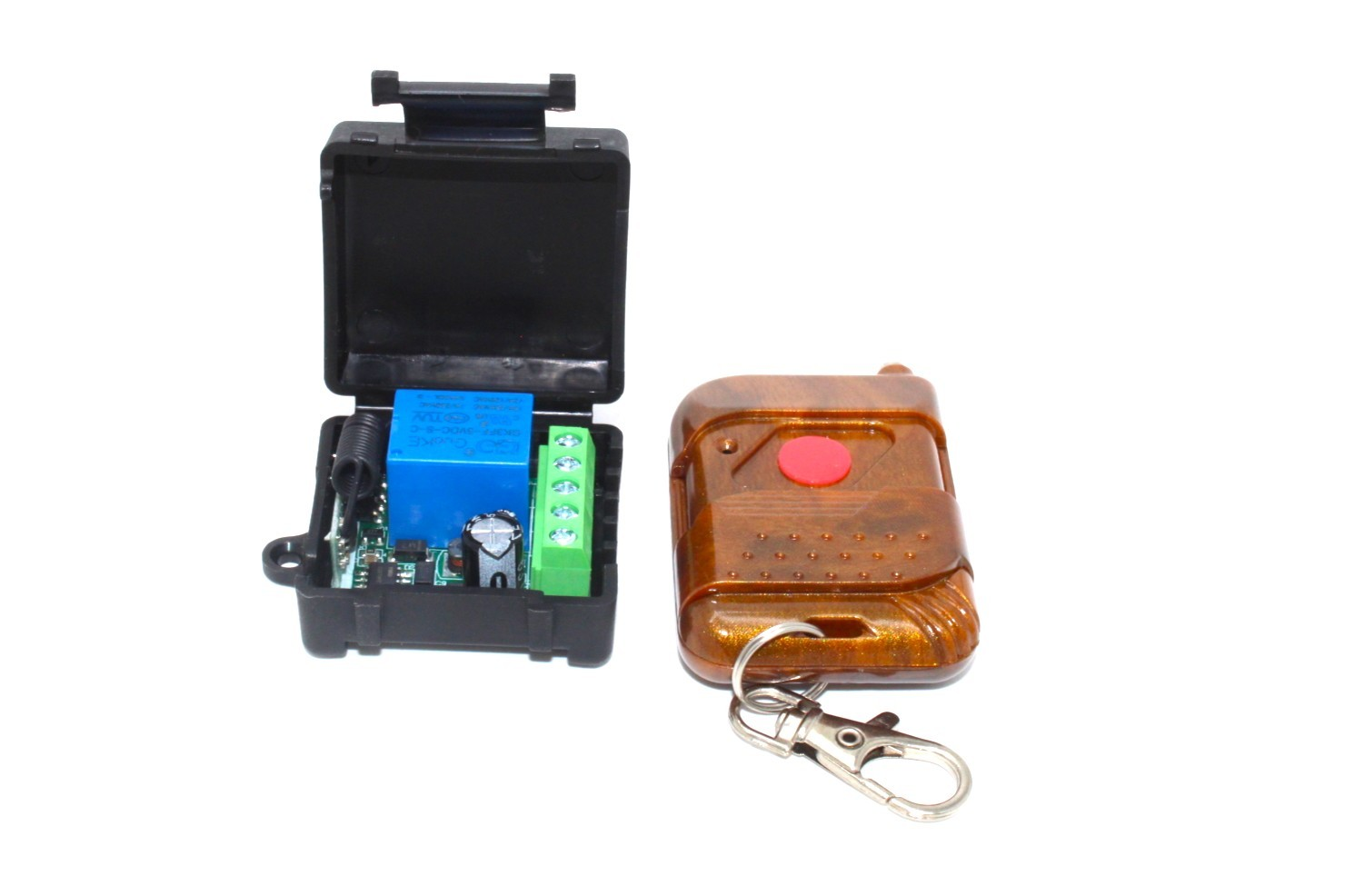

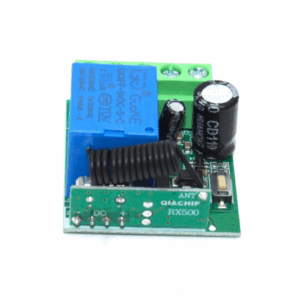

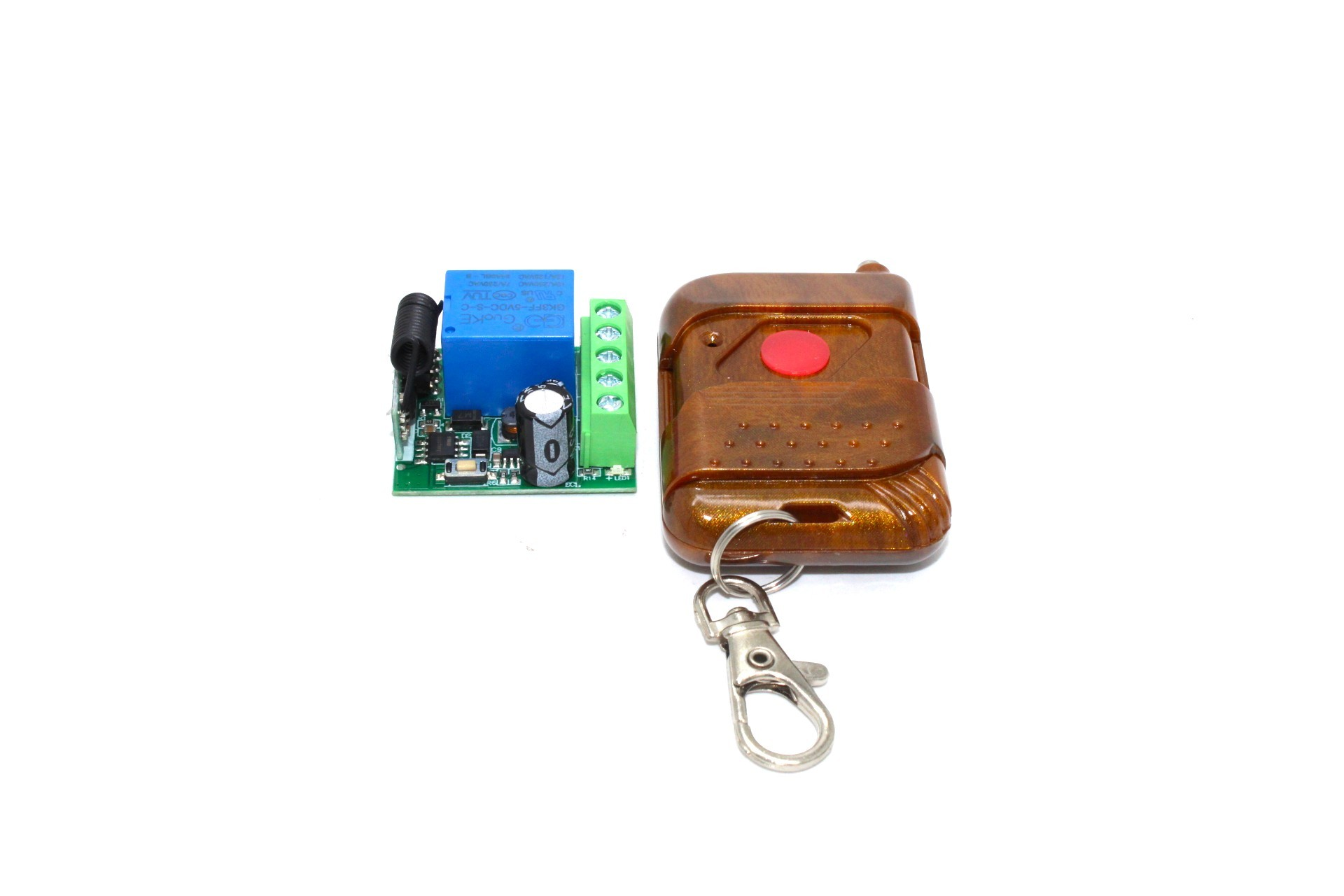

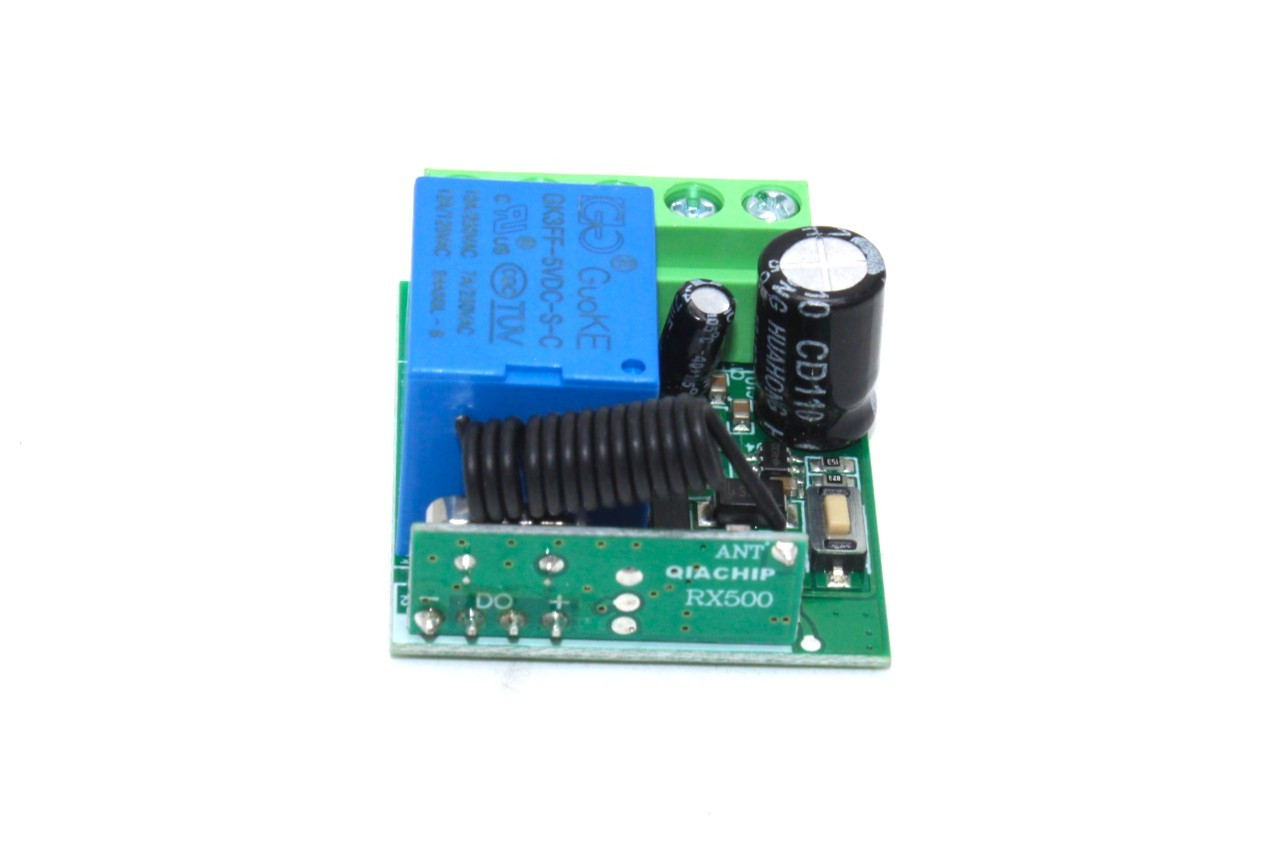

This device is a wireless remote-control switch that operates at 433MHz and 5V. It has a single relay module and an intelligent microprocessor. You can use it for various applications, such as garage door, lighting, curtain, and door control systems. It is easy to install, compact, and safe.
Features
- Operation Manual: Press the learn button for 2 or 3 seconds, lights out (that has entered the state of learning), Release the learning button, press any key of the remote control, and the indicator light flashes 5 times to show the success of the study. Note: The controller can learn the fixed code/learning code, a total of 16 different encodings, arbitrary button remote control, and beyond will be cleared in the early learning of remote control.
- Removal method: Continue to hold down the learning button for about 8 seconds. The indicator light is extended from extinction to success.
specification-
| Product Type | Wireless Remote Control |
|---|---|
| Operating Voltage (VDC) | 5V |
| Operating Temperature Range (°C): | -40~80 degrees |
| Operating frequency | 433MHZ Receive sensitivity: ≥-95dB |
| Working Mode | jump switch, point action, self locking, and interlocking(adjustable) |
| Remote Control distance | 20-40m/65.61-131.23ft |
| Switch size | Approx. 40 x 40 x 25mm/1.57 x 1.57 x 0.98in |
| Remote control size | Approx. 50 x 40 x 12mm/1.96 x 1.57 x 0.47in |
| Product weight | approx. 24g |
| Remote control weight | 20g |
| Material | ABS |
| Shipping Weight | 0.026 kg |
| Shipping Dimensions | 8 × 5 × 1 cm |
Package Includes
- 1 x Remote Control Switch of 433MHz 5V 1 Channel Relay Module
