This is the 24V variant of the 24V 4 Channel Relay Module in Relay Modules. Available at Original price was: ₹206.50.₹174.64Current price is: ₹174.64. (₹148.00 + GST) with free shipping across India.

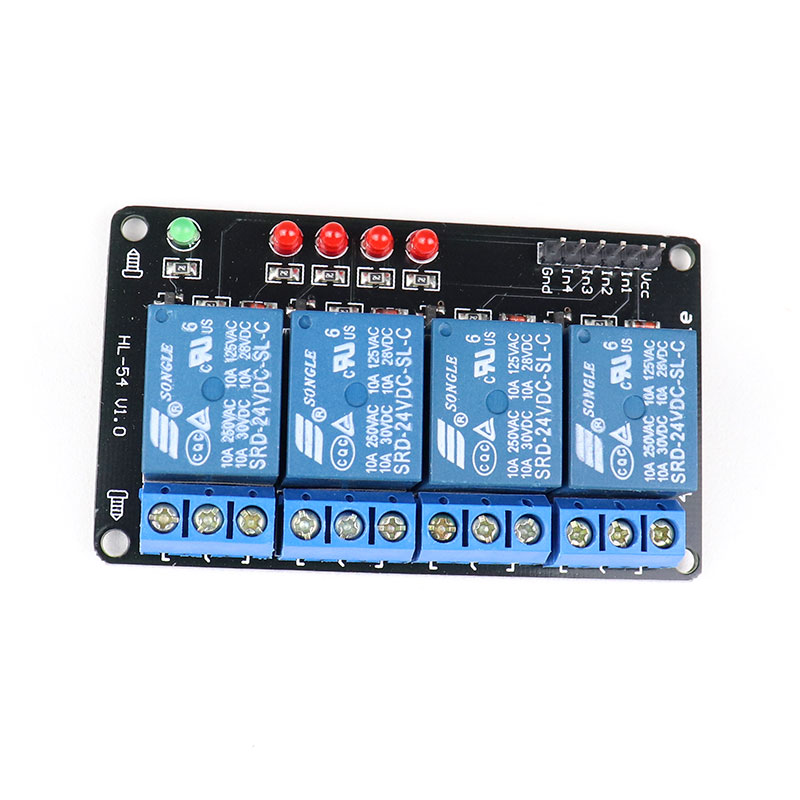

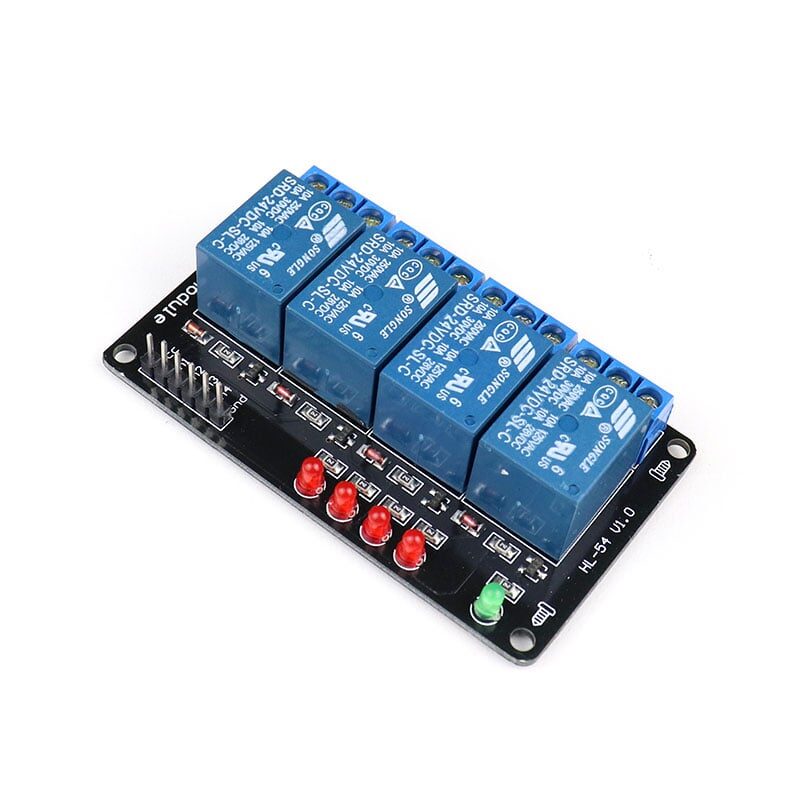

24V 4 Channel Relay Module
This product is a relay module with four channels that operates on 24V. It has a high-power relay that can control a maximum load of DC 30V 10A or AC 250V 10A. It meets international safety standards by having an isolation slot between the control area and the load area. Each channel has an LED indicator to show the relay status.
Features:
- Header Connector for connecting power and trigger voltage.
- LED on each channel indicates relay status.
- Power Battery Terminal (PBT) for easy relay output and aux power connection.
Specification:
| Trigger Voltage (VDC) | 24 |
|---|---|
| Trigger Current (mA) | 20 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Operating Temperature Range (°C): | -40 to 85 |
| Opt. Relative Humidity(RH) | 20% ～ 85% |
| Storage condition (℃) | – 65 to 125 |
| Length (mm): | 74 |
| Width (mm) | 44 |
| Height (mm) | 17 |
| Weight (gm) | 50 |
| Shipping Weight | 0.055 kg |
| Shipping Dimensions | 8 × 10 × 2 cm |
Package Includes:
1 x 24V 4 Channel Relay Module.
ESP32 Deep Sleep: Long Battery Life for Remote Sensors
Maximising ESP32 deep sleep battery life is the single most important skill for building remote IoT sensors that...
Read More →
OPC UA with Raspberry Pi: Industrial IoT Standard
Table of Contents What is OPC UA OPC UA Architecture Setting Up OPC UA on Raspberry Pi Connecting...
Read More →
ESP32 Preferences Library: Non-Volatile Storage NVS Guide
ESP32 Preferences Library: Non-Volatile Storage NVS Guide The ESP32 Preferences library NVS non-volatile storage system is one of...
Read More →Technical Specifications
| Operating Voltage | 24V |
|---|---|
| Channels | 4-channel |
| SKU | AI3212 |
| Weight | 0.07 kg |
| Availability | In Stock |
Applications & Use Cases
The 24V 4 Channel Relay Module is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
