Product Description

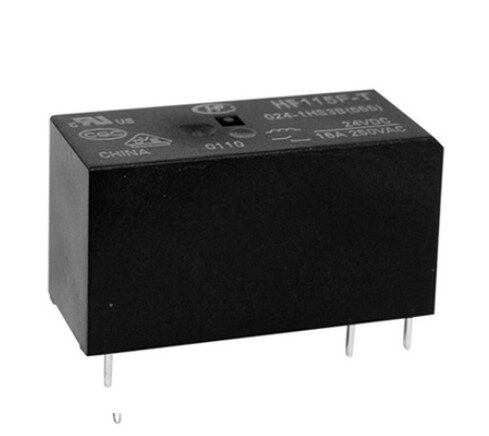

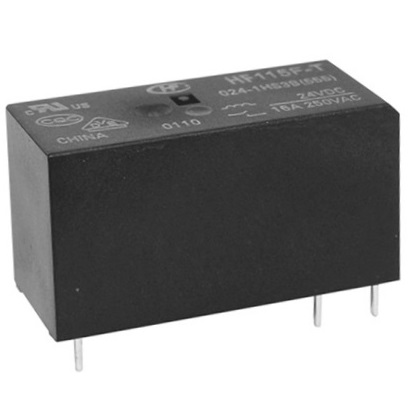

HF115F-T Relay by HONGFA, 16A/250VAC
Features
- High Temperature: 105℃
- Low height 15.7 mm
- 5kV dielectric strength (between coil and contacts)
- Creepage distance: 10mm
- Meeting VDE 0700, 0631 reinforce insulation
- Product in accordance to IEC 60335-1 available
- UL insulation system: Class F
HONGFA Relay HF115F-T, 250VAC/16A Overview
The HONGFA HF115F-T is a slim-profile electromagnetic relay designed for switching AC loads up to 16 A at 250 VAC. With a maximum operating temperature of 105 °C and reinforced insulation meeting VDE 0700/0631 and IEC 60335-1, it is ideal for compact power control and protection applications.
Key Features of HONGFA Relay HF115F-T, 250VAC/16A
- High temperature tolerance up to 105 °C for demanding environments
- Low profile design at just 15.7 mm height for space-constrained PCBs
- 5 kV dielectric strength between coil and contacts for superior isolation
- 10 mm creepage distance to prevent arcing under high voltage
- Reinforced insulation compliant with VDE 0700 and 0631 standards
- UL Class F insulation system and IEC 60335-1 certification available
- Genuine HONGFA product, fast shipping from Zbotic
Applications and Use Cases
- Switching heating elements and motors in domestic appliances
- AC mains control in HVAC systems and air conditioners
- Power distribution in industrial control panels
- Backup switch-over relays in UPS and power redundancy units
- Smart home automation modules requiring high-voltage switching
- Embedded control boards for vending machines and kiosks
How to Use HONGFA Relay HF115F-T, 250VAC/16A
Mount the HF115F-T onto a compatible PCB footprint or socket, ensuring coil pins and contact terminals align correctly. Solder or insert the relay, wire the coil to the designated drive circuit, and connect your AC load to the common (COM) and normally open (NO) terminals. Verify wiring, apply the rated coil voltage to energize the relay, and test switching under no-load conditions before integrating into full operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum switching current of the HF115F-T relay?
This relay is rated to switch up to 16 A at 250 VAC on its normally open contacts, making it suitable for most household and light industrial loads.
How does the relay maintain insulation under high voltage?
The HF115F-T features a 5 kV dielectric strength between coil and contacts, a 10 mm creepage distance, and reinforced insulation meeting VDE 0700/0631 and IEC 60335-1 standards for safe high-voltage operation.
Can the relay be used in high-temperature environments?
Yes, the relay is designed for continuous operation up to 105 °C and uses a UL Class F insulation system, ensuring reliable performance even in elevated ambient temperatures.
ESP32-CAM: Build a WiFi Security Camera Step by Step
The ESP32-CAM is one of the most capable and affordable development boards available to Indian makers today. For...
Read More →
IoT Air Quality Network: City-Wide Pollution Monitoring
Table of Contents Air Pollution Crisis in Indian Cities Air Quality Sensors Explained Building an AQI Monitor Node...
Read More →
ESP32 Low-Power Motion Detector: 2-Year Battery Sensor
Imagine a wireless motion sensor that runs for two years on a single set of batteries — no...
Read More →Technical Specifications
| Current Rating | 16A |
|---|---|
| SKU | AI0687 |
| Availability | Out of Stock |
Applications & Use Cases
The HONGFA Relay HF115F-T, 250VAC/16A is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
