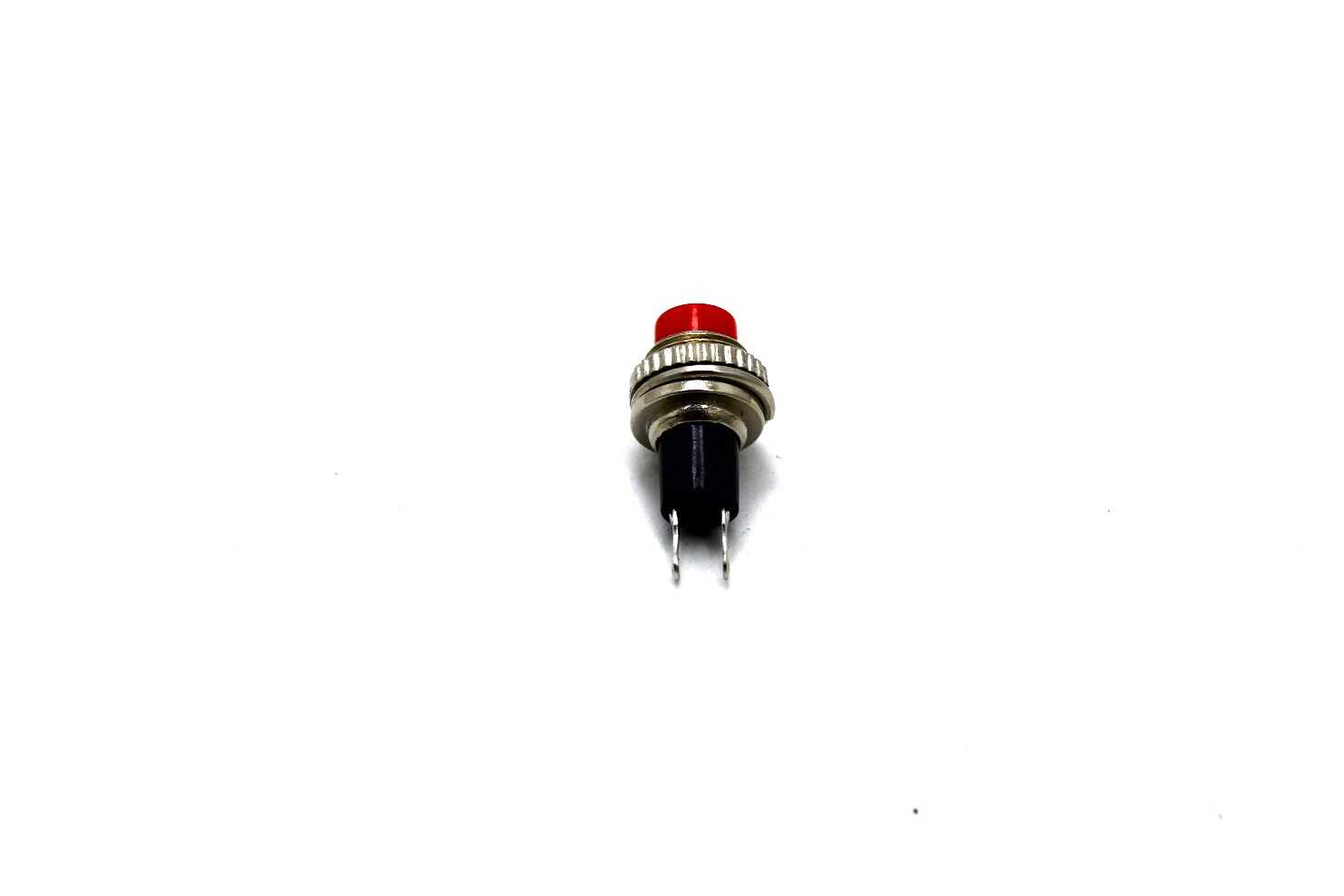

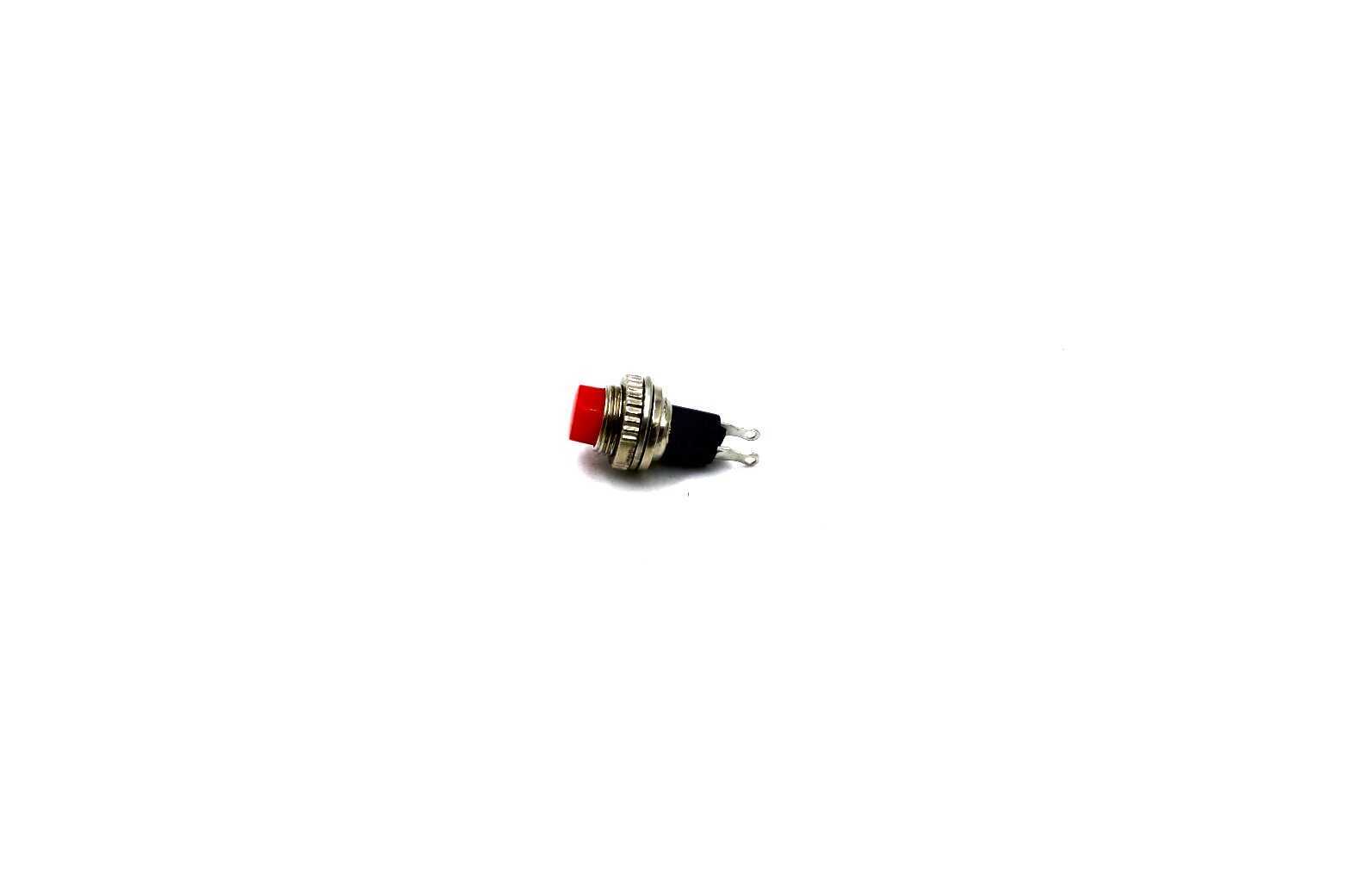

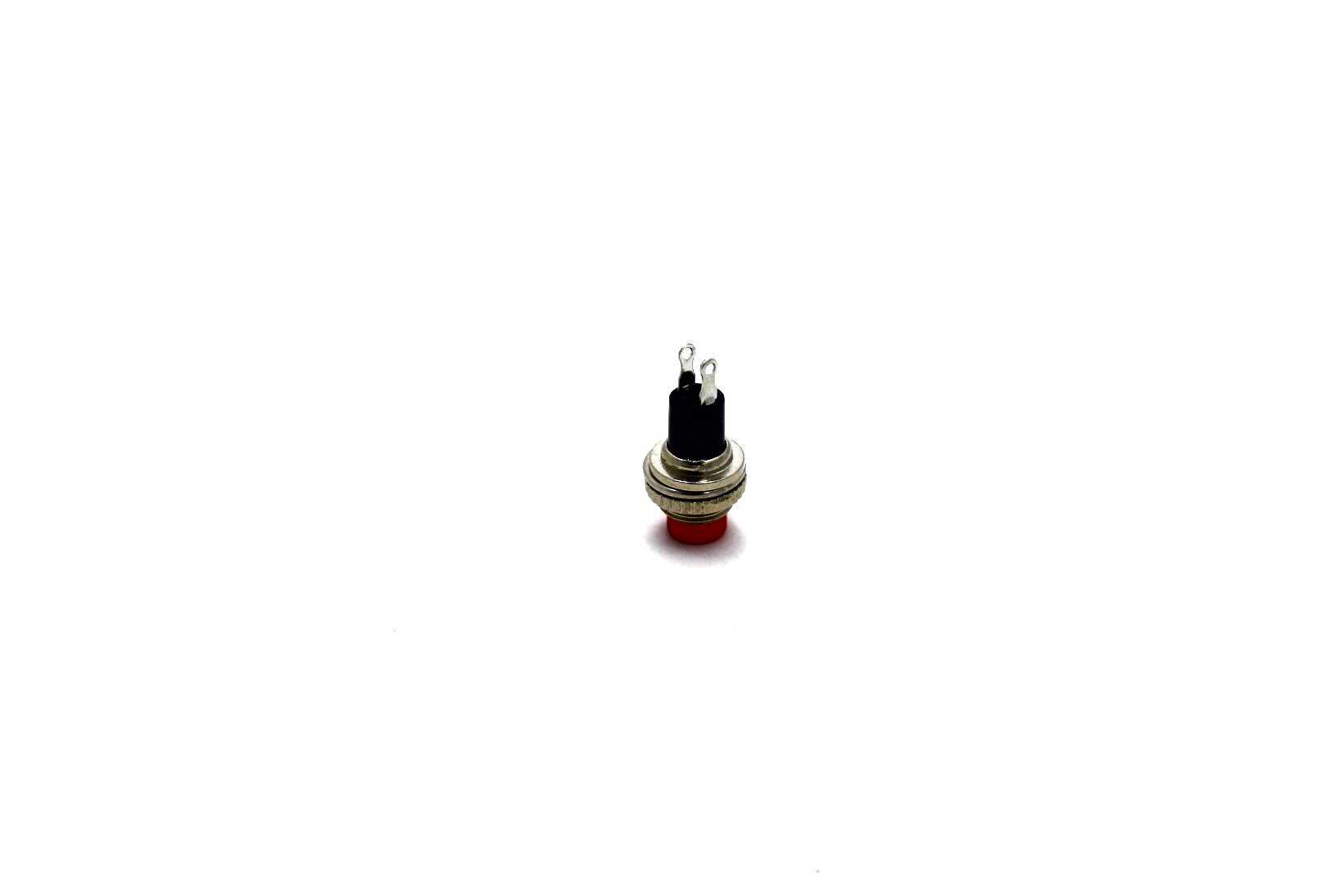

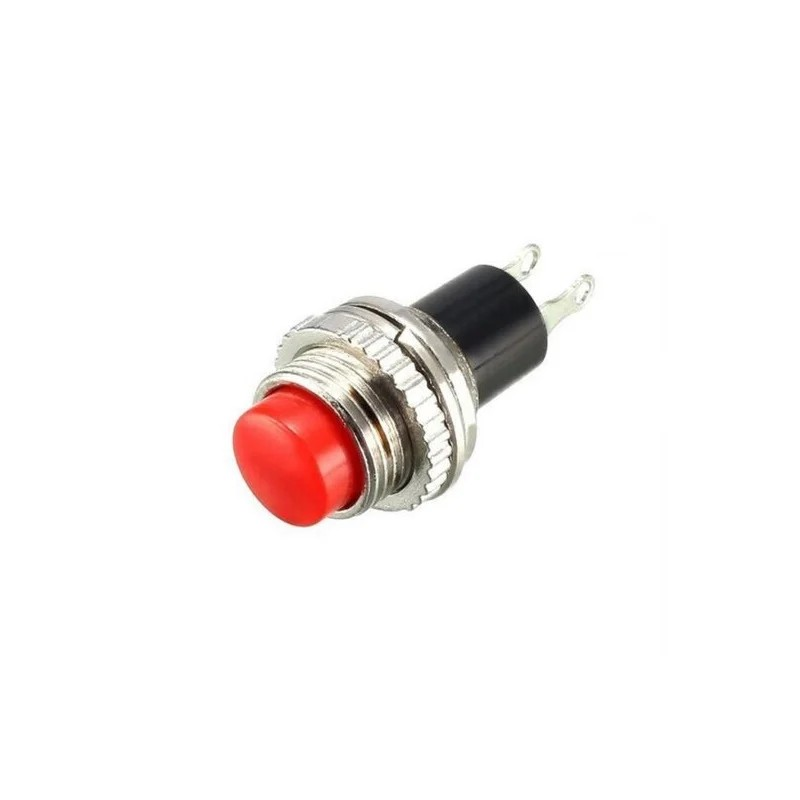

This is the Red variant of the Red DS-314 10MM Lock- Free Momentary Self- Reset Small Push Button Switch in Plastic Push Button Switch. Available at ₹14.40 (₹12.20 + GST) with free shipping across India.
Momentary switches are commonly used in controller panels, push-button telephones, kitchen appliances, magnetic locks, and various other mechanical and electronic devices found in both homes and industries.
A push button is a simple switch used to control the power of a machine or appliance. These switches are typically made from metal or thermoplastic materials and are designed to provide easy user access. In electrical circuits, the goal is to allow electricity to flow seamlessly through wires and components, but circuits that are always complete are less useful than those that operate only when needed.
The push-button switch is widely utilized as an operational component in various electrical circuits, devices, and machines, both in homes and industries. It can control circuits, turning on and off loads such as contactors, motors, relays, and more. It functions as a push ON, release OFF type switch.
Note: Image may vary from actual product in terms of design, color and brand printed
Specification
| Function | Momentary |
|---|---|
| Model No.: | DS-314 |
| Operating Voltage (V) | 250V 1.5A, 125V 3A |
| Material: | Plastic |
| Color: | Red |
| Terminals | 2 Pin |
| Temperature | -25°C to 85°C |
| Dimensional Accuracy (mm): | 12mm |
Features:
- Easy to use
- Best for your DIY projects
- Self-locking/Latching Self-reset
- Good electrical conductivity
- This is Momentary type push-button switch
Packages Includes:
1 x Red DS-314 10MM Lock- Free Momentary Self- Reset Small Push Button Switch
Technical Specifications
| Model | DS-314 |
|---|---|
| Size | 10mm |
| Color | Red |
| SKU | AI6360 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Red DS-314 10MM Lock- Free Momentary Self- Reset Small Push Button Switch is a versatile plastic push button switch used across a wide range of applications including breadboard prototyping, control panels, toys and gadgets, appliance interfaces, and PCB mounting.
Common use cases:
- Adding user input to an Arduino project
- Building a game controller
- Prototyping a product interface on a breadboard
This product is ideal for electronics students, hobbyists, and prototype builders.
Technical Tip: Use a 10K pull-down resistor with push buttons connected to microcontroller inputs to prevent floating pin issues.
