This is the Blue variant of the 12mm 12V Ring Light Self-Lock Non-Momentary Metal Push-button Switch-Blue Light in Metal Push Button Switch. Available at ₹115.64 (₹98.00 + GST) with free shipping across India.
Product Description :
This Self-lock Non-Momentary Metal Pushbutton Switch is a perfect choice if you are in need of a heavy-duty push-button! These metal push buttons are a very tough, small, panel-mount switch with an illuminated Blue LED ring. It is an SPDT with 12mm threading and 1mm pitch. It gives premium look to your dashboard or control panel with Led Light ring around push area of switch. These switches are available in various LED light Colours, you can choose for your application purpose
This switch comes with Non-Momentary Self-Lock action which means it holds its physical position with ON/OFF state until you press it again. A threaded head and a nut, which makes it perfect to be mounted and installed which encloses in your project cases showing flat hexagonal ring structure outside. With glowing, your desired colourful light ring itself in switch gives an attractive design and premium look which compliments quality panels and dashboards.
The switch comes Stainless steel body with an IP67 protection rating to provide the best environmental protection and long operational life. This button is perfect for basic On/Off functions. Overall length (including leads) is 26mm and has small solder lugs for connection. These non-momentary Self Lock buttons are rated up to 3A and 12 VDC while the LED is rated for 5V.
Features:
- Stainless steel material for long-term use
- High-end appearance and good to touch
- Inbuilt Colorful Ring illumination LED

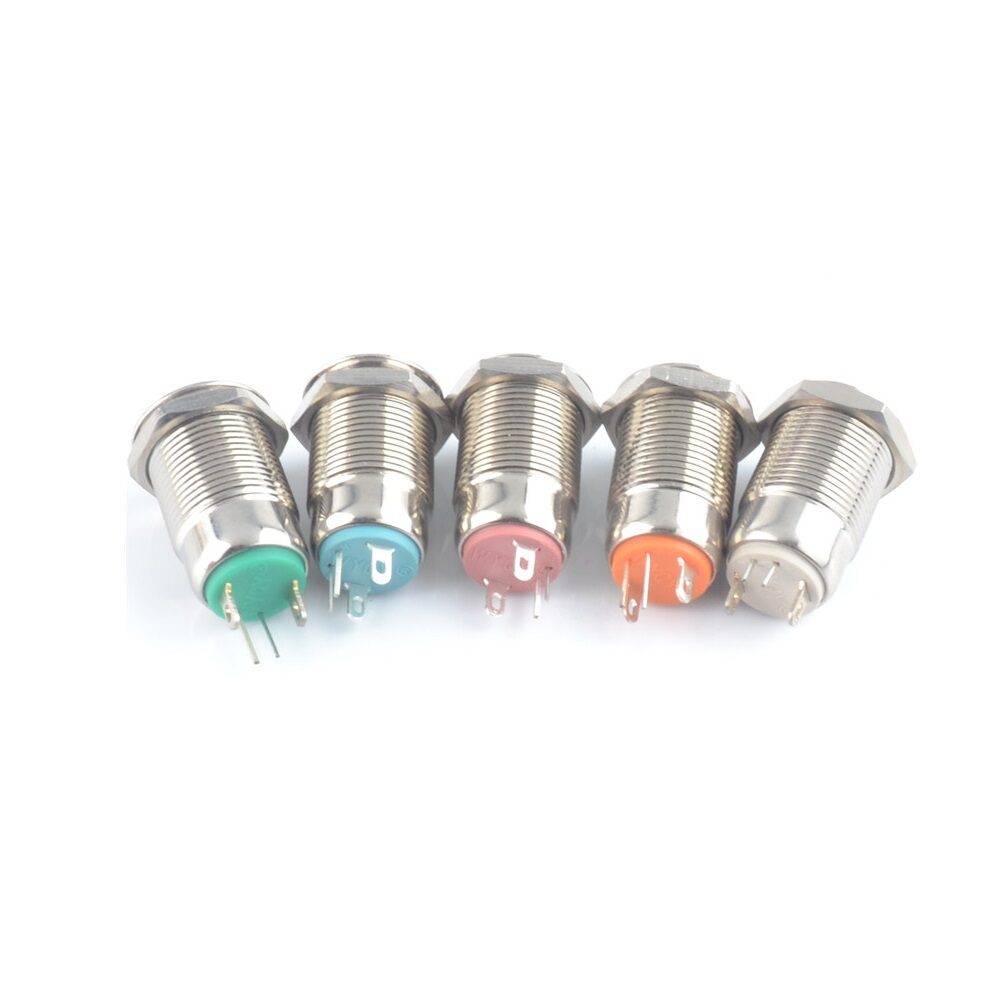

- Available in Various LED Color
- Independent LED terminals
- Bright daylight LEDs
- Single pole push to make and Push to break Function
- Front and rear panel seal to IP67
- Integral supply resistors
- TVS protection
- Good electrical conductivity
- Non-momentary type push-button switch
- Rubber ring and hexagon nut to fix, Waterproof and Dustproof
Package Includes:
1 x 12mm 12V Ring Light Self-Lock Metal Push-button Switch-Blue Light
Technical Specifications
| Operating Voltage | 12V |
|---|---|
| Size | 12mm |
| Color | Blue |
| SKU | AI2171 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 12mm 12V Ring Light Self-Lock Non-Momentary Metal Push-button Switch-Blue Light is a versatile metal push button switch used across a wide range of applications including industrial control panels, automotive dashboards, outdoor enclosures, marine electronics, and professional equipment.
Common use cases:
- Adding a waterproof power switch to an outdoor enclosure
- Building a professional-looking control panel
- Replacing a corroded switch in marine equipment
This product is ideal for industrial designers and professional equipment builders.
Technical Tip: IP65/IP67-rated metal switches are waterproof. LED ring illumination helps visibility in dark environments. Check panel cutout diameter before ordering.
