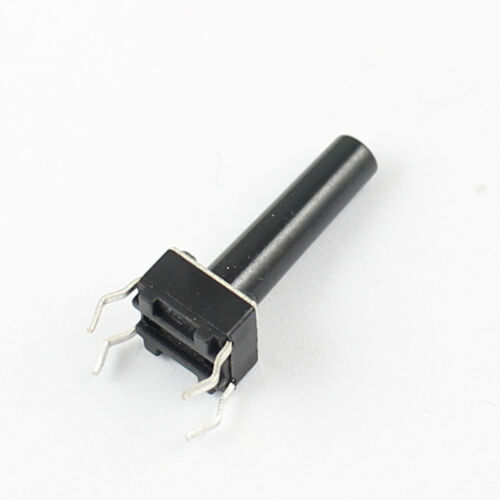

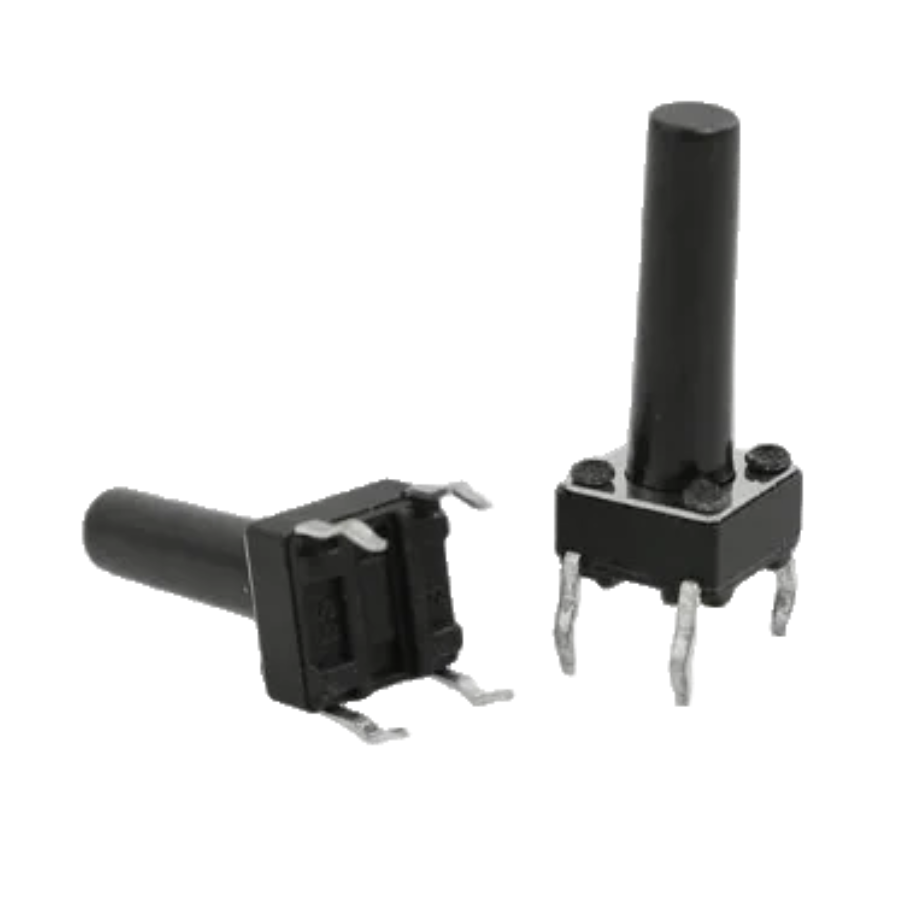

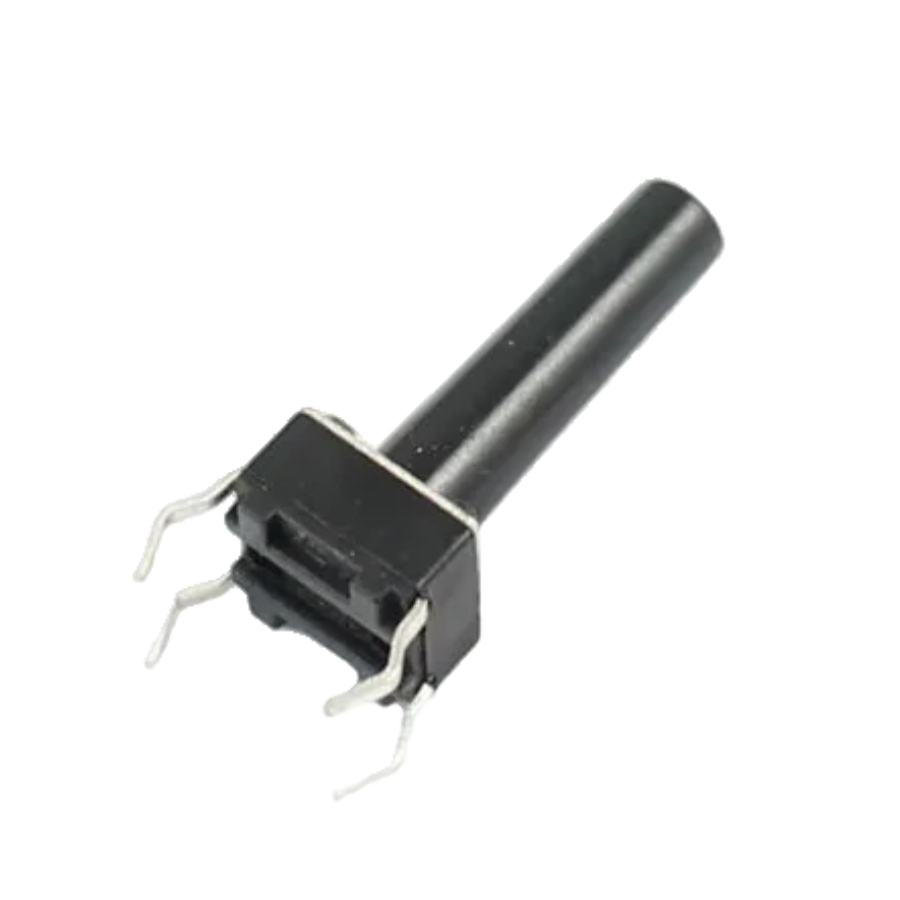

Tactile Push Button Switch 6x6x16MM
The 6x6x16mm Tactile 4 Pin Push Button Switch serves as a common input button in electronic projects, finding wide application across various industries. It is most effectively utilized when mounted on a PCB, although it can also be employed on a solderless breadboard for provisional connections during prototyping phases. By default, the pins remain open (disconnected); however, upon pressing the button, they momentarily close to establish a circuit connection.
This tactile switch is built with reliable dome contact technology, ensuring robust performance and providing strong tactile feedback to users. Additionally, it offers flexibility in terms of operating forces, allowing users to select the most suitable option for their specific needs. Its versatility makes it suitable for use in telecommunications, consumer electronics, audio/visual equipment, medical devices, testing and instrumentation setups, as well as computer peripherals.
Whether you’re designing new electronic systems or troubleshooting existing ones, the 6x6x16mm Tactile 4 Pin Push Button Switch proves to be a dependable and versatile component for facilitating user interactions and circuit connections in diverse applications.
Features:
- Through-hole design.
- High operating force (1.5N or 2.5N) suited to automotive equipment requirements.
- The long life of 300,000 cycles realized despite the high operating force.
- Middle stroke (1.05mm)
- Used in the fields of electronic products, household appliances and more.
-
This light touch switch is waterproof, prevent oil, anti-pollution, anti-static interference.
-
High precision mechanism design offers acute operation and long service life.
-
Compact and lightweight, easy to carry and dismantling.
-
Good electrical conductivity.
Specifications:
| Operating Voltage (VDC) | 12 |
| Max. Operating Current (mA) | 50mA |
| On/Off Function | Push to ON |
| Switch Type | Momentary |
| Contact Type | Through-hole |
| Contact Material | Brass |
| Contact Resistance | 50mΩ |
| Insulation Resistance (MΩ) | 100 |
| Operating Temperature Range (°C) | -20 to 70 |
| Operation Force | 1.56 +/- 0.5 N |
| Operation Stroke | 0.25+0.2/-0.1mm |
| Body Material | Plastic |
| Mech. & Electrical Lifecycle | 50000 |
| Protection Standard | IP65 |
Package Include:
1 x Tactile Push Button Switch 6x6x16MM (Pack of 20)
Technical Specifications
| Dimensions | 6x6x16mm |
|---|---|
| Package Quantity | 6 pcs |
| SKU | AI3997 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The Tactile Push Button Switch 6x6x16MM (Pack of 20) is a versatile plastic push button switch used across a wide range of applications including breadboard prototyping, control panels, toys and gadgets, appliance interfaces, and PCB mounting.
Common use cases:
- Adding user input to an Arduino project
- Building a game controller
- Prototyping a product interface on a breadboard
This product is ideal for electronics students, hobbyists, and prototype builders.
Technical Tip: Use a 10K pull-down resistor with push buttons connected to microcontroller inputs to prevent floating pin issues.
