Tactile Push Button Switch 6x6x12MM (Pack of 20)

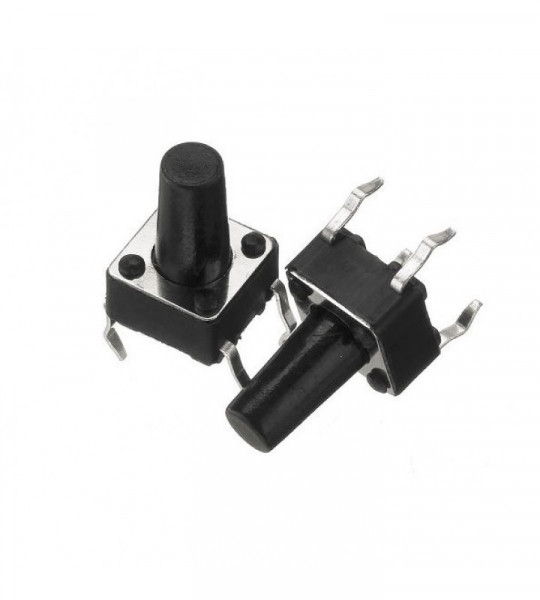

Tactile Push Button Switch 6x6x12MM

6x6x12mm Tactile 4 Pin Push Button Switch is widely used as a standard input button on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.

This tact switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.

Features :

1. Through-hole design.
2. High operating force (1.5N or 2.5N) suited to automotive equipment requirements
3. The long life of 300,000 cycles realized despite the high operating force
4. Middle stroke (1.05mm)
5. Used in the fields of electronic products, household appliances and more.
6. This light touch switch is waterproof, prevent oil, anti-pollution, anti-static interference.
7. High precision mechanism design offers acute operation and long service life.
8. Compact and lightweight, easy to carry and dismantling.
9. Good electrical conductivity.

 Specifications:

PACKAGE INCLUDES

1 X Tactile Push Button Switch 6x6x12MM(Pack of 20)

Tactile Push Button Switch 6x6x12MM Overview

The Tactile Push Button Switch 6x6x12MM is a compact, through-hole momentary switch provided in a pack of 20. It delivers reliable tactile feedback with a 1.05 mm stroke and a lifespan of up to 300,000 cycles, making it suitable for automotive-grade and consumer-grade electronic applications.

Key Features of Tactile Push Button Switch 6x6x12MM

• Compact 6×6×12 mm through-hole design for PCB mounting or breadboard prototyping
• Selectable operating force: 1.5 N or 2.5 N for precise tactile feedback
• Middle stroke of 1.05 mm and dome contact technology for consistent actuation
• High durability: rated for 300,000 cycles under high-force operation
• Sealed against water, oil and dust ingress; resists pollution and static interference
• Genuine product with fast shipping from Zbotic

Applications and Use Cases

• Prototype input buttons on Arduino or Raspberry Pi projects
• Control panels in automotive dashboards and in-vehicle electronics
• User interface switches for consumer electronics and handheld devices
• Key inputs on medical devices and diagnostic instruments
• Audio/visual equipment button controls and menu navigation
• Push-button testing in lab instrumentation and calibration rigs

How to Use Tactile Push Button Switch 6x6x12MM

Insert the four pins into the PCB or breadboard grid, ensuring the switch body is seated flush. Solder each lead securely on the PCB or use jumper wires on a breadboard. Press the actuator to close the circuit momentarily—release to open. Choose the 1.5 N or 2.5 N variant based on desired tactile resistance.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Can I mount these switches on a solderless breadboard?

Yes. Although designed for through-hole PCBs, the 0.5 mm pins fit standard solderless breadboards for quick prototyping and testing.

How do I choose between the 1.5 N and 2.5 N operating force options?

Use the 1.5 N version for lighter, fingertip-friendly applications; choose 2.5 N if you need firmer feedback or automotive-grade resistance.

Are these switches waterproof and dustproof?

They feature a sealed actuator design that prevents water, oil and dust ingress, and offers anti-pollution and anti-static interference protection.
