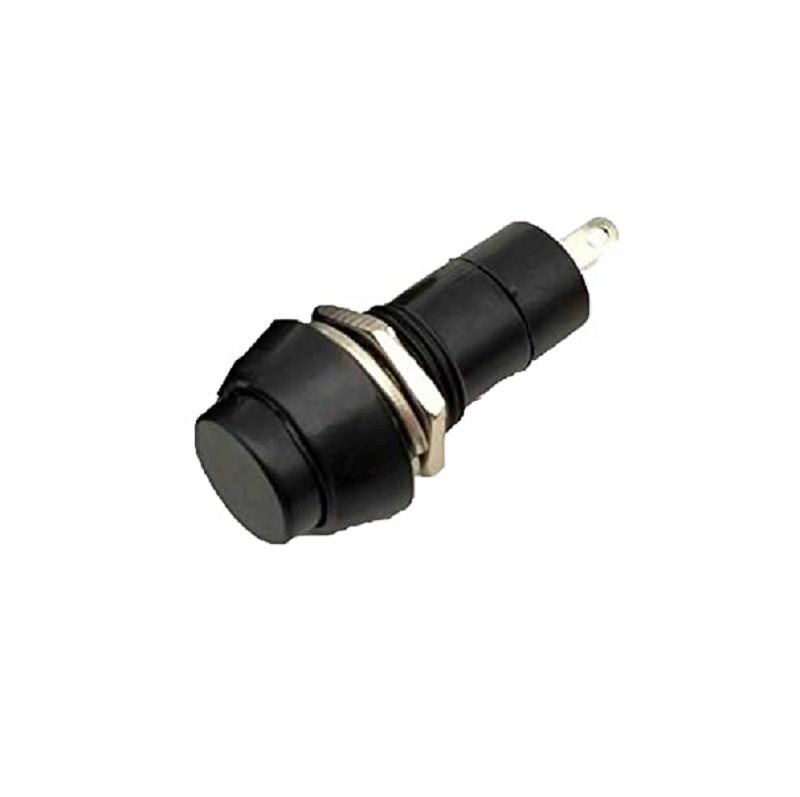

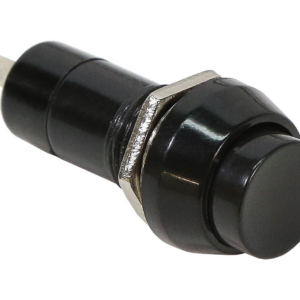

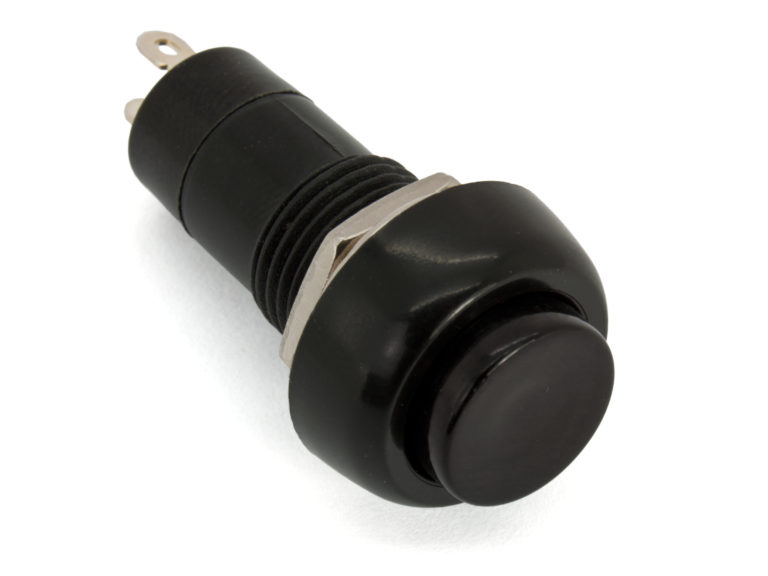

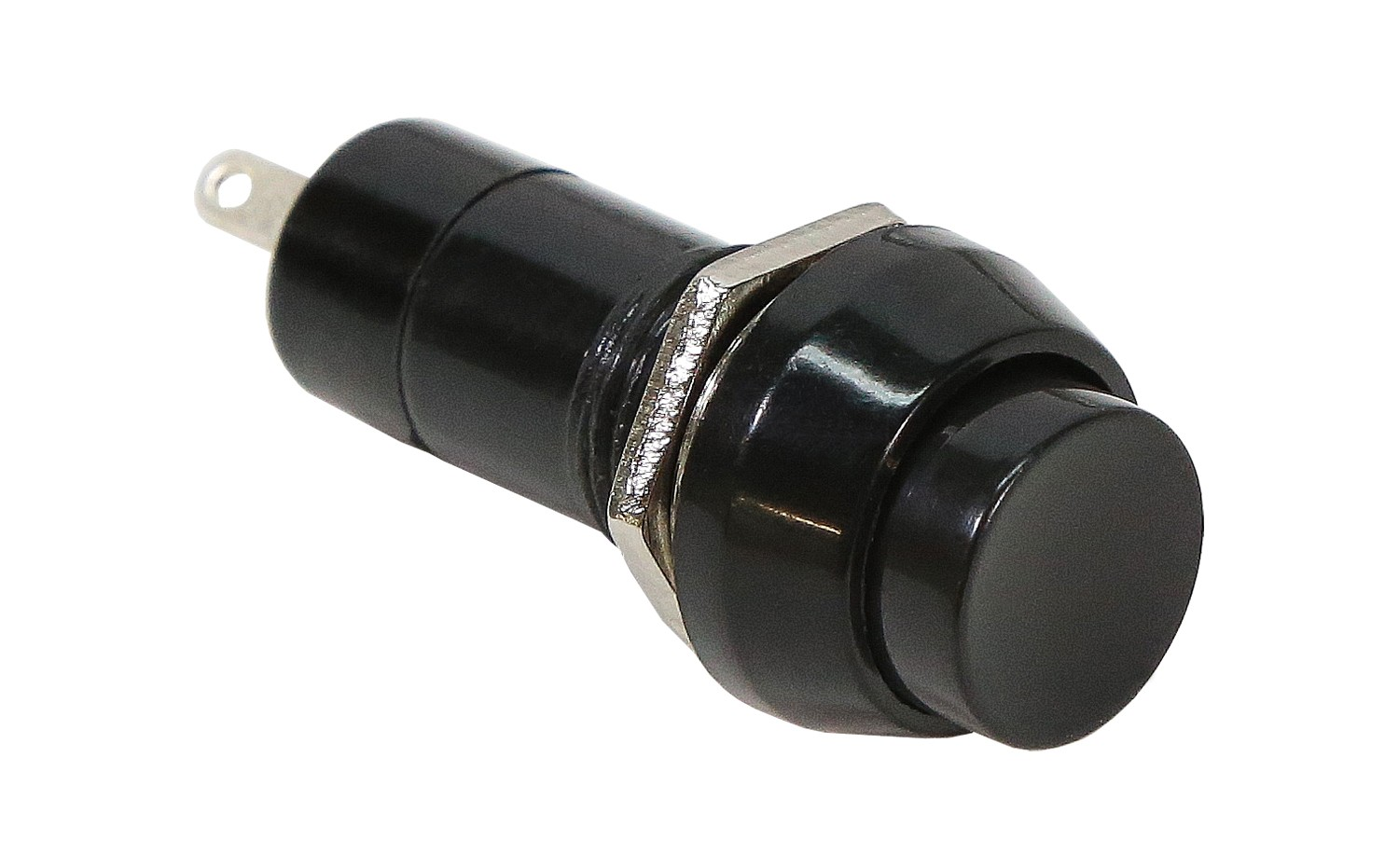

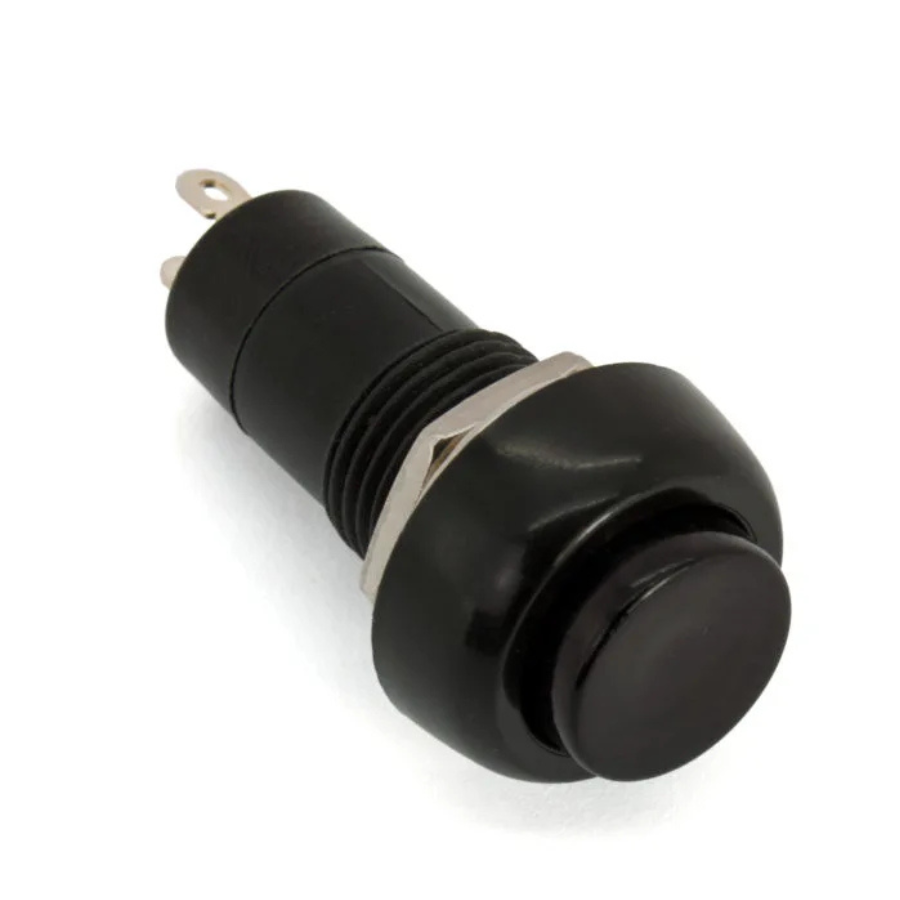

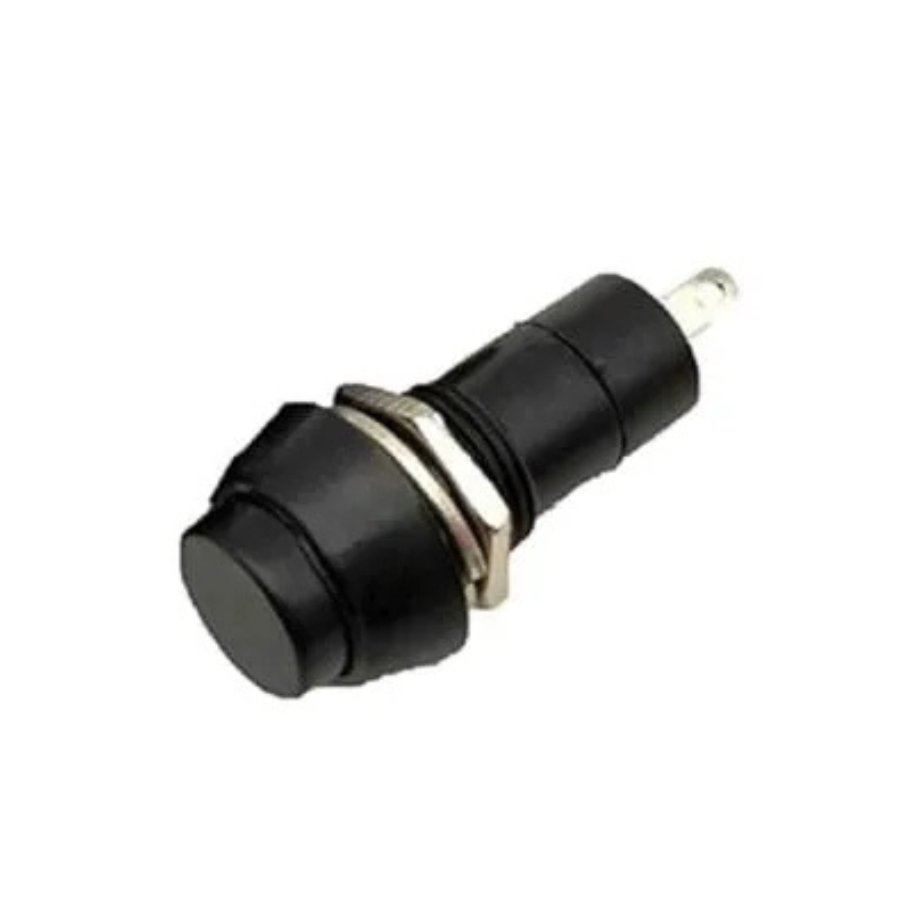

This is the Black variant of the Black PBS-11A 12MM 2PIN Self-Locking Round Plastic Push Button Switch in Plastic Push Button Switch, Electronic Switches. Available at ₹18.05 (₹15.30 + GST) with free shipping across India.
Looking for Pbs-11a Switch 11a? Black PBS-11A 12MM 2PIN Self-Locking Round Plastic Push Button Switch is available at Zbotic with fast shipping across India.
PRODUCT DESCRIPTION
A momentary switch is a type of switch that only allows electric current to flow when it is pressed. It is commonly used in controller panels, push-button telephones, kitchen appliances, magnetic locks, and many other mechanical and electronic devices in homes and industries.
A push button is a simple example of a momentary switch. It is a metal or thermoplastic switch that provides easy access to the user. Electric circuits are designed to allow electricity to flow continuously through wires and components. However, some circuits are more useful when they can be turned on and off as needed.
A push-button switch is widely used as an operating device in various electric circuits, devices, and machines in homes and industries. The switch can control circuits by turning on and off loads such as contactors, motors, relays, etc. It is a push-on release-off type of switch.
Note: Image may vary from actual product in terms of design, color and brand printed
Features:
- Easy to use
- Best for your DIY projects
- Self-locking/Latching Self-reset
- Good electrical conductivity
- This is Momentary type push-button switch
Specification:
| Function | Momentary |
|---|---|
| Model No. | PBS-11A |
| Operating Voltage(V) | 250V 1.5A, 125V 3A |
| Material | Plastic |
| Color: | Black |
| Terminals | 3 pin |
| Temperature | -25°C to 85°C |
| Dimensional Accuracy (mm) | 12mm |
| Shipping Weight | 0.003 kg |
| Shipping Dimensions | 5 × 5 × 2 cm |
Packages Includes:
1 x Black PBS-11A 12MM 2PIN Self-Locking Round Plastic Push Button Switch
Black PBS-11A 12MM 2PIN Self-Locking Round Plastic Push Overview
The Black PBS-11A is a 12 mm round plastic push-button switch with two pins and momentary action. Designed for panels and control interfaces, it allows current flow only while pressed, making it ideal for on-off signalling in electronic assemblies.
Key Features of Black PBS-11A 12MM 2PIN Self-Locking Round Plastic Push
- 12 mm diameter panel mount for standard cutouts
- Two-pin SPST design for simple on/off control
- Durable black thermoplastic housing and actuator
- Momentary (self-reset) action for pulse-driven circuits
- Lightweight construction with reliable contacts
- Fast shipping across India from Zbotic
Applications and Use Cases
- Control panels in industrial automation and test rigs
- Kitchen appliance interfaces (toaster, blender start buttons)
- Door-release or magnetic lock activation switches
- DIY electronics projects and robotics control boards
- Push-button telephone handsets or intercoms
- Audio equipment start/stop and reset functions
How to Use Black PBS-11A 12MM 2PIN Self-Locking Round Plastic Push
Drill a 12 mm hole in your panel, insert the switch until the bezel snaps in place, then solder or crimp your positive and negative wires to the two terminals. Pressing the button completes the circuit; releasing it breaks the connection automatically.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What panel hole size do I need for the PBS-11A?
This switch requires a 12 mm diameter panel cutout for secure mounting.
Can I use the PBS-11A on both AC and DC low-voltage circuits?
Yes, the SPST two-pin design works with most low-voltage AC or DC control circuits without polarity concerns.
Does the switch stay locked when pressed?
No, the PBS-11A is a momentary self-reset button—it only conducts while you hold it down and returns to off when released.
Technical Specifications
| Model | PBS-11A |
|---|---|
| Current Rating | 11A |
| Size | 12mm |
| Pin Count | 2-pin |
| Color | Black |
| SKU | AI3091 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The Black PBS-11A 12MM 2PIN Self-Locking Round Plastic Push Button Switch is a versatile plastic push button switch used across a wide range of applications including breadboard prototyping, control panels, toys and gadgets, appliance interfaces, and PCB mounting.
Common use cases:
- Adding user input to an Arduino project
- Building a game controller
- Prototyping a product interface on a breadboard
This product is ideal for electronics students, hobbyists, and prototype builders.
Technical Tip: Use a 10K pull-down resistor with push buttons connected to microcontroller inputs to prevent floating pin issues.
