Looking for Original Naza V2 Gps? Original NAZA M V2 & GPS Combo is available at Zbotic with fast shipping across India.
DJI NAZA-M V2 Multirotor Autopilot Controller set With GPS Supports nine multi-rotor configurations, the DJI NAZA-M V2 Multirotor Autopilot Controller set With GPS acts as the brains of the aircraft, managing pilot input and interpreting data from the various sensors, helping maintain a stable flying condition. There are four components to the system.

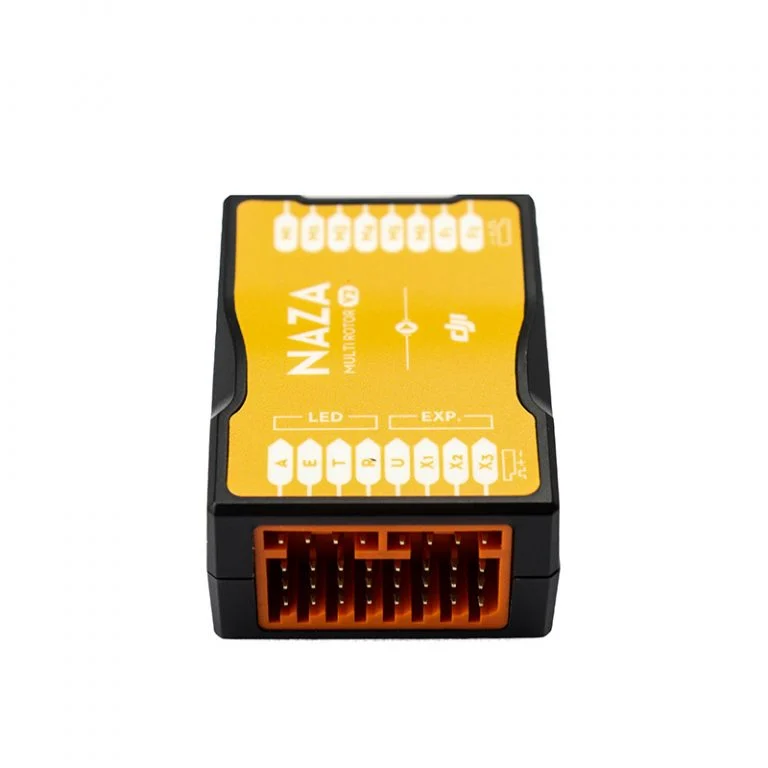

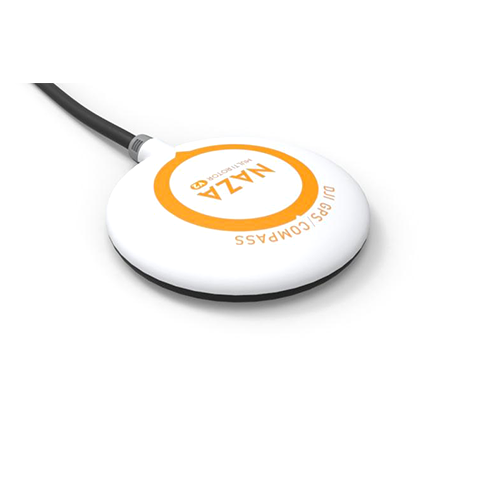

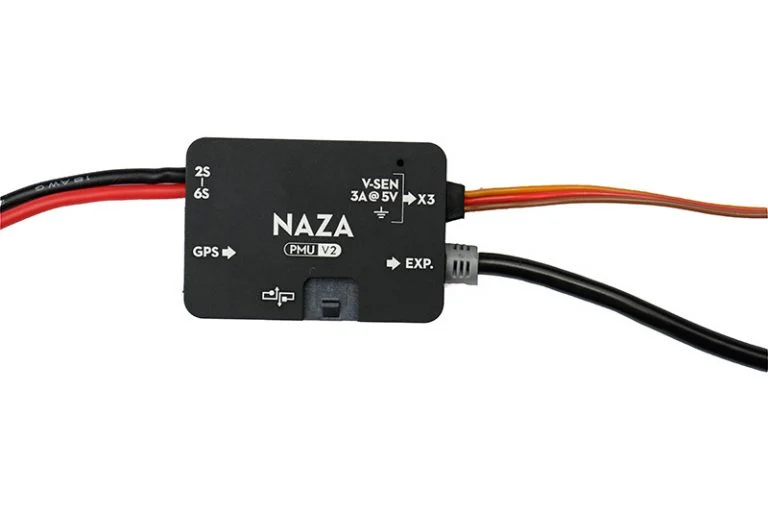

The MC (main controller) houses the flight computer and is at the heart of the flight control system. Then there is the PMU (power management unit), which serves to regulate how much power is sent to each of the four, six, or eight rotors. Finally, a GPUs receiver/compass combo is included, which enables a number of features, including Intelligent Orientation Control (IOC) and the Go Home failsafe.
CAN-Bus ports on the MC allows the Naza-M to interface with a number of DJI accessories, including the Ground Station System, the iOSD Module, or a gimbal control unit (GCU).
What’s the difference of NAZA-M Lite/ NAZA-M V1/ NAZA-M V2 :
|
Product |
Target Customer |
Hardware |
Software |
Function Extension Ability |
Major Components |
| NAZA-M Lite | AP/RC entry level | Based on NAZA V1 platform; no extension ability | NAZA lite Independent assistant software and firmware; | 1.GPS (Optional) 2.No extended function (does not support NAZAV2-PMU, Zenmuse H3-2D/NAZA OSD/NAZA BT module/IOSD) |
MC GPS（optional） BEC/LED（Will have independent BEC and LED in the future） |
| NAZA-M V1 | AP/RC hobbyist | Can be connected to the NAZA V2-PMU, and will have the NAZA-M V2 expansion function; | Share the same NAZAM V2 assistant software and firmware; | 1.GPS (Optional) 2.Function extension through NAZAV2-PMU: such as Zenmuse H3-2D/NAZA OSD/NAZA BT module/IOSD/Ground Station |
MC GPS（optional） BEC/LED |
| NAZA-M V2+GPS Combo | AP/RC hobbyist | Optimized hardware structure; Independent PMU module with amazing function extension ability; Independent LED module; |
Amazing function extension：such as Zenmuse H3-2D/NAZA OSD/NAZA BT module/IOSD/Ground Station | MC GPS NAZAPMU V2 LED |
Features :
- All-In-One Compact Multi-Rotor Autopilot System
- New Assistant Software for Smartphones
- Supported Multi-rotors Quad-rotor: I4, X4
- Hex-rotor: I6, X6, IY6, Y6
- Octo-rotor I8, V8, X8
- Free Ground Station
- Take-Off Assistance
- Multiple Flight Control Modes and Intelligent Switching
- GPS Module Available for Accurate Position Stabilization
- Intelligent Orientation Control (IOC)
- Supports General, PPM, and S-Bus Receivers
- Arm/Disarm Modes for Safe Motor Starting
- 2-Axis Gimbal Stabilization
- Two Levels of Low Voltage Warnings and Protection
- Single Motor Failure Protection
- Supported ESC Output 400 Hz refresh frequency
- Supported Transmitters PCM or 2.4 GHz radio with at least 4 channels
- Supports Remote Gain Adjustment from the Transmitter
- Enhanced Failsafe Features, Including Auto Return-to-Home
- Compatible with DJI Video Downlink, iOSD, Ground Station, ZH4-3D/H3-3D Gimbals, and Future Products
- Supports 9 Different of Multi-Rotor Configurations, Ideal for DJI F450/F550 and E Series Tuned Propulsion Systems
System Requirements:
- Assistant Software Windows: 8, 7, XP SP3
- OS X: 10.6 or later
- Mobile: iPhone 4s, iPhone 5, iPod touch 5, iPad mini, iPad 4
Flight Performance:
- Hovering Accuracy (GPS Mode) Vertical: ±2.6′ / ±0.8 m
- Horizontal: ±8.2′ / ±2.5 m
- Max Angular Speed 200°/s
- Max Tilt Angle 35°
- Ascent/Descent Ascent: 19.7 ft/s / 6 m/s
- Descent: 14.8 ft/s / 4.5 m/s
specification-
| Model | DJI NAZA-M V2 |
|---|---|
| Input Voltage (V) | MC: 4.8 to 5.5 V VU: 7.4 to 26.0 V (2S to 6S LiPo recommended) |
| Power Consumption (Watt) | 1.5 |
| Operating Temperature Range (°C) | -10 to 50 |
| Firmware | NAZAM V2 |
| Weight (gm) | MC: 27 g PMU: 28 g GPS: 27 g |
| Dimensions (mm) LxWxH | MC: 45.5 x 32.5 x 18.5 mm PMU: 39.5 x 27.5 x 10 mm GPS & Compass: 46 (diameter) x 10 mm |
| Micro-SD Card Slot | No |
| Shipping Weight | 0.14 kg |
| Shipping Dimensions | 10 × 10 × 8 cm |

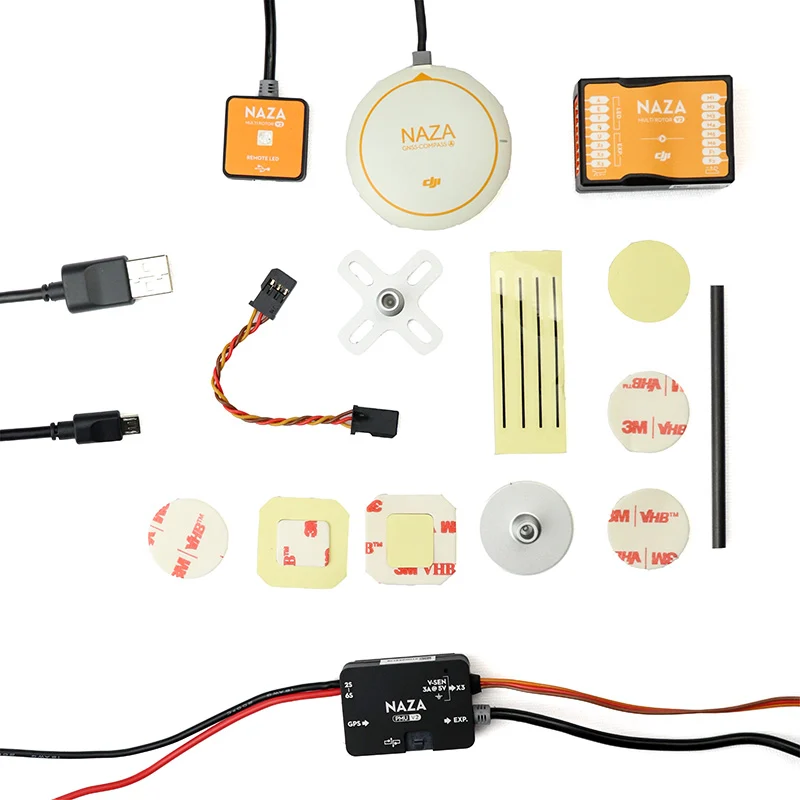

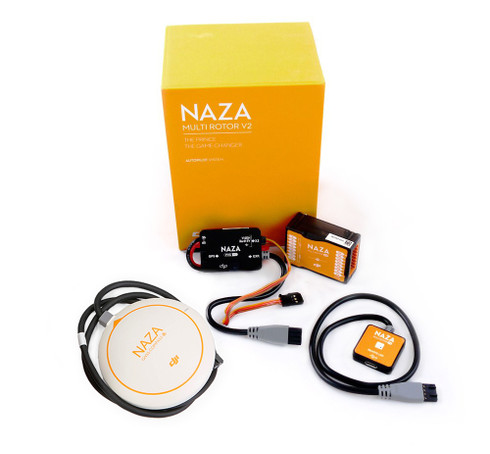

Package Includes :
1 x Main Controller Unit.
1 x Power Management unit.
8 x Servo cable.
1 x LED Module.
1 x Micro USB Cable.
2 x Adhesive Tape.
1 x GPS Module.
Original NAZA M V2 & GPS Combo Overview
The Original NAZA M V2 & GPS Combo from DJI is a comprehensive multirotor autopilot controller set designed for hobbyist and professional UAV builders. It integrates a flight computer, power management unit, and GPS/compass module to maintain stable flight and precise navigation across nine supported rotor configurations.
Key Features of Original NAZA M V2 & GPS Combo
- Supports nine multirotor layouts (quad-, hexa-, octo-rotor, etc.) for versatile drone designs
- Input voltage range 4.8 V–5.5 V (compatible with 2S–6S LiPo batteries)
- ESC output refresh frequency up to 400 Hz for responsive motor control
- Supports PCM or 2.4 GHz radio transmitters with at least 4 channels
- Low power consumption, max 1.5 W (0.3 A at 5 V) during operation
- Wide operating temperature range from –10 °C to 50 °C for indoor and outdoor flights
- Includes Main Controller (MC), Power Management Unit (PMU) and GPS/compass receiver
- Fast shipping from Zbotic across India
Applications and Use Cases
- Aerial photography and videography platforms requiring stable hover and GPS position hold
- Surveying and mapping drones for agricultural or construction site analysis
- Search-and-rescue multirotors needing precise waypoint navigation and return-to-home
- Educational and research UAV projects focusing on flight control algorithms
- Custom-built hobby drones for professional-grade flight performance
- Inspection drones for infrastructure, power lines and rooftops using autopilot modes
How to Use Original NAZA M V2 & GPS Combo
Mount the MC and PMU centrally on your drone frame, wire your ESCs and flight battery to the PMU, then attach the GPS/compass module away from electromagnetic interference. Connect your transmitter’s receiver to the MC ports, power on and use DJI Assistant software to calibrate sensors, set flight modes and verify GPS lock before takeoff.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What components are included in the NAZA M V2 & GPS Combo?
The combo includes the Main Controller (MC), Power Management Unit (PMU) and the GPS/compass receiver module required for stable flight and navigation.
Which battery voltage does this controller support?
The system accepts an input voltage of 4.8 V to 5.5 V, making it compatible with 2S to 6S lithium-polymer batteries.
How many rotor configurations can I set up?
The NAZA M V2 supports up to nine different multirotor layouts, including quadcopter, hexacopter and octocopter configurations.
